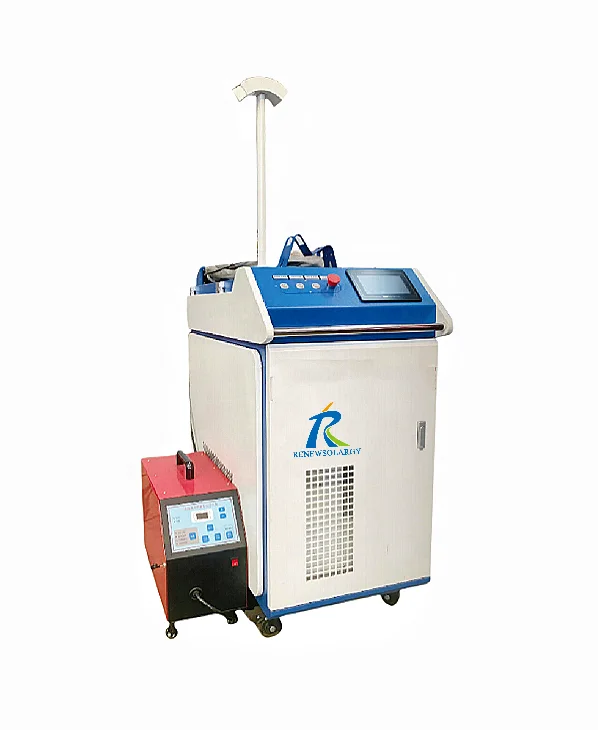

1000W/1500W/2000WThree in one Handheld Laser Welding Machine , Fiber Laser Welding ,Fiber Laser Cutting Machine
1000W/1500W/2000WThree-in-one Handheld Laser Welding Machine , Fiber Laser Welding ,Fiber Laser Cutting Machine
1000W/1500W/2000WThree-in-one Handheld Laser Welding Machine , Fiber Laser Welding ,Fiber Laser Cutting Machine

1000W/1500W/2000WThree in one Handheld Laser Welding Machine , Fiber Laser Welding ,Fiber Laser Cutting Machine

Share on (1600834801511):


Price:$9,899.00

Quantity:


Product Overview

Description



Application

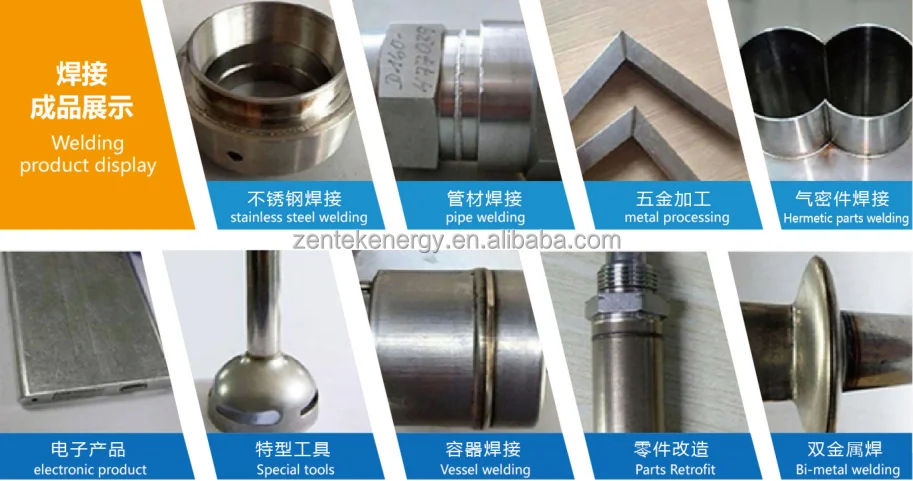

Handheld fiber laser welding machine uses a new generation of generatorwith simple operation, beautiful welding seam, fast welding speed and withoutwelding consumable,which can weld Stainless sheet steel,iron sheet, galva-nized sheet，aluminum sheet and other metal materials. It is widely used incabinet kitchen and bathroom, advertising industry, mold, stair elevator, shelf,stainless steel doors and windows guardrail, distribution box, auto parts indus-try, stainless steel processing and other industries of welding processing.




Technical Parameters


Model
CSP1000/1500/2000
Laser Wavelength
1065nm
Laser Power
1000W/1500W/2000W
Working Mode
Continuous/Modulated
Welding Speed Range
0-120mm/s
 Laser Cooling
Industrial constant temperature water tank
Cable Length
Standard 10m
Power of the whole machine
≤7KW
 Power Supply
220V 50/60Hz
Welding Depth
Stainless steel, Carbon Steel, Aluminum Alloy 0.5-4mm
Weight of whole Machine
260kg








Advantage


1. Wide welding range: the hand-held welding head is equipped with 5m-10M original optical fiber, which overcomes the limitation of the workbench space and can be used for outdoor welding and long-distance welding;

2. Convenient and flexible to use: Hand-held laser welding is equipped with moving pulleys, which is comfortable to hold and can adjust the station at any time without fixed-point stations. It is free and flexible, and is suitable for various working environment scenarios.

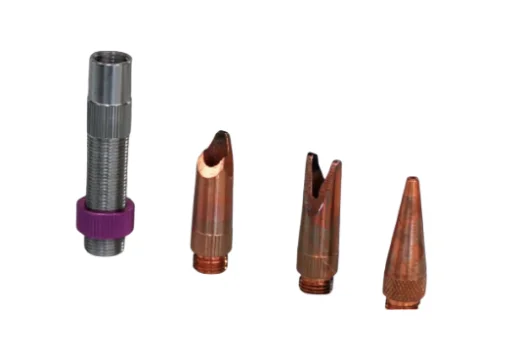

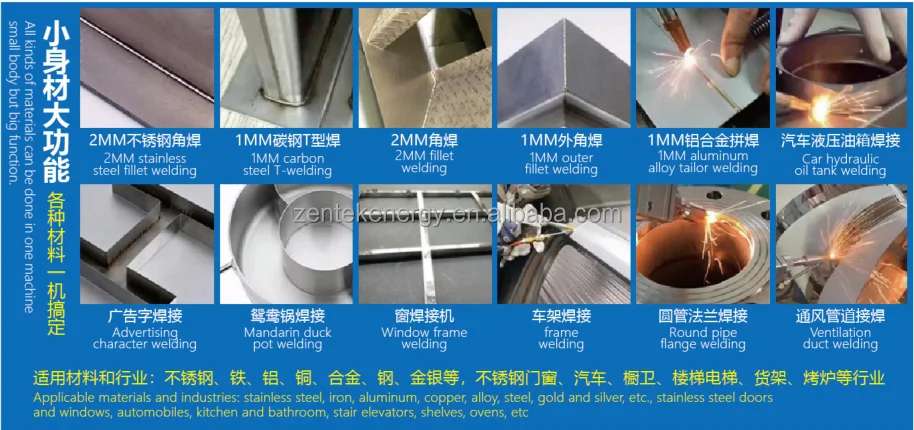

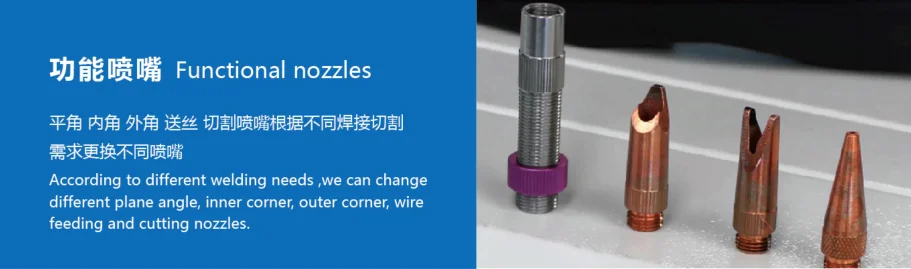

3. A variety of welding methods: welding at any angle can be realized: lap welding, butt welding, vertical welding, flat fillet welding, inner fillet welding, outer fillet welding, etc., and can be used for workpieces with various complex welds and irregular shapes of larger workpieces welding. Realize welding at any angle. In addition, he can also complete the cutting, welding and cutting can be switched freely, just change the welding copper nozzle to the cutting copper nozzle, which is very convenient.




FAQ


1.Is the welding efficiency of the machine high?
-Handheld laser welding is fast, more than 2 times faster than argon arc welding, and can easily double the production efficiency on the basis of saving 2 welding workers.


2.Is the welding effect of the machine good?
-Hand-held laser welding is hot-melt welding/optical fiber welding. Compared with traditional welding, laser welding has higher energy density and can achieve better welding results. The welding area has little thermal influence, is not easy to deform, blacken, and has traces on the back. The welding depth is large, the melting is sufficient, firm and reliable, and the strength of the weld reaches or even exceeds the steel itself, which cannot be guaranteed by ordinary welding machines


We have exported our machines to Greece, India, Uzbekistan, Egypt, UAE, Turkey and Mexico, Brazil, south Africa, Latin America etc. and have established cooperation with Supreme Solar, A.O. Smith, Havells, Nuetech Solar, Haier Solar etc..
