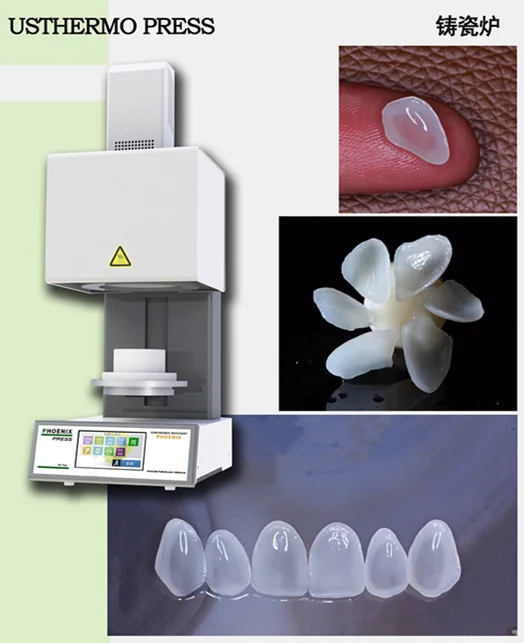

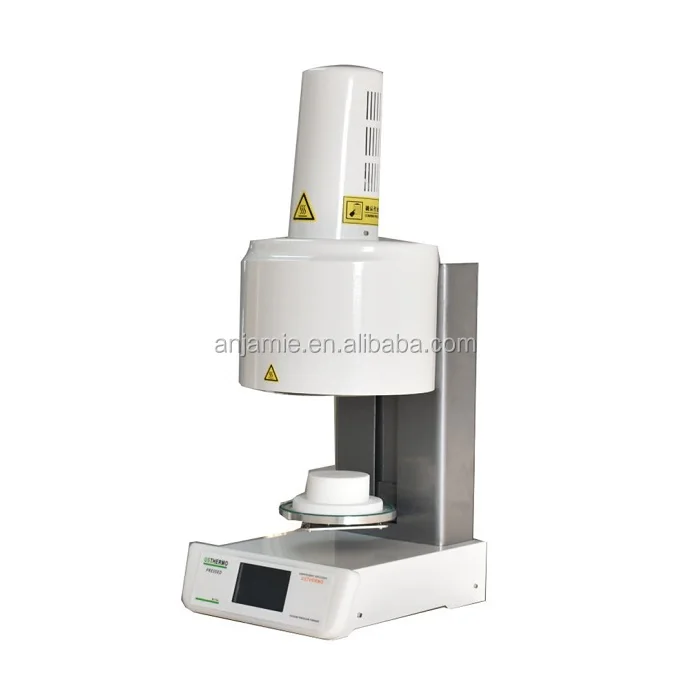

1500W Dental Porcelain Press Oven for IPS E.max Glass Ceramic
- Category: >>>
- Supplier: Tianjin Anjamie Trade Co. Ltd.
Share on (1600834869758):
Product Overview
Description
Product Description
THE FUNCTIONS OF PROCELAIN FURNACE PRESS:
* Motor driven die casting mode, no gas source, constant pressure, adjustable speed, high success rate of die casting.
* Fully compatible with the function of porcelain furnace, it can automatically switch to porcelain furnace mode or porcelain casting furnace mode according to the selected program.
* Voice prompt function.
* High quality temperature automatic adjustment function, to ensure that the actual temperature error within + / - 1 degrees.
* Precision stepper motor drive, smooth free operation and no jitter.
* Quartz spiral furnace.
* Automatic temperature calibration before each baking procedure.
* Low noise tray, programmable speed.
* True color touch screen, easy to operate.
* 50 custom programs and built-in programs.
* Status indication.
* The die-casting pressure can be adjusted.
* Crack detection function.
* Die casting distance display
* Motor driven die casting mode, no gas source, constant pressure, adjustable speed, high success rate of die casting.
* Fully compatible with the function of porcelain furnace, it can automatically switch to porcelain furnace mode or porcelain casting furnace mode according to the selected program.
* Voice prompt function.
* High quality temperature automatic adjustment function, to ensure that the actual temperature error within + / - 1 degrees.
* Precision stepper motor drive, smooth free operation and no jitter.
* Quartz spiral furnace.
* Automatic temperature calibration before each baking procedure.
* Low noise tray, programmable speed.
* True color touch screen, easy to operate.
* 50 custom programs and built-in programs.
* Status indication.
* The die-casting pressure can be adjusted.
* Crack detection function.
* Die casting distance display
INSTALLMENT AND START UP
INSTALLMENT AND START UP
THE PLACE OF INSTALLMENT
● The Porcelain furnace PRESS must be installed in the dry room,and it must be put at least 25cm
away from the wall.
● If the temperature is below 15 °C (59 ºF) (e.g. after transport), leave the device to stand for approx. 30 minutes before using it for the first time at room temperature. ● Ensure that the device is on a heat-resistant surface. The radiation and heating of the device is in
the non-hazardous range. However, heat- sensitive surfaces of furniture and veneers could
become somewhat discolored over time due to the constant influence of heat. ● Please avoid direct sunlight. ● MUST NOT put flammable around the Porcelain furnace PRESS.
THE PLACE OF INSTALLMENT
● The Porcelain furnace PRESS must be installed in the dry room,and it must be put at least 25cm
away from the wall.
● If the temperature is below 15 °C (59 ºF) (e.g. after transport), leave the device to stand for approx. 30 minutes before using it for the first time at room temperature. ● Ensure that the device is on a heat-resistant surface. The radiation and heating of the device is in
the non-hazardous range. However, heat- sensitive surfaces of furniture and veneers could
become somewhat discolored over time due to the constant influence of heat. ● Please avoid direct sunlight. ● MUST NOT put flammable around the Porcelain furnace PRESS.
CONNECTING THE DEVICE TO THE MAINS POWER SUPPLY
A 、Connect the vacuum pump, power supply and tube connection. B 、Connect the device to the mains power supply using the supplied mains power cable. Avoid connecting to multiple-outlet power strips with extension cords. In the event of overloading, a risk of fire exists. Never start up the device without the firing socket attached!
A 、Connect the vacuum pump, power supply and tube connection. B 、Connect the device to the mains power supply using the supplied mains power cable. Avoid connecting to multiple-outlet power strips with extension cords. In the event of overloading, a risk of fire exists. Never start up the device without the firing socket attached!
PROCELAIN FURNACE PRESS STAND BY MODE INTRODUCTION
Idle temperature：
Idle temperature is Porcelain furnace PRESS not in firing ,a temperature value user hope to it static.The furnace will automatically adjust the idle temperature according to the current mode. Sound:
If sound function on,there will be a beep that press any key.
Idle temperature：
Idle temperature is Porcelain furnace PRESS not in firing ,a temperature value user hope to it static.The furnace will automatically adjust the idle temperature according to the current mode. Sound:
If sound function on,there will be a beep that press any key.
FURNACE HARDWARE (AND ACCESSORIES) INSTRUCTIONS
5.1 FUSES
On the back of the device, there are 2 device fuses. The identification plates show information about the fuse ratings used in the device. Fuses with other ratings must not be used. 230V T8H250V 100/1 10V T20H250V
5.2 FAN
The device is equipped with a fan. Activation, deactivation of the fan are controlled automatically. The fan prevents excessive heating of the device and contributes to its general operating safety. For safety reasons, the device must not be operated without a fan. The upper cover of the firing chamber and the openings in the rear cover must not be closed or blocked. 5.3 SPARE PARTS
Spare parts must comply with the technical requirements determined by the manufacturer. This is always assured when using original spare parts
On the back of the device, there are 2 device fuses. The identification plates show information about the fuse ratings used in the device. Fuses with other ratings must not be used. 230V T8H250V 100/1 10V T20H250V
5.2 FAN
The device is equipped with a fan. Activation, deactivation of the fan are controlled automatically. The fan prevents excessive heating of the device and contributes to its general operating safety. For safety reasons, the device must not be operated without a fan. The upper cover of the firing chamber and the openings in the rear cover must not be closed or blocked. 5.3 SPARE PARTS
Spare parts must comply with the technical requirements determined by the manufacturer. This is always assured when using original spare parts
Parametric | ||
The velocity of temperature increasing | 200C/min max. (392°F /minute) | |
The max temperature | 1200C max(2283°F) | |
The time which can be kept at the max temperature | 2 H | |
Vacuum level | 1-101% | |
ELECTRIC POWER | ||
Operation range | 100- 120V 50/60HZ 230V 50/60HZ | |
Electric current | 14.5ampere@110V 7.0ampere@230V | |
Power | max 1500w | |
TYPICAL SPECIFICATION | ||
WXDXH | width 27cm Depth 36cm Height 70cm | |
Usable measure (firing chamber) | 9cm (3.5”) | |
Net weight | 23Kg | |
Weight include the package | 26.5Kg | |
Specification
item | value |
Place of Origin | China |
Tianjin | |
Brand Name | ANJAMIE |
Model Number | AN-0252 |
Power Source | Electricity |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Plastic |
Shelf Life | 1years |
Quality Certification | CE ISO |
Instrument classification | Class I |
Safety standard | GB/T18830-2009 |
Product name | Porcelain press Furnace |
Material | Plastic Metal |
Color | White |
Usage | Dental Lab |
Type | Dental Equipment |
Package | Carton Box |
Packing | 1pcs/Box |
Certificate | CE ISO |
MOQ | 1pcs |

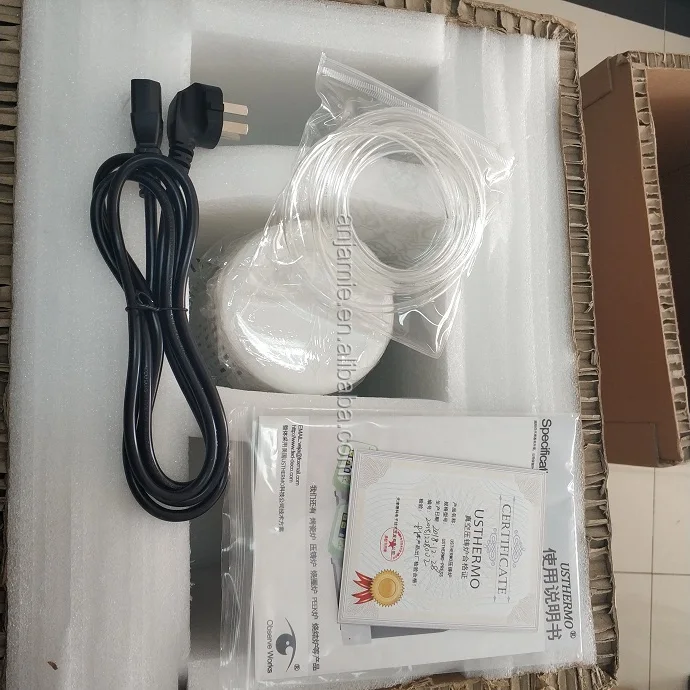

Packing & Delivery
