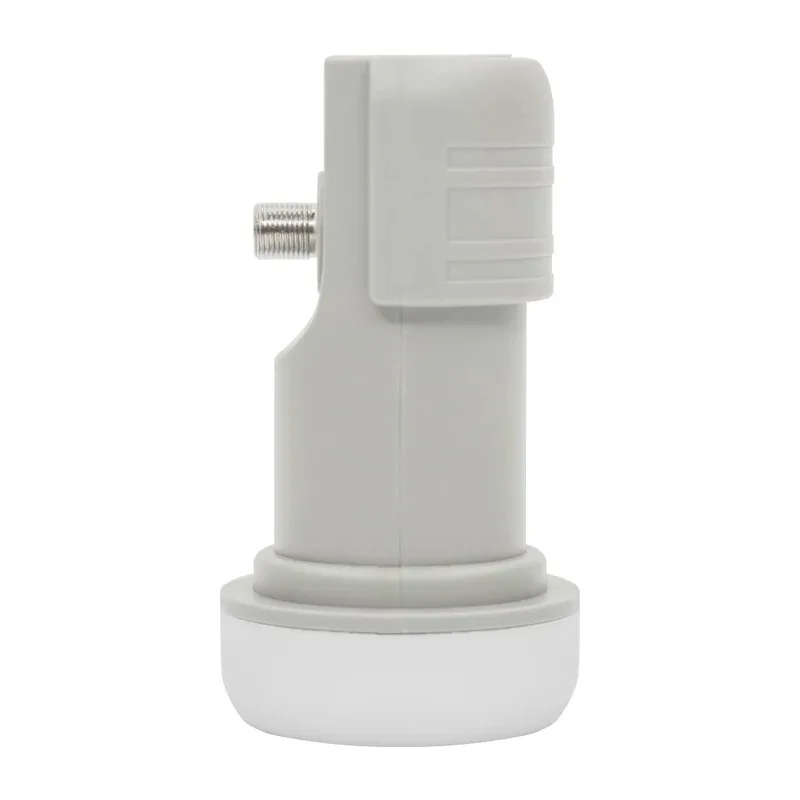

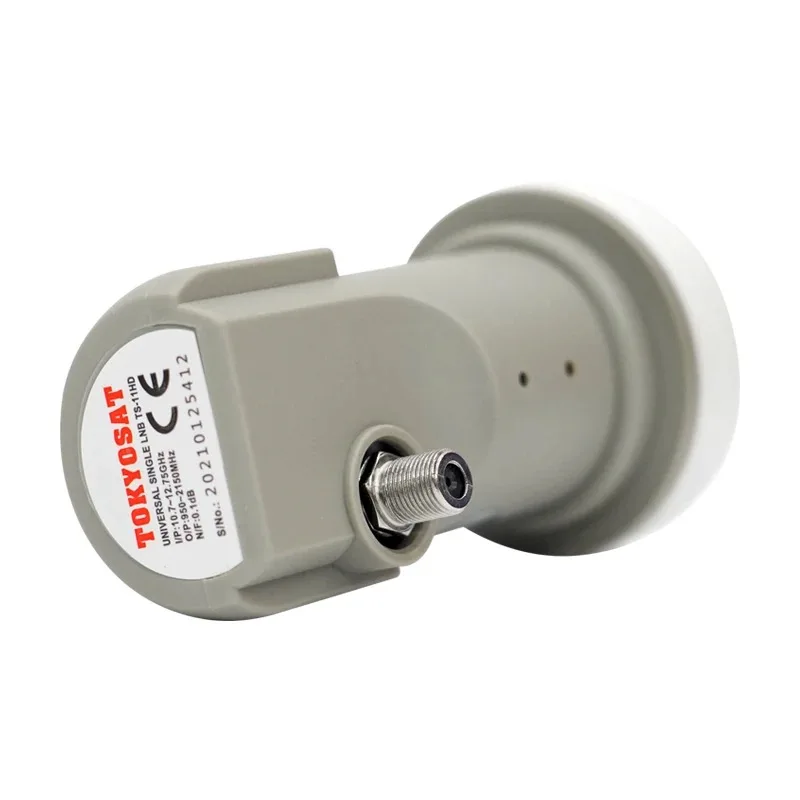

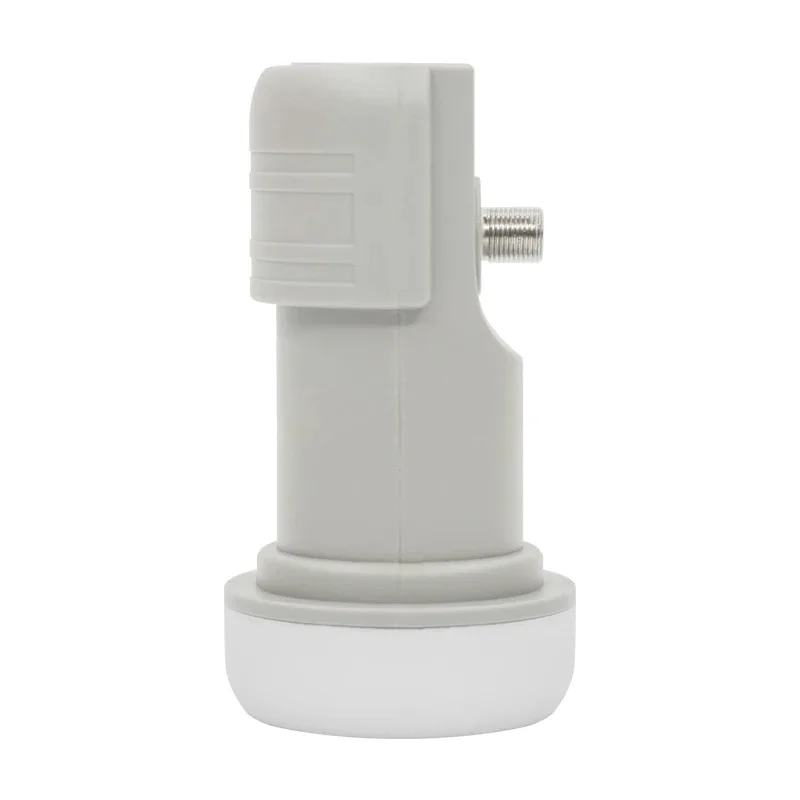

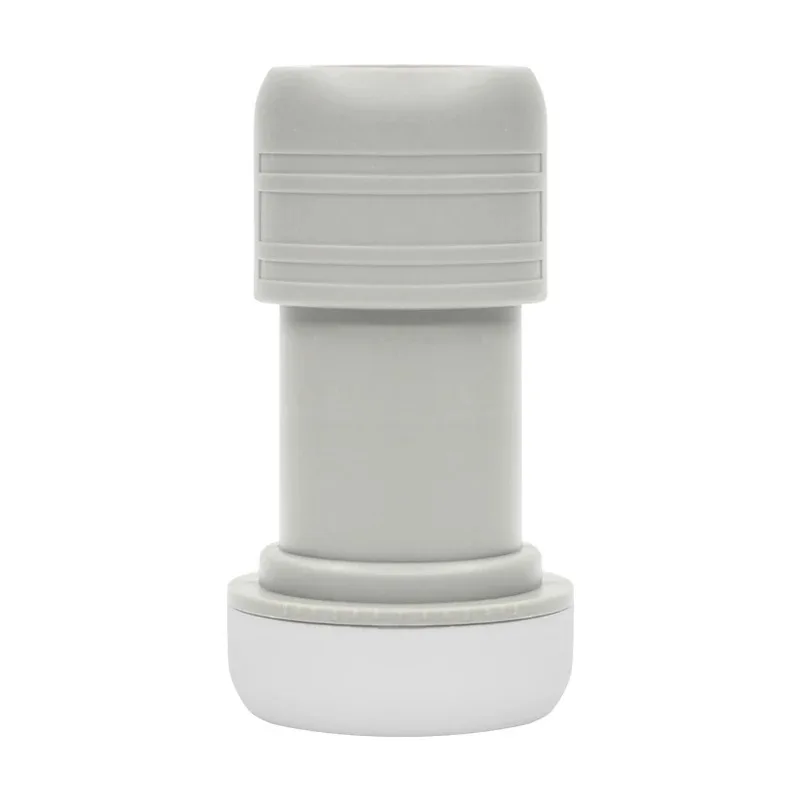

TS 11HD Full High Definition LnbF Lnb Satellite Lnb Ku Band Circular Fuji Lnb
- Category: >>>
- Supplier: Chengdu Weierpai Electronics Co. Ltd.
Share on (1600834890334):
Product Overview
Description
Product Description
Product Name | TS-11HD Universal LNBF |
Material | Plastic, Aluminum alloy, Electronic components |
Function | Receive satellite TV signals |
Package | Color box ,Giftbox, Carton |
Input Freq. Range | Low-Band Min: 10.7GHz Max: 11.7GHz |
High Band Min: 11.7GHz Max: 12.75GHz | |
Output Freq. Range | Low-Band Min: 950MHz Max: 1950MHz |
High Band Min:1100MHz Max:2150MHz | |
L.O. Frequency | Low-Band Typical: 9.75GHz |
High Band Typical: 10.6GHz | |
L.O. Frequency Stability | ±1.0MHz（Max.)@+25℃ |
±2.0MHz（Max.)@-30℃~+70℃ | |
-60dBc/Hz@1KHz | |
-80dBc/Hz@1KHz | |
-100dBc/Hz@1KHz | |
Cross POL.Isolation | 25dB(Typ.） |
Image Rejection | 40dB(Min.） |
P1dB | 0dBm（Min） |
DC Current Consumption | 80mA(Typ.) |
Low Band:0Hz | |
High Band:22KHz±4KHz | |
POL.Switching Voltage | 10.5~14.0V@Vertical |
16.0~20.0v@Horizontal | |
Relative Humidity | 0%~95% |
Operating Temperature | -30℃~+70℃ |
Connector Type | 75Ω Female Connector |
Output VSWR | 2.0：1（Max.） |
Conversion gain | 60-66dB |
Gain Flatness | `+/-0.5 dB/26MHz |
Noise Figure | 0.3dB |
Packing&Shipping
Six small boxes in one big box
Each set of bubble bags
Each set of bubble bags
Carton Size :360*330*330mm
G.W.: 11.6KG QTY: 100PCS
