Descriptive abstract of powder filler:
This type can do dosing and filling work , due to the special professional design,so it is suitable to the fluidec or low-fluidity materials, like condiment ,cosmetic ,coffee powder , solid drink, veterinary drugs ,
dextrose , pharmaceuticals , additive powder ,talcum powder ,agricultur pesticide ,dyestuff ,and so on.
Main features of powder filler:
1. Stainless steel structure , quick di sconnecting hopper could be washed easily without tools.
2. Servo-motor drive auger.
3. PLC,touch screen control
4. Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
5. Save the parameter of different filling weight for different materials. to save 10 sets at most.
6. Replacing the auger parts ,itis suitable for material from super thin powder to granule.
Main technical data of powder filler:
| odel | TDCS-1A-321 | TDCS-1B-321 |
| Packing Weight | 1~500g | 10~5000g |
| Packing Accuracy | ≤100g,≤±2%; 100~500g,≤±1% | ≤100g,≤±2%; 100~500g,≤±1%; ≥500g, ≤±0.5% |
| Filling Speed | 40~120 times per min | 40~120 times per min |
| Power Supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
| Total Power | 0.93kw | 1.4kw |
| Total Weight | 130kg | 260kg |
| Overall Dimension | 800*790*1900mm | 1140*970*2030mm |
| Hopper Volume | 25L(Enlarged size 35L) | 50L(Enlarged size 70L) |

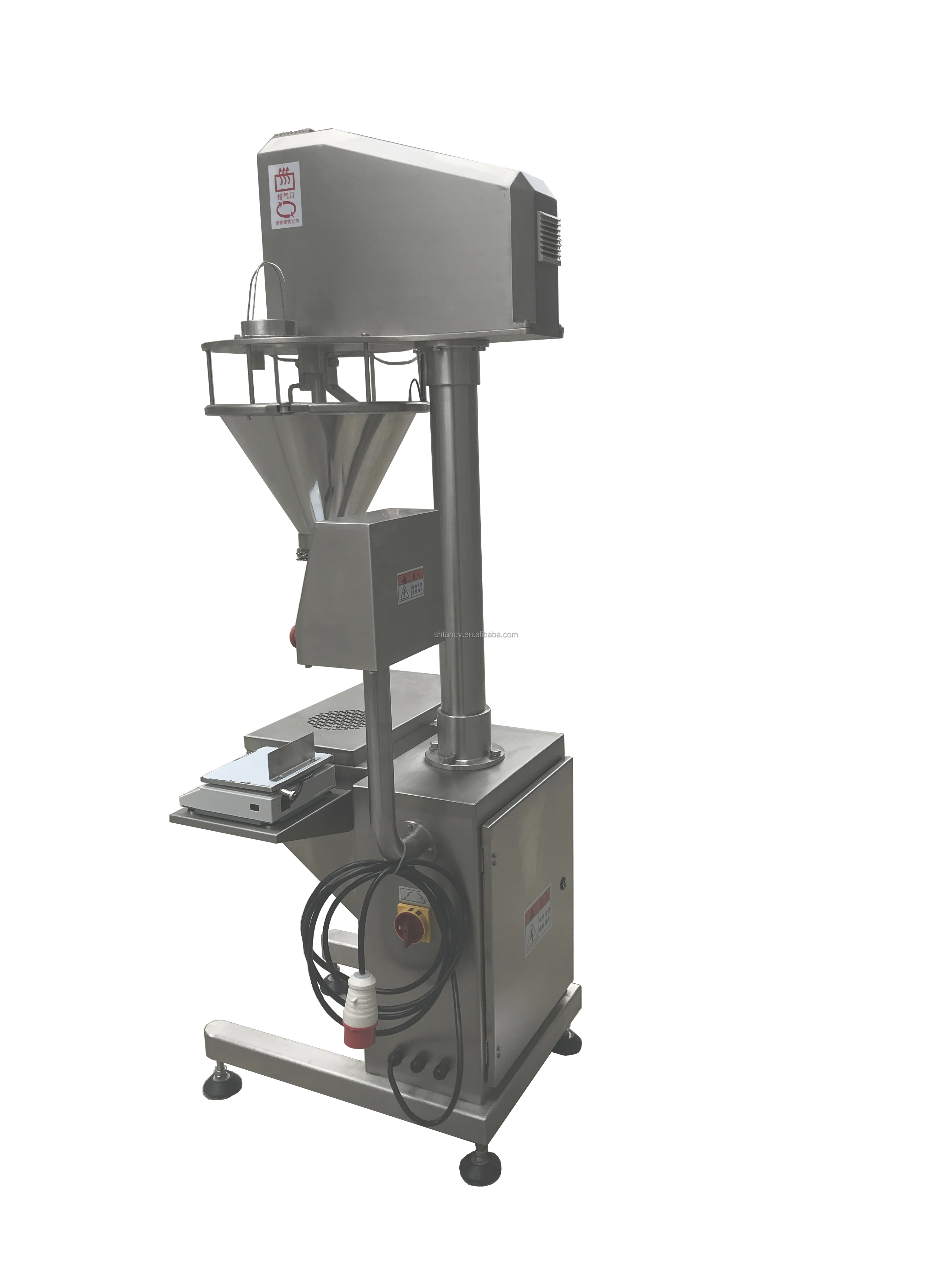

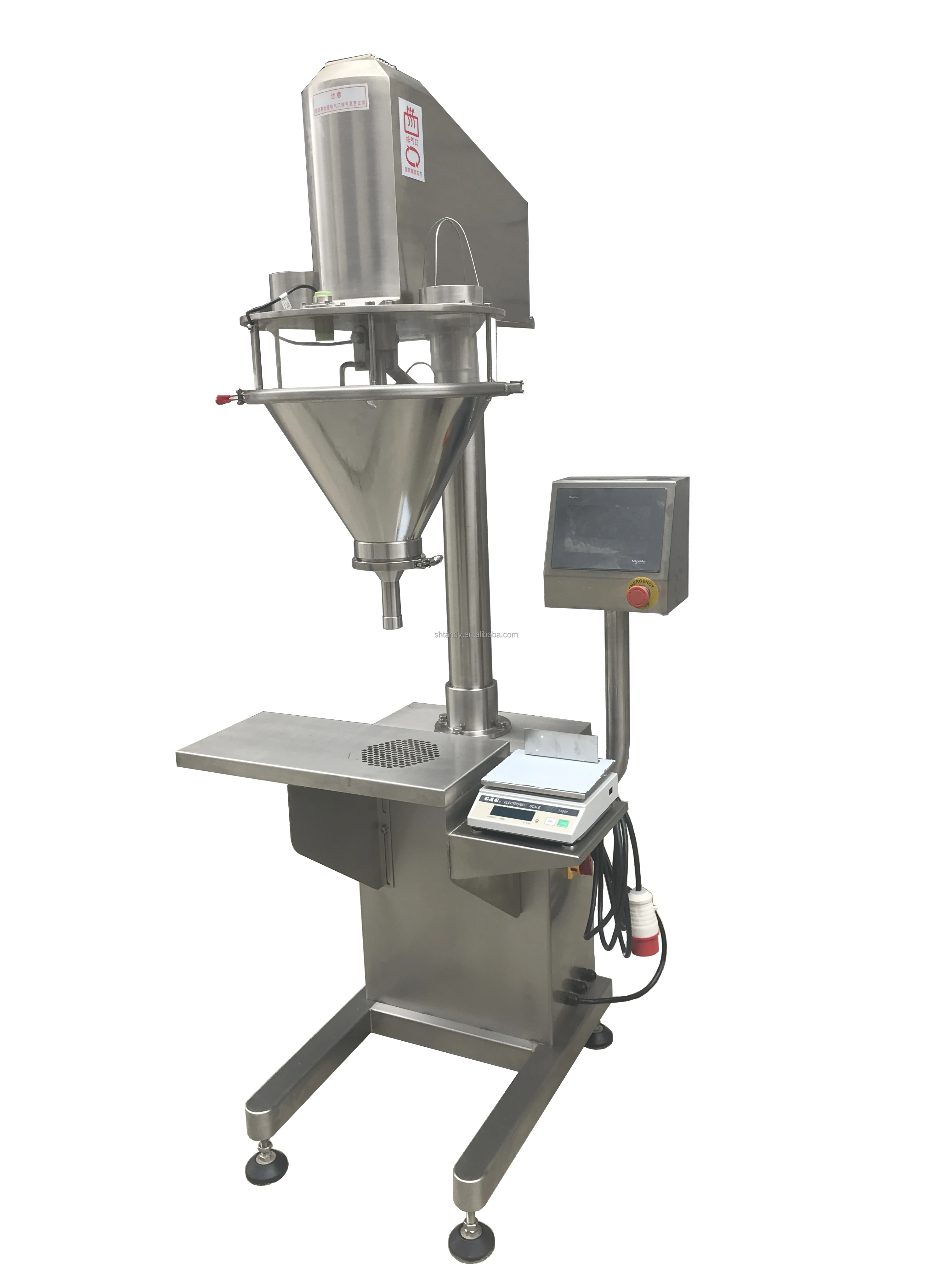

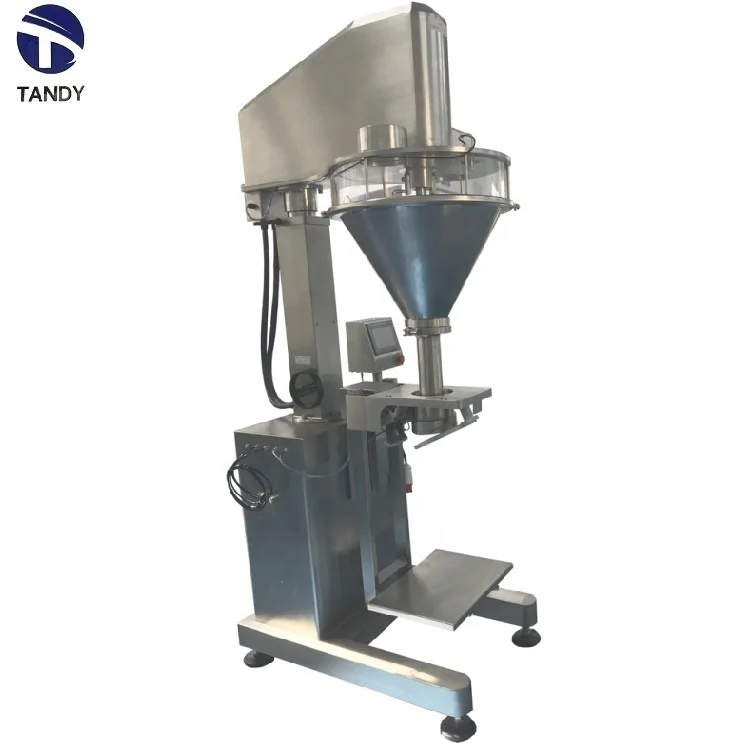

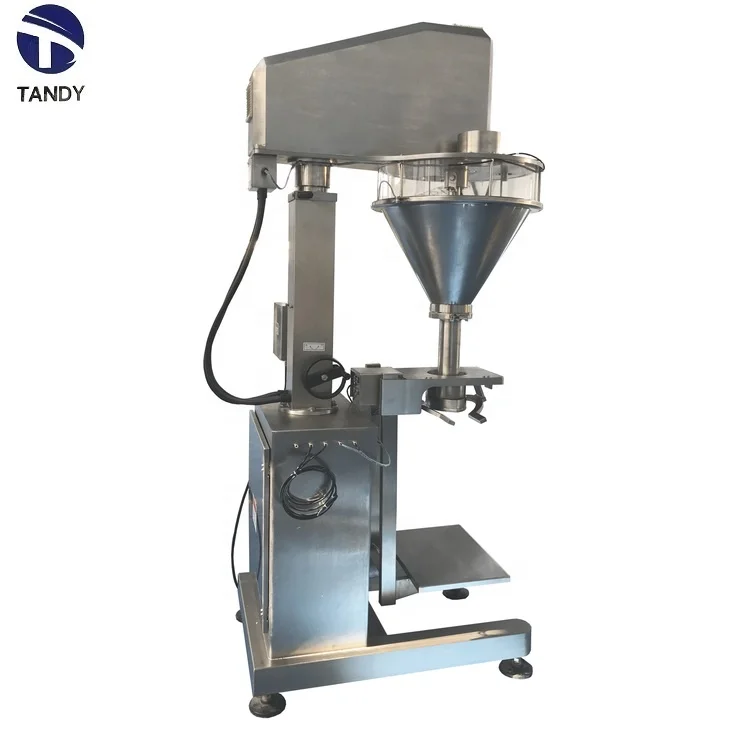

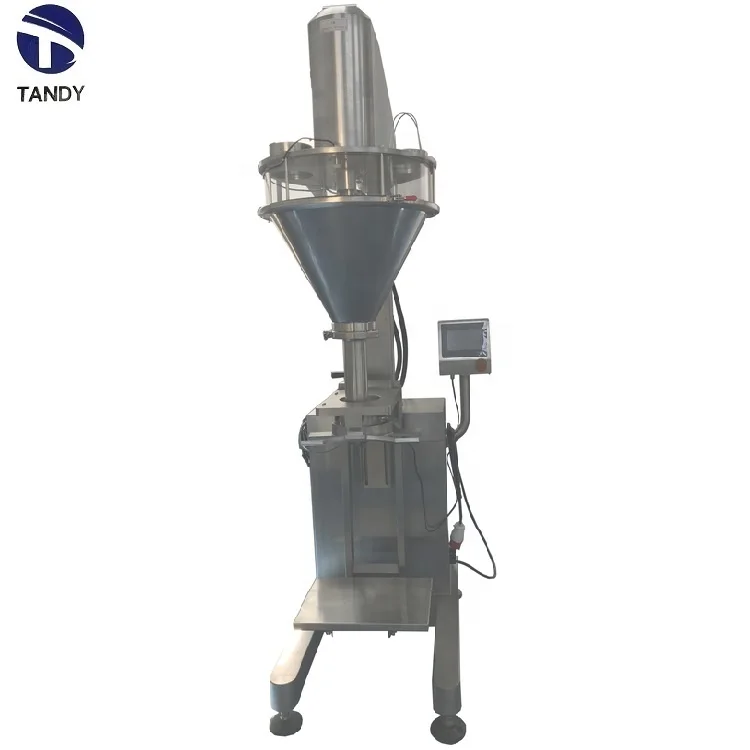

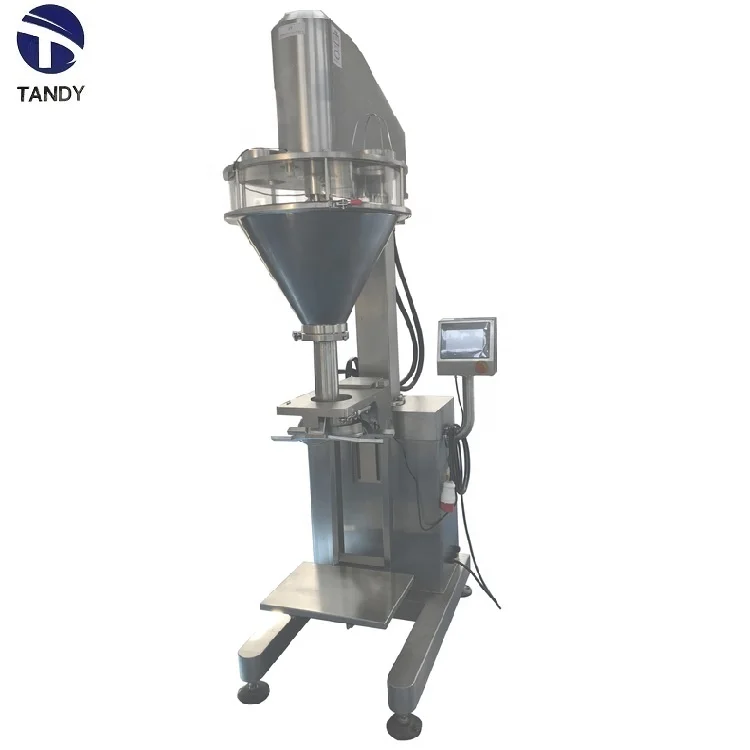

Picture of powder filler:





FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Euope , American , Australia , Asia , Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
5. Warranty period: 1 year
