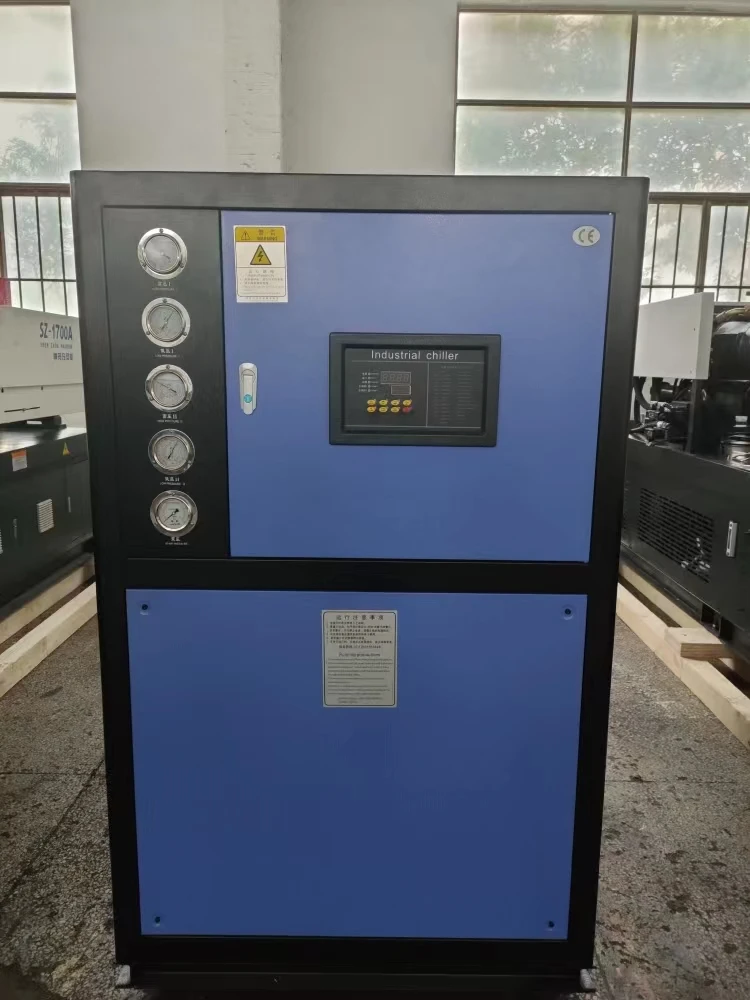

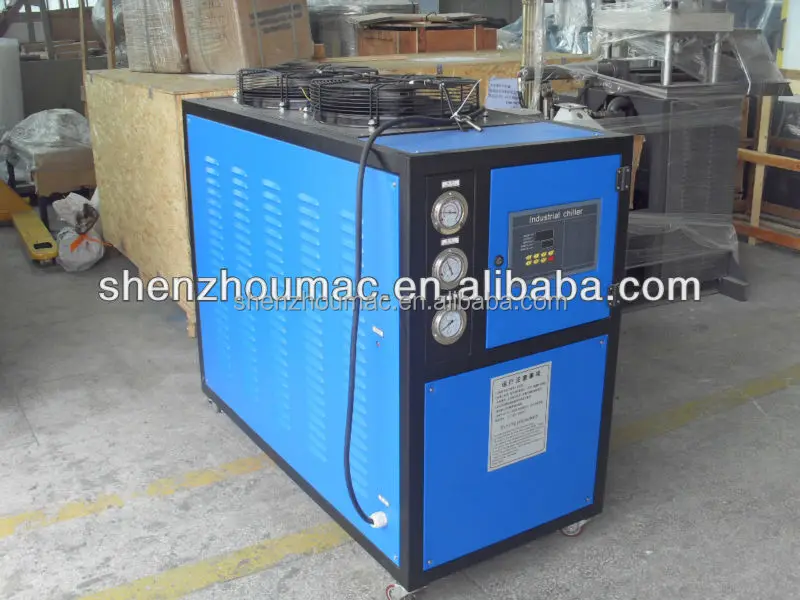

5 Ton Industrial Air Cooled 5hp 20hp Price Water Chiller
- Category: >>>
- Supplier: Zhangjiagang Shen Zhou Machinery Co. Ltd.
Share on (1600834906282):
Product Overview
Description
3D SHOW ROOM
VR
Products Description
1. Installed with import compressors, highly efficient shell condenser and evaporator, excellent cooling, quiet and low electricity consumption.
2. Microprocessor control, easy to operate;
3. Unique open reservoir tank made of stainless steel, easy cleaning and maintenance;
4. Pipeline well-arranged to save energy;
5. Installed will precise electronic thermostat accurately maintains temperature within 30C~50C;
6. Installed with current overload protector, high and low pressure switch, electronic timer delay, fault display system;
7. Screen liquid crystal display of chill water out let and inlet with temperatures setting;
8. Single, double or four compressors combination unit available;
9. Industrially designed, elegant and ergonomic.
2. Microprocessor control, easy to operate;
3. Unique open reservoir tank made of stainless steel, easy cleaning and maintenance;
4. Pipeline well-arranged to save energy;
5. Installed will precise electronic thermostat accurately maintains temperature within 30C~50C;
6. Installed with current overload protector, high and low pressure switch, electronic timer delay, fault display system;
7. Screen liquid crystal display of chill water out let and inlet with temperatures setting;
8. Single, double or four compressors combination unit available;
9. Industrially designed, elegant and ergonomic.
Function STSF-20 air cooling chiller
Cooling capacity :62264Kcal/h(72.4KW), (Evaporating temperature:7.5℃,Condensing temperature:35℃),
Chilled water temperature: can regulate 5~20℃.
Chilled water flow:15T/h
Outlet water lift(Pressure):0.2-0.3Mpa
Protection instructions
1).Power instructions
2).Operating instructions
3).Compressor operating instructions
4).Compressor overload instructions
5).Pump operating instructions
6).Pump overload instructions
7).High pressure alarm instructions
8).Low pressure alarm instructions
9).Reverse alarm instructions
Equipment requirements
1) Compressor is 2 set free maintenance and full closed France Performer compressor.
2) Control system: Microcomputer control system, Chinese-English display.
3) Chilled water outlet 2.0inch,backwater is 2.0inch.
4) Technical data instructions is one set in Chinese and English language.
5) Expansion valve is Danfoss, the pressure gauge is the Singapore table, appliances is Schneider.
6) The unit uses the Microcomputer control system, users only need to choose the refrigerating capacity, chilled water
temperature, then press the start button, the unit will automatically run. Chilled water machine equipped with multiple
protection.
7) The production line is connected with the inlet and outlet of the unit, then the unit can be used.
Cooling capacity :62264Kcal/h(72.4KW), (Evaporating temperature:7.5℃,Condensing temperature:35℃),
Chilled water temperature: can regulate 5~20℃.
Chilled water flow:15T/h
Outlet water lift(Pressure):0.2-0.3Mpa
Protection instructions
1).Power instructions
2).Operating instructions
3).Compressor operating instructions
4).Compressor overload instructions
5).Pump operating instructions
6).Pump overload instructions
7).High pressure alarm instructions
8).Low pressure alarm instructions
9).Reverse alarm instructions
Equipment requirements
1) Compressor is 2 set free maintenance and full closed France Performer compressor.
2) Control system: Microcomputer control system, Chinese-English display.
3) Chilled water outlet 2.0inch,backwater is 2.0inch.
4) Technical data instructions is one set in Chinese and English language.
5) Expansion valve is Danfoss, the pressure gauge is the Singapore table, appliances is Schneider.
6) The unit uses the Microcomputer control system, users only need to choose the refrigerating capacity, chilled water
temperature, then press the start button, the unit will automatically run. Chilled water machine equipped with multiple
protection.
7) The production line is connected with the inlet and outlet of the unit, then the unit can be used.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
ITEM | SPECIFICATION |
Air cooling chiller :STSF-20 | Compressor power:13.90KW Cooling capacity:62264Kcal/h(72.4KW) Refrigerant:Freon R407 Supply voltage:Three phase 380V50Hz Chilled water pump power:3.0KW Chilled water flow:15T/ h Chilled water inlet/outlet:2.0inch Chilled water temperature:5~20℃ can regulate Ambient temperature:≤35℃ Power for fan:1.35kw Shape size: L*W*H (2050*1200*1730mm) Weight:900Kg |
SALES AND SERVICE NETWORK
Exhibition
Certifications
FAQ
1Q.Do you have an entity factory?
A1 Yes，We are a factory integrating industry and trade and have a whole set of production process.
Q2.How long is our delivery period?
A2 Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month.
Q3.What is the price of your injection molding machine？
A3 Our cost-effective performance is very high, the original parts of the machine are imported, wear-resistant, heat-resistant, high ductility.
Q4.How ahout your after-sales service?
A4 Our machines are guaranteed for life, if conditions permit, we will send engineers to overhaul.
A1 Yes，We are a factory integrating industry and trade and have a whole set of production process.
Q2.How long is our delivery period?
A2 Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month.
Q3.What is the price of your injection molding machine？
A3 Our cost-effective performance is very high, the original parts of the machine are imported, wear-resistant, heat-resistant, high ductility.
Q4.How ahout your after-sales service?
A4 Our machines are guaranteed for life, if conditions permit, we will send engineers to overhaul.
