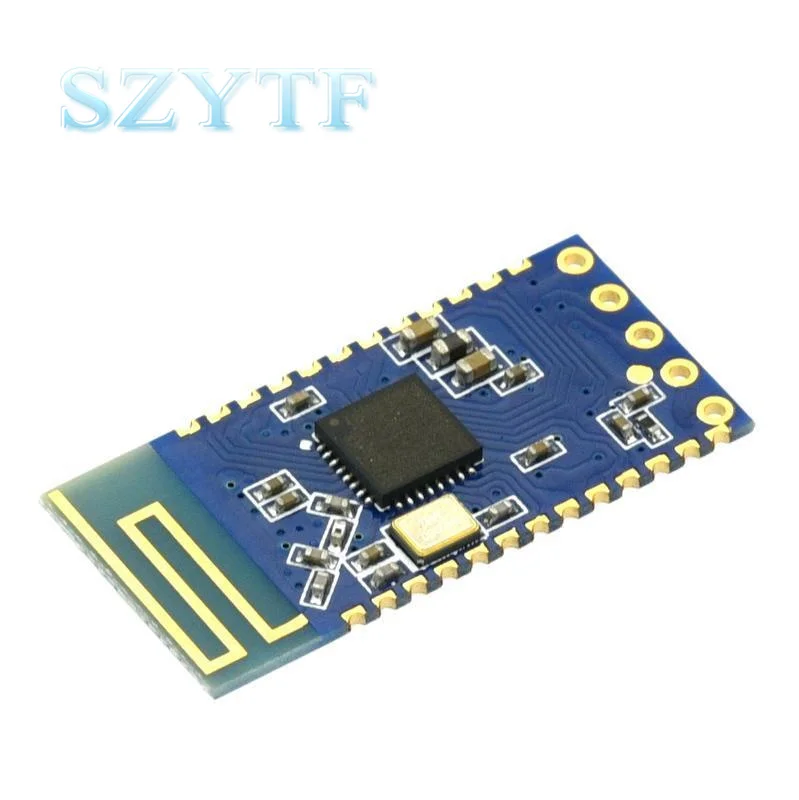

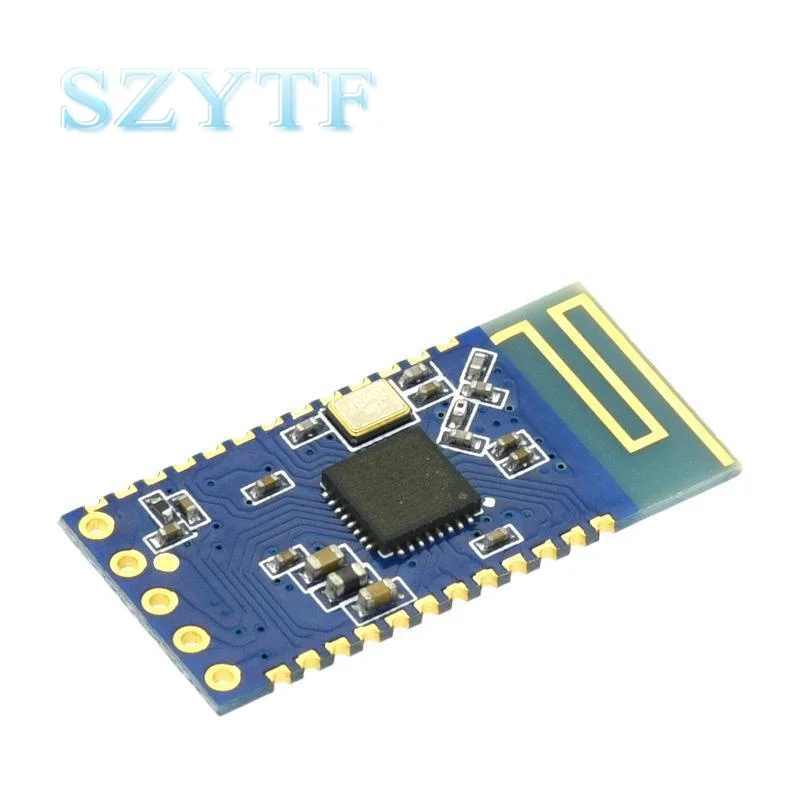

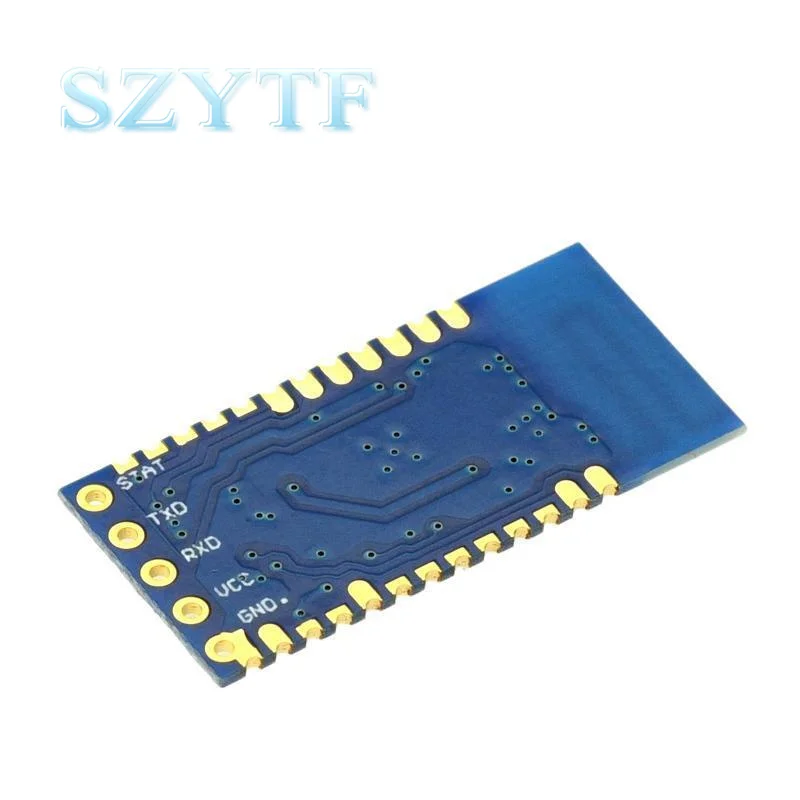

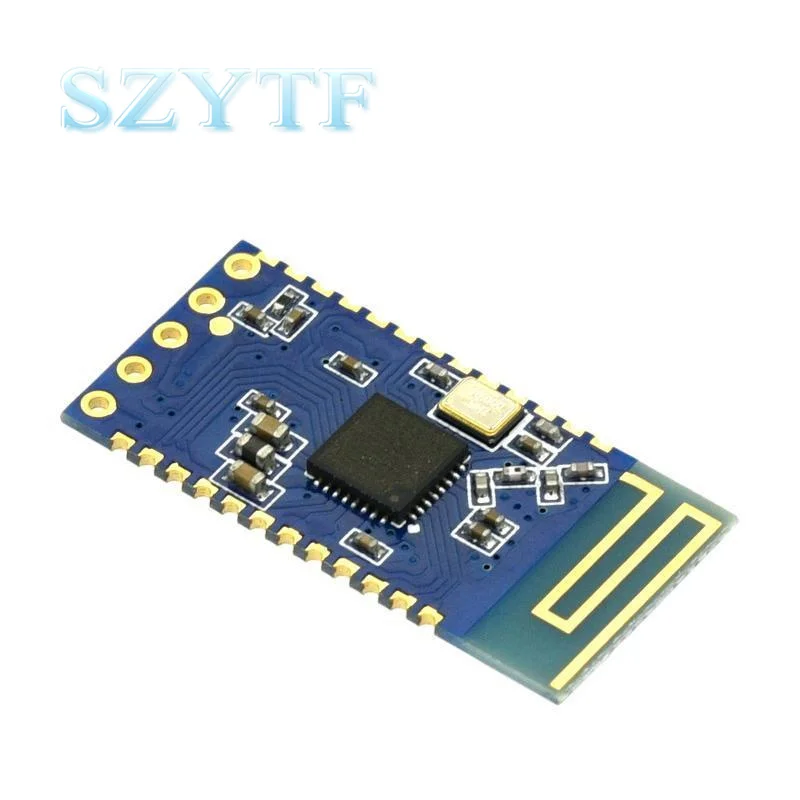

Bluetooth compatible 5.0 BLE Module MESH Networking ZIGBEE Transparent Transmission Master Slave Through JDY 24M Module

1.The products introduction

 JDY-24 m networking Bluetooth function supports master-slave transparent transmission, iBeacon,BLE probe, iBeacon detection, MESH networking, MESH networking the maximum number of MESH networking supports 65535 device networking, using multi-hop wireless anti-collision technology, network communication speed supports 50 ms to send 17 bytes of data, single module supports routing node and terminal node, routing node supports data relay (does not support low power consumption), the terminal node supports low power consumption (automatically sleep after the data is sent by pressing the button). Generally, JDY-24M networking only needs to configure the network NETID and short circuit address, the module will automatically network, when the networking module communicates with the APP, it is equivalent to transparent transmission, which greatly facilitates users to develop apps compatible with old products.

2.Product characteristics

1: supports transparent data transmission with mobile phone (IOS, ANDROID)APP (working current is about 1mA)

2: Support Module and module master-slave high-speed transparent transmission

3: support iBeacon function (ultra-low power consumption)

4: support iBeacon probe function

5: support BLE Bluetooth probe function

6: supports multi-link slave mode. Multi-link slave can connect to multiple mobile phones and pass through at the same time

7: support Bluetooth MESH (networking serial port data communication, output IO control, input key-press)

8:MESH network sends data to support response and no response communication

9: The network remote control

3.Technical specifications
