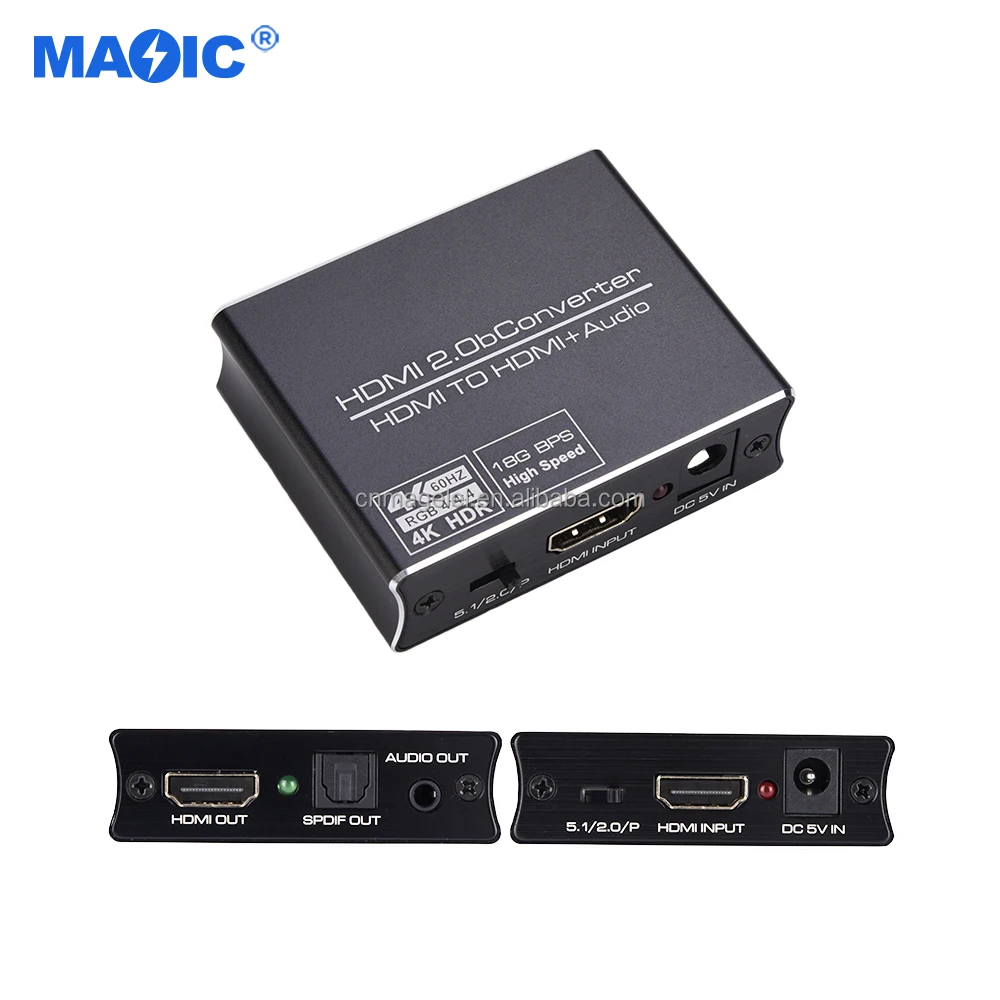

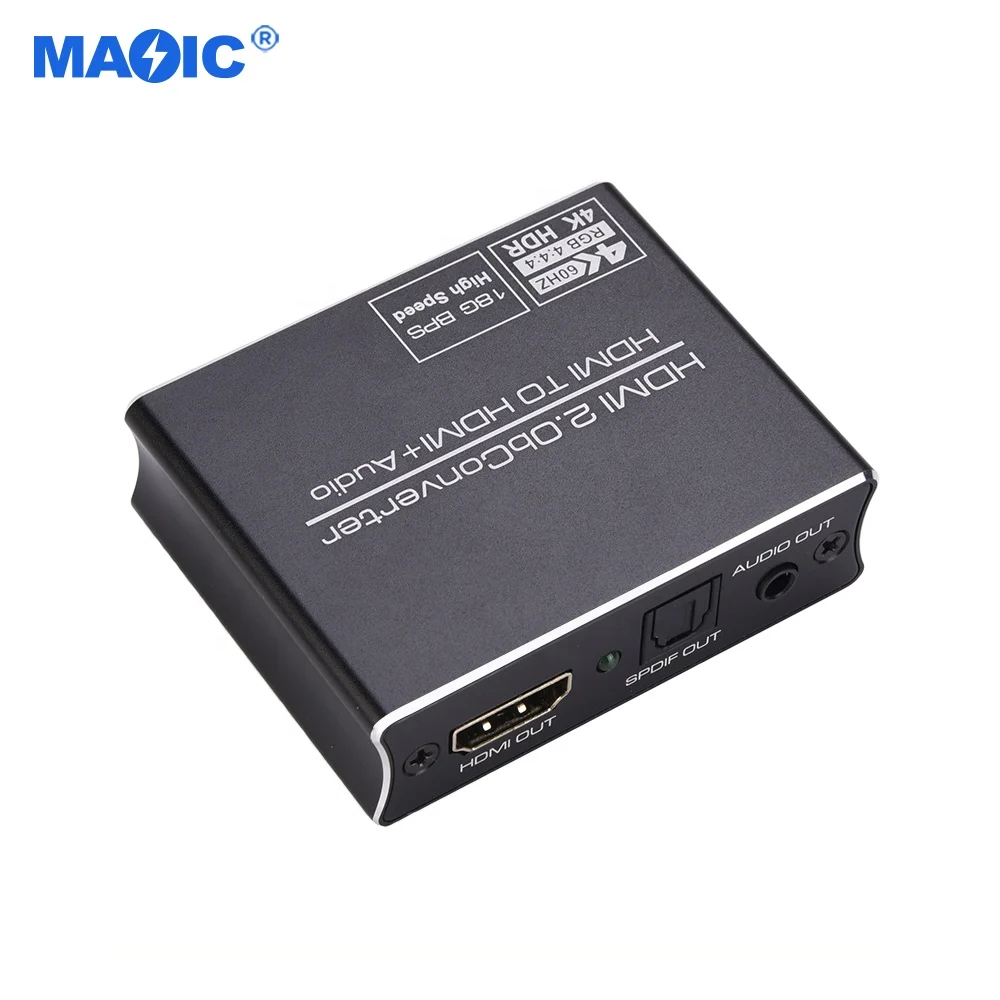

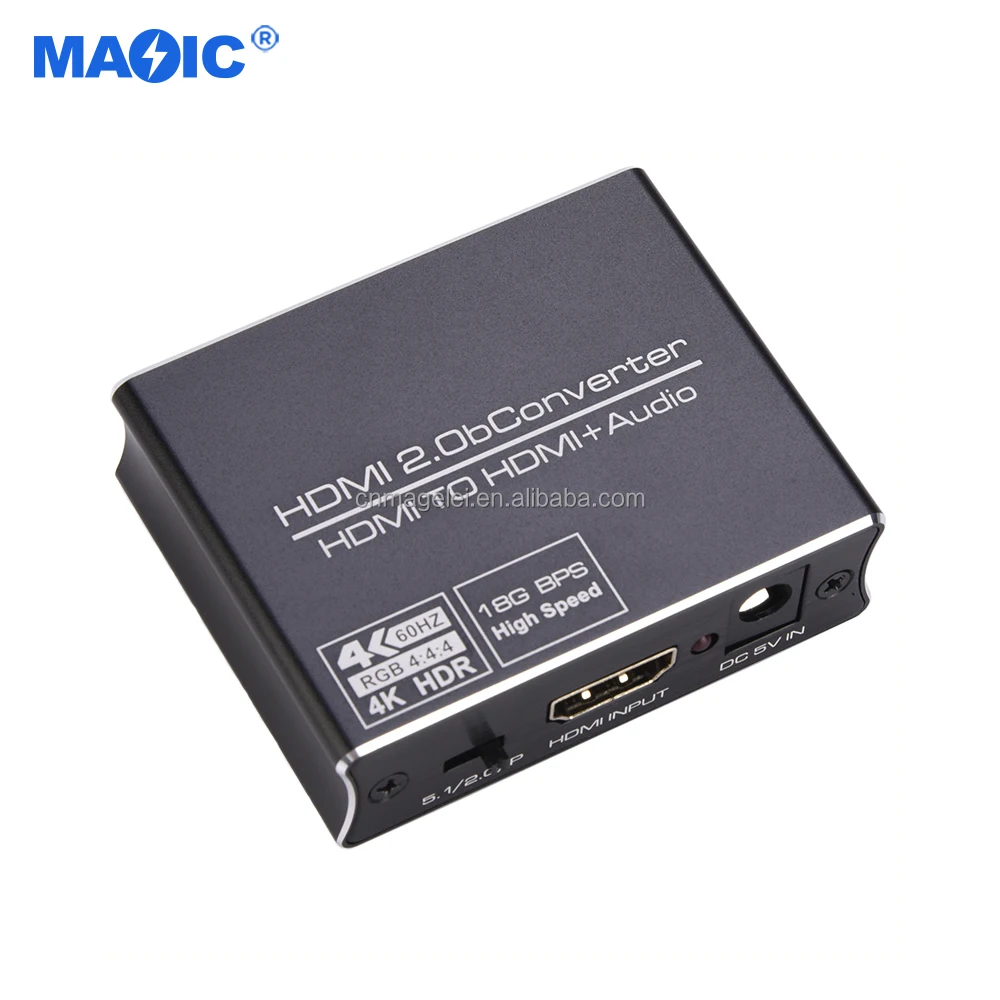

Audio Video Equipments 4K x 2K HDMI to HDMI Optical SPDIF 3.5mm Stereo Audio Splitter Converter HDMI Audio Extractor
- Category: >>>
- Supplier: Shenzhen Magelei Electronic And Technology Co. Ltd.
Share on (1600834963680):
Product Overview
Description
Audio Video Equipments 4k 60hz Hdmi to Optical 3.5mm Aux Hdmi ARC 2.0b Audio Extractor 5.1 7.1 Splitter Hdmi Audio Extractor
Features
1.One HDMI input converted to one HDMI +Audio (SPDIF+R/L)output
1.One HDMI input converted to one HDMI +Audio (SPDIF+R/L)output
2.Output audio support: SPDIF+R/L analog Audio Output.
3.Input Resolution: up to 2160p60.

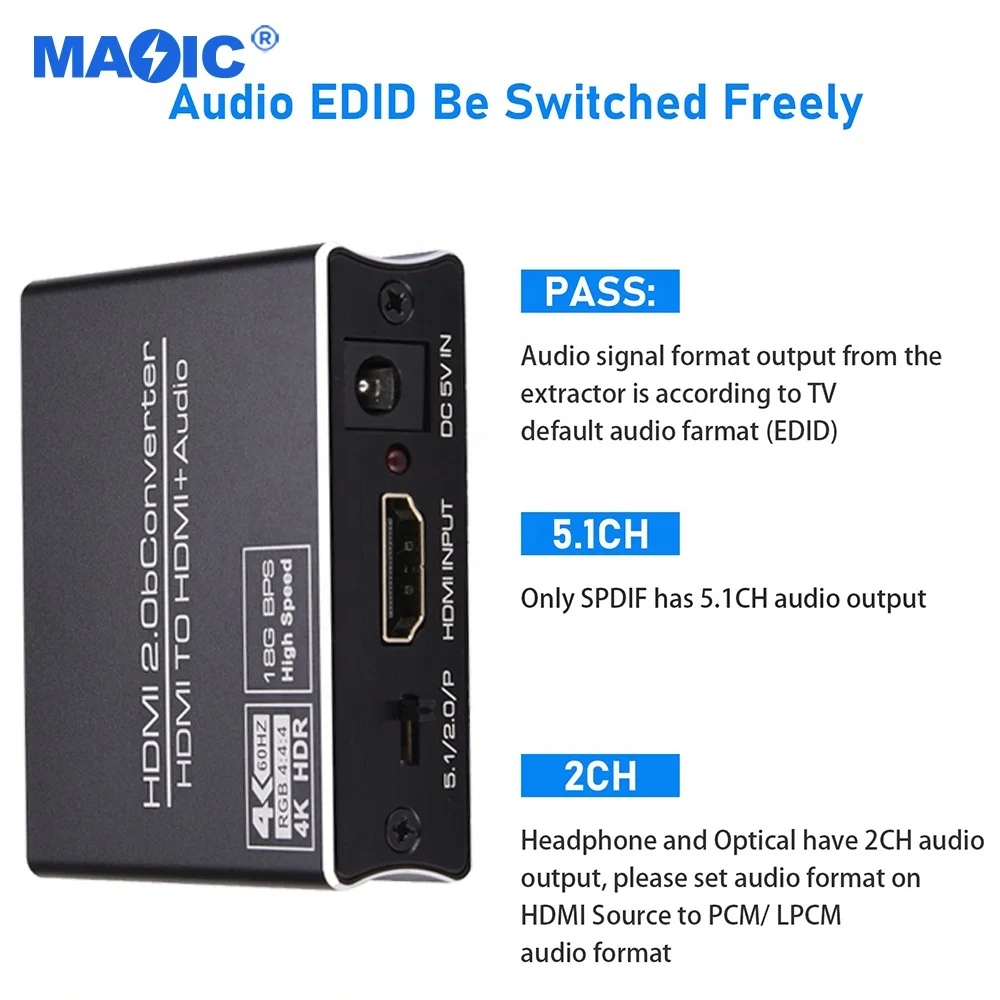

4.HDMI to achieve the synchronization of audio signal separation. They are pass 2.0CH / 5.1CH two kinds of audio mode options.
5.LED indication: when source or sink is working, LED relative to is light.
6.No loss of quality.
7.Installs in minutes.
8.Need DC5V power supply for the hdmi audio extractor.
3.Input Resolution: up to 2160p60.
4.HDMI to achieve the synchronization of audio signal separation. They are pass 2.0CH / 5.1CH two kinds of audio mode options.
5.LED indication: when source or sink is working, LED relative to is light.
6.No loss of quality.
7.Installs in minutes.
8.Need DC5V power supply for the hdmi audio extractor.

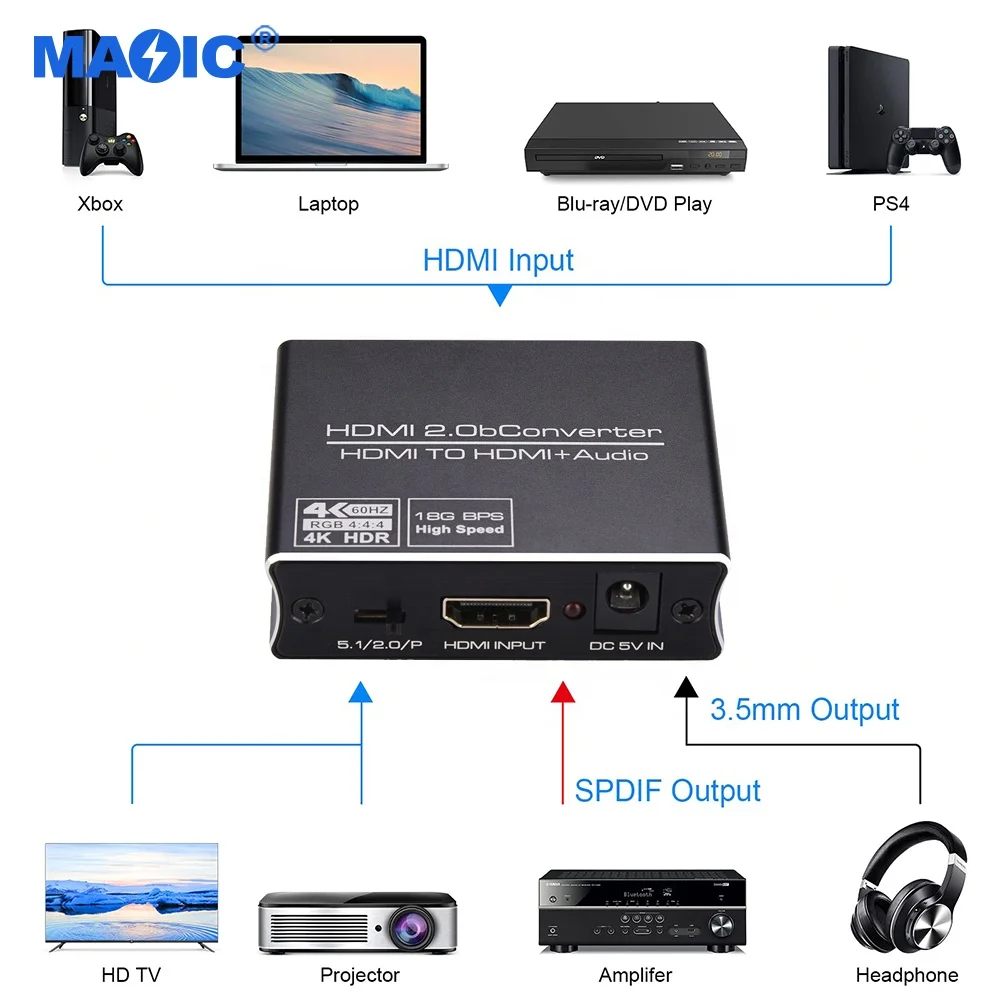

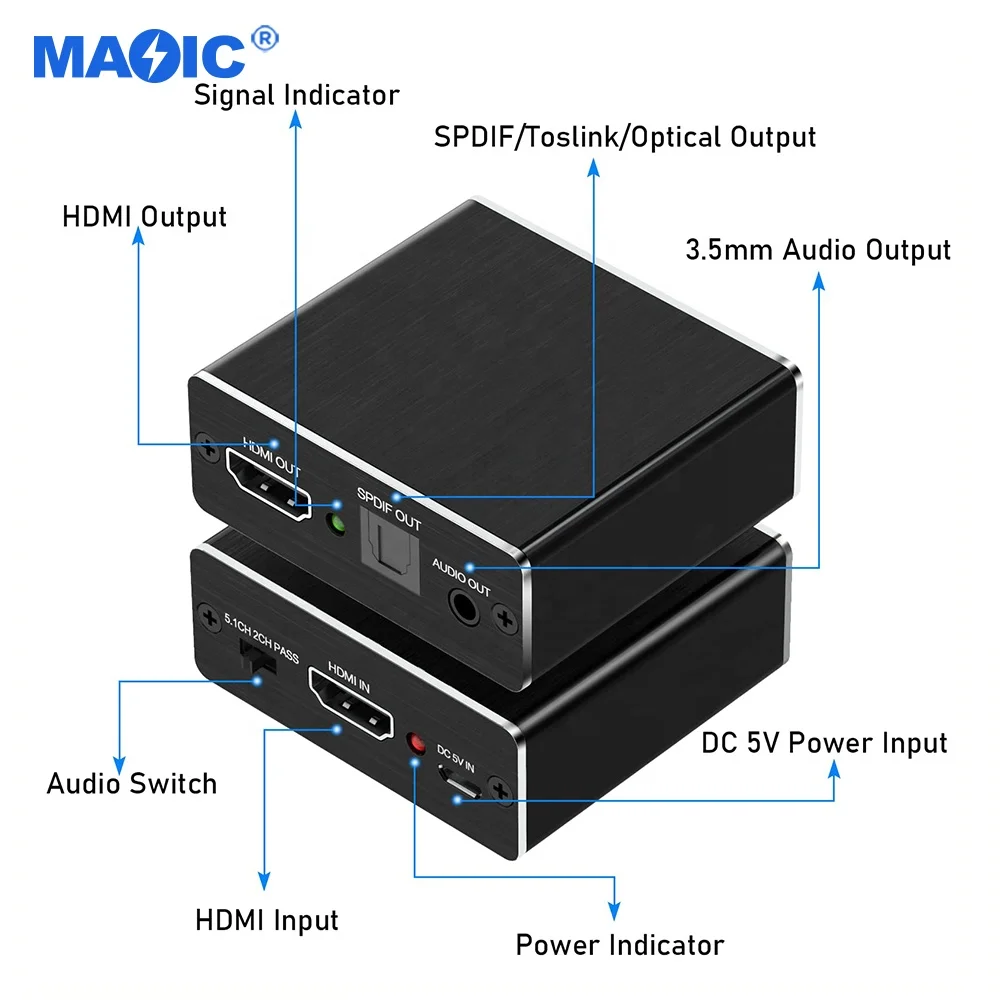

Operating and Connecting
To use one hdmi cable to connect the HD Source with the input HDMI port.
To connect the converter hdmi output port with the HD Display.
To use one audio cable to connect the converter R/L port with the audio equipment.
To use the optical cable to connect the SPDIF port with the audio equipment.
To connect the hdmi audio extractor with 5V DC power adaptor.
Note
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
5. Pls turn the power off when the machine is not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
HDMI resolution | 2160P/1080p/1080i/720p/576p/576i/480p |
Audio output | L/R+SPDIF |
Max baud rate | 18Gbps |
Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
Input/Output DDC signal | 5Volts p-p (TTL) |
Input cable distance | ≤15m AWG26 HDMI standard cable |
Output cable distance | ≤20m AWG26 HDMI standard cable |
Max working current | 500mA |
Operating Temperature range | (-15 to +55℃) |
Operating Humidity range | 5 to 90%RH (No Condensation) |
Dimension (L x W x H) | 65x52x20(mm) |
Weight | 75g |
