High Difficulty Customized RoHS rigid flexible pcb
- Category: >>>
- Supplier: Shenzhen Anlida Electronics Technology Co. Ltd.
Share on (1600834980751):
Product Overview
Description
Product Description

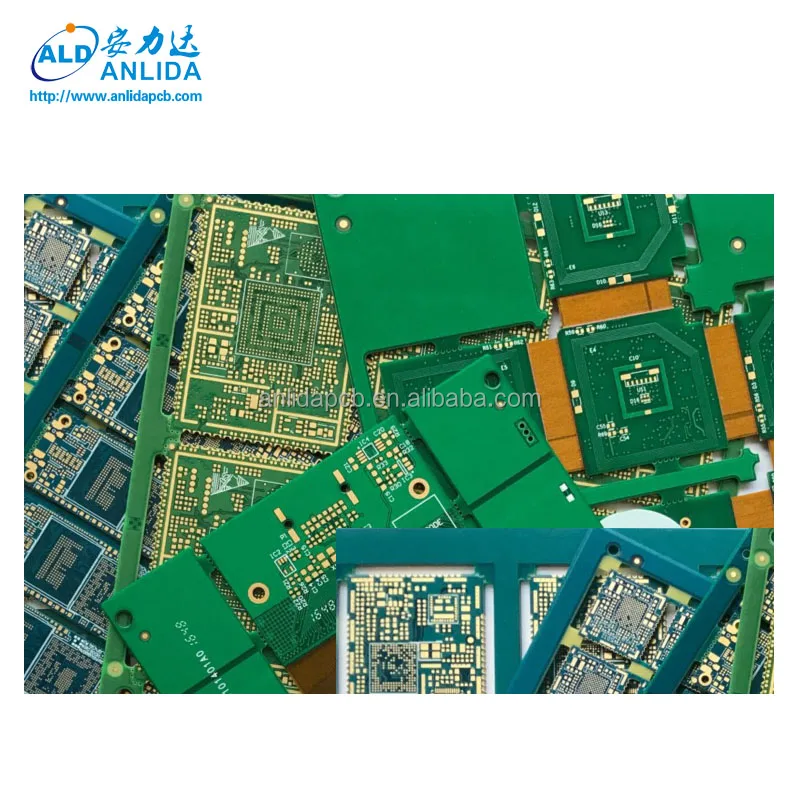

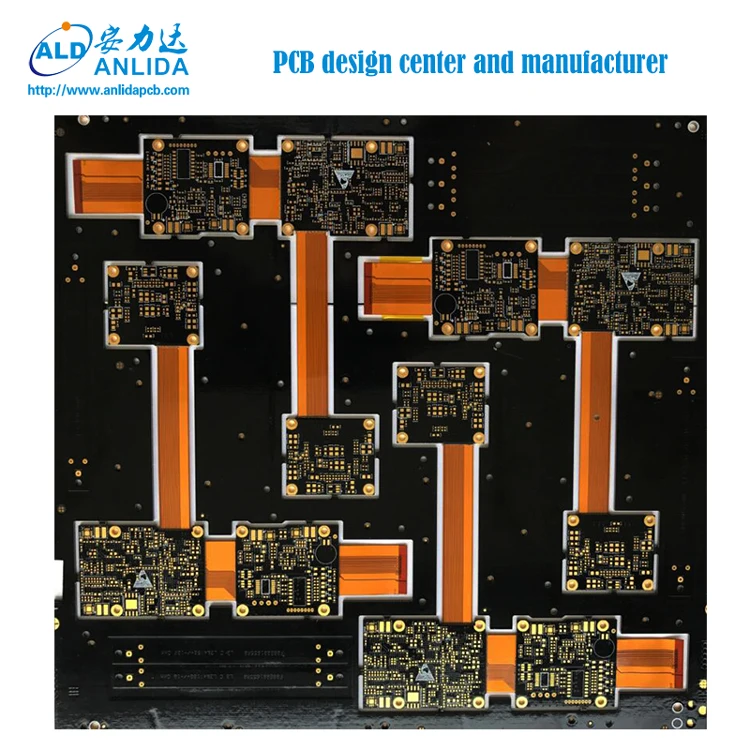

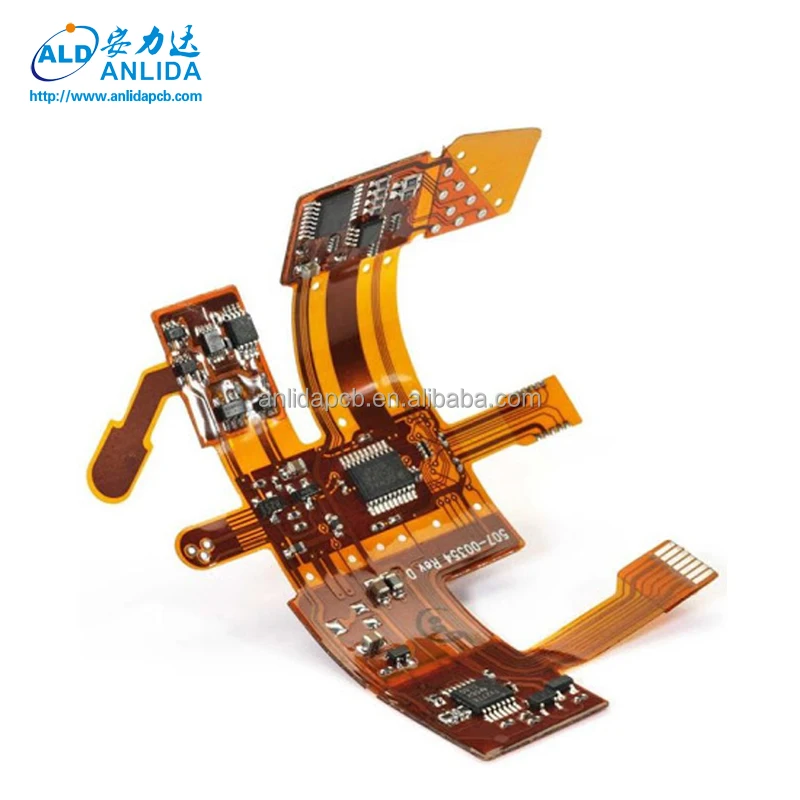

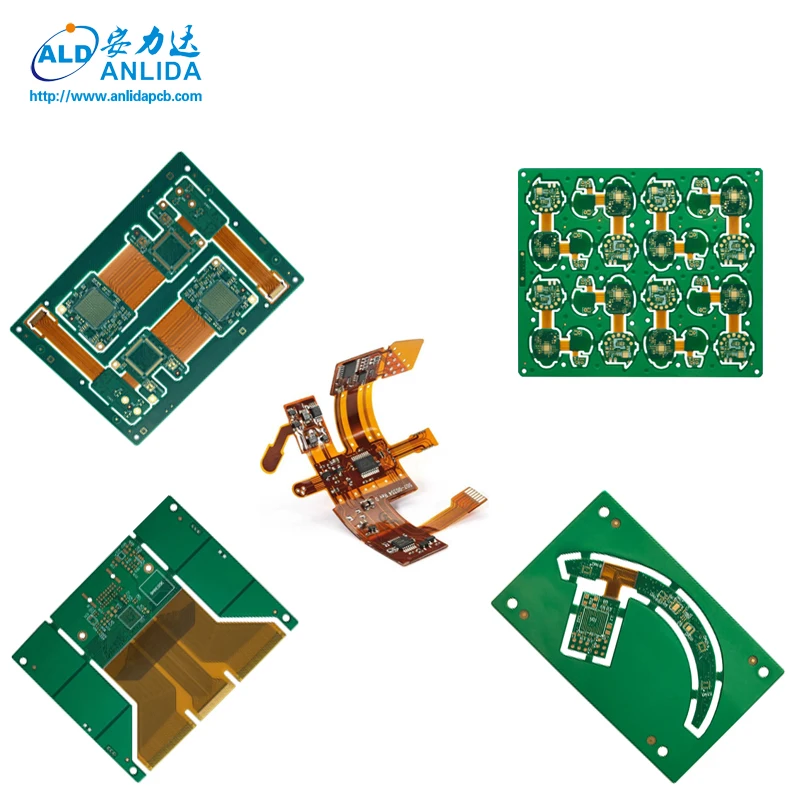

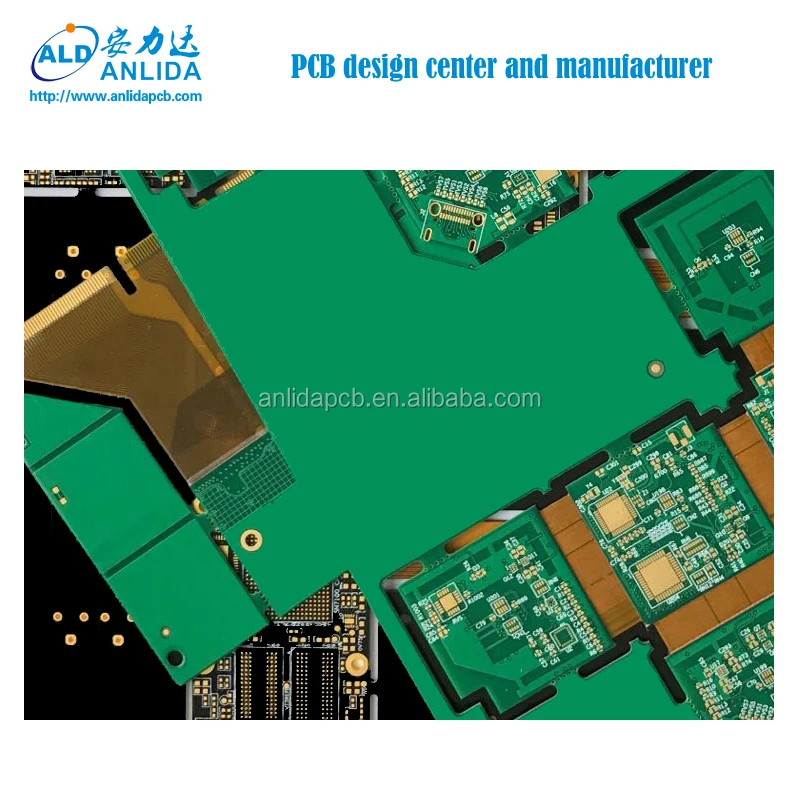

High Difficulty Customized RoHS rigid flex pcb circuit board
PCB product show:
All Services:
- High-Speed PCB Design / PCB Layout
- High-Speed PCB SI / PI / EMC Analysis
- PCB Reverse Engineering Design, Engineering and Early Design-in Support
- PCBA Reverse Engineering Design
- Fast 1-24LPCB Prototype,samll-medium volume Fabrication
- Professional HDI PCB Production
- Rigid-Flex Board Manufacture
- SMT Assembly / PCBA Assembly
- PCB Parts Sourcing
PCB-parameters:
Printed Circuit Board Production:
| NO. | Item | Prototype | Mass Production |
| 1 | Layer Count | Flex Board:1-6 L,Flex-Rigid Board: 2-12 L | Flex Board:1-6 L,Flex-Rigid Board: 2-12 L |
| 2 | Max Panel Size | ≤500X500mm | ≤500X500mm |
| 3 | Base Material Type | FR-4,Pl,,CCL,PET, PEN | FR-4,Pl,,CCL,PET, PEN |
| 4 | Max Board Thickness | Flex Board≤2.0mm, Flex-Rigid Board≤4.0mm | Flex Board≤2.0mm, Flex-Rigid Board≤3.0mm |
| 5 | Min Board Thickness | Flex Board≥0.05mm, Flex-Rigid Board≥0.3mm | Flex Board≥0.05mm, Flex-Rigid Board≥0.4mm |
| 6 | Min Line Width | ≥ 0.05mm(2mil) | ≥0.075mm(3mil) |
| 7 | Min Line Space | ≥ 0.064mm(2.5mil) | ≥0.075mm(3mil) |
| 8 | Min Through hole | 0.15mm(6mil) | 0.15mm(6mil) |
| 9 | Min Blind hole | 0.1mm(4mil) | 0.1mm(4mil) |
| 10 | Min Buried Hole | 0.2mm(8mil) | 0.2mm(8mil) |
| 11 | Min Plated Hole Thickness | 20µm(0.8mil) | 20µm(0.8mil) |
| 12 | Surface coating | HASL,ENIG, OSP,ENIG+OSP | HASL,ENIG, OSP,ENIG+OSP |
| 13 | Solder Mask color | Green,Blue,Black,White,Yellow,Red | Green,Blue,Black,White,Yellow,Red |
| 14 | Silkscreen color | White,Black,Red | White,Black,Red |
| 15 | Thick Copper | 1/3oz - 2oz (12-70µm) | 1/3oz - 2oz (12-70µm) |
| 16 | PTH Dia Tolerance | ±0.076mm(±3mil) | ±0.076mm(±3mil) |
| 17 | NPTH Dia Tolerance | ±0.05mm(±2mil) | ±0.05mm(±2mil) |
| 18 | Outline Tolerance | ±0.15mm (±6mil) | ±0.15mm (±6mil) |
| 19 | Test Voltage | 50-330V | 50-330V |
| 20 | Other Inspection item | IPC-6012 / A-600H | IPC-6012 / A-600H |
