Product Overview

Description

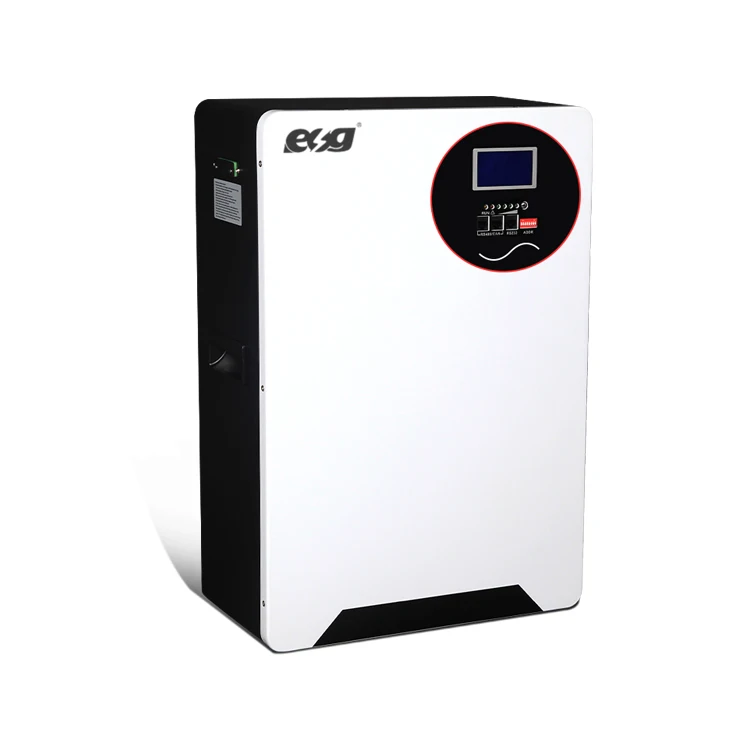

100 kwh LiFePo4 Lithium ion 48V 200Ah ups backup 120v batterie 500 kwh Related Product 5.2kw lifepo4 battery

Why choose us?

Guangzhou ESG Energy Technology Co., Ltd. is mainly committed to the development,
production and sales of pure sine wave off-grid inverter, solar controller and solar lighting, lithium battery energy storage battery
and other wind-solar complementary power generation system products.
With the progress of solar cell technology and the development of low power semiconductor design technology,
the application of solar cell instead of traditional battery gradually appeared. With the service concept of "innovation in science and technology,
quality assurance, value creation for customers", under the guidance and innovation of professional R & D personnel,
with the exquisite appearance and superior electrical performance of EsenGAu products,
we have established friendly cooperative relations with various power supply companies and power plants in China power system. At the same time,
we also developed a wide range of foreign markets, and our products are exported to Japan, South Korea, the United States, Europe, Australia and other places.

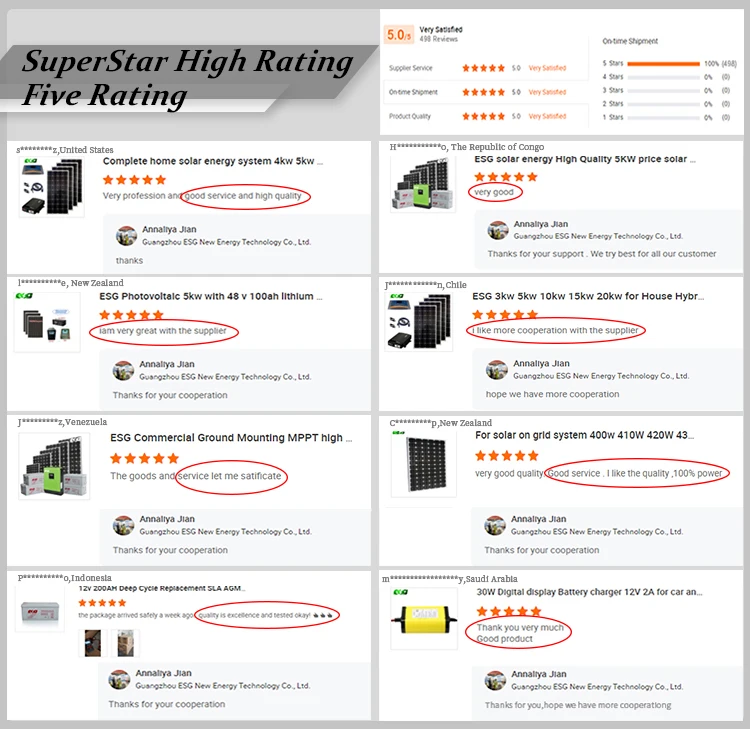

Why choose us?

We are committed to providing our customers with high quality new energy products and services, and always focus on customer experience.

We are pleased to see more and more customers commenting favorably on our products and services.  Many customers praise the high quality,

stability and reliability of our products, but also very satisfied with our professional pre-sale, sale, after-sales service.

Some customers also highlighted the kindness and patience of our staff, who answered their questions in detail and provided solutions.

These favorable comments reflect our efforts and achievements in maintaining our leading position in the market,

And encourage us to continue to improve our products and services to provide even better solutions to our customers.

We will, as always, adhere to the "integrity, quality, innovation, service" business philosophy, committed to promoting clean energy,

To provide customers with better quality products and services.

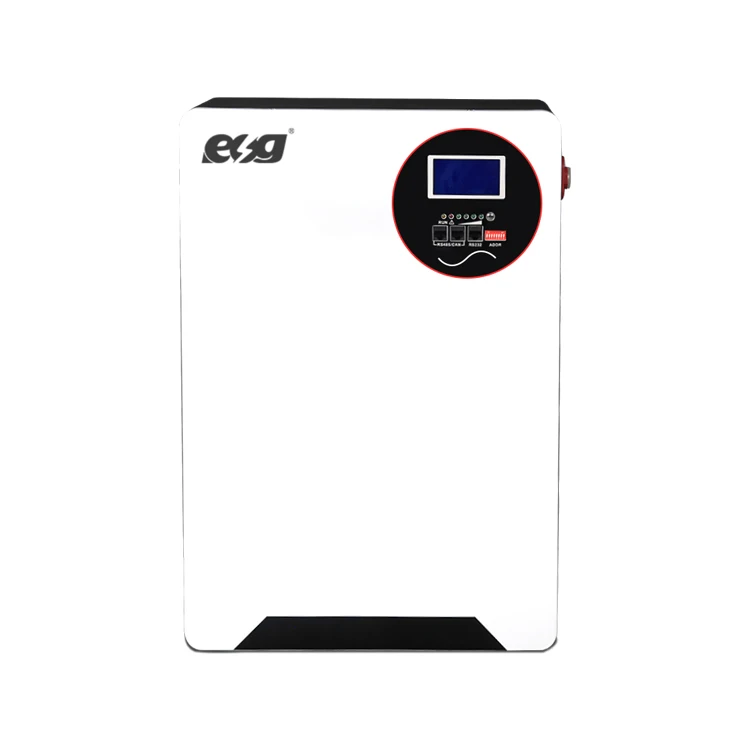

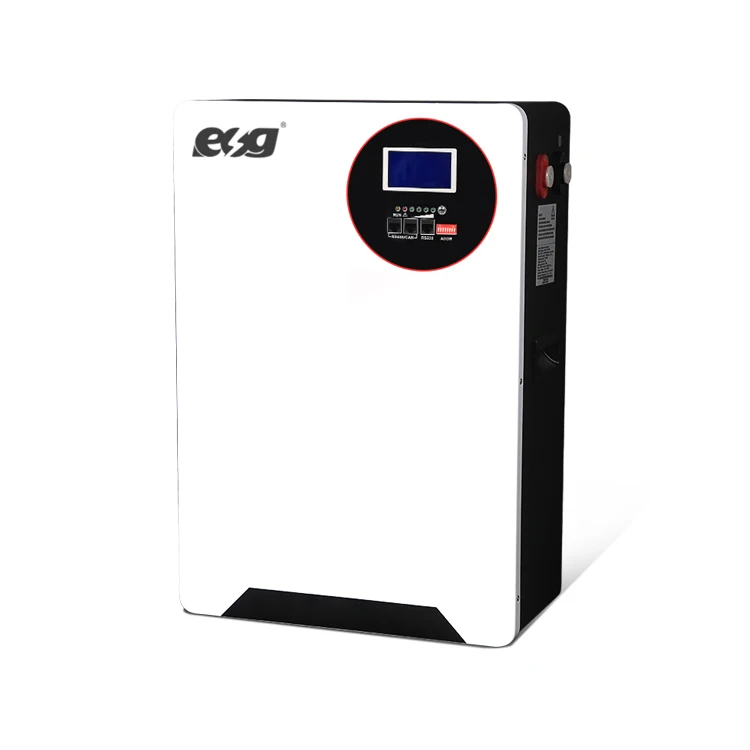

100 kwh LiFePo4 Lithium ion 48V 200Ah ups backup 120v batterie 500 kwh Related Product 5.2kw lifepo4 battery

1.Product Description

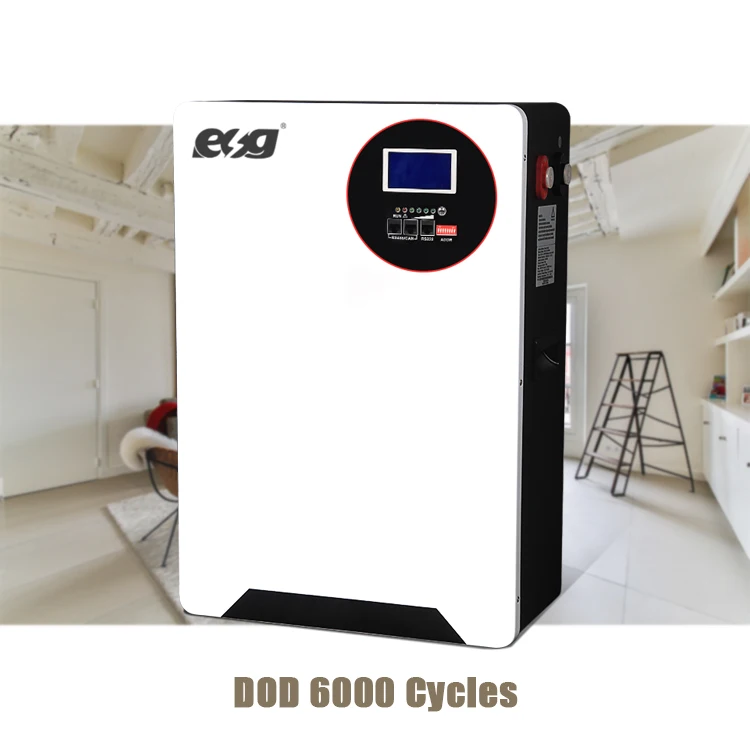

. Long service life: product cycle times: 100% DOD6000 times

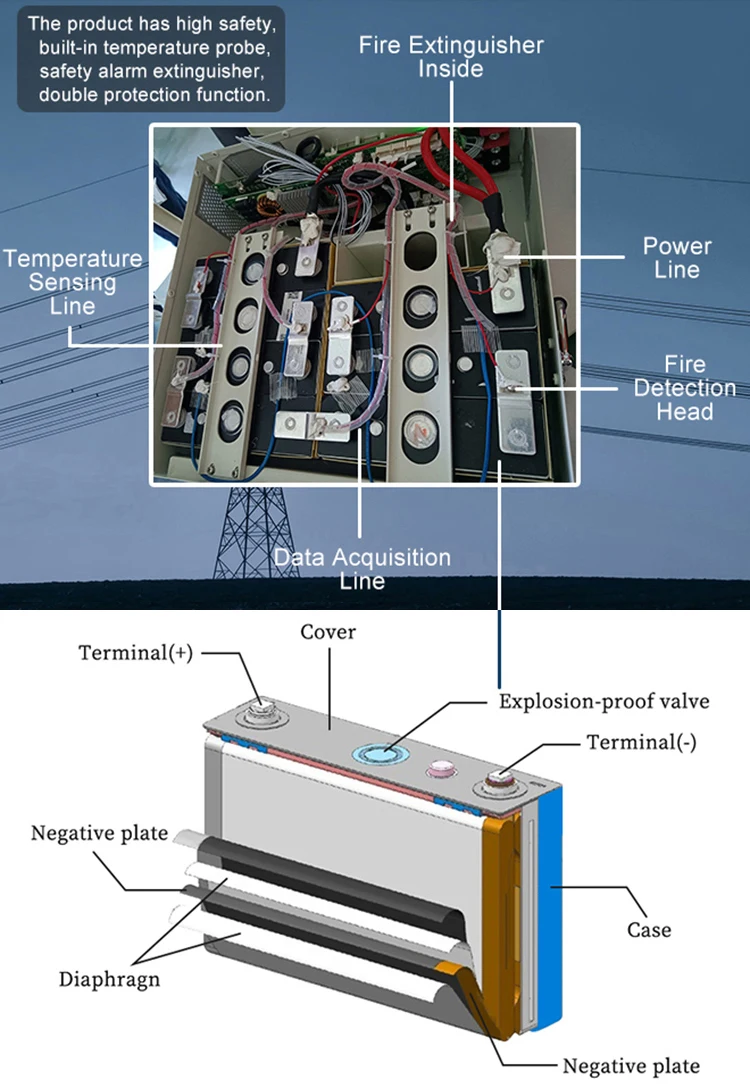

. The product has high safety, built-in temperature probe, safety alarm extinguisher, double protection function,

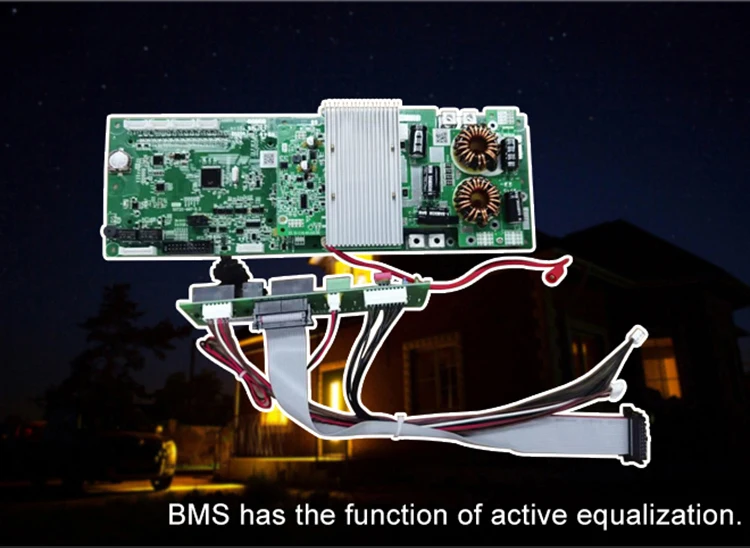

. BMS has the function of active equalization.
.It is intelligent and can detect voltage and electric quantity to avoid overcharge and overdischarge.
. All brands of inverter communication can be connected

2.BATTERY STRUCTURE & CHARACTERISTICS

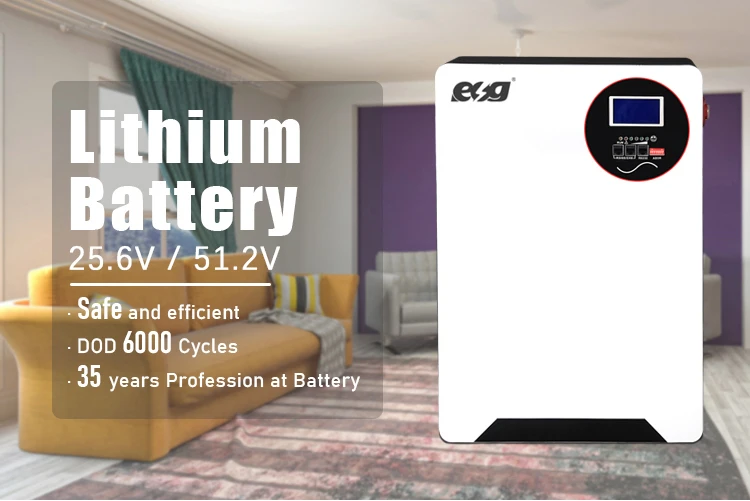

51.2v 100ah Ltium ion Battey Features:

Cycle life >6000 times, upto 10 years

Expandable , battery design, parallel stacking to increase battery capacity CAN

Communication ports 232, Rs485, iempeie w many rnso, inverters

Simple connection between bttery . and inverter, easy installation.

1.A Grade Lifepo4 cells,The service life can reach more than 10 years.
 2. Built-in BMS, charge protection, discharge protection, overcurrent protection, temperature
protection, short circuit protection.
3. Expandable capacity, support 4 battery packs in series (192V), 6 battery
packs in parallel (48v 600Ah).
4. Can completely replace lead-acid batteries, light weight, high energy density, support
0-60 ℃ environmental discharge

3.Application

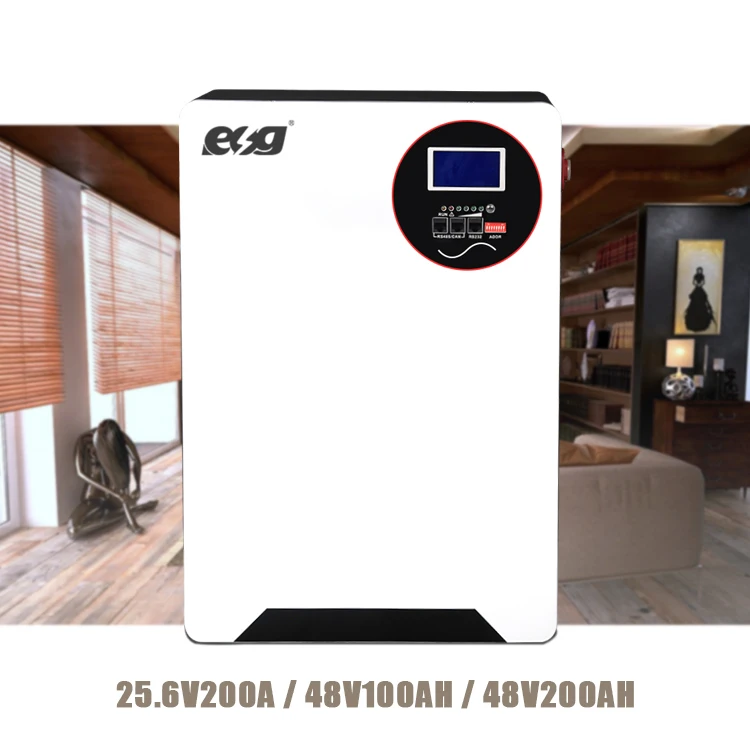

100 kwh LiFePo4 Lithium ion 48V 200Ah ups backup 120v batterie 500 kwh Related Product 5.2kw lifepo4 battery

MODEL SPECIFICATION	ES-Li Sun 25.6V200Ah	ES-Li Sun 51.2V100AH	ES-Li Sun 51.2V120AH	ES-Li Sun 51.2V170AH	ES-Li Sun 51.2V200AH
Battery Type	LiFePO4	LiFePO4	LiFePO4	LiFePO4	LiFePO4
Normal Battery Model	25.6V200AH	51.2V100AH	51.2V120AH	51.2V170AH	51.2V200AH
Normal Capacity(25C,0.2C)	5120Wh	5120Wh	6144Wh	8704KWh	10.24KWh
Voltage window (Vdc)	22.4~29.2V	44.8~58.4V	44.8~58.4V	44.8~58.4v	44.8~58.4V
Folat Charge Voltage(Vdc)	28.0v	55.2V	55.2V	55.2V	55.2V
Max.continue discharge current(A)	100A	100A	100A	150A	150A
Max.pulse discharge current(A)	200A 30Sec.	200A 30Sec.	200A 30Sec.	200A 30Sec.	200A 30Sec.
Max.continue charge current(A)	100A	100A	100A	100A	100A
Cycle life(+25C 0.2C 100%DOD)	>6000 Cycles	>6000 Cycles	>6000 Cycles	>6000 Cycles	>6000 Cycles
Cells Brand	BYD	CATL	CATL	CATL	CATL
Terminal	M8
Storage temperature	oC~30c
Storage duration	6 months at 25℃
Safety standard	UN38.3,MSDS,CE
IP degree	IP20

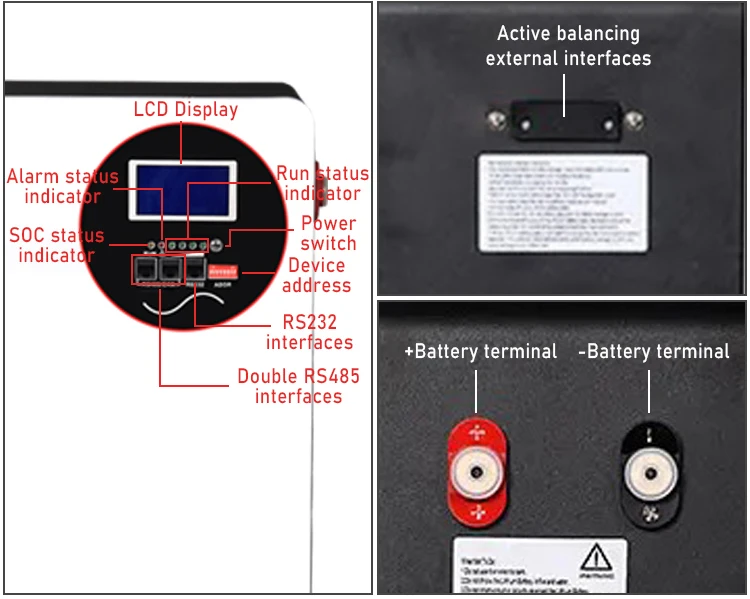

Communication function	CAN/RS485/RS232, standard BMS with ESG SUNPOLO 6Kw Solar Inverter Communication protocol.Optional smart BMS can communicate with mainBrand of Solar Inverter: Deye, Growatt,Voltronic, GOODWE,SMA,SOFAR, etc.
PROTECTION
Protection	Overcharge protection,Overdischarge protection,Overcurrent protection,Shortcircuit protection, Overtemperature protection
AMBIENT
Noise(dB)	<40dB (1 meter)
Working Temperature	Discharge: -10℃~ +50℃, Charge: 0℃~ +50℃
Humidity	0~95% ( no condensation)
Sea Level(m)	≤1500
DIMENSION
L×W×H (products size) mm	770*492*203mm	611*420*224mm	611*420*224mm	780*460*166mm	780*460*166mm
LxW×H (package size) mm	815*544*256mm	689*479*285mm	689*479*285mm	829*499*213mm	829*499*213mm
Weight(NW Kg)	73.0Kg	59.0Kg	57.0Kg	71.0Kg	71.0Kg
Weight(GW Kg)	78.0Kg	64.0Kg	59.5Kg	76.0Kg	76.0Kg
QTY for 20FT Container	196pcs	224pcs	224pcs	234PCS	234PCS



100 kwh LiFePo4 Lithium ion 48V 200Ah ups backup 120v batterie 500 kwh Related Product 5.2kw lifepo4 battery

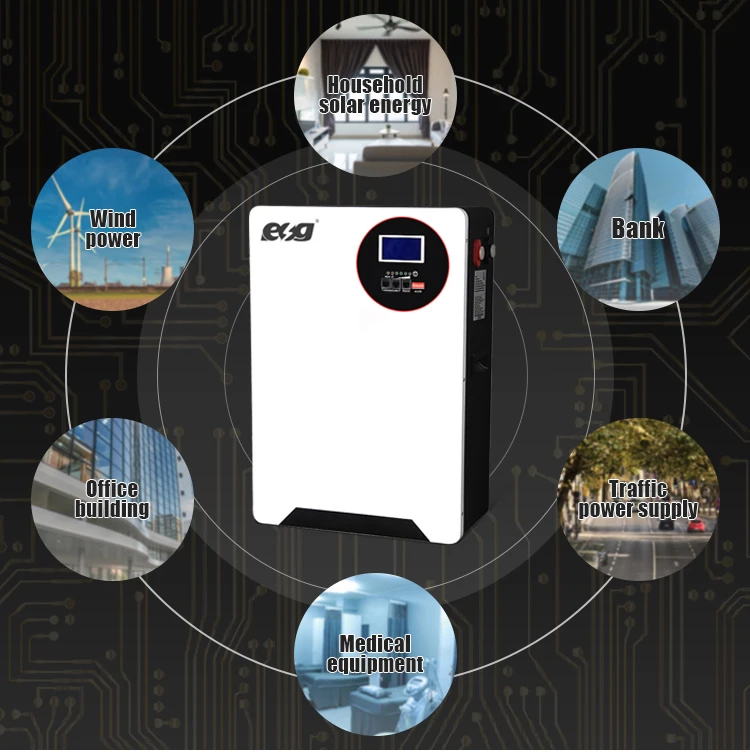

4.WIDESPREAD APPLICATION (LiFePo4 Battery)

1.Solar energy storage system
2. Home solar storage system
3.RV,Boat
4. Emergency rescue standby power supply
5. Communication stations
6. Factory solar energy storage system

 ESG 51.2v Stacked type Lifepo4 Battery 100ah 200ah Lithium Ion Battery 5 kwh lithium ion battery

Functions:
--Overcharge detection function --Over discharge detection function
--Over current detection function --Short detection function
--Temperature detection function --Balance function
--Communicate function RS485,CANBUS --Alarm function

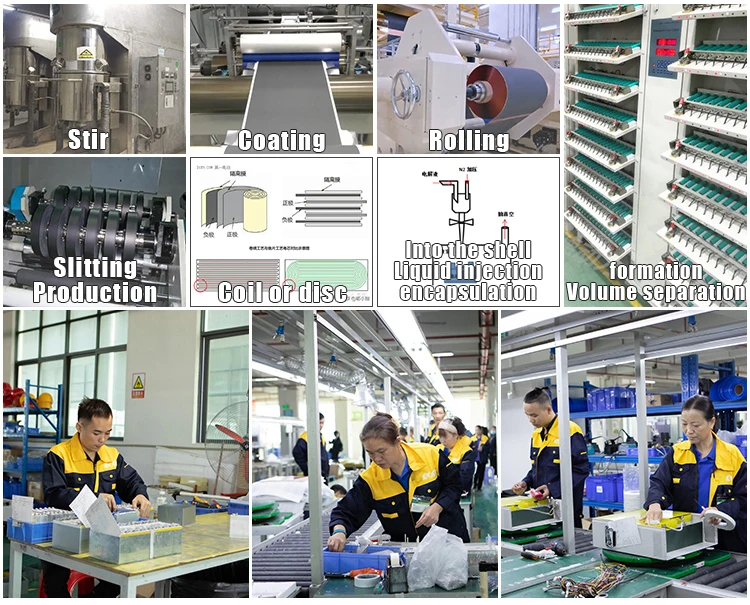

5.production

According to product quality requirements, the company has established a strict quality management system.
Strictly control and manage all the links related to product quality
We have established scientific inspection procedures and quantified the inspection indicators to ensure the continuous and stable production of qualified products.
The company strictly controls raw materials to prevent unqualified products from flowing into the production site.

6. Packing & Delivery



1) Inner box - carton - pallet - load on container
2) Packaging also can be made by customers requirements

7. Certifications

The company has passed IS09001 quality system certification, IS01 4001:2015
environmental management system certification, and its products have passed a series of
international authoritative certifications such as SGS, UN38.3, CE, RoHS, MSDS, CNAS, etc.

8,OurTeam

We are committed to providing customers with high quality new energy products and services,

always focusing on customer experience. Our products are of high quality,

stable and reliable praise, but also to our professional pre-sale, sale, after-sales service is very satisfied.

Some customers also made special mention of the kindness and patience of

our staff as we answered their questions in detail and provided solutions

9,Our exhibition

2023 We Will Continue To Expand The Market And Take Our New Products

To Visit New Energy Exhibitions In The United States,Germany,Dubai,

South Africa, Spain, The United Kingdom, The Netherlands... And Other Countries.

10.FAQ

Q1: What if I don't have import experience ?
A1: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.

Q2: How is your technical support?
A2: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.

Q3: How can I make sure it's a secure transaction ?
A3: Trade Assurance protects online orders when payment is made through Alibaba.com., all of our transaction will go through alibaba platform. As you do the payment, the money will go directly to Alibaba bank account.

After we send your the items and you confirm the detailed information, Alibaba will release us the money.

Q4: Can you get the the solar system customized for us ?
A4: Of course, our engineering designers will provide you with the most suitable product and design according to your needs.

Q5:How to become E agent?
A5:Contact us through Alibaba, we will give you the best price and look forward to your greetings.

ESG 1U2U 3U Rack BMS 1C Charging 51.2V96v100Ah 200ah Solar Storage Lifepo4 Lithium Iron Battery Pack
