Product Overview
Description
Products Description
Belt Conveyor

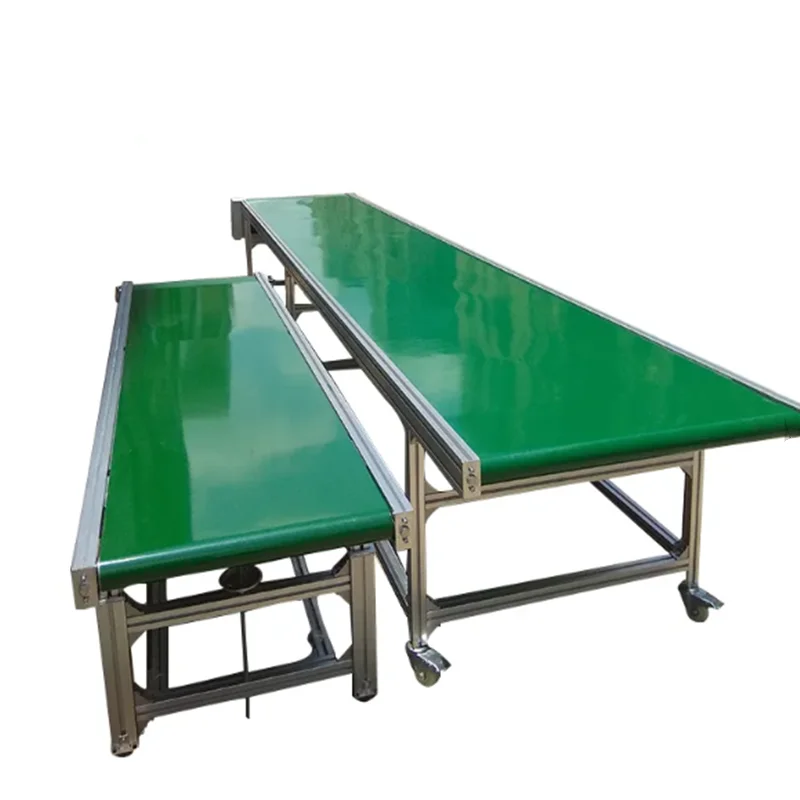

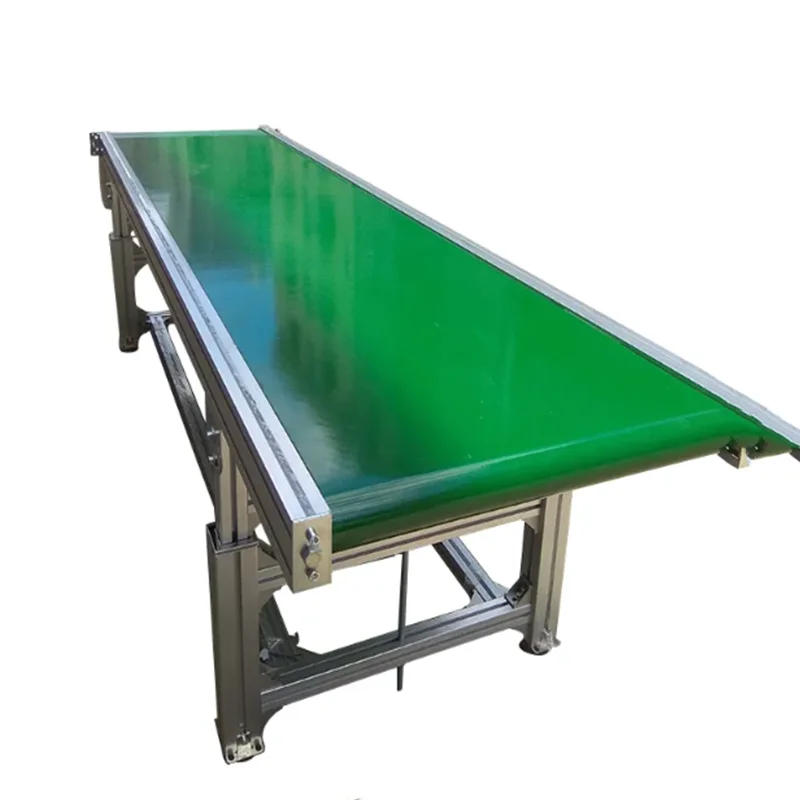

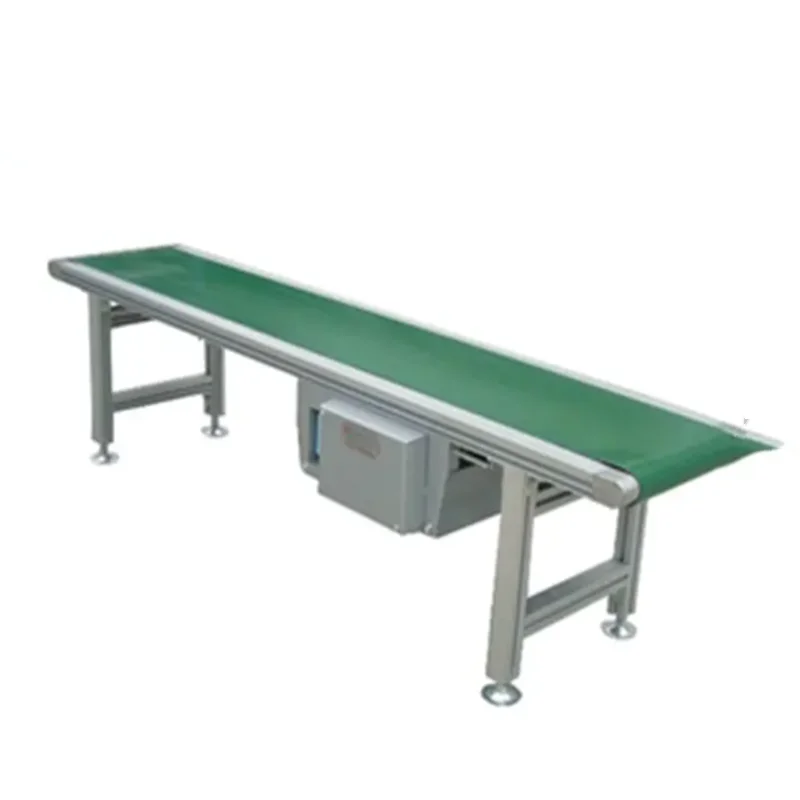

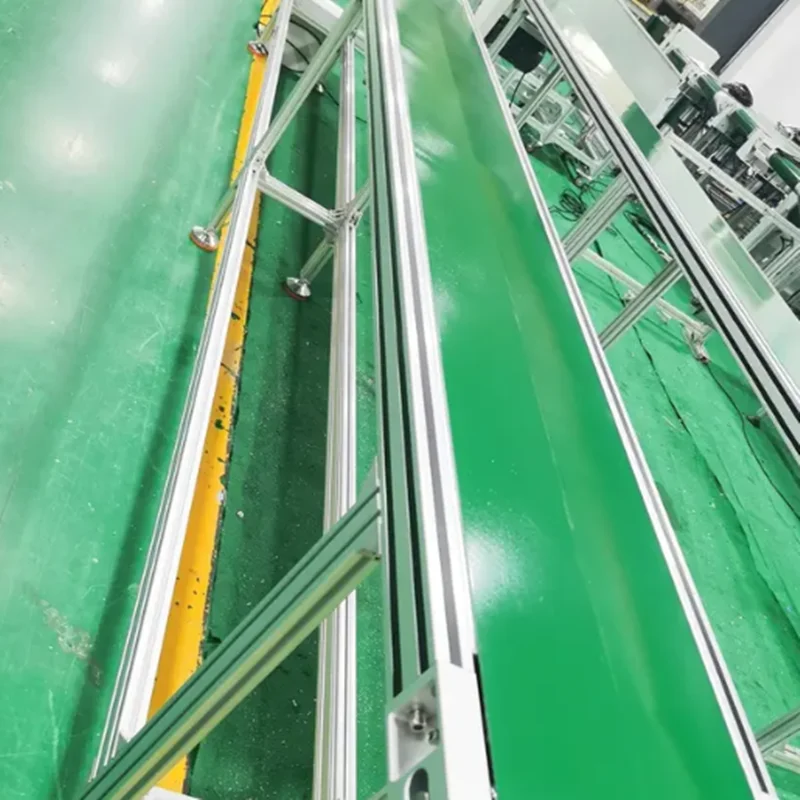

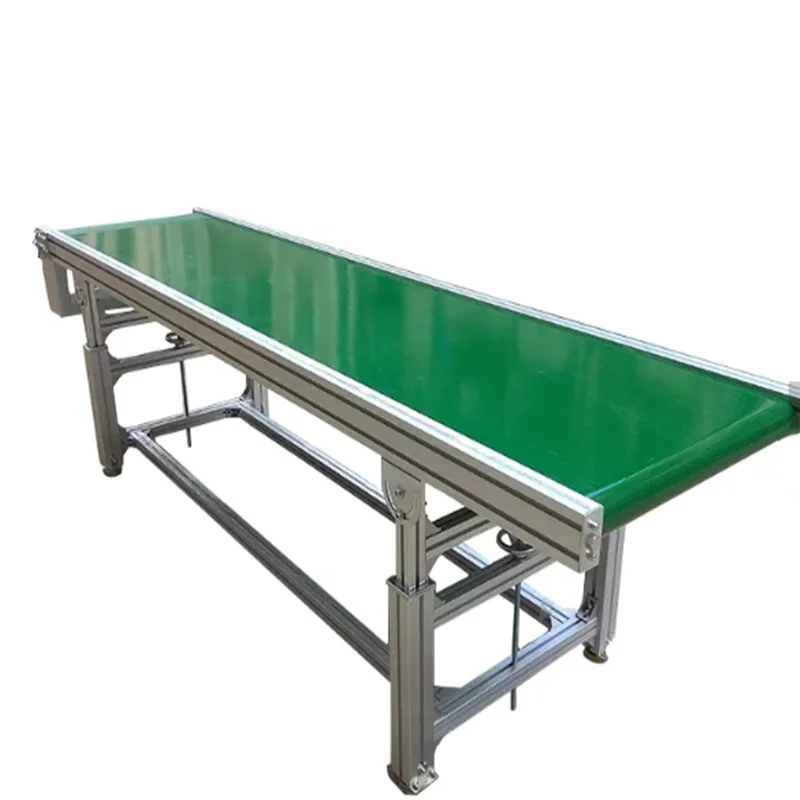

PA-B light duty belt conveyor:the belt conveyor is used in food industry,frame is made of stainless steel,carbon steel or aluminum structure,belt is white or green food grade anti-static belt,driving device is speed-adjust motor or motorized roller,can be used in different environment.
Belt width | Length | Frame | Height | Speed m/min | Driving type |
200 300 400 500 600 700 800 | 1000-6000 | Stainless steel Aluminum Carbon steel | 40/60/80 | 0/25/ m/min | Middle drive/ Head drive |
Flat belt | Power | Belt color | Motor power | Remark |
Domestic or import | 1P AC20V 3PAC380V | Green or white | 60W-400W | Capacity/m 10kg-80kg |
PB medium duty belt conveyor:HB type belt conveyor has a widely usage,can used in assembly line,frame can be made of
aluminum,carbon steel or stainless steel.
aluminum,carbon steel or stainless steel.
Belt width | Length | Frame | Height | Speed m/min | Driving type | ||
200-1200 | 3000-50000 | Stainless steel Aluminum Carbon steel | 40/60/80 /120/150 | Feed speed 8.0/9.0 15.0/18.0 20.0/24.0 30.0 | Adjust speed 25/7.5 50/15.0 7.0/20.0 10.0/30.0 | Middle drive/ Head drive | |
Flat belt | Power | Belt color | Motor power | Remark |
Domestic or import | 1P AC20V 3PAC380V | Green/white/ Black/blue | 60W-1100W | Capacity/m 10kg-120kg |
PZ type heavy duty belt conveyor:has a large loading capacity,high convey efficiency,good structure,low cost,driven part is
standardization,use low noise and high torque motor.
PW type curving belt conveyor:curving belt connect with straight conveyor,can realize turning conveyor,goods can maintain relative
position during conveying,realize synchronous delivery
Structure feature:simple structure,low cost,convey stable,low noise.
Application place:Especially suitable for conveying of irregular goods,such as small goods,bulk parts
standardization,use low noise and high torque motor.
PW type curving belt conveyor:curving belt connect with straight conveyor,can realize turning conveyor,goods can maintain relative
position during conveying,realize synchronous delivery
Structure feature:simple structure,low cost,convey stable,low noise.
Application place:Especially suitable for conveying of irregular goods,such as small goods,bulk parts
Width(mm) | Height(mm) | Single driven length | Capacity(kg/m) | Speed(m/min) | Power |
300-1200 | 1P AC20V 3PAC380V | Green/white/ Black/blue | Max100 | Max30-60 | 60W-1100W |
Width(mm) | Height(mm) | Inner diameter | Capacity(kg/m) | Speed(m/min) | Power(KW) | Turing degree |
100mm-1000mm | Min500 | 900(standard) | 80kg/set | Max30 | 0.2 0.4 0.75 | 60°,90°,180° |
Recommend Products

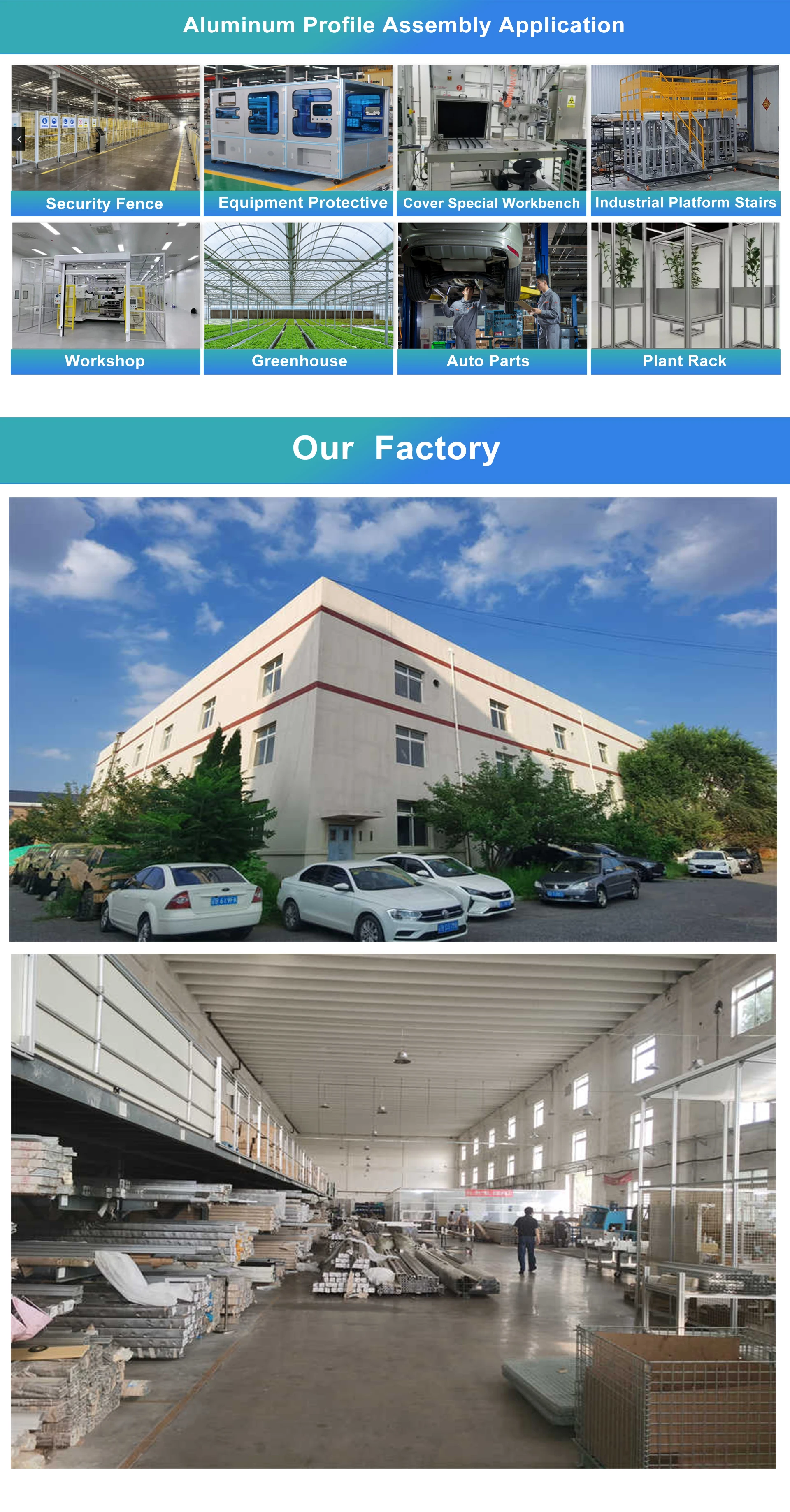

Company Profile
