11kw 48v MPP Solar inverter 230V Dual MPPT solar charger high PV input 500v battery charger wifi PIP11kw MAX pure sine wavePopul
- Category: >>>
- Supplier: Shenzhen Scmk New Energy Co. Ltd.Shenzhen Ltd.
Share on (1600835002167):
Product Overview
Description
Solar Home Lighting System Inverters With Best Monitoring App 150a Off Grid 11kw Solar Inverter
Product Details

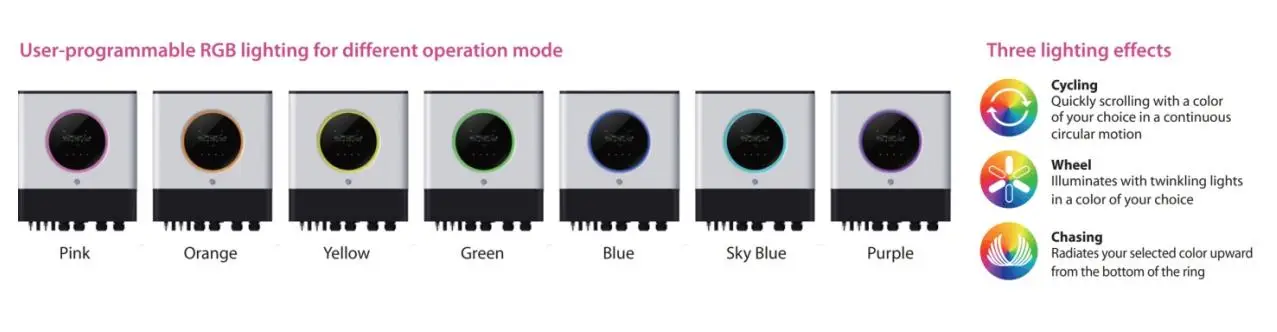

•Status indication with RGB lights
Touchable button with large 5" colored LCD
Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)Datalog events stored in the inverter
Supports USB On-the-Go function
Reserved communication port for BMS (RS485, CAN-BUS, RS232)
Replaceable fan design for ease of maintenance
Battery independent design
Configurable AC/PV output usage timer and prioritization
Selectable high power charging current
Compatible to Utility Mains or generator input
Built-in anti-dust kit
Supports USB On-the-Go function
Reserved communication port for BMS (RS485, CAN-BUS, RS232)
Replaceable fan design for ease of maintenance
Battery independent design
Configurable AC/PV output usage timer and prioritization
Selectable high power charging current
Compatible to Utility Mains or generator input
Built-in anti-dust kit
Parallel operation with 6 units
Technical Specification
Model | SC-MAX 11KW II | |||
Rated Power | 11000VA/11000W | 8000VA/8000W | ||
Parallel Capablity | YES, 6 units | |||
Input | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170-280VAC for Personal Computers 90-280VAC for Home Appliances | |||
Frequency Range | 50/60Hz (Auto sensing) | |||
Output | ||||
AC Voltage Regulation (Bat Mode) | 230VAC ± 5% | |||
Max Power | 11000W | |||
Efficiency (peak) | up to 93% | |||
Transfer Time | 15ms for Personal Computer; 20ms for Home Appliances | |||
Waveform | Pure sine wave | |||
No Load Power Consumption | ＜70W | |||
DC Outputs | 12VDC ± 5%, 100W | |||
Battery | ||||
Battery Voltage | 48VDC | |||
Floating Charging Voltage | 54VDC | |||
Overcharge Protection | 66VDC | |||
Solar Charger & AC Charger | ||||
Solar Charger Type | MPPT | |||
Maximum PV Array Power | 11000W (5500W×2) | |||
Maximum PV Array Open Circuit Voltage | 500VDC | |||
MPPT Range @Operating Voltage | 90-450VDC | |||
Maximum Solar Charge Current | 150A | |||
Maximum AC Charge Current | 150A | |||
Maximum Charge Current | 150A | |||
Physical | ||||
Dimension (L*W*H) mm | 158.4 x 503.6 x 530.8 | |||
Net Weight (kgs) | 21 kg | |||
Communication Interface | USB / RS232 / RS485 / WiFi / Dry-contact | |||
Environment | ||||
Humidity | 5%-95% Relative Humidity (Non-condensing) | |||
Operation Temperature | -10℃ to 50℃ | |||
Storage Temperature | -15℃ to 60℃ | |||
Standard | ||||
Compliance Safety | CE | |||

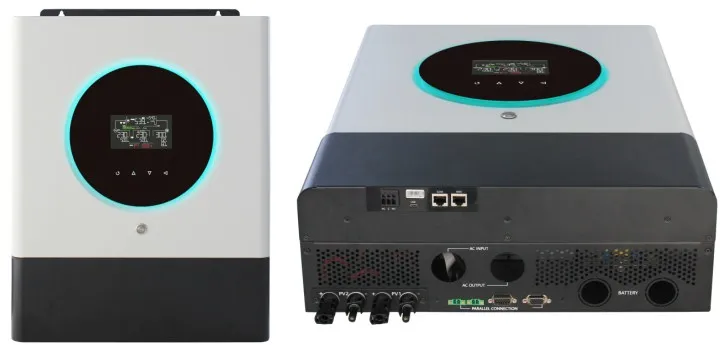

Details Images
Product packaging
To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1pc in a high quality Carton box, enough time for Aging test to ensure good quality.
Company Profile
Shenzhen Zhengxin Electronics Co., Ltd.provide a one stop solution to the ups series product including design,R&D,manufacturing
and sales with after sales to our valuable customer.currently we are working closely with our customer in OEM,ODM and JDM mode ,we
also looking for better opportunity to work with our potential customer on some new products and new projects.Withn the
certification of ISO9001 and ISO14001 ,we believed that we are able to provide the best quality and service to our customer
truthfully and we are seeing the success together .
and sales with after sales to our valuable customer.currently we are working closely with our customer in OEM,ODM and JDM mode ,we
also looking for better opportunity to work with our potential customer on some new products and new projects.Withn the
certification of ISO9001 and ISO14001 ,we believed that we are able to provide the best quality and service to our customer
truthfully and we are seeing the success together .
Our Service
Pre-Sales Service
* Salesmen with 2 months of product training.
*Your questions will be forwarded to the engineer for
confirmation.
* Sample testing support and OEM service.
* View our Factory.
*Your questions will be forwarded to the engineer for
confirmation.
* Sample testing support and OEM service.
* View our Factory.
After-Sales Service
* Warranty:1 years
* After-sales team keep track of usage and provide
timely feedback
* Engineers maintenance on the damaged part for free.
* After-sales team keep track of usage and provide
timely feedback
* Engineers maintenance on the damaged part for free.
FAQ
Q1.How is your product quality?
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past five years. Regarded as a high quality inverter supplier.
Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,
we have a 24 months warranty.We will track product usage until you are satisfied.
Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
Q4.What kind of certificate you have ?
A:Our company already achieve ISO, CCC, and for products, we have CE, ETL, Thayer, UL .
Q5. what's the payment term?
A: We accept TT,30% deposit and 70% balance against copy of B/L
Q6. How's the delivery time ?
A: Usually it will take about 5-7 workdays for production
Q7.What kind of material of transformer?
A:we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirement. In fact,those two have
no difference if normal work well. Only except the long life. Copper is better and also higher price.
Q8: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input
but also can connect with solar panel to accept PV input, it more save power.
Q9.Do you have unique advantages?
A:Five sales teams are responsible for different markets, with an average staff of 4 and a half years in the company.
R & D team ensure that each year for different markets launch 4 to 7 products listed.
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past five years. Regarded as a high quality inverter supplier.
Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,
we have a 24 months warranty.We will track product usage until you are satisfied.
Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
Q4.What kind of certificate you have ?
A:Our company already achieve ISO, CCC, and for products, we have CE, ETL, Thayer, UL .
Q5. what's the payment term?
A: We accept TT,30% deposit and 70% balance against copy of B/L
Q6. How's the delivery time ?
A: Usually it will take about 5-7 workdays for production
Q7.What kind of material of transformer?
A:we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirement. In fact,those two have
no difference if normal work well. Only except the long life. Copper is better and also higher price.
Q8: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input
but also can connect with solar panel to accept PV input, it more save power.
Q9.Do you have unique advantages?
A:Five sales teams are responsible for different markets, with an average staff of 4 and a half years in the company.
R & D team ensure that each year for different markets launch 4 to 7 products listed.
