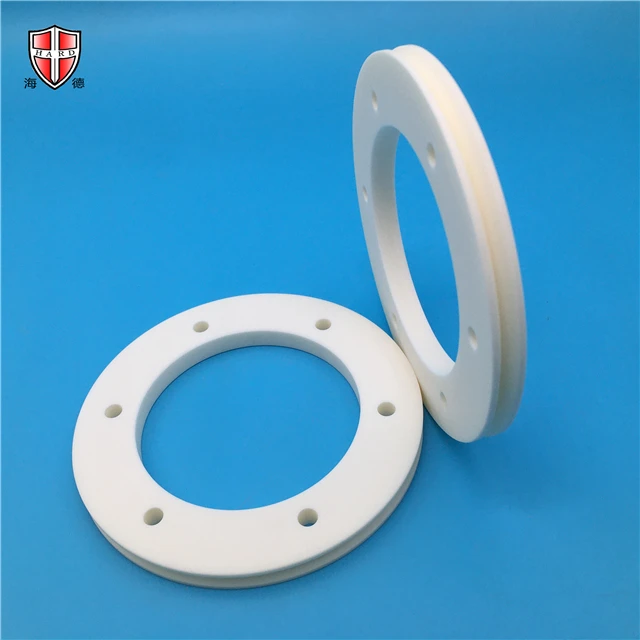

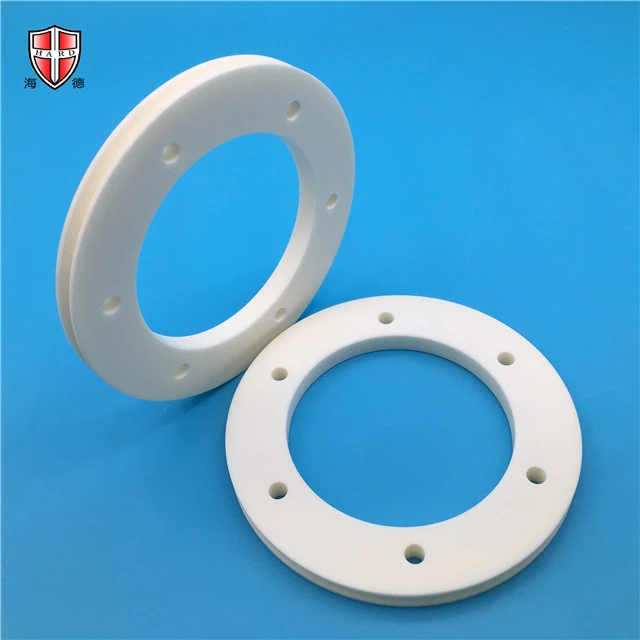

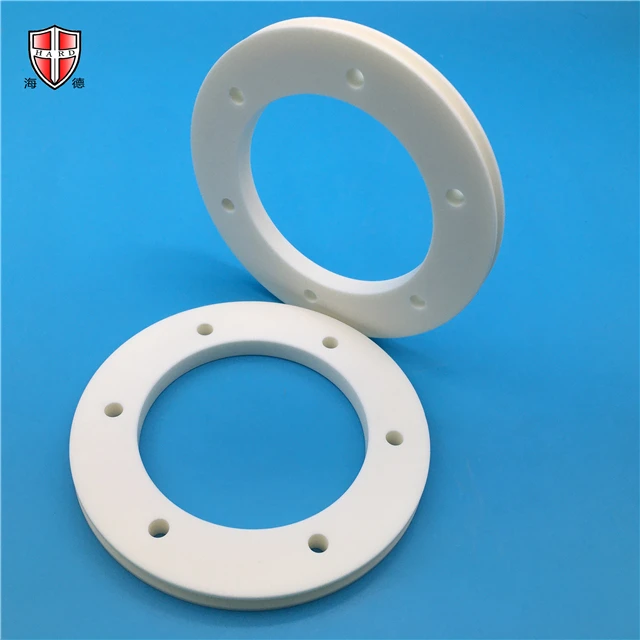

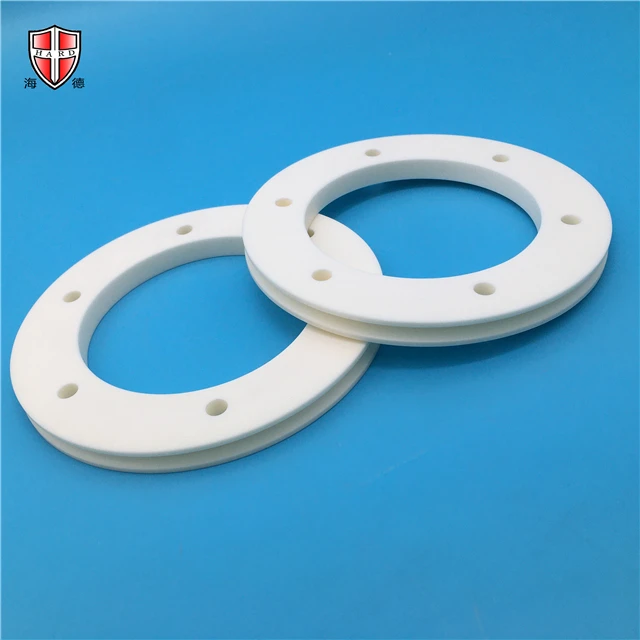

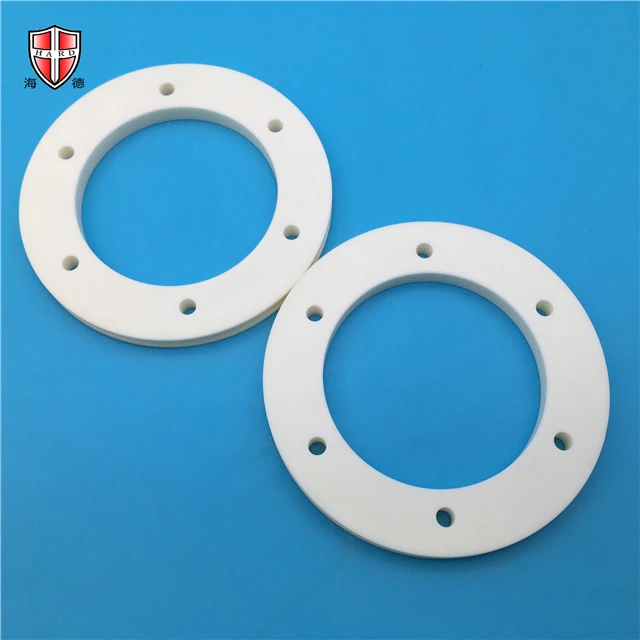

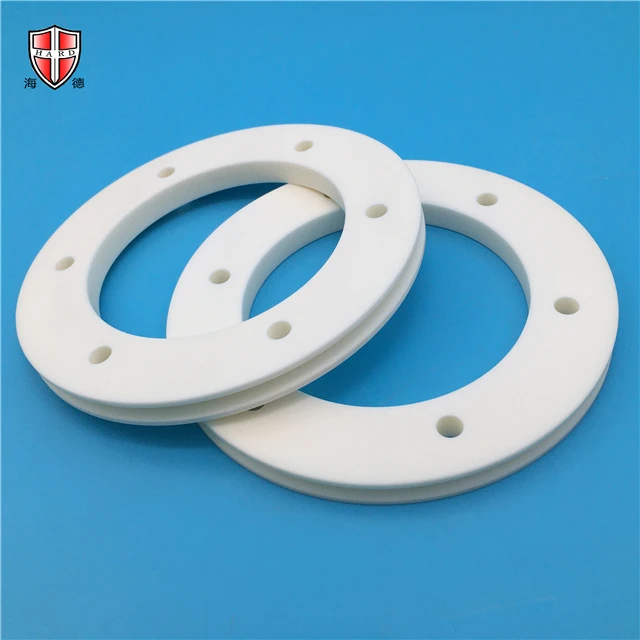

Good thermal shock resistance 99.5% alumina ceramic plate washer structural parts high strength temperature factory
- Category: >>>
- Supplier: Shenzhen Hard Precision Ceramic Co. Ltd.
Share on (1600835010381):
Product Overview
Description
Good thermal shock resistance 99.5% alumina ceramic plate washer structural parts high strength temperature factory
Product Description
Alumina Ceramic:
Alumina ceramics are ceramic materials based on alumina (Al2O3) for thick film integrated circuits. Alumina ceramics have good conductivity, mechanical strength and high temperature resistance. It should be noted that ultrasonic cleaning is required. Alumina ceramics is a versatile ceramic. Because of its superior performance, it has been widely used in modern society, satisfying the needs of daily use and special performance.
Data Sheet↓
Alumina Ceramic Properties | 96 Alumina Ceramic | 99 Alumina Ceramic | |
| Item | Unit | Typical Values | |
| Physical Properties | |||
| Color | White | Ivory | |
| Density | g/cm3 | 3.7 | 3.85 |
| Alumina Content | % | 96% | 99% |
| Gas permeability | 0 | 0 | |
| Water Absorption | 0 | 0 | |
| Mechanical Properties | |||
| Rockwell Hardness | HRA | 80 | 82 |
| Vickers Hardness (Hv50) | Gpa(Kg/mm²) | 15.7(1600) | 15.7(1600) |
| Flexural Strength(20°C) | Mpa | 300 | 330 |
| Compressive Strength(20°C) | Mpa | 2000 | 2000 |
| Modulus of Elasticity (20°C) | Gpa | 275 | |
| Poisson's Ratio (20°C) | 0.22-0.23 | ||
| Fracture Toughness(20°C) | MPam1/2 | 3.5 | 4 |
| Thermal Properties | |||
| Thermal Conductivity(20°C-400°C) | W(m.K) | 25 | 27.5 |
| Thermal Expansion Coefficient | 10-6/°C | 6.5-7.5 | 7.6 |
| Thermal Shock Resistance | T°C | 200 | 200 |
| Maximum Use Temperature | °C | 1600 | 1650 |
| Electronic Properties | |||
| Dielectric Strength | KV/mm | >12 | >10 |
| Dielectric Constant | Er | 9-10 | 9.1 |
| Dielectric Loss Angle(1MHz) | 0.0002 | 0.0002-0.0003 | |
| Volume Resistivity(20°C) | Ω.cm | >1014 | >1014 |
Application industry: Machinery, fiber optic, knife, medical, food, petroleum etc.
Specific application: plunger, ceramic shaft, fiber optic bushing, stub, grinding, ceramic knife, ceramic slide guide, machined plunger, mobile phone shell, watch case, haircut razor blade etc.
Company Information
Shenzhen Hard Precision Ceramic CO.,Ltd founded in 2007, located in Shenzhen of China.
We are a company that integrates development, design, molding, sintering, production and sales of precision ceramic products. After 10 years of development, we have cooperated with more than 2000 customers and 60 universities; Our factory covers an area of 2000 square meters, 50 employees, and annual production value of nearly 20 million. We have a higher visibility and better reputation in the same industry.Our products include ceramic rods, tubes, plates, blocks and precision parts for industrial. We have all-line high precision equipments from ceramic forming, sintering to precision machining. Hope for a wide range of sincere cooperation with customers at home and abroad.
Why Choose Us?
1.12 years of professional production industrial ceramics factory
2.High quality products with low price
3.High precision parts with lowest tolerance
4.Show time for production
5.Has a group of experienced, professional and efficient R&D team
6.Has a good reputation in China and abroad.
7.MOQ is not limited, small quantity is welcome.
8.Vigorous team and good after-sales service
Product Show
Factory Show
Packaging & Shipping
Our Team
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
