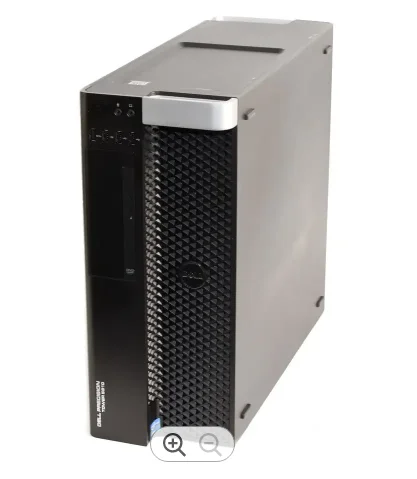

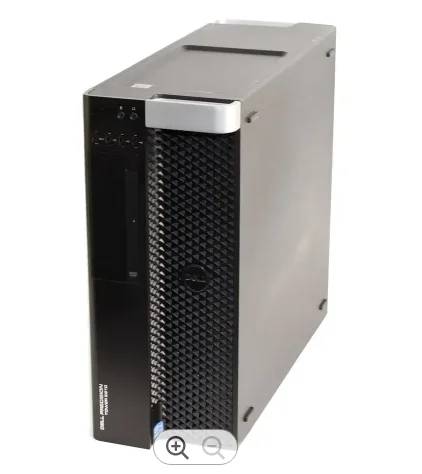

Dell T5810 1620V4 4G DDR4 1T NVS315 DVD MK/425W workstation

Form Factor

Convertible Mini-Tower

Model

Dell Precision T5810 Workstation

Processor(s)

0 Installed - supports E5-1600 v3 series and select E5-2600 series LGA2011-3 Socket CPUs

Memory

0GB - No memory installed

# of Memory Slots

Quad channel; Up to 256GB 2133MHz DDR4 ECC RDIMM memory; 8 DIMM slots

Hard drives

0GB - No hard drives installed, 2 hard drive caddy included

Video card

Not installed - required for proper operation

Convertibility

Yes. Chassis can be rotated for Minitower or Desktop orientation

Internal bays

2x Internal 3.5-inch bays (2x acoustic dampening rail assembly / hard drive caddy included)

External bays

1x External 5.25-inch bay

Front I/O

1x USB 3.0
3x USB 2.0
1x Headphone
1x Microphone

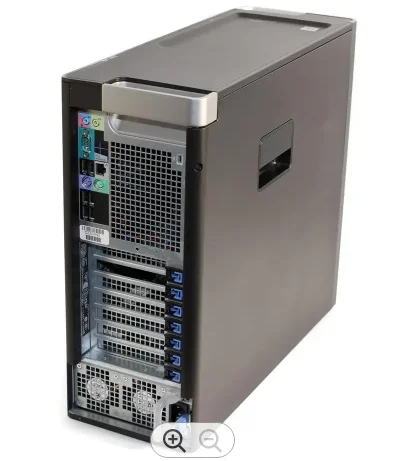

Rear I/O

3x USB 3.0
3x USB 2.0
2x PS/2
1x RJ-45 (NIC)
1x Audio Line-In/Microphone
1x Audio Line-Out
1x Serial Port

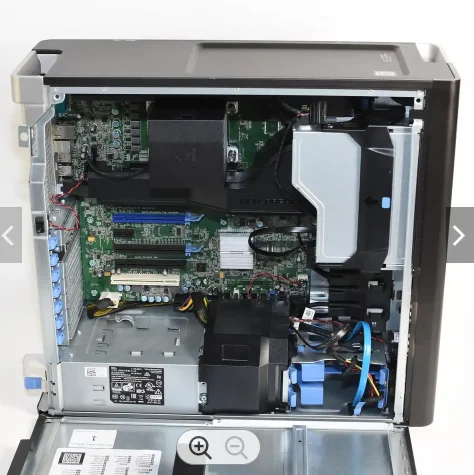

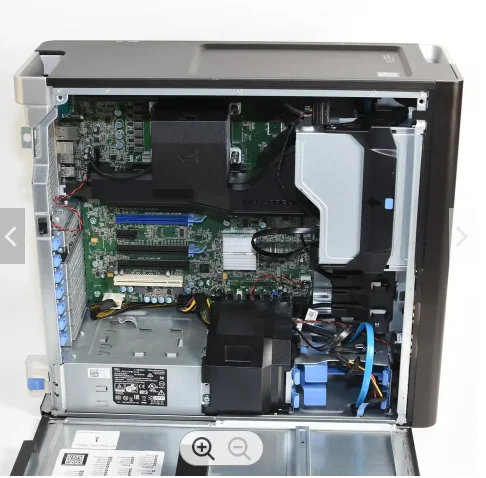

Internal I/O

3x USB 2.0 ports
4x SATA 6Gb/s, 2x SATA 6GB/s (for optical drive(s))

Expansion Bays and Slots

Bays: One external slimline optical bay, two internal 3.5” hard drive bays; one external 5.25” bay, power supply (externally
accessible, tool-less, 80 Plus® Gold Certified, 90% efficient) 685W or 425W Ports: 5 slots (5 full length, 1 half length). Two
PCIe x16 Gen 3, one PCIe x 16 Gen 3 wired x8 (half length); one PCIe x4 Gen 2; one PCIe x1 Gen 2, one 32bit/33MHz

Power Supply Installed

425 W 90% Efficient, Custom PSU (non-ATX)

Optical Drive

DVD-ROM

Network

Integrated Intel I217 Gigabit Ethernet controller with Intel Remote Wake UP, PXE and Jumbo frames support

Opertating System

Windows 8 Pro COA (Certificate of Authenticity) with Product Key embedded in BIOS/UEFI

Power Cord

Included
