EXV2080 4K VBY1 TV LCD Screen Panel Tester oled tv mother board tester
- Category: >>>
- Supplier: Winnix Technologies Co. Limited(Shenzhen)
Share on (1600835083169):
Product Overview
Description
Product Description
Product Application
EXV2080 TV Motherboard and Panel integrated Tester is a device that can test both LCD module
and TV motherboard at the same time. EXV2080 adopts multi-core processor architecture design to
test 4K-VBY1 LCD module and 2K-LVDS LCD module. EXV2080 can test LVDS motherboard, test
VBY1 motherboard, test MINILVDS motherboard with powerful function (For those unfamiliar with
these signals, please read this manual carefully. With the EDP module (additional procurement
required), it can also test the EDP signal LCD module of notebook.
When testing LCD module, EXV2080 supports image signal types with various resolutions and
formats, and has strong compatibility. It can output a variety of test images, such as solid color,
color bar, gray scale, animation, etc., and can track a single bad point on the LCD module, avoiding
the situation of misjudgment, making the test more perfect and judgment more accurate.
When testing TV motherboard, it can test two groups of FHD LVDS signals at the same time, so the
test is more comprehensive. At the same time, EXV2080 also has its own image-detail display
function, which makes the characters clearer when adjusting the LCD module parameters. The
built-in LCD can achieve local definition equivalent to 1600 * 960 in magnification mode. When the
external display is connected, the dual screen display function can be achieved, and the local
definition in the magnification mode is equivalent to that of 2K display.
EXV2080 has its own operation interface, which can be directly seen all parameters of TV
motherboard and LCD module. EXV2080 also has its internal protection circuit. When VLCD and
GND are short circuited, it can automatically judge and prohibit output.
EXV2080 with micro USB data upgrade interface, support software upgrade. When there is a new
demand, you can upgrade the firmware to maintain its best compatibility
Product Main Features
ITEM | PARAMETER | |
1 | NAME | Integrated Panel and Board Tester |
2 | MODEL | EXV2080 |
3 | Input Power | 12V-5A |
4 | LCD | 5 inches, 800*480 |
5 | Scaled ratio | Up to 4x |
6 | Output LCD Voltage | 5V/12V |
7 | Output Current for LCD | ≤3A |
8 | Output Signal Type | LVDS、V-by-One、EDP、HDM |
9 | HDMI output | 1280*720*60Hz |
10 | Input Signal Type | LVDS，V-by-One，MINILVDS |
11 | Input Signal Resolution | 3840*2160，1920*1080，1366*768，1024*768， 852*480 |
12 | Fresh rate | 120Hz，100Hz，60Hz，50Hz，30Hz，25Hz |
13 | Product Size | 181*119*32mm |
14 | Warranty Period | 1 year |
Detailed Images

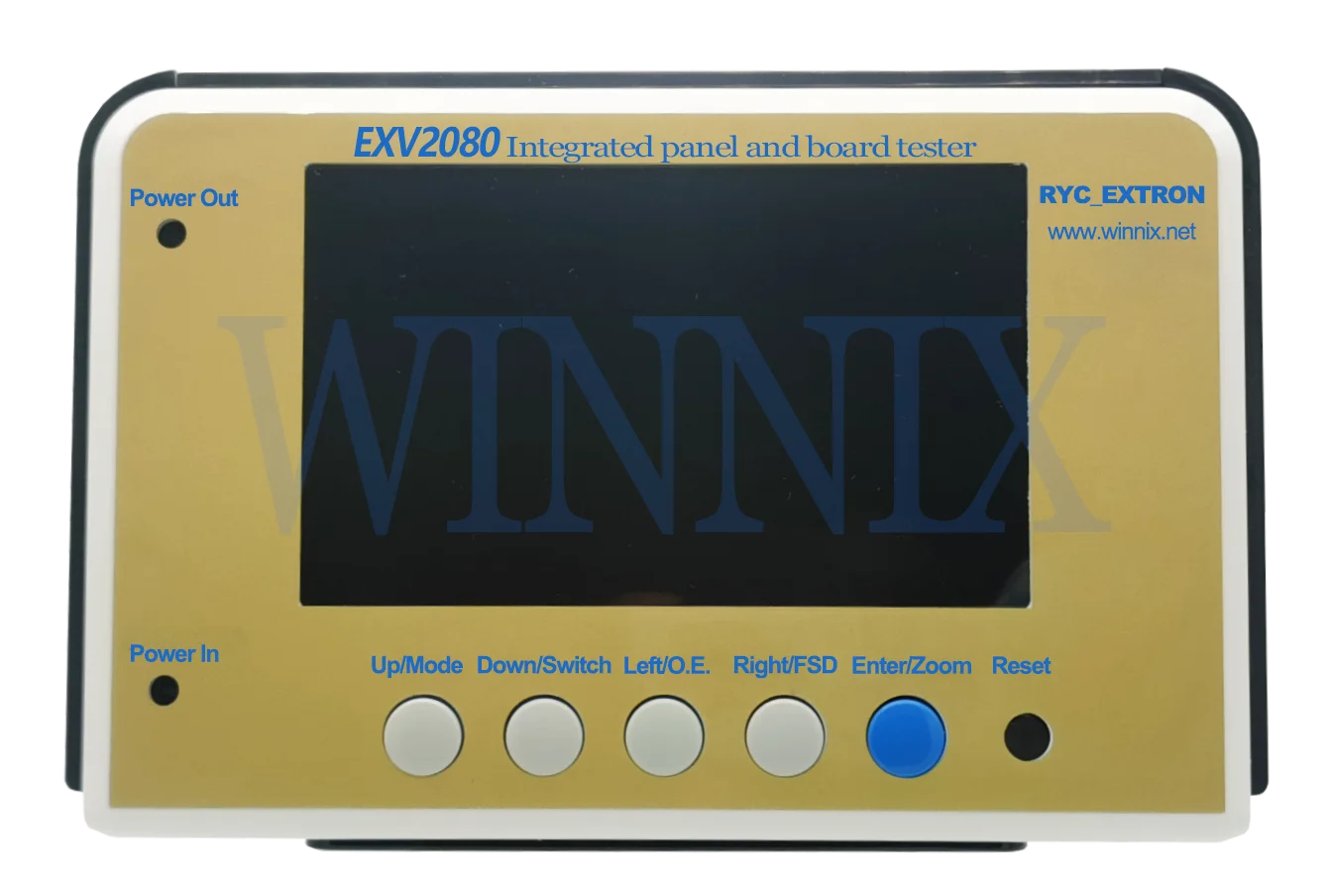

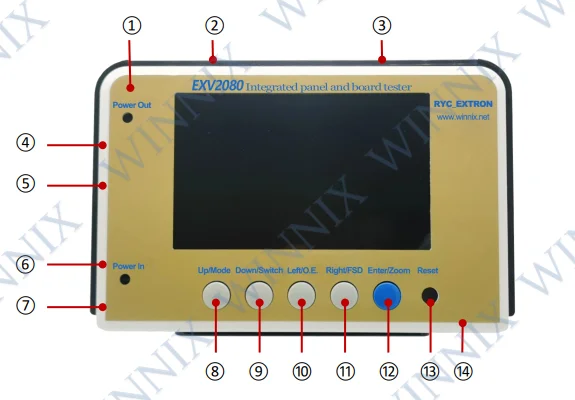

Front panel
1. VLCD output indicator light---when there is VLCD voltage output,the light will be on
2. LVDSsignal interface --- output LVDS or input LVDS (or MINILVDS) signal
3. VBY1-4K signal output interface — output VBY1 signal
4. 4.HDMIinterface --- output HDMI signal
5. Type A USB port---Reserved
6. Powersocket---12V power input
7. Extron use only
8. Up / Mode key --- move cursor up, or switch forward the image, or image mode adjustment
9. Down / Switch key --- move cursor down, or switch back image, or 4K image dual screen adjustment
10. Left / Odd-even key --- move the cursor to the left, or auto switch image, or LVDS signal groups Odd-even order switch
11. Right / Full screen key --- move the cursor to the right,or auto switch image,or enter and exit full screen display mode
12. Confirm / Scale key --- confirm the current cursor position parameter, or SCAL the image (scale 4x local image)
13. Resetkey --- reset all function
14. MicroUSBport --- online firmware upgrade socket

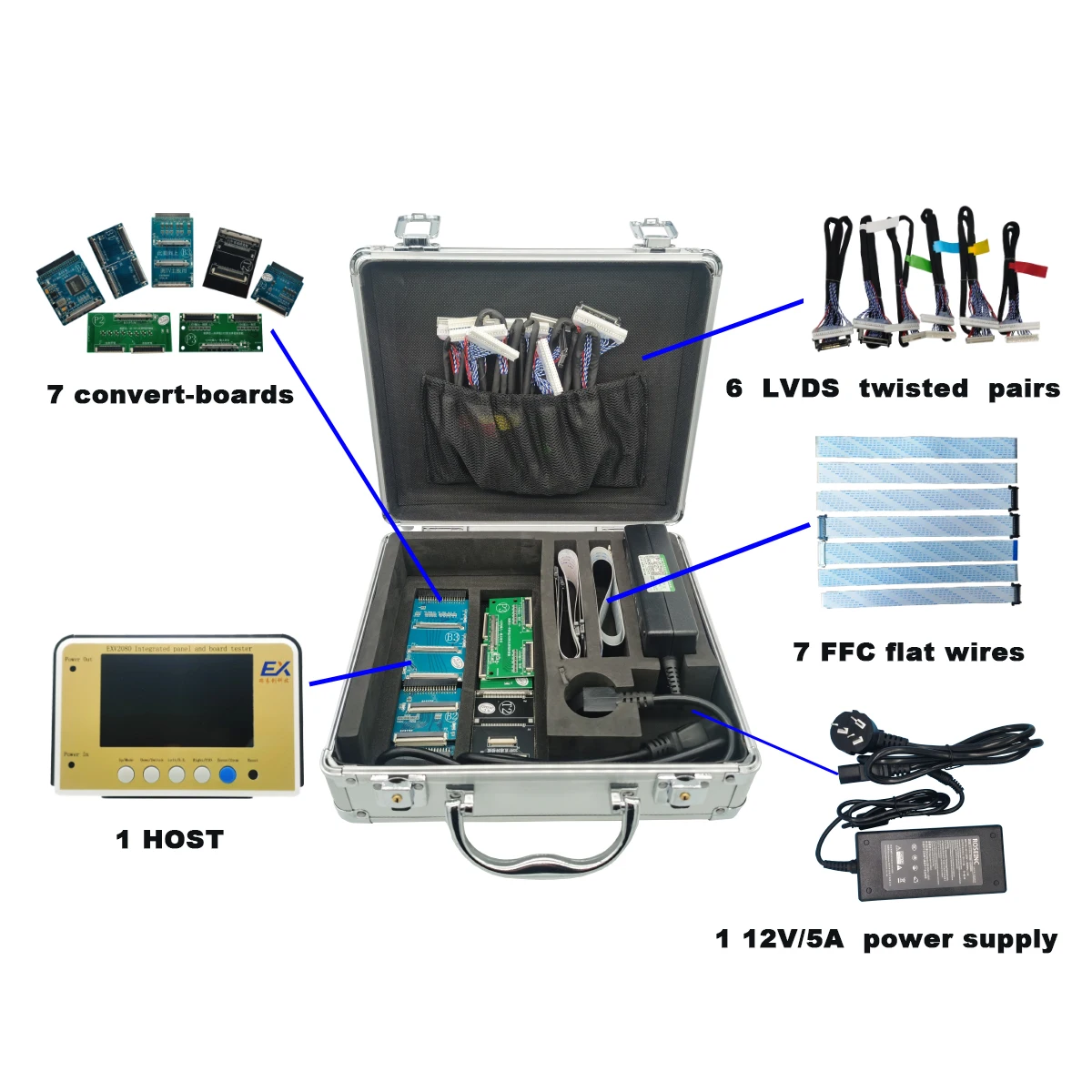

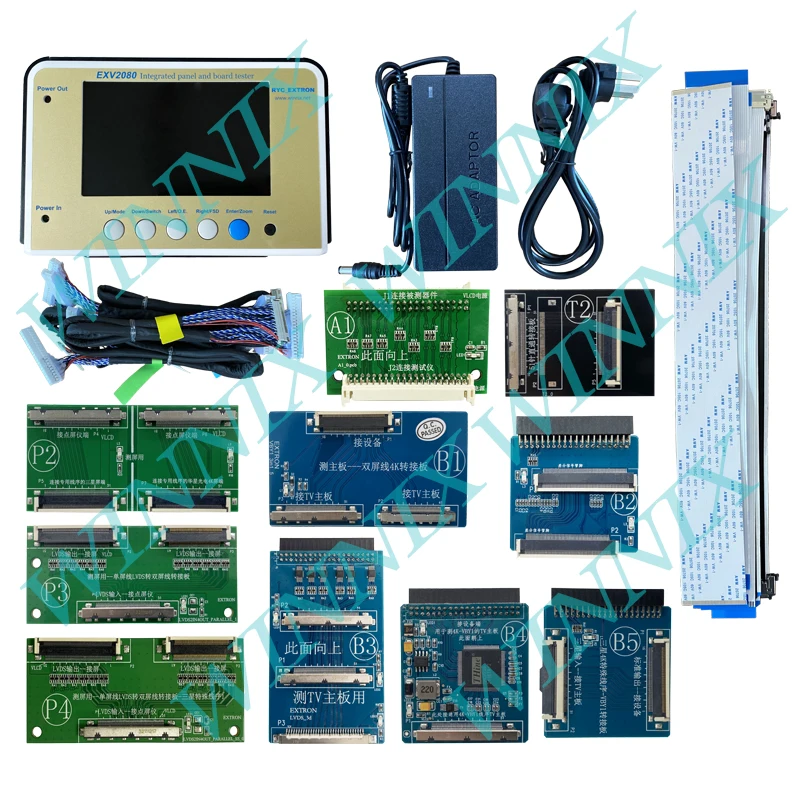

whole test kits
`1 host
7 converter boards

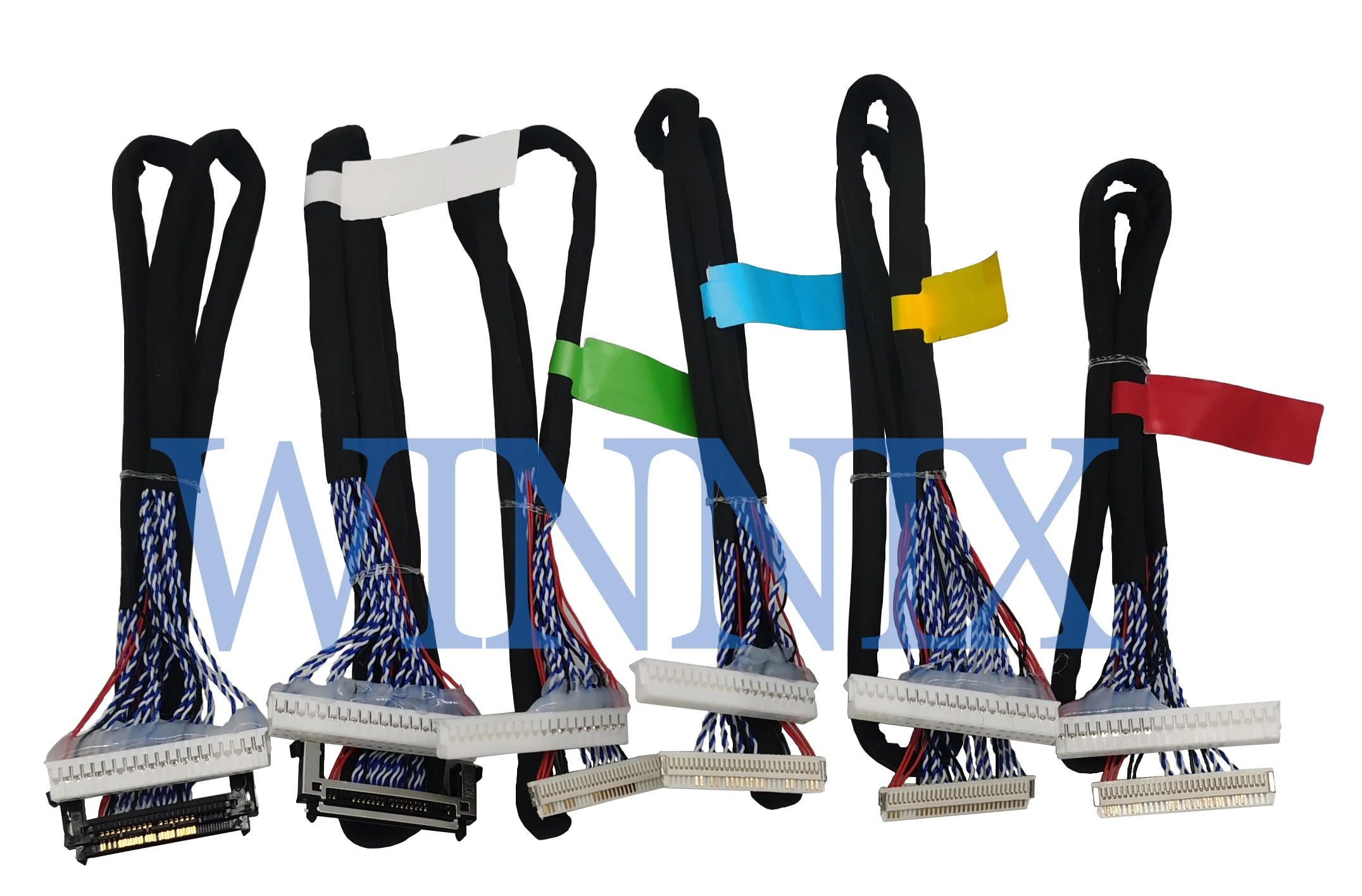

6 LVDS Twisted Pairs

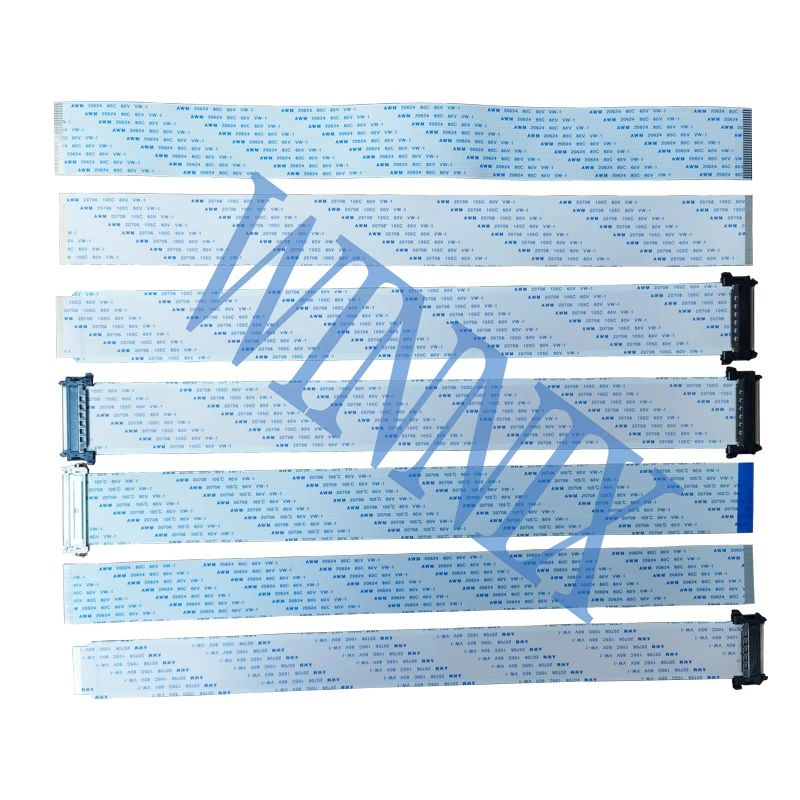

7 FCC flat Cable
1 12V5A power supply
