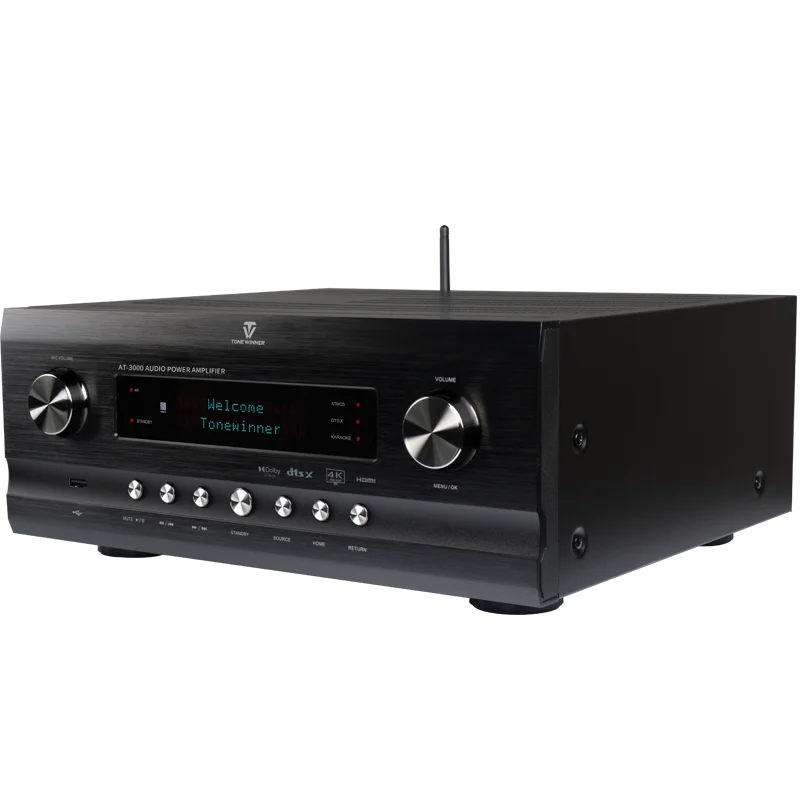

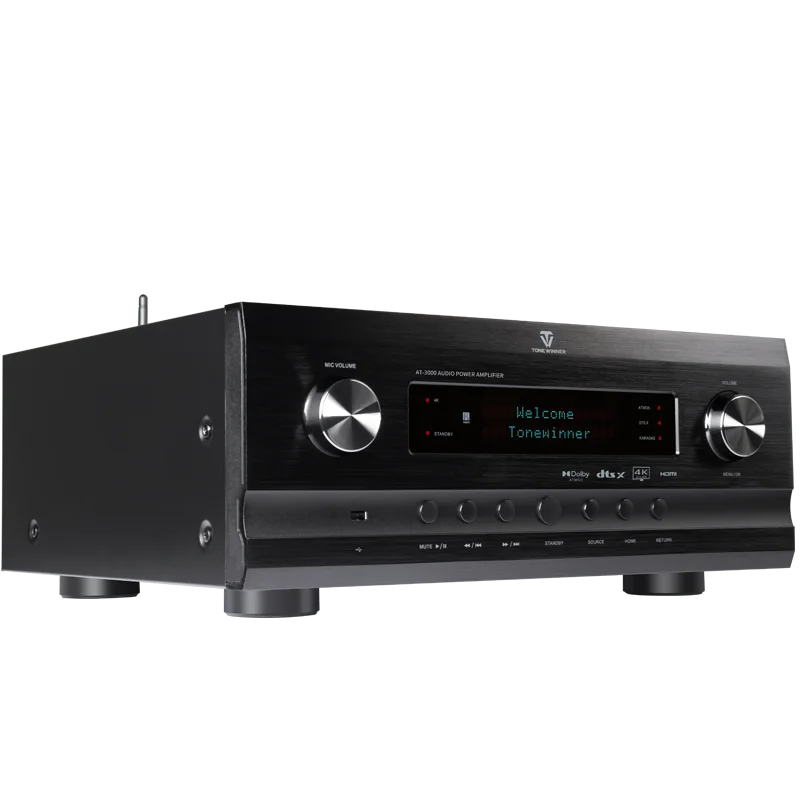

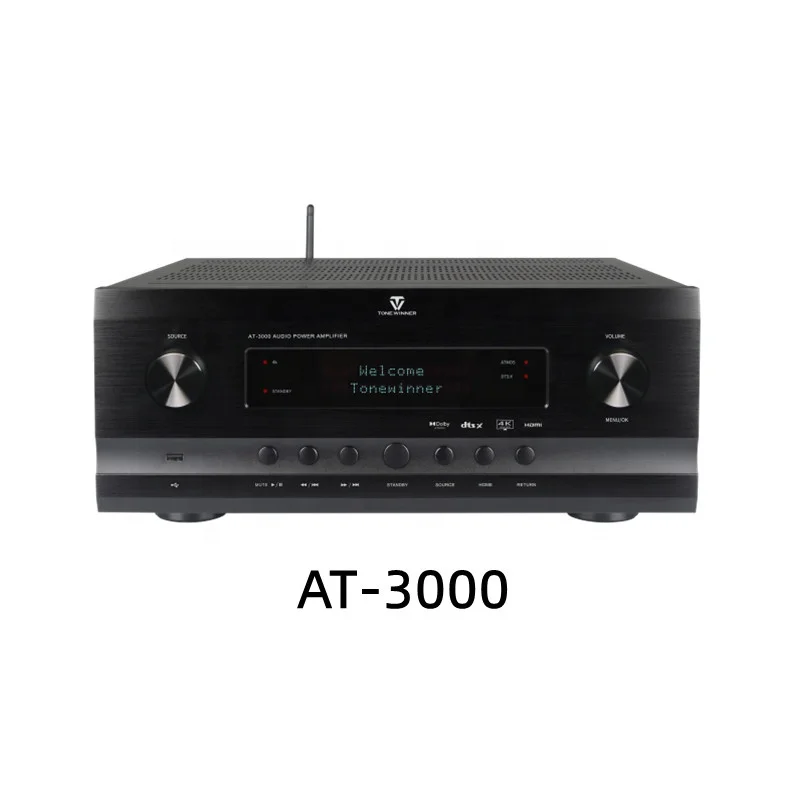

Tonewinner 2023 NEW 9.3.4/7.3.6 AT-3000 AV receiver support eARC HDMI 2.1 1680W wireless Dolby Atmos receiver amplifier audio
Introduction
AT-3000 is a high-end home cinema integrated amplifier. It handles Dolby Atmos & DTS:X and is backwards compatible with all the previous iterations of those sound formats. It supports 4K, 3D, HDR, Dolby Vision, ARC audio playback, APP control, USB disk, Bluetooth, TF card and also several lossless and compressed audio formats.
Main Features
1. Support Dolby Atmos, DolbyTrue HD and all backward Dolby audio formats.
2. Support DTS:X, DTS-Master and all backward DTS audio formats.
3. Support HDMI2.1, HDCP2.2.
4. Support 4K/60Hz, RGB4:4:4, 18GHz bandwidth HD video signal.
5. Support Dolby Vision and HDR 10 video signal.
6. Support 7.3.6 and 9.3.4 decoding output.
7. Auto testings and compensations for Room EQ, speaker distance. delay and sound pressure.
One button control, full auto calibration. Support manual adjustments, too.
8. Built-in digital Bluetooth audio receiver.
9. Builtin music playing device; support multi-level folder arrangement of music files from TF
card & USB disk; support lossless & compressed audio formats including FLAC, APE, WAV,
MP3, etc.
10. Support smart phone App control.
11. OSD layer menu.
12. Synchro-reading and display of music lists on mobile phone and TV.
13. Support speaker configurations from 2.0 to 9.1.4.

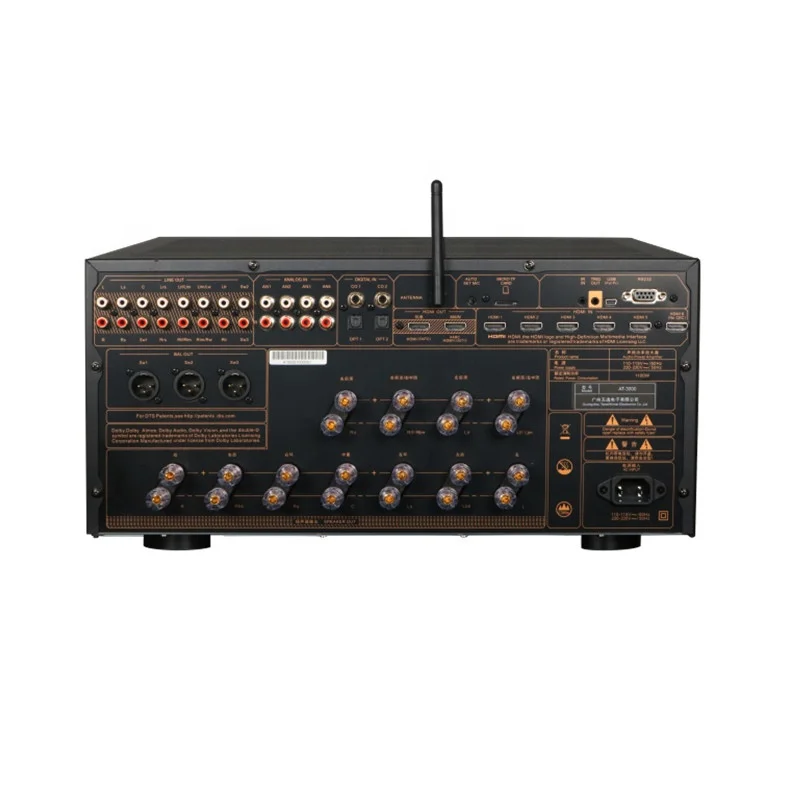

14. HDMI 6 in 2 out, 2 way coaxial, 2 way optical and 4 way analog inputs.
15. Built-in 11 channels amplifiers, LR/C: 240W (8ohm) ,other channels: 120W (8ohm) Big power Hi-Fi amplifier design can drive 7. 1.4 speaker configuration.
16. Support RS232 protocol.
17. HDMI eARC and CEC.
18. Maximum 1000ms lip-sync adjustment.
19. 5 to 11 band parameters EQ for each channel.
20. Independent EQ settings and parameter storage for each input channels.
21. Support audio-video matrix subgroup output.
22. Dual-core DSP from ADI company.
2. Support DTS:X, DTS-Master and all backward DTS audio formats.
3. Support HDMI2.1, HDCP2.2.
4. Support 4K/60Hz, RGB4:4:4, 18GHz bandwidth HD video signal.
5. Support Dolby Vision and HDR 10 video signal.
6. Support 7.3.6 and 9.3.4 decoding output.
7. Auto testings and compensations for Room EQ, speaker distance. delay and sound pressure.
One button control, full auto calibration. Support manual adjustments, too.
8. Built-in digital Bluetooth audio receiver.
9. Builtin music playing device; support multi-level folder arrangement of music files from TF
card & USB disk; support lossless & compressed audio formats including FLAC, APE, WAV,
MP3, etc.
10. Support smart phone App control.
11. OSD layer menu.
12. Synchro-reading and display of music lists on mobile phone and TV.
13. Support speaker configurations from 2.0 to 9.1.4.
14. HDMI 6 in 2 out, 2 way coaxial, 2 way optical and 4 way analog inputs.
15. Built-in 11 channels amplifiers, LR/C: 240W (8ohm) ,other channels: 120W (8ohm) Big power Hi-Fi amplifier design can drive 7. 1.4 speaker configuration.
16. Support RS232 protocol.
17. HDMI eARC and CEC.
18. Maximum 1000ms lip-sync adjustment.
19. 5 to 11 band parameters EQ for each channel.
20. Independent EQ settings and parameter storage for each input channels.
21. Support audio-video matrix subgroup output.
22. Dual-core DSP from ADI company.
Specifications
Parameters | AT-3000 | THD | ≤0.03%(A weight,direct) |
Channels | Decoding: 7.3.6/9.3.4 channels Amplifier: 11 channels | SNR | ≥95dB(A weight,direct) |
Frequency | 10Hz-50KHz（+1/-3dB, pure mode） | Color | Black |
Power Output | L/R/C: 240W Rms/8Ω (THD=1%, 1CH, 1KHz)， Other channels 120W Rms/8Ω (THD=1%, 1CH, 1KHz) | Whole Unit Gain | ≥38dB(A weight,direct) |
Rated Impedance | 8Ω | Power supply | ～110V~115V (60Hz)/～220V~230V (50Hz) |
G.W | 25KG | N.W | 22.1KG |
Size | 431x439x218mm | Packaging Size | 550x534x319mm |
