Factory Wholesale CE 500w 1000w wind power generation system small home solar wind turbines generator for wind power home use
- Category: >>>
- Supplier: Guangdong Engineering Plastics Industries (group) Co. Ltd.
Share on (1600835150498):
Product Overview
Description
Factory Wholesale CE 500w 1000w wind power generation system small home solar wind turbines generator for wind power home use
Product Display
Product Advantage
1. Novel appearance
2. The components of the wind turbine are easy to install
3. No wind turbine tail (automatically and smoothly facing the wind)
4. Easy to start
5. Horn-shaped design principle, greater energy efficiency
6. The blade resistance is small, and the suction and exhaust angle is good
7. The blade material is light and has strong wind absorption ability
8. Good wind gathering ability
2. The components of the wind turbine are easy to install
3. No wind turbine tail (automatically and smoothly facing the wind)
4. Easy to start
5. Horn-shaped design principle, greater energy efficiency
6. The blade resistance is small, and the suction and exhaust angle is good
7. The blade material is light and has strong wind absorption ability
8. Good wind gathering ability
Prouduct Parameters
Model | K1-EQ500w |
Package Size | 730*660*230mm |
Weight | 11.5kg |

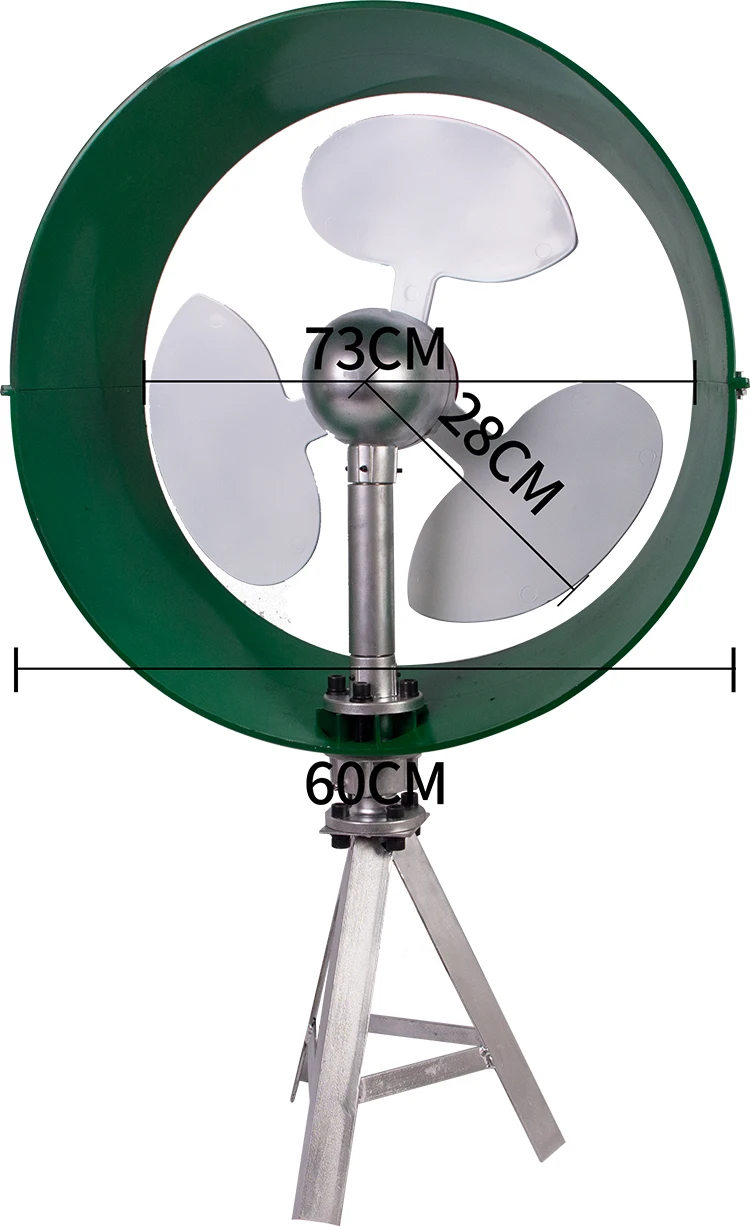

Wind Wheel Diameter | 56cm |
Front Diameter | 60cm |
Rear End Caliber | 73cm |
Starting Wind Speed | 1.3级风(2.6m/s) |
Rated wind speed | 5级-6级风(11m/s-12m/s) |
Safe wind speed | 60m/s |
Wind Speed | 65m/s |
Rated Power | 500w |
Maximum Power | 550w |
Rated Speed | 620 -750转/分 |
Rated Voltage | 12V/24V/48V |
Rated Torque | 1.82 n/m |
Starting Torque | 29.3n/m |
Operating Temperature | —43℃—82℃ |
Number Of Blades | 3 piece |
Shell Material | Aluminium Alloy |
Spindle Material | Mixed fiber nylon basalt material |
Blade Material | Mixed fiber nylon basalt material |
Shaft Diameter | Automatic up wind |
Wind direction adjustment | Automatic Adjustment |
Alternator | NdFeB |
Control System | Electromagnetic & controller unloading |
Wind direction adjustment | Automatic adjustment without tail |
Use Life | Under normal circumstances, it is generally more than 25 years (except for easy damage) |

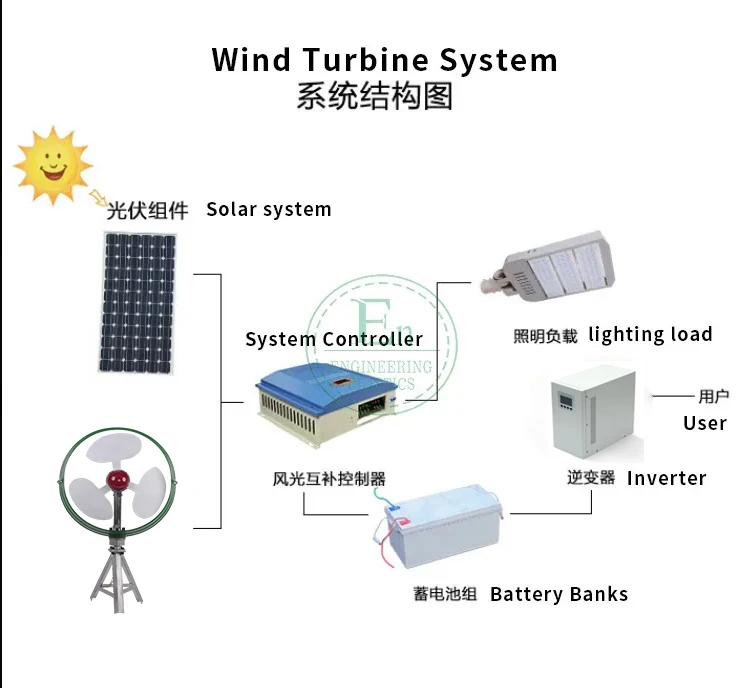

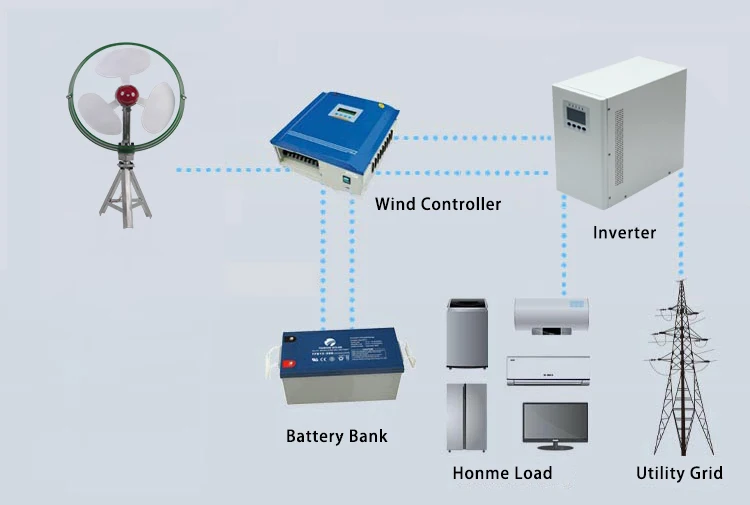

wind generator system
Selection and matching of small wind turbine system
1. First, application; second, good quality and low price; third, safety and reliability;
2. Select wind turbines according to local wind resources;
3. The wind turbine shall be selected according to the power consumption of electrical appliances;
4. The wind turbine equipped with hand brake parking device shall be selected in coastal windy areas;
5. The best matching of battery and wind turbine;
6. The best match between electrical appliances and wind turbines;
7. The best match between the controller and the wind turbine;
8. The best matching of inverter and generator system;
9. The best match between the load release device and the wind turbine;
FAQ
Q1: How many winds for wind turbines can generate electricity?
In general situation, about 3 levels to the battery charge (the wind generator voltage is higher than the battery voltage), the installation of wind turbines must be aware of your local wind resources, such as the annual wind speed in the 3-5 level, we proposed 300-1000W small wind power generator, if more than 4 levels of wind resources in the usual year, can choose more than 1000W wind generator.
Q2: How to confirm your wind situation
Level 1: smoke with the wind
Level 2: wind blows the face
Level 3: the leaves move, the red flag flies
Level 4 level: wind blowing paper
Level 5 level: shakes with small leaves
Level 6: hard lifting
Level 7: inconveniences in the wind
Level 8 level: wind blowing branch break
Level 9 level: roof flying tile
Level 10: pull up a tree and reverse the house
Q3: Why does the fan has the starting wind speed
In addition to the influence of gravity, such as its own wind blades, and the wind cap, the most important thing is the magnetic resistance (that is, the resistance that usually cuts the magnetic line). Now the good Magnet material is used NdFeB. So the speed of the fan does not necessarily mean that the amount of electricity generated is much.
Q4:Why the wind generator will brake
When the battery is full, or in the case of strong wind, the fan will also have the phenomenon of braking or not turning. This is the normal phenomenon of the fan controller in protecting the battery or the fan.
In general situation, about 3 levels to the battery charge (the wind generator voltage is higher than the battery voltage), the installation of wind turbines must be aware of your local wind resources, such as the annual wind speed in the 3-5 level, we proposed 300-1000W small wind power generator, if more than 4 levels of wind resources in the usual year, can choose more than 1000W wind generator.
Q2: How to confirm your wind situation
Level 1: smoke with the wind
Level 2: wind blows the face
Level 3: the leaves move, the red flag flies
Level 4 level: wind blowing paper
Level 5 level: shakes with small leaves
Level 6: hard lifting
Level 7: inconveniences in the wind
Level 8 level: wind blowing branch break
Level 9 level: roof flying tile
Level 10: pull up a tree and reverse the house
Q3: Why does the fan has the starting wind speed
In addition to the influence of gravity, such as its own wind blades, and the wind cap, the most important thing is the magnetic resistance (that is, the resistance that usually cuts the magnetic line). Now the good Magnet material is used NdFeB. So the speed of the fan does not necessarily mean that the amount of electricity generated is much.
Q4:Why the wind generator will brake
When the battery is full, or in the case of strong wind, the fan will also have the phenomenon of braking or not turning. This is the normal phenomenon of the fan controller in protecting the battery or the fan.
