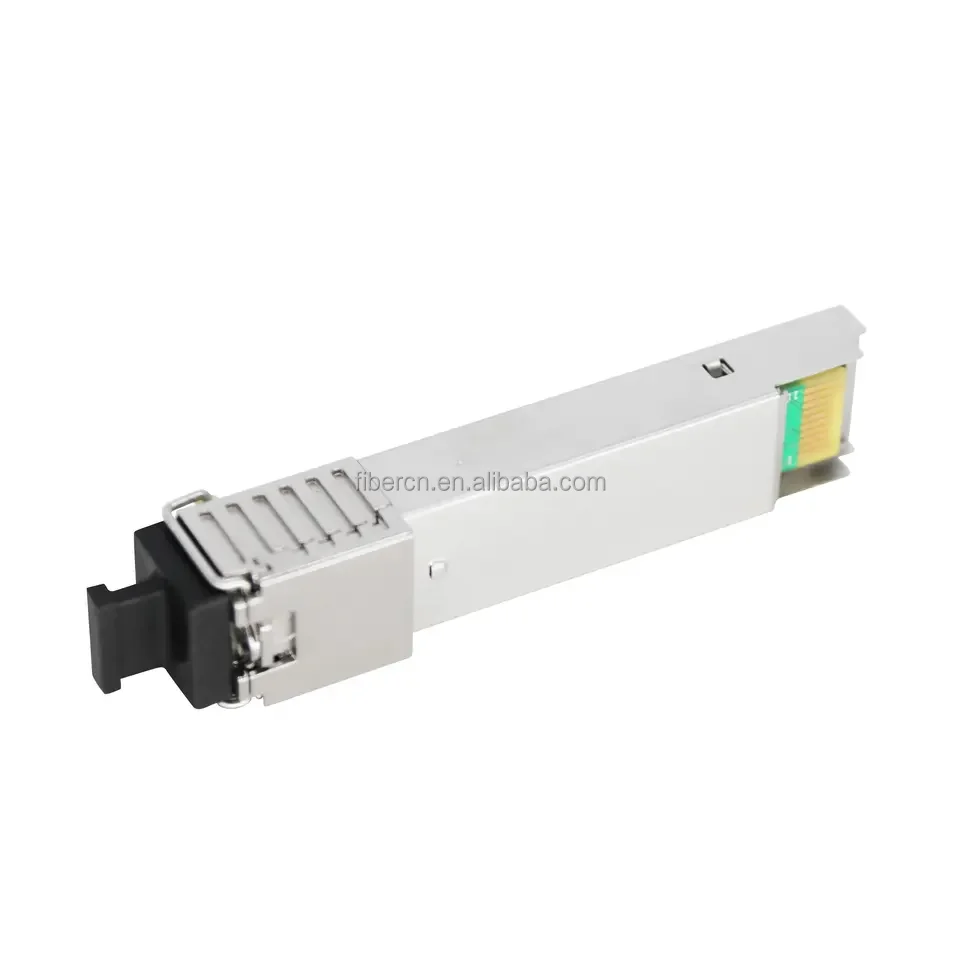

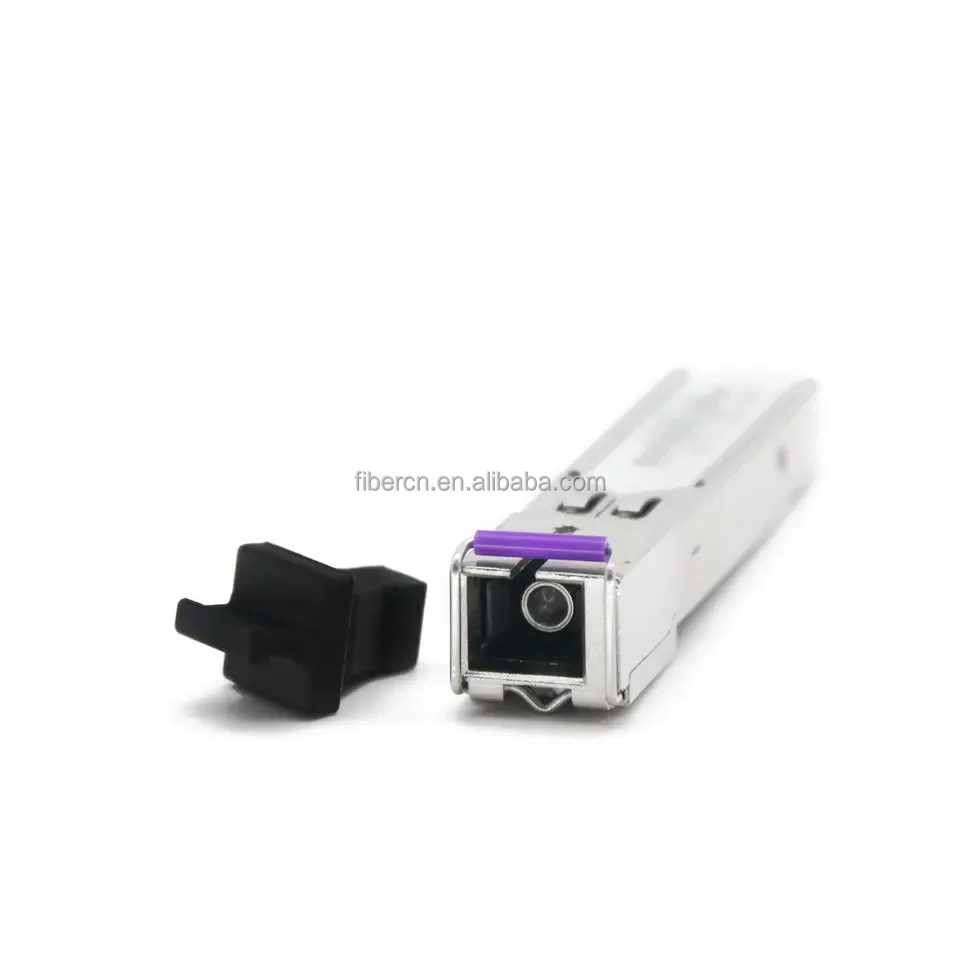

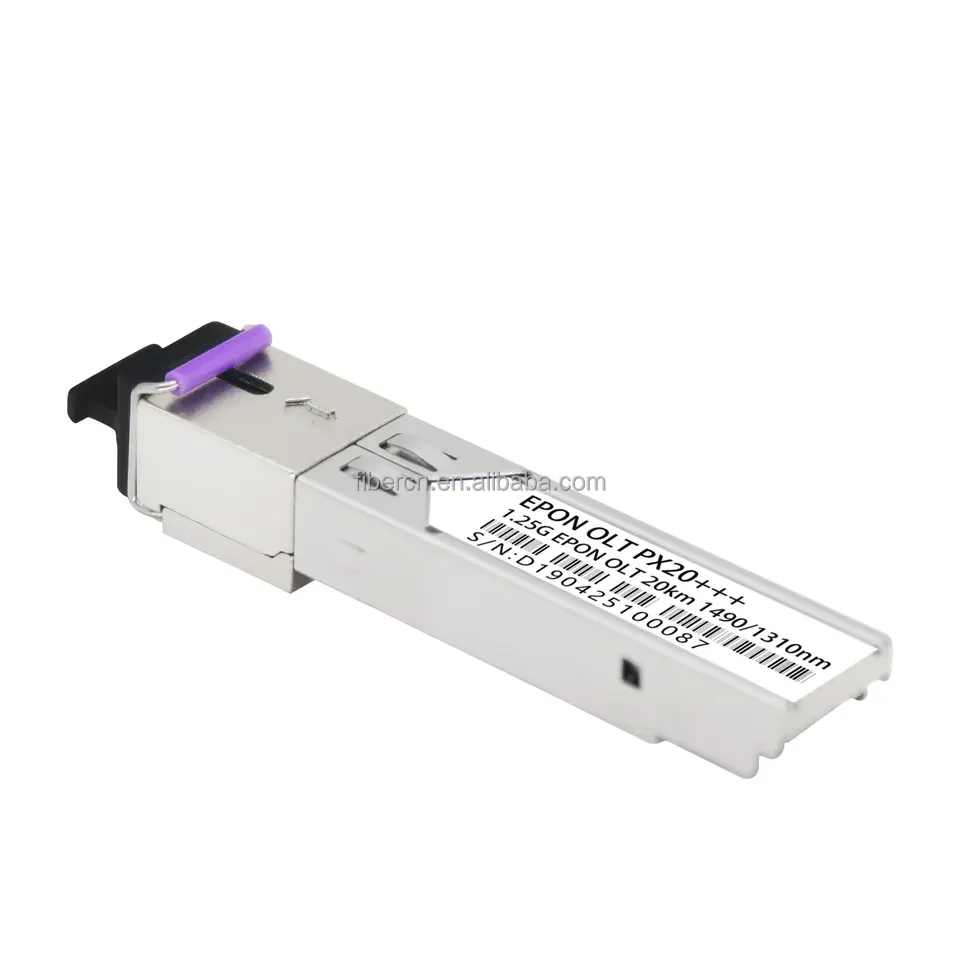

Epon Gpon OLT SFP ODI Module C C C 7db 8db 9db PX20 7dbi 8dbi 9dbi 20KM Compatible with ZTE Vsol HSGQ HIOSO
- Category: >>>
- Supplier: Shenzhen Huayixin Technology Co. Ltd.
Share on (1600835166186):
Product Overview
Description
Product Description
1.1.25Gb/s serial optical interface compliant to 802.3AH specifications small form factor pluggable module “SFP”
2.1490 nm DFB transmitter, 1310 nm APD photo detector BURST receiver
3. 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical
transceivers
4. Operating case temperature: 0 to 70 °C or-40 to 85 °C
5. All-metal housing for superior EMI performance
6. Low power consumption
7. Cost effective OLT solution
8. RoHS compliantApplications

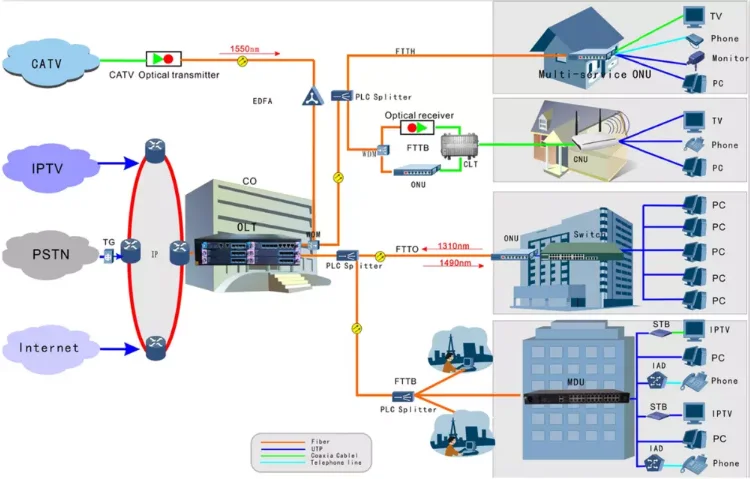

1. GEPON networks
2. FTTX
2.1490 nm DFB transmitter, 1310 nm APD photo detector BURST receiver
3. 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical
transceivers
4. Operating case temperature: 0 to 70 °C or-40 to 85 °C
5. All-metal housing for superior EMI performance
6. Low power consumption
7. Cost effective OLT solution
8. RoHS compliantApplications
1. GEPON networks
2. FTTX
Specification
item | value |
Model Number | PX20+++ /C++ + |
Type | SFP Module |
Place of Origin | China |
Brand Name | VSOL / HSGQ / HIOSO / ZTE/ Huawei |
Use | FTTH |
Warranty Time | 1 year |
Product name | OLT SFP Module |
Power | PX20+++/C+++ 7db 8db 9db |
Distance | 20KM |
TX Power | >7db; >8db;>9db |
Wavelength | Tx1490nm/Rx1310nm |
Data Rate | 1.25G |
Storage Temperature | -40~85 °C |
MOQ | 4 pcs |
Operating case temperature | 0~70 °C /-40~85 °C |
Warranty | 1 Year |
