2024 Water Well Drilling Rig Machine 100m Hydraulic Mine Drilling Rigs Rotary Hole Borehole Drill Machines for Sale
- Category: >>>
- Supplier: Jining Fangze Machinery Co. Ltd.
Share on (1600835169665):
Product Overview
Description
2023 Water Well Drilling Rig Machine 100m Hydraulic Mine Drilling Rigs Rotary Hole Borehole Drill Machines for Sale
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
Product Description

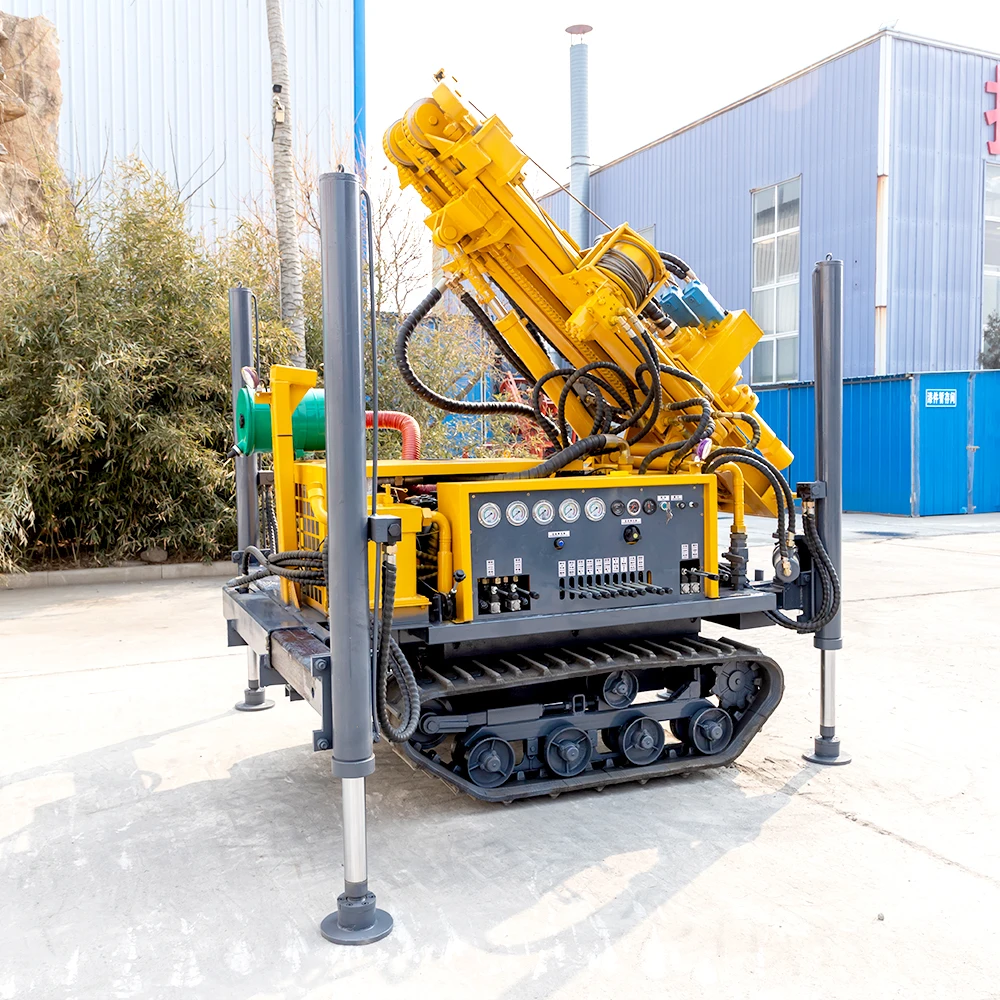

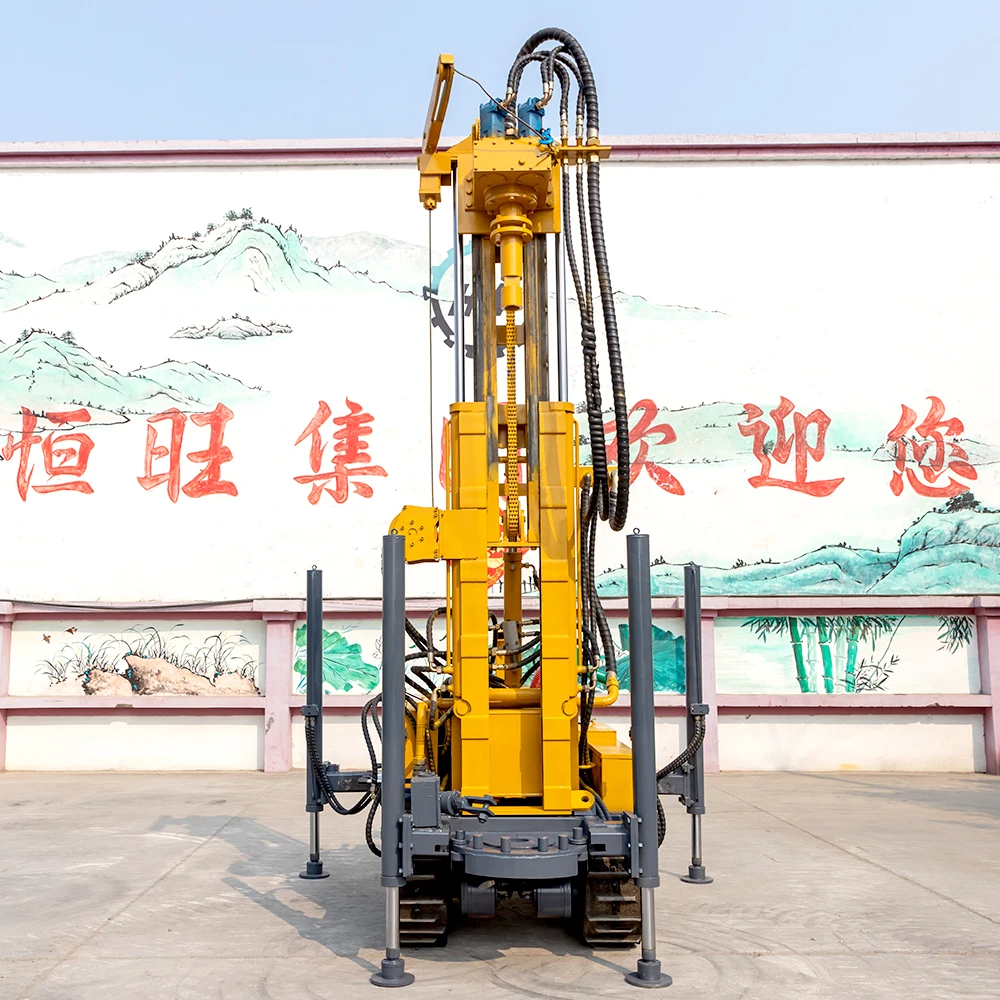

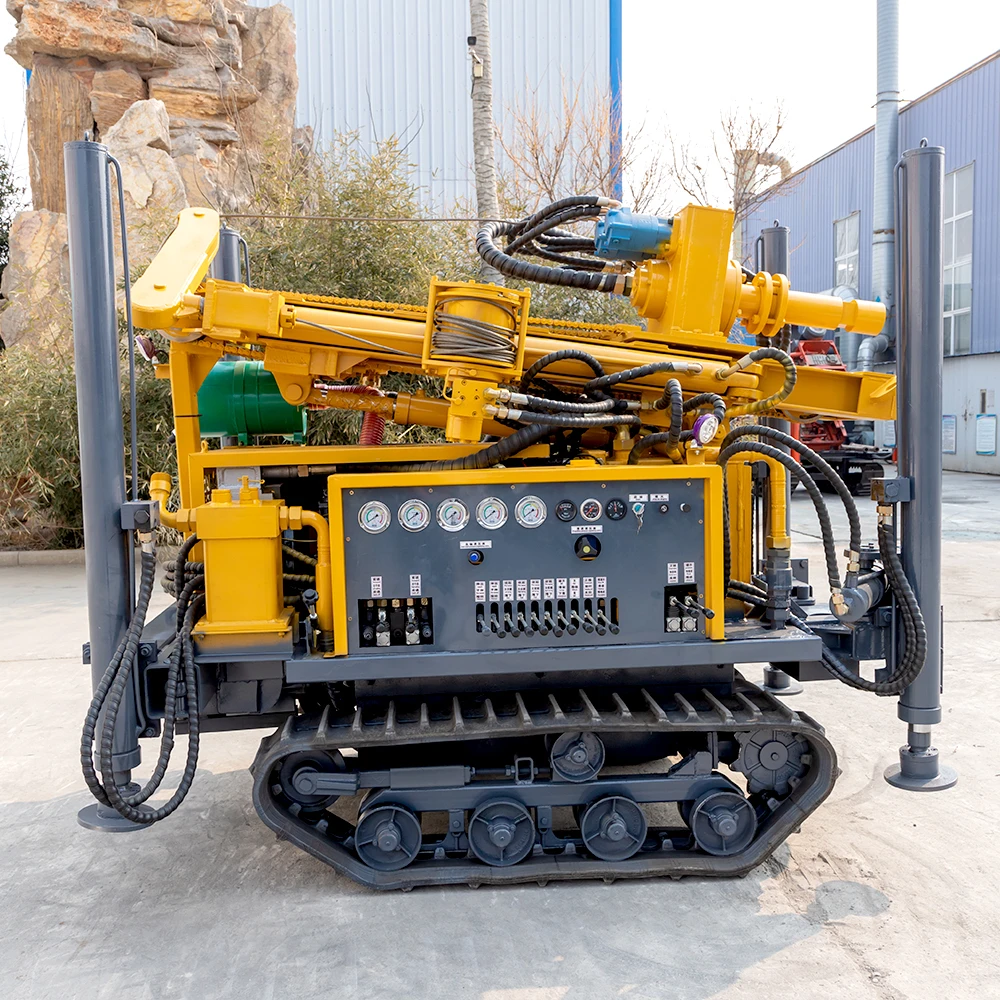

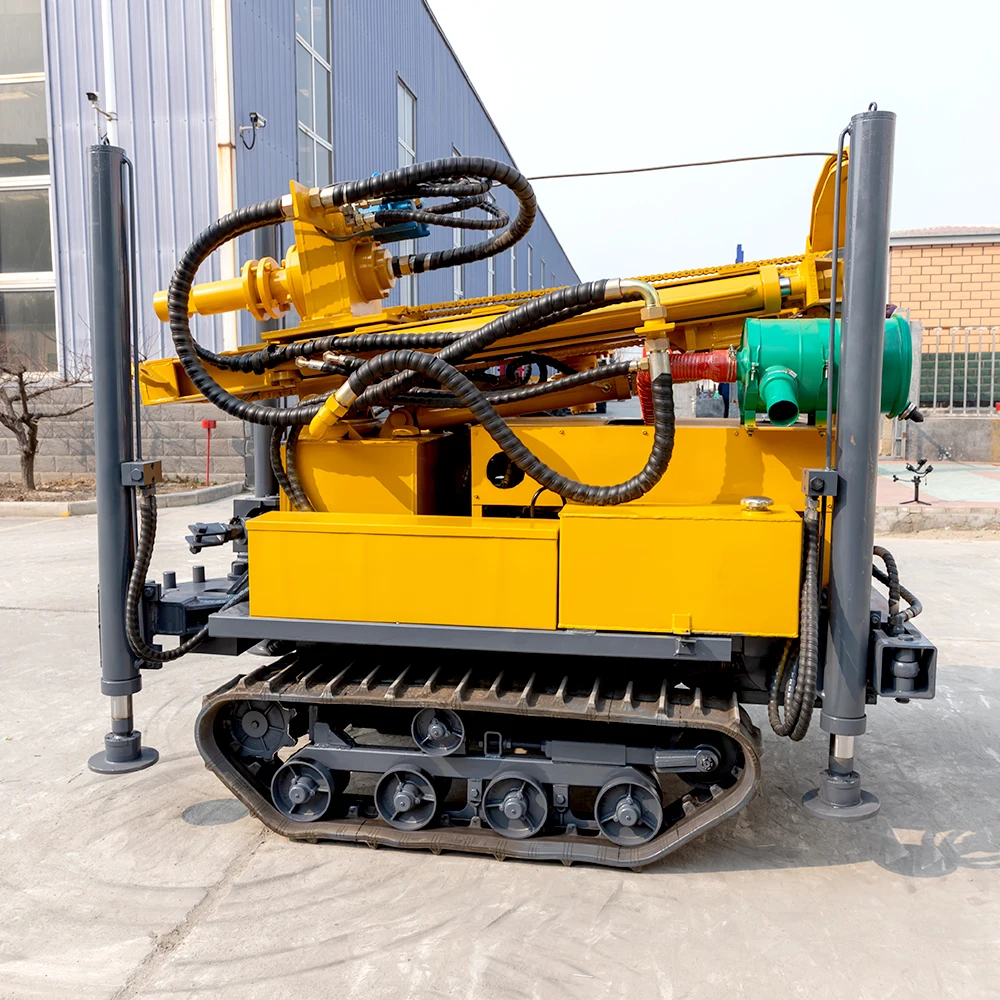

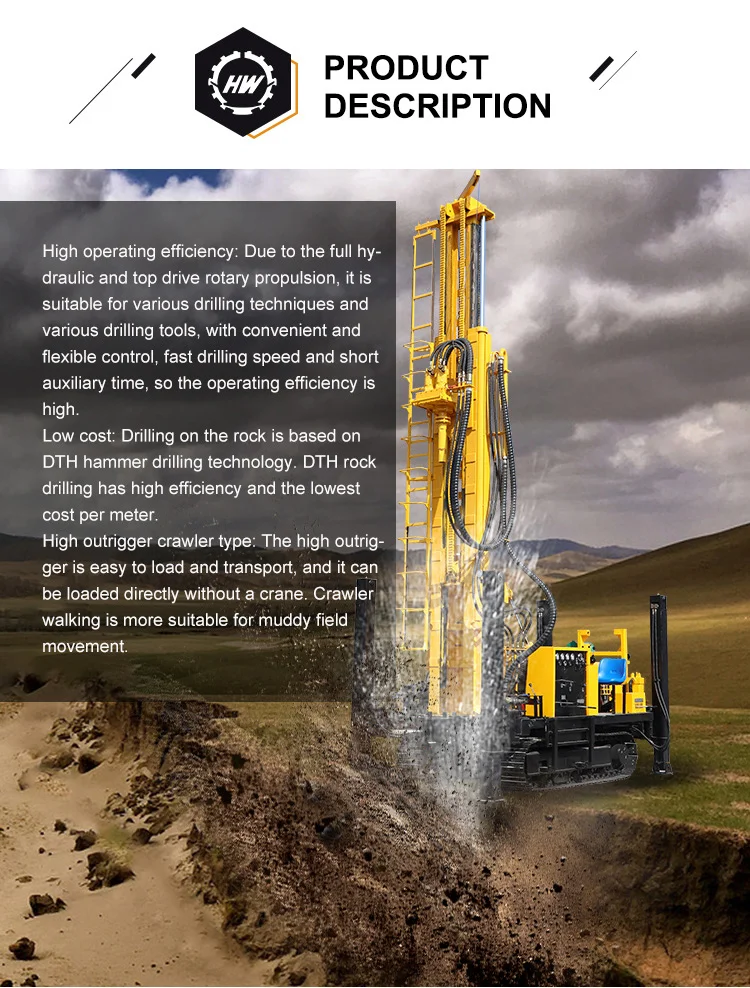

Pneumatic water well borehole drilling rig machine pneumatic dth drilling rig mainly drilling rock must connect with air compressor . it has fast drilling speed . pneumatic dth drilling rig can drill 20-40m per hour . high drilling effective .the engine it is 85kw ,more powerful . pneumatic water borehole drilling rig it has 4 high hydraulic leg which can lifting 1.6m height can easy loading on the truck . air water well drilling rig machine is rubber crawler . hydraulic pump and valve both use import brand . Pneumatic water well borehole drilling rig tower height is 6m . 18ton High lifting force of crawler pneumatic drilling rig , 1.5ton lifting force of winch . Hydraulic pump can be change to Famous brand . diesel engine also can be changed according your requirements . It can add mud pump and foam pump . We have enough experience for South America ,Southeast Asia,North America, Africa etc .
Product Paramenters
Main technical parameters | ||||||||||||
Model | HQZ260L | HQZ260L | HQZ320L | HQZ320L | HQZ400L | HQZ400L | ||||||
Drill Mast | 3m | 6m | 3m | 6m | 3m | 6m | ||||||
Chassis | Rubber track | Rubber track | Steel track | Steel track | Steel track | Steel track | ||||||
Drilling dia.（mm） | 130-305 | 130-305 | 130-325 | 130-325 | 130-325 | 130-325 | ||||||
Drilling depth（m） | 260 | 260 | 320 | 320 | 400 | 400 | ||||||
One-time push length（m） | 3.6 | 6.6 | 3.6 | 6.6 | 3.6 | 6.6 | ||||||
Travelling speed （km/h） | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ||||||
Climbing ability(°) | 30 | 30 | 30 | 30 | 30 | 30 | ||||||
Engine brand | Yunnei | Yunnei | Yuchai | Yuchai | Yuchai | Yuchai | ||||||
Engine power | 76kw | 76kw | 85kw | 85kw | 110kw | 110kw | ||||||
Working pressure （mpa） | 1.7-3.0 | 1.7-3.0 | 1.7-3.0 | 1.7-3.3 | 1.7-3.5 | 1.7-3.5 | ||||||
Air consumption （m³/min） | 17-31 | 17-31 | 17-35 | 17-35 | 17-35 | 17-35 | ||||||
Drill rod dia.（mm） | 76/89 | 76/89 | 76/89/102 | 76/89/102 | 89/102/108 | 102/108/114 | ||||||
Drill rod length （m） | 1.5/2.0/3.0 | 3.0/6.0 | 1.5/2.0/3.0 | 3.0/6.0 | 1.5/2.0/3.0 | 3.0/6.0 | ||||||
Lifting force（T） | 17 | 17 | 18 | 24 | 25 | 25 | ||||||
Rotary speed （rpm） | 45-65 | 45-65 | 40-70 | 55-115 | 45-115 | 45-115 | ||||||
Rotary torque （N.m) | 4500-4700 | 5500-6000 | 6000-7500 | 8500-9000 | 7000-9000 | 7000-9000 | ||||||
Dimension（mm） | 3900*1850*2350 | 5200*1850*2350 | 5300*2200*2800 | 5300*2200*2800 | 5400*2200*2500 | 5400*2200*2870 | ||||||
Overall weight（T） | 4.8 | 5.8 | 7 | 9 | 8 | 10 | ||||||
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！

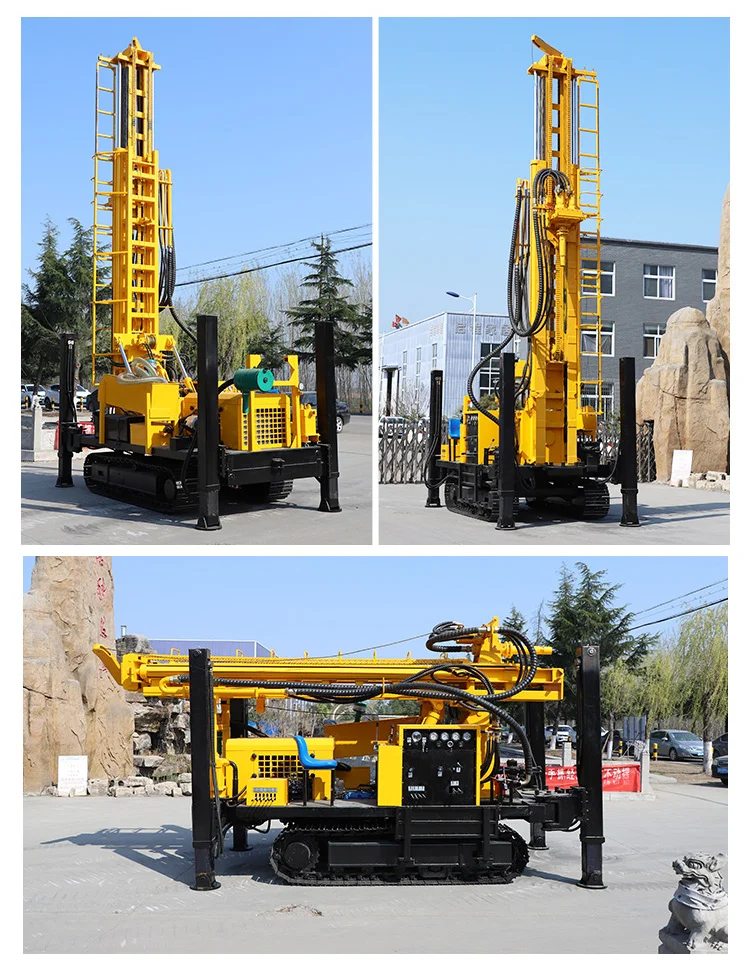

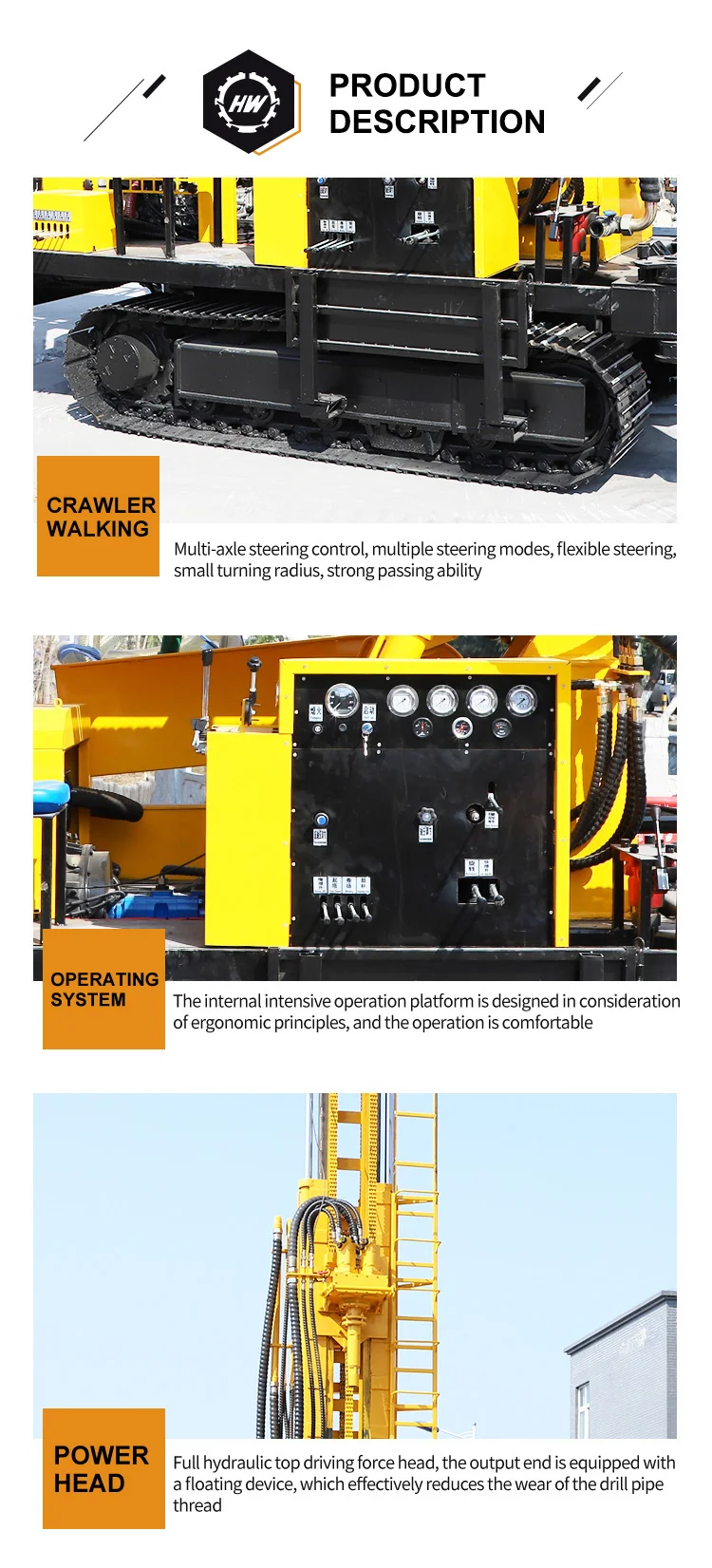

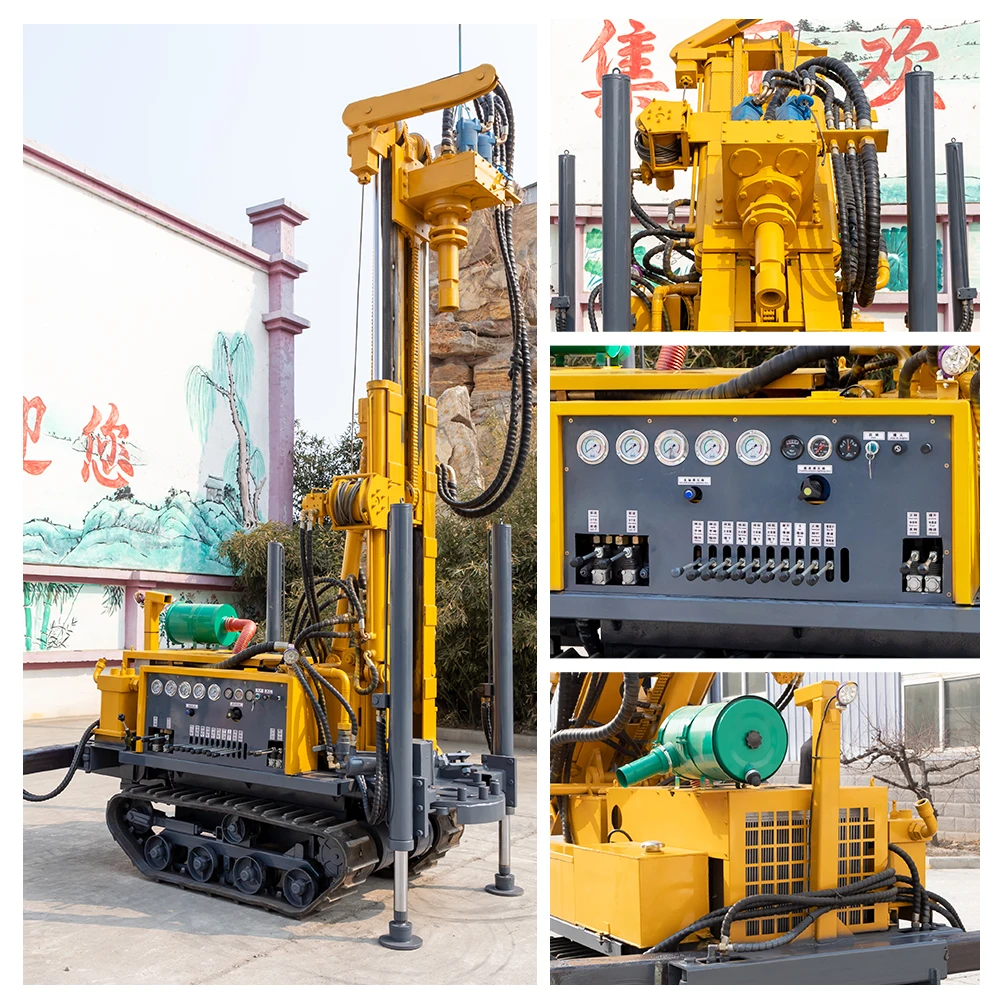

Details Images
2023 Water Well Drilling Rig Machine 100m Hydraulic Mine Drilling Rigs Rotary Hole Borehole Drill Machines for Sale

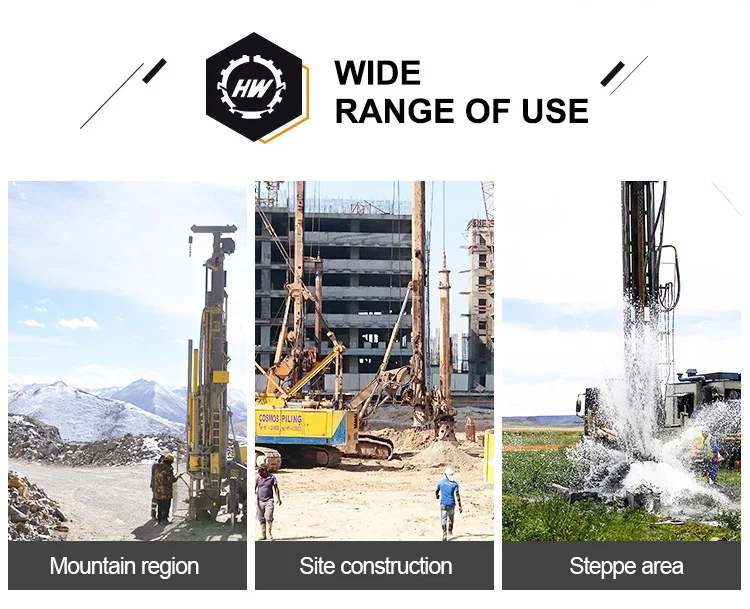

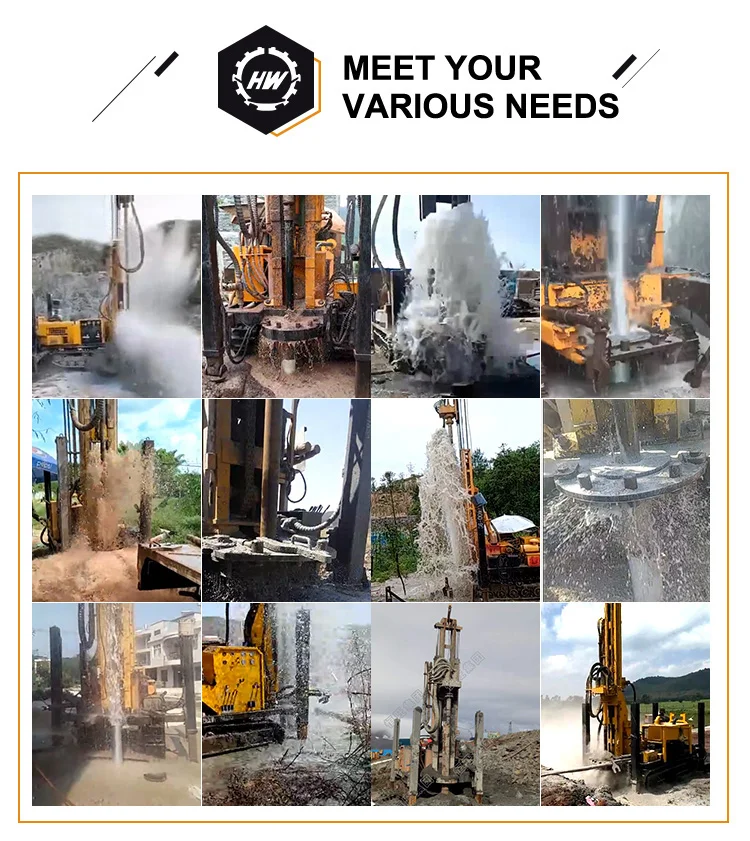

Wide range of use
Customer Feedback
Packing & Delivery
In terms of transportation, we generally provide sea freight and support a variety of payment methods. You can receive this pneumatic drilling rig you like at the port. We guarantee that we will not charge any intermediate fees and additional fees that exceed the shipping cost. We only hope that you will be faster and more efficient. Get Your Favorite well water drilling machine at a Discount
