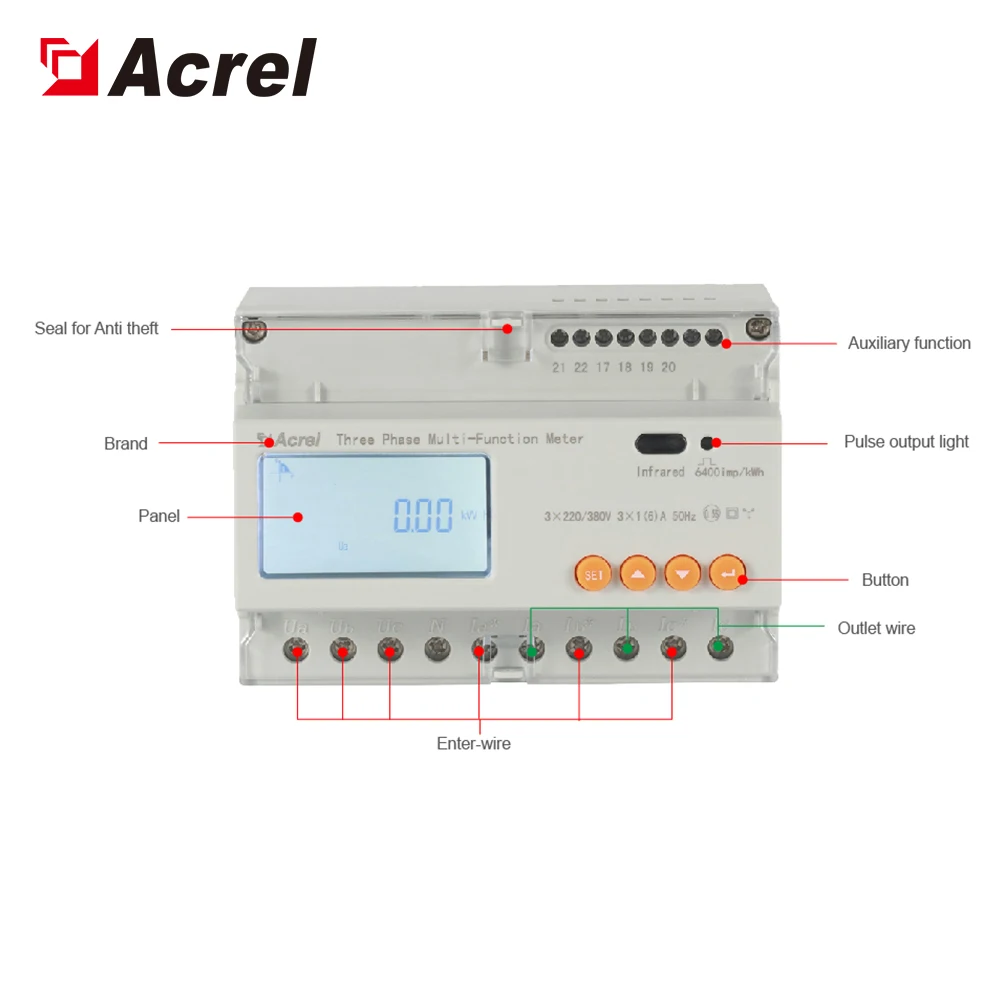

Acrel ADL3000 E/F Multi tariff 220/380V Three Phase Multifunction Energy Meter Din rail with RS485 Modbus
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600835184283):
Product Overview
Description
Product Overview
Video Introduction
ADL3000-E Multi-function Energy Meter
ADL3000-E is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It can be used in all kinds of control systems, SCADA systems and energy management systems. All meters meet the related technical requirements of electronic power meter in the IEC62053-21、IEC62053-22 standards.

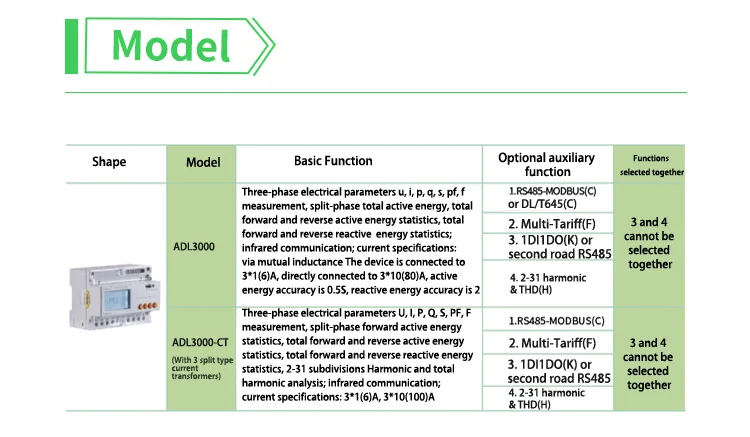

Specification

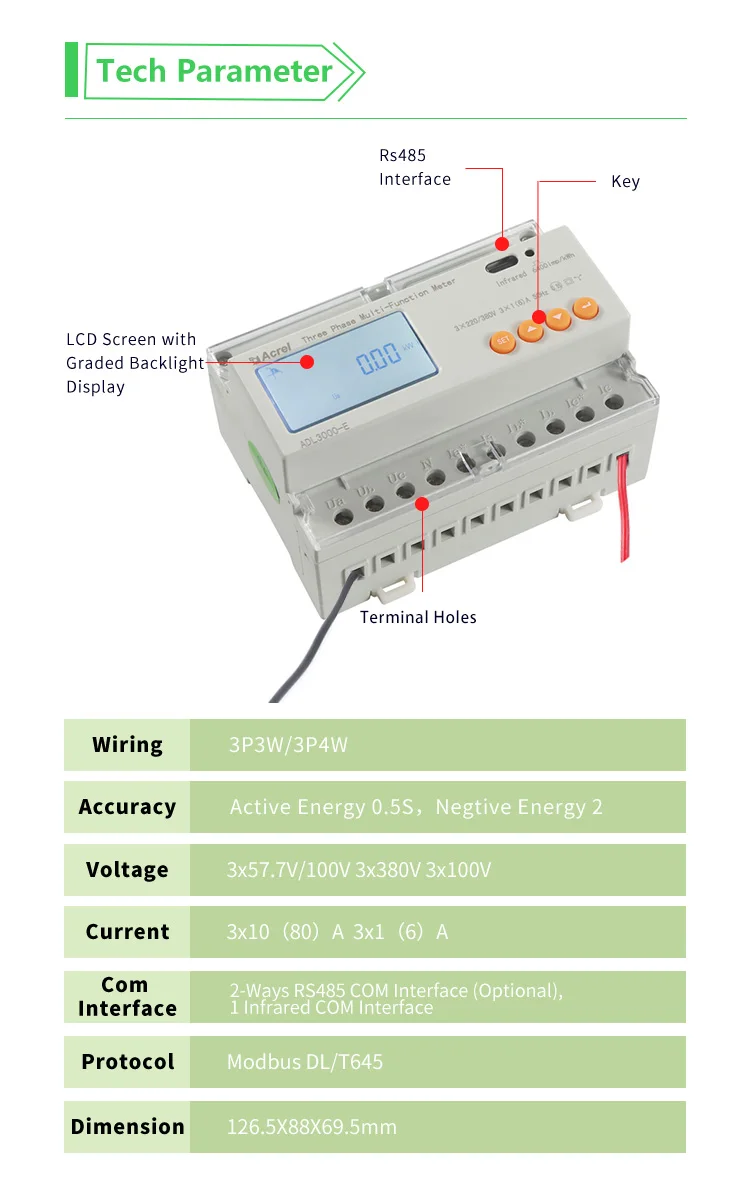

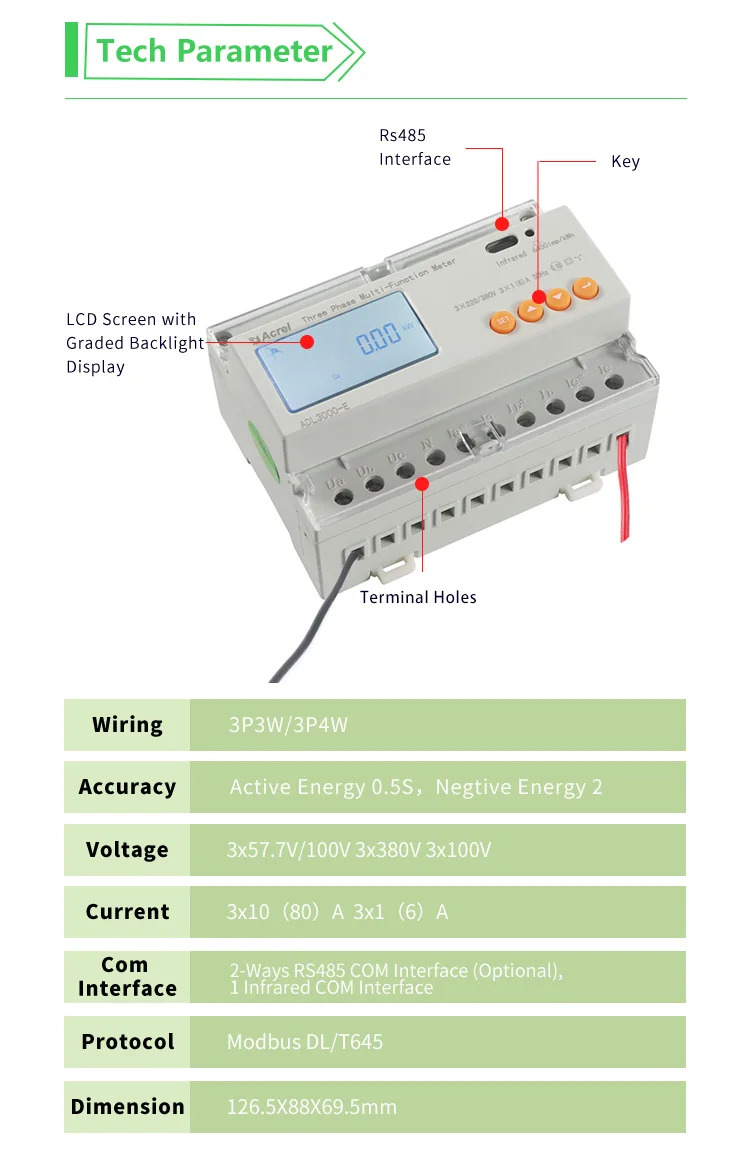

Technical Parameter
Specification | 3 phase 3 wires, 3 phase 4 wires | ||
Voltage | Reference voltage | 3×100V、 3×380V、3×57.7/100V、 3×220/380V | |
Consumption | <10VA(Single phase) | ||
Impedance | >2MΩ | ||
Accuracy class | Error±0.2% | ||
Current | Input current | 3×1(6)A，3×1(6)A(Outlay transformer)，3×10(80)A，3× 10(100)A (Outlay transformer) | |
Consumption | <1VA(Single phase rated current) | ||
Accuracy class | Error±0.2% | ||
Power | Active, reactive, apparent power, error±0.5℅ | ||
Frequency | 45～65Hz， Error±0.2% | ||
Temperature | -40℃～99℃ | ||
Energy | Active energy (Accuracy class:0.5, 1), reactive energy (Accuracy class 2) | ||
Clock | ≤0.5s/d | ||
Energy pulse output | 1 active optocoupler output, 1 reactive optocoupler output | ||
Switching output | 1 Switching output | ||
Switching input | 1 optocoupler input | ||
Width of pulse | 80±20ms | ||
Pulse constant | 6400imp/kWh,400imp/kWh(Correspond with the basic current) | ||
Interface and communication | RS485：Modbus RTU | ||
Range of communication address | Modbus RTU:1~ 247； | ||
Baud rate | 1200bps~19200bps | ||
Relative temperature | -25℃~+55℃ | ||
Relative humidity | ≤95℅(No condensation) | ||
Main Function
Function | Function description | Function provide |
Active kWh (positive and negative) | ■ | |
Reactive kWh (positive and negative) | ■ | |
A, B, C phase positive active kWh | ■ | |
Measurement of electrical parameters | U、IP、Q、S、PF、F | ■ |
Measurement of harmonic | 2~31 ST Voltage and current harmonic | □ |
LCD Display | 8 bits section LCD display, background light | ■ |
Key programming | 4 keys to communication and set parameters | ■ |
Active pulse output | ■ | |
Reactive pulse output | □ | |
Clock pulse output | □ | |
Active switch input | □ | |
Switch output | □ | |
Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates | □ | |
Max demanded kWh and time happened | □ | |
Frozen data on last 48 months, last 90days | □ | |
Date, time | □ | |
Infrared communication | ■ | |
RS485, MODBUS-RTU | □ | |
Temperature measurement | Support 3 outlay NTC temperature | □ |
( ■: standard, □: optional)

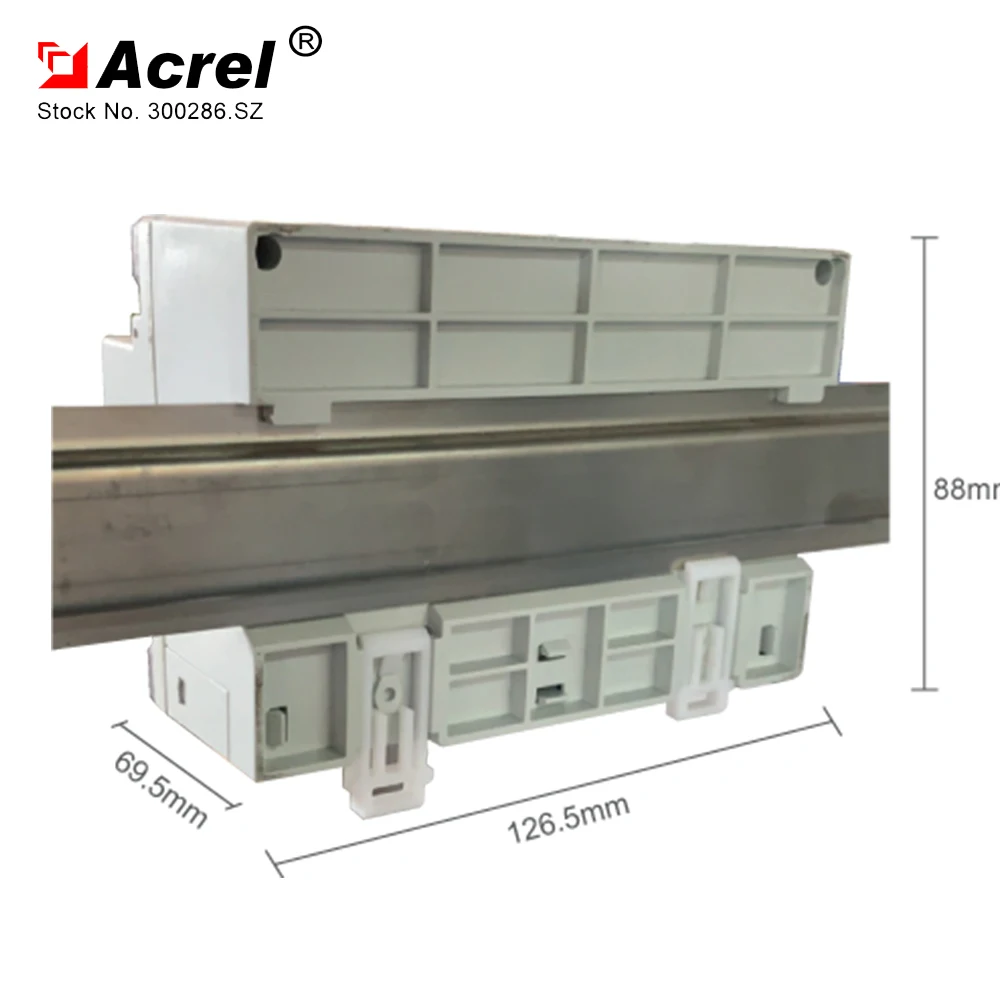

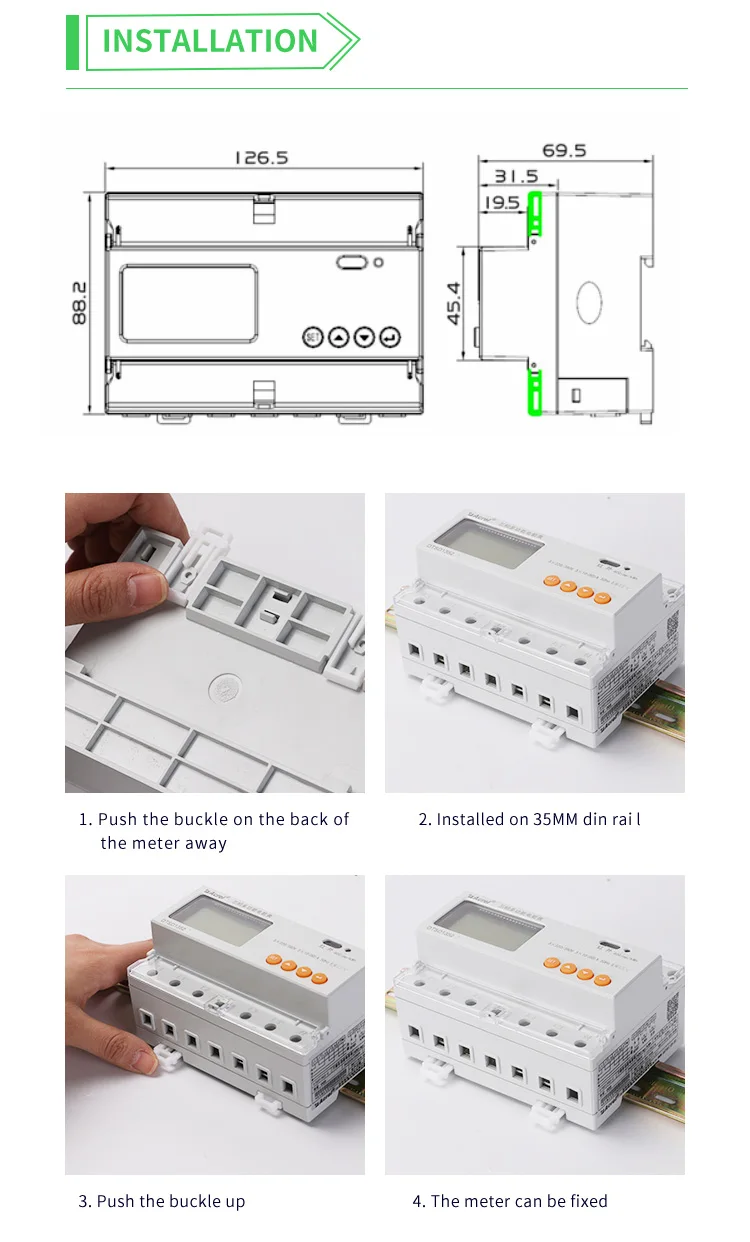

Dimension & Installation

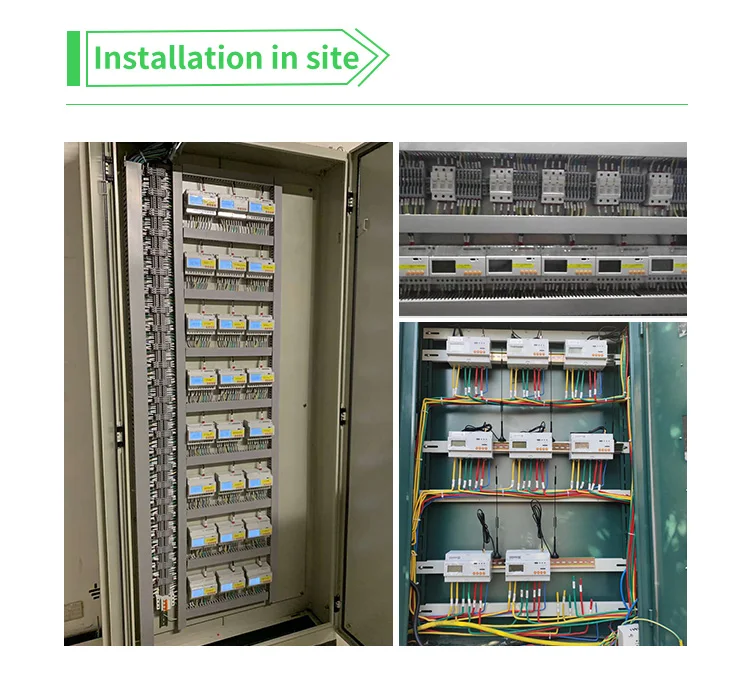

Work Site Application

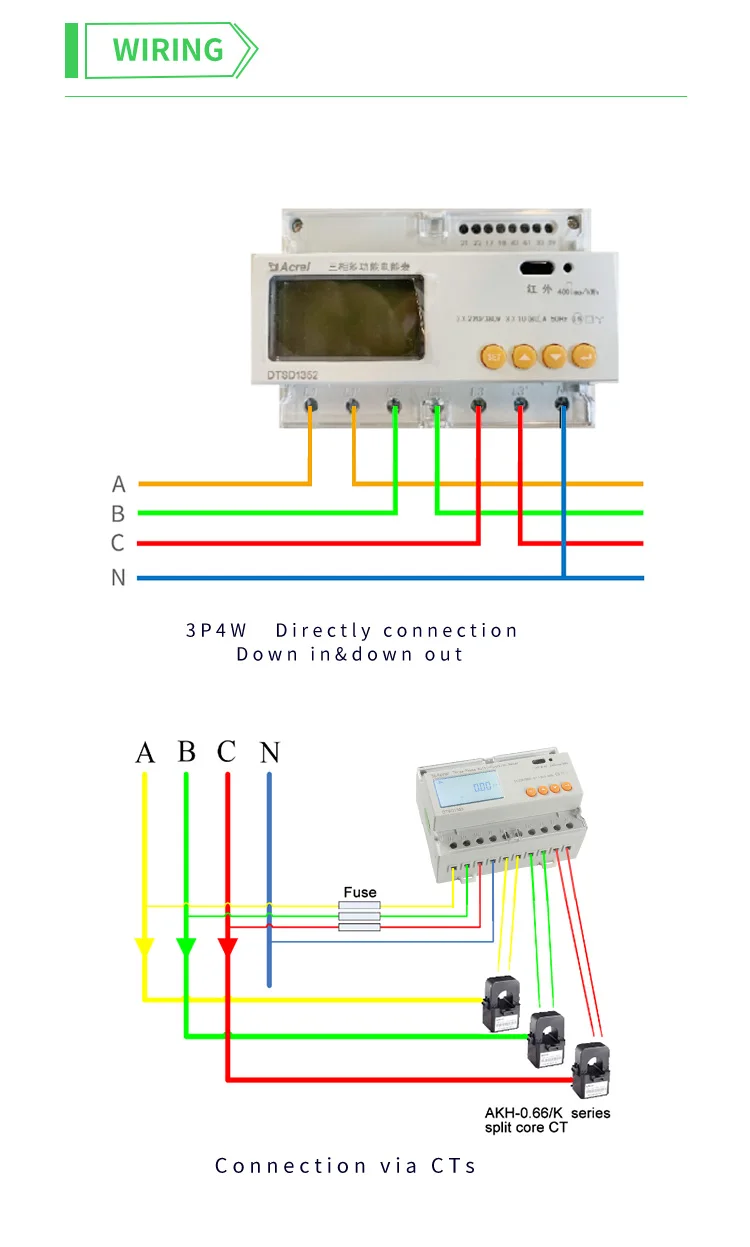

Wiring

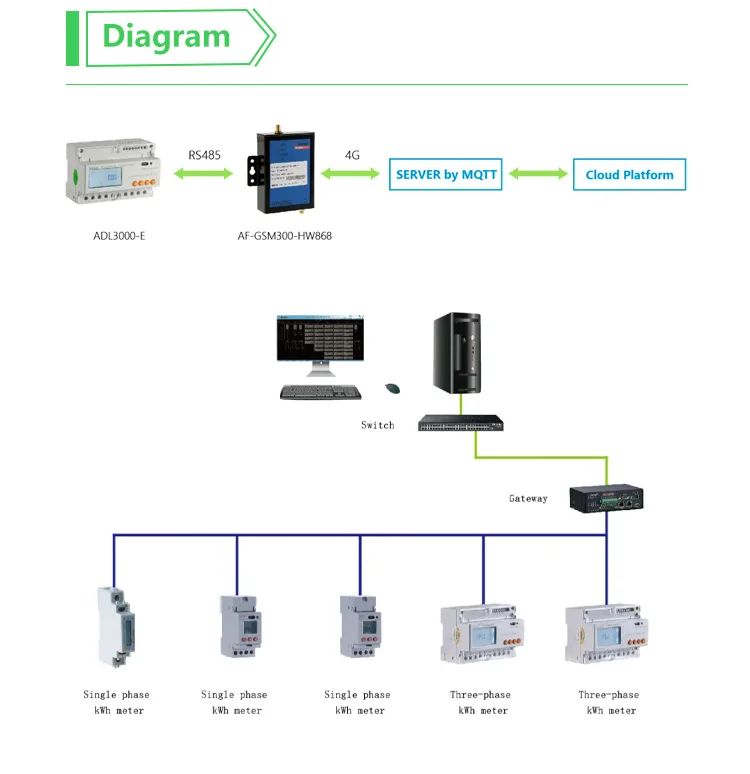

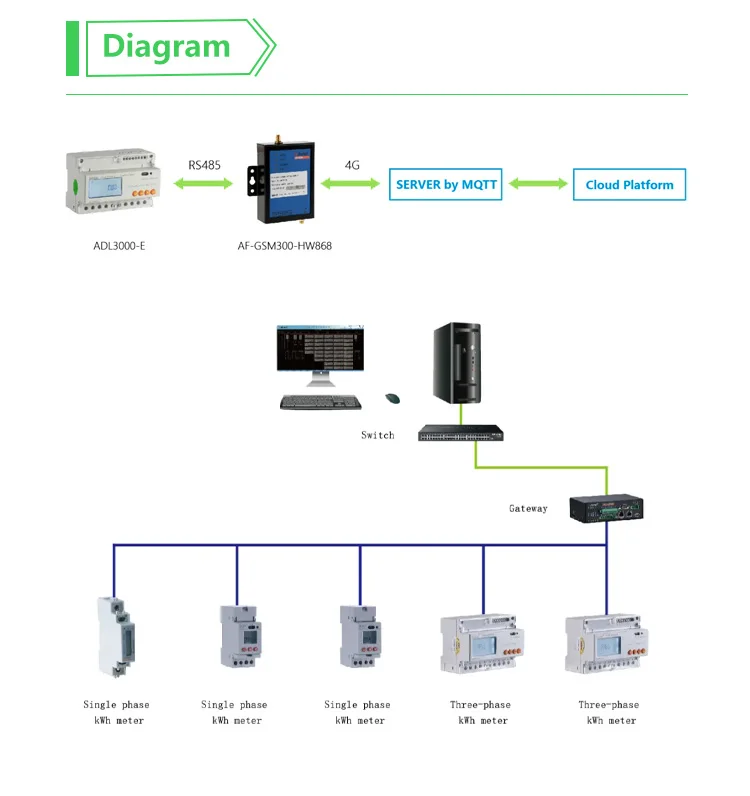

Typical Networking Connection
Company Profile
Acrel Co., Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.
Acrel energy efficiency management system including substation operations and maintenance cloud platform, electricity safety management cloud platform, Environmental equipment power consumption monitoring cloud platform, prepaid management (system) cloud platform, intelligent power distribution monitoring system, power quality management system, building energy consumption management system, industrial energy control platform, leakage power monitor and control system, fire-fighting device power monitoring system, fire-proof door monitoring system, emergency lighting and evacuation indicating system, EV charger management system, data center power&environment monitoring system, smart lighting control system, IT isolation power supply system and related products.
Work Shop
Exhibition
Certification
Package & Delivery
FAQ
Q：I bought a three-phase four-wire meter, can it be wired as three-phase three-wire?
A：Yes, press the key to set the meter to three-phase three-wire mode.
Q：What is the difference between ordinary secondary access and -CT (model external transformer)?
A：Ordinary secondary meter could access the ratio XXX/5(1)A of the CTs which could be actual current on site, the -CT model comes with an external transformer will be convenient for installation(It cannot be disassembled, otherwise it will burn the meter). There are CTs available on site to facilitate with No stitch removal.
Q：What are 3*100V、3*57.7/100V、3*380V、3*220/380V?
A：3*100V, 3*57.7/100V are used for high voltage, used in conjunction with voltage transformers, where 3*100V represents 3P3W,3*57.7V/100V represents 3P4W; 3*380V, 3*220V/380V are used for low voltage, direct voltage input, among them3*380V represents 3P3W, 3*220V/380V represents 3P4W.
Q：Can this meter communicate with PLC?
A：Yes, only need PLC to support RS485 interface, Modbus RTU or DL/T645 protocol.
