KEYA KY170DD01005 08 electric steering motor automatic driving system for autosteer motor CAN RS232 protocol
- Category: >>>
- Supplier: Jinan Keya Electron Science And Technology Co. Ltd.
Share on (1600835206295):
Product Overview
Description

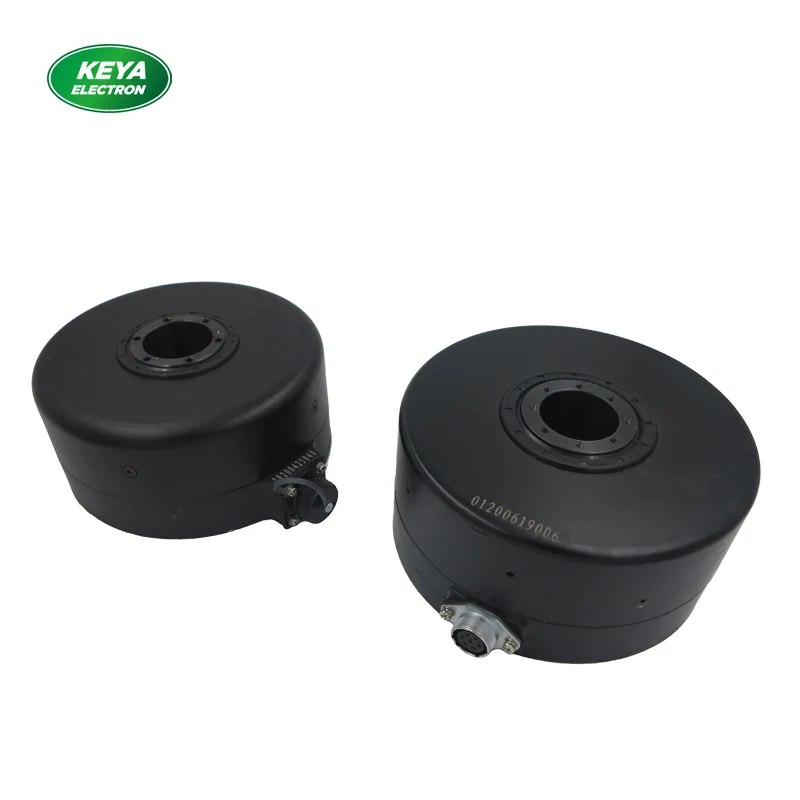

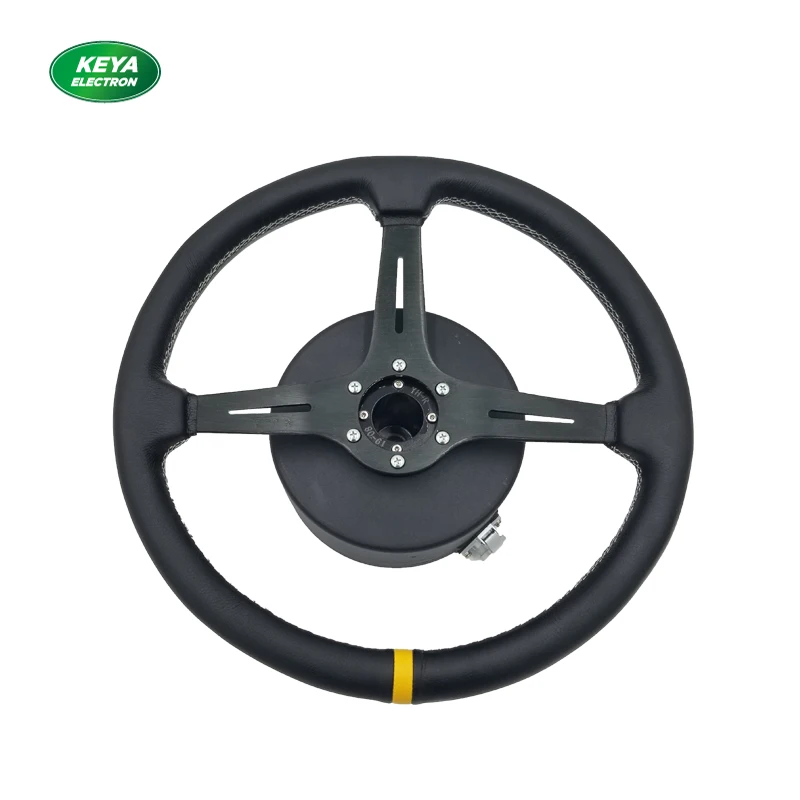

KEYA KY170DD01005-08 electric steering motor automatic driving system for autosteer motor CAN RS232 protocol
Model: KY170DD01005-08G
Product Description
This eletric motor adopt direct drive motor scheme designe, the rated speed is 80rpm, you can install it to the steering wheel shaft directly. It built in controller, support RS232, CAN control, the rated voltage is 12V, rated torque is 7N.m, the peak torque reach 16N.m, it is widely used in electric power steering system for self-driving robot tractor, it is for precision agriculture, precision farming, digital farming.

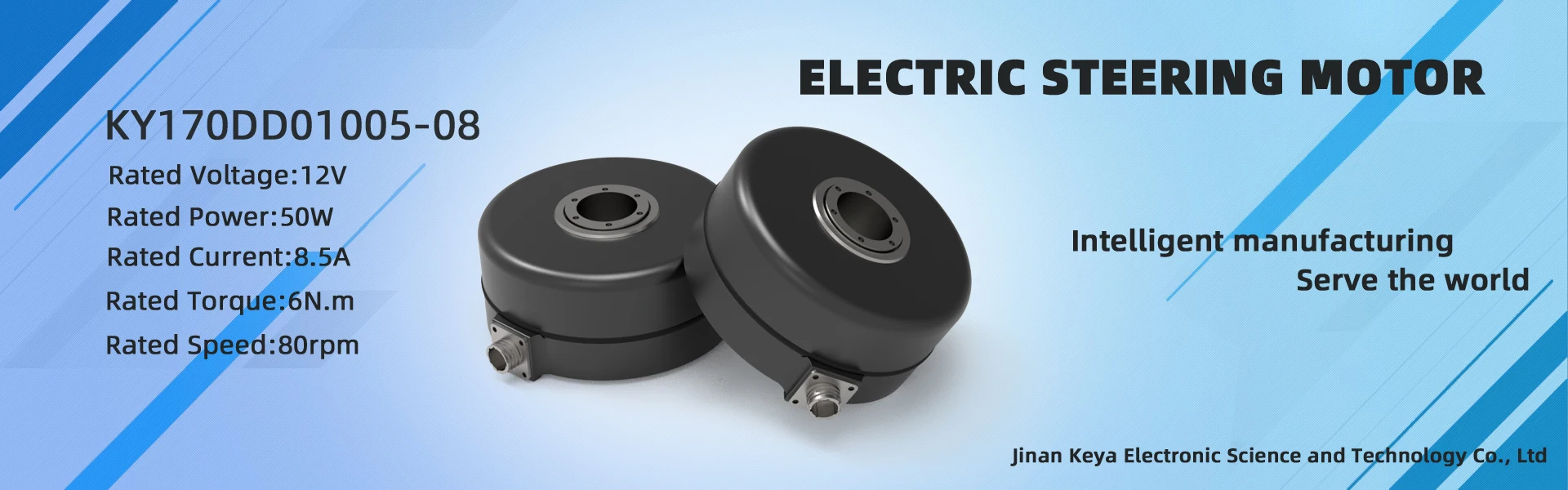

Specification for KY170DD01005-08 | ||
Rated voltage | DC24V | |
Rated power | 50w | |
Rated speed | 80rpm | |
Rated current | 10A | |
Rated touque | 7N.m | |
Peak torque | 16N.m | |
Protection grade | IP55 | |
Encoder | 48000ppr | |

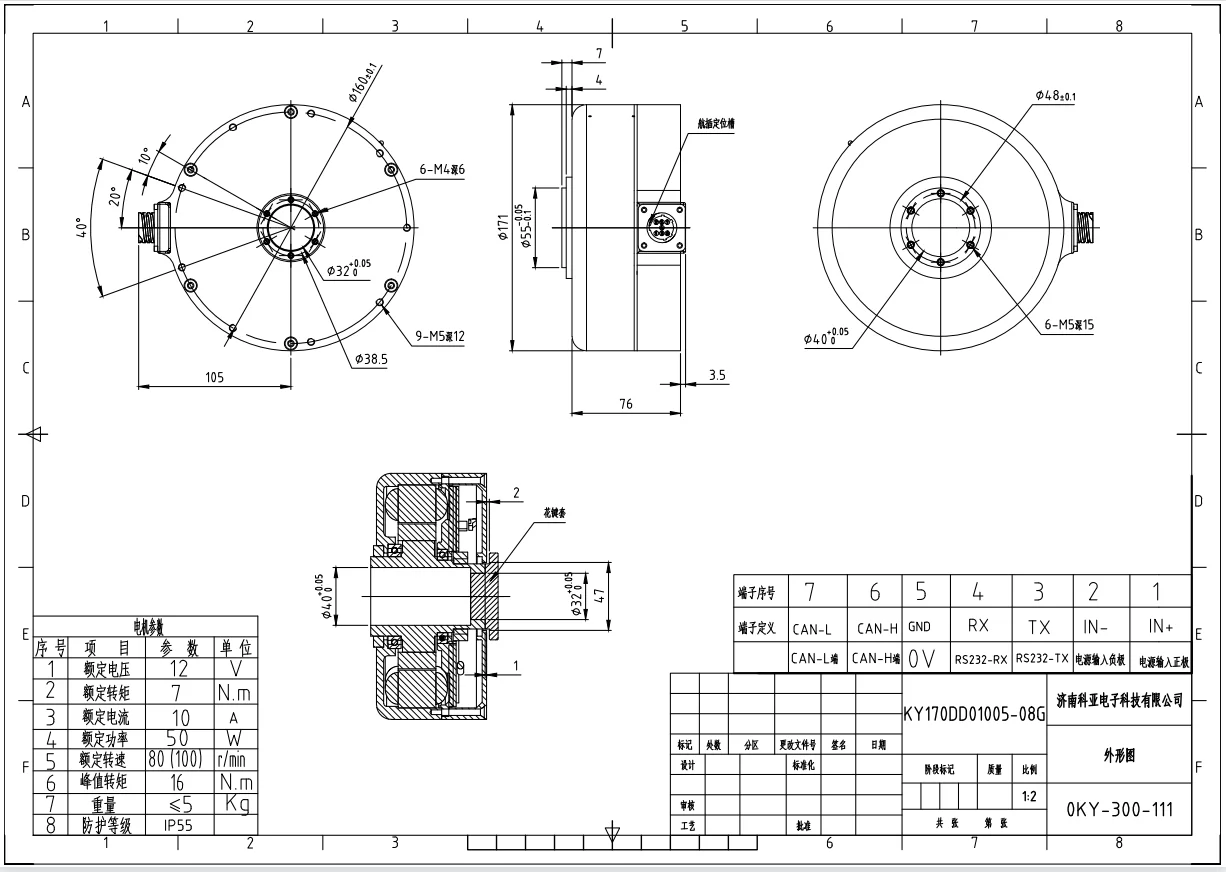

Wiring Definition
7-core definition | 1 | IN+ | Power input+ | ||
2 | IN- | power input- | |||
3 | TX | RS232-TX | |||
4 | RX | RS232-RX | |||
7-core definition | 5 | GND | 0V | ||
6 | CAN-H | CAN-H | |||
7 | CAN-L | CAN-L | |||

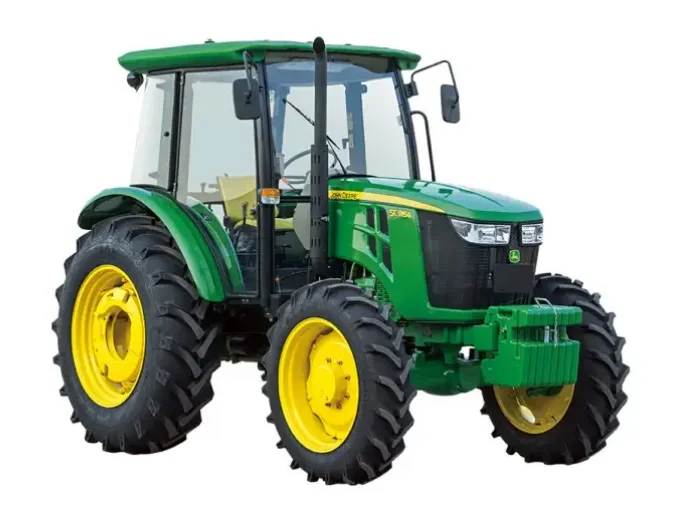

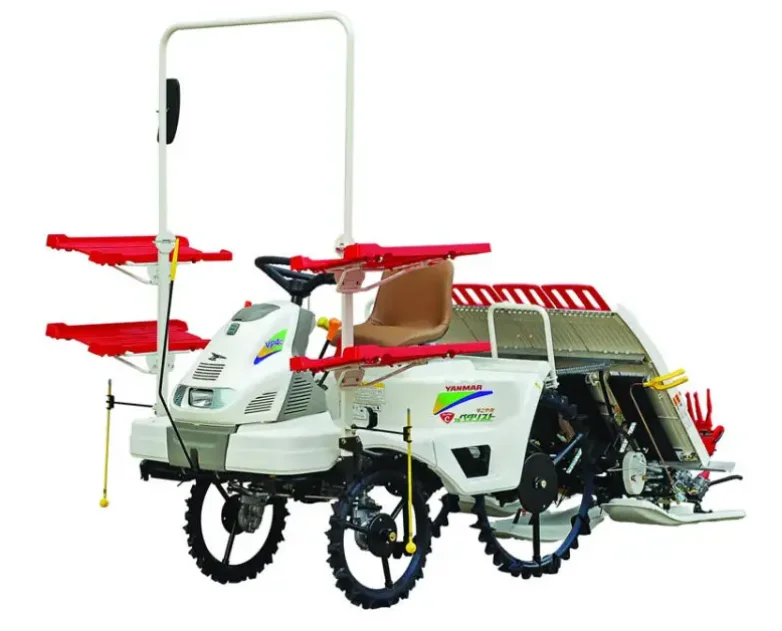

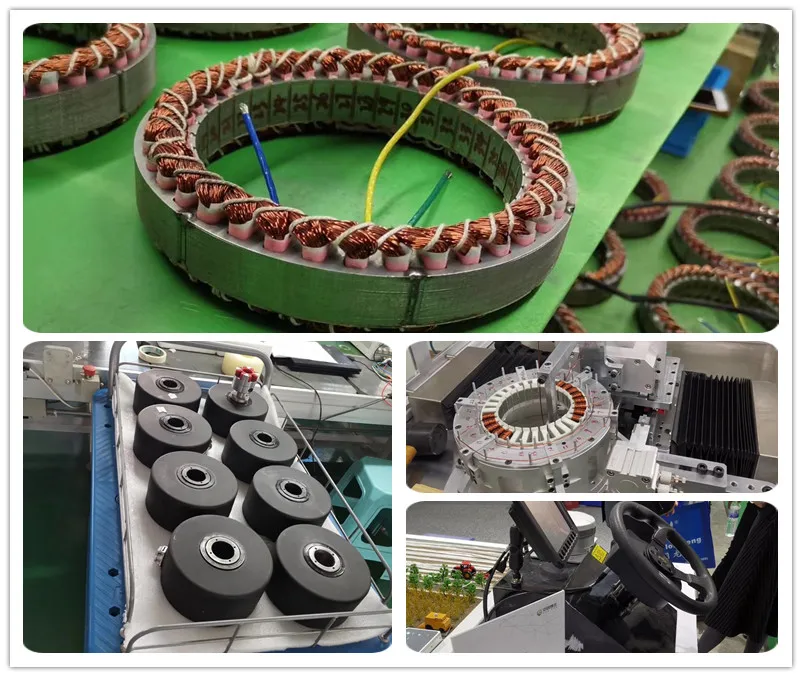

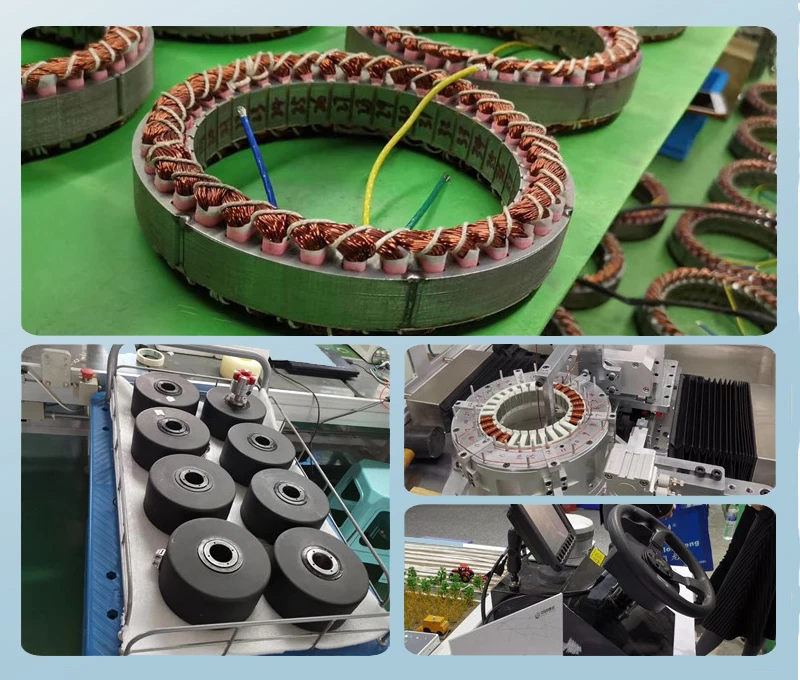

Products Application Cases Display

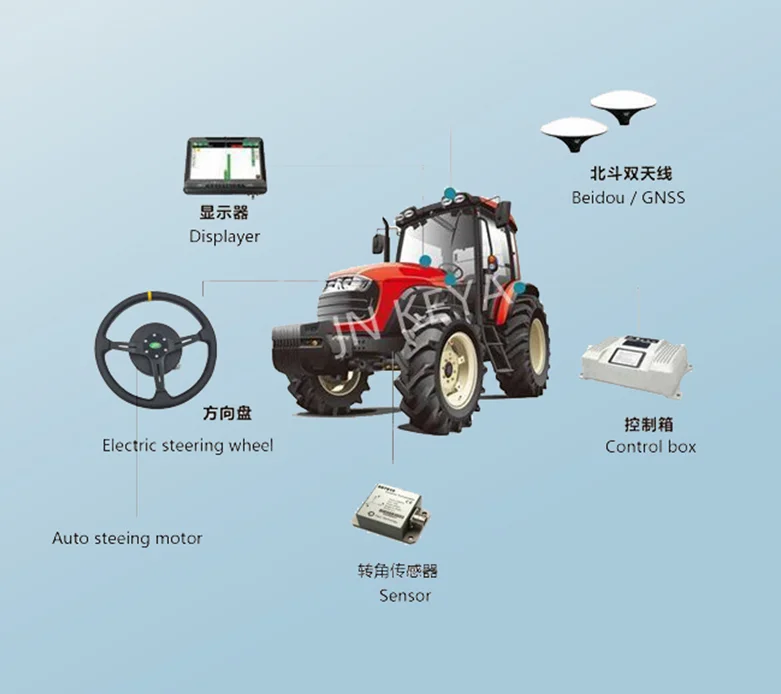

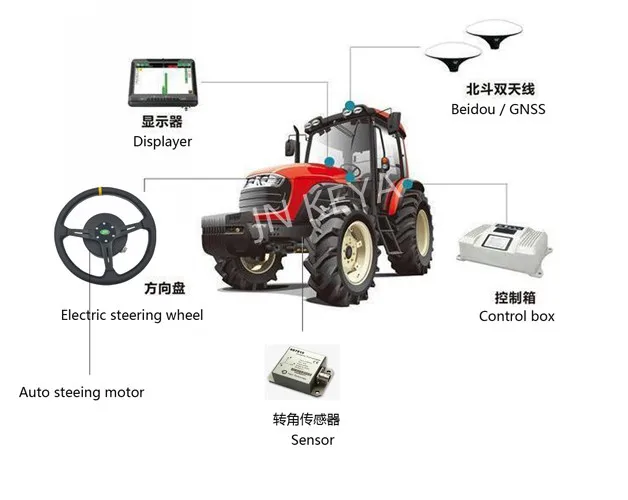

The development of direct-drive servo motors for steering wheels was mainly targeted at precision agricultural machinery. It can complete agricultural machinery operations, achieve precise positioning, improve agricultural productivity, effectively use agricultural resources, and protect the ecological environment. This is an effective way to achieve high-quality, high-yield, low-consumption, and sustainable environmentally-friendly agriculture. It can achieve fast, efficient, high-precision and automated operations on large areas of arable land. It is mainly used in multiple production links of land production, pesticide sowing, harvesting and spraying, which greatly improves production efficiency and land use.
Packing & Delivery

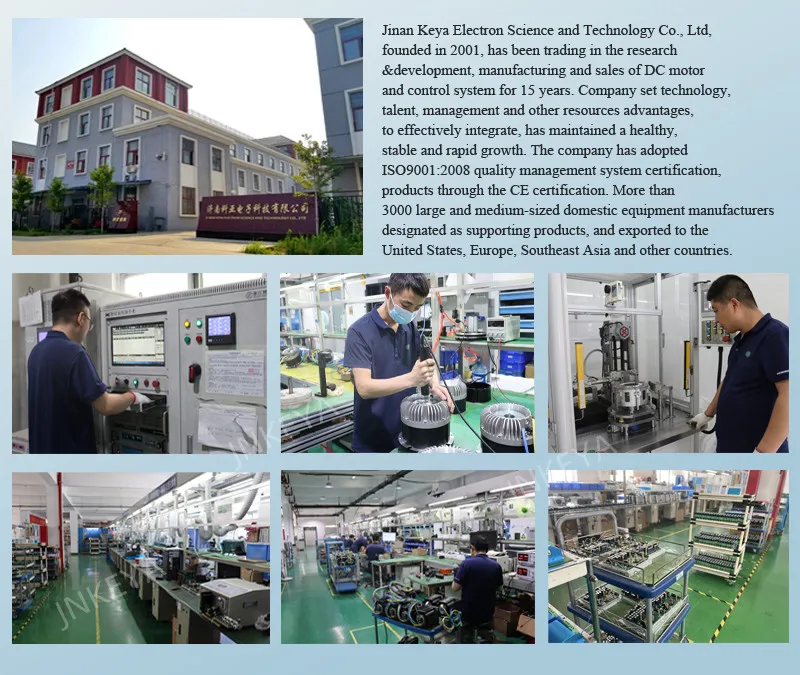

Company Profile
Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.

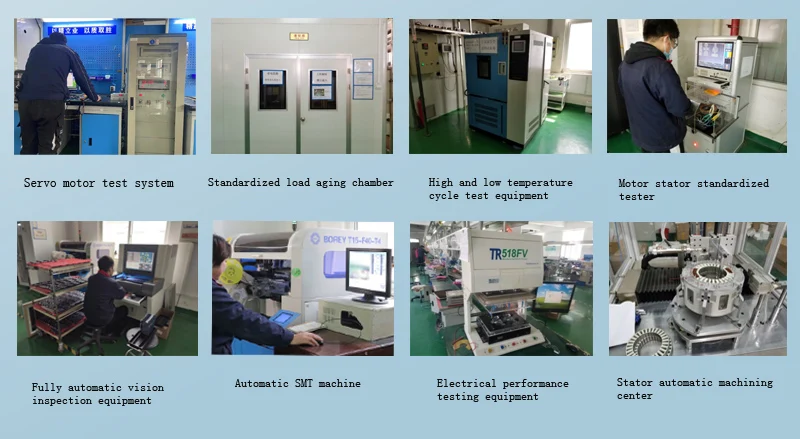

Quality guarantee
Exhibition
Our customers
CE
FAQ
1. Q: What are your main products?
A: We are specialize in BLDC SERVO MOTOR & DRIVER
2. Q: How long have you been in this field?
A: More than 15 years in this field.
3. Q: Do you have your own R&D team?
A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.
4. Q: How soon can you deliver the goods?
A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.
5. Q: Can you make the product according to customer’s requirements?
A: Yes, welcome costom-made products.
6. Q: What is your payment term?
A: You can pay by TT, Paypal, Western Union.
A: We are specialize in BLDC SERVO MOTOR & DRIVER
2. Q: How long have you been in this field?
A: More than 15 years in this field.
3. Q: Do you have your own R&D team?
A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.
4. Q: How soon can you deliver the goods?
A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.
5. Q: Can you make the product according to customer’s requirements?
A: Yes, welcome costom-made products.
6. Q: What is your payment term?
A: You can pay by TT, Paypal, Western Union.
