Product Overview

Description





Company Profile




Product Overview


Wiring port description
1、DC+： input DC power positive pole
2、DC-：Input DC power negative
3、IN+：Signal input positive
4、IN-: Signal input negative
5、NO： Relay normally open interface, the relay is suspended before it is activated, after it is activated, it is shorted to COM
6、COM: relay common interface
7、NC: Relay normally closed interface, relay shorted to COM before it closes, suspended after it closes
Button trigger: (positive trigger: DC- and in-shorted up, DC+ and IN+ connected to the button)
or: (negative trigger: DC+ and in+ shorted up, DC- and IN- connected to the button)

Function list
P-11: Pointing (give signal relay to close, the signal disappears relay to stop)
P-12:Self-locking (give a signal once to relay to engage, give signal again to relay to stop)
P-13:Give signal, relay to engage A second to stop automatically; trigger not valid during the time delay
P-14: Give the signal, and the relay closes A second to stop automatically; trigger retimed during the time delay
P-15: Give the signal, relay will stop automatically when A seconds are activated; trigger to retime during the delay
P-16:Give signal, the relay will stop automatically when closed for A seconds; trigger reset during the time delay
P-17: Give the signal, the relay will close, the input signal will be disconnected, start timing A seconds then power off, give signal again during delay to keep output, timing stops
P-18: When power is applied, the relay is immediately activated and disconnected after a delay of A seconds; until the next power is applied
P-21: Give a signal and after a delay of A seconds, the relay is activated
P-22:Give signal, after more than A seconds, the relay is activated, the signal disappears, and the relay stops
P-23:Signal disappears after more than A seconds, relay active, signal, relay stop
P-24:Signal given More than A seconds later, relay engaged, signal disappears more than A seconds later, relay stopped
P-25:With signal More than A seconds later, relay engaged, signal again more than A seconds later, relay stopped
P-26:With the signal Relay closed after A seconds, the signal disappears Relay closed again after A seconds and stop
P-27: detect a pulse signal, relay stops; no pulse signal, relay delayed for A seconds; (signal continues or the signal disappears as no pulse signal)
P-28:After energizing, the relay will close after a delay of A seconds until a power failure
P-31: After energization, the relay is engaged for A seconds and disengaged for B seconds, infinite cycle; power off stops
P-32: with signal, start P-31 infinite cycle; signal disappears, end cycle
P-33: Give a signal to start the P-31 infinite cycle; give another signal to end the cycle
P-34: After power on, after delay A seconds, the relay is activated, after B seconds it is stopped
P-35:With signal, after a delay of A seconds, the relay is activated and stops after B seconds of induction
P-36:With the signal, after more than A seconds, the relay will be activated and stop after B seconds, the signal will disappear and the timing will be cleared and stopped
P-37:With the signal, the relay will stop automatically after A seconds, after stopping and then timing B seconds, the signal trigger is invalid within A+B time
P-38: with signal, relay suction A seconds automatically stop, stop and then timing B seconds, again suction A seconds automatically stop
P-41: No action with the signal; signal disappears to trigger; relay works after delay A time to disconnect
P-42: signal disappears; relay works after delay A time; work B time ends
P-43: signal disappears relay operates after more than A time; end of operating B time
P-44: Relay operates for A time after energization, stops for B time; cycle C stops automatically
P-45: energized without action, after giving signal; relay operates for A time, stops for B time; cycle C stops automatically; give signal again, executes once more
P-46: after giving a signal more than A times, the relay is activated; it remains activated; power off stops
P-47: After giving a signal more than A times, the relay is activated for B seconds to stop
P-48: Relay opens for B seconds after giving a signal more than A times in a row within C seconds

Key setting instructions: power on display "----" means enter standby state
Press K1 for the first time, (needs more than 1 second to be effective, to prevent false triggering) Display: P -11: K2 adjusts the main mode, K3K4 adjusts the function

Press K1 a second time, the screen displays: A001: K2 and K3 adjust the first time A, K4 adjusts the decimal point (time unit)

Press K1 a third time, the screen displays: B001: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)

Press K1 for the fourth time and “————”is displayed to indicate standby

Press K4 in standby mode to permanently switch off/on the display and switch to low-power mode

Decimal time unit description:
X.XX decimal point in the hundreds place, timing range: 0.01 seconds ~ 9.99 seconds

XX.X decimal point in the tens place, timing range: 0.1 seconds ~ 99.9 seconds

XXX without decimal point, timing range: 1 second to 999 seconds

XXX. decimal point in single digit, timing range: 1 minute ~ 999 minutes



Product Paramenters


Product Model

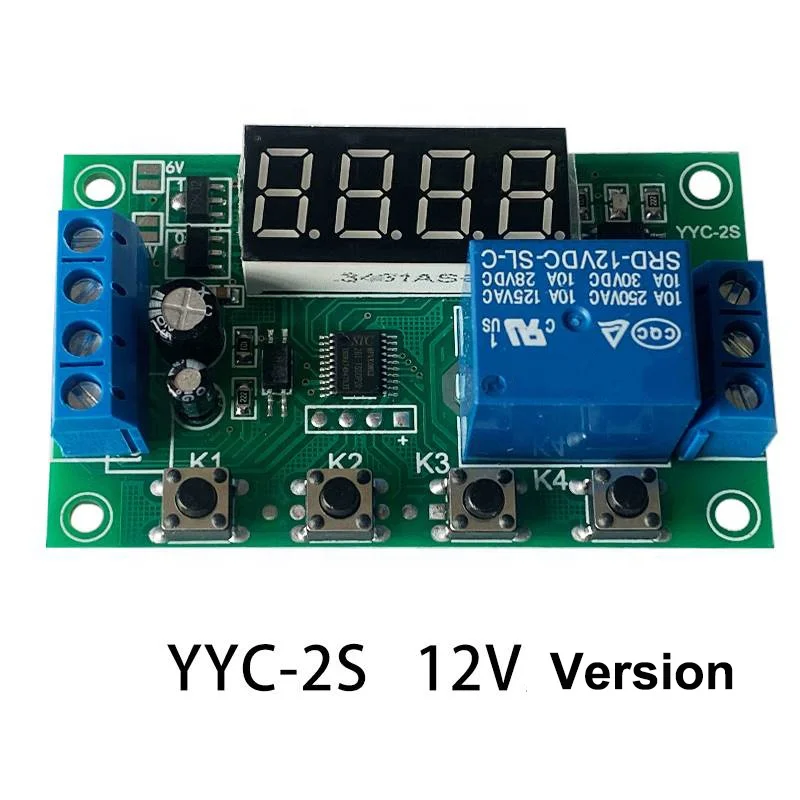

YYC-2S
Input voltage
DC5v/12v/24v optional
output power
can control DC or AC load within 5A
Working current
5-15mA
Time range
0.01 seconds to 999 minutes any time adjustable
Application
24 common functions to meet the needs of more applications;
can control solenoid valves, pumps, motors, light strips, etc. to run freely

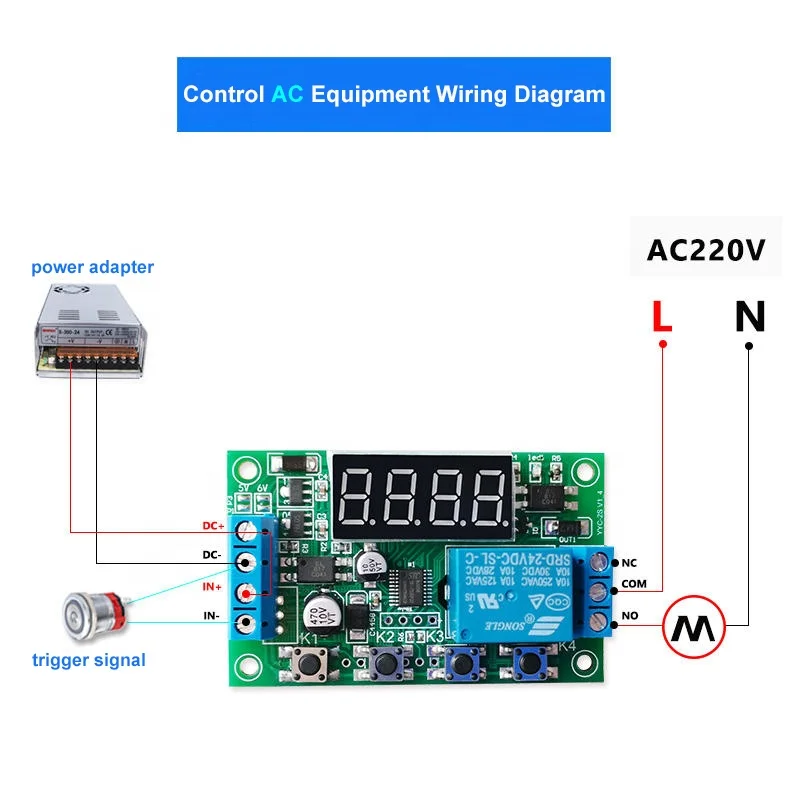

Wring
