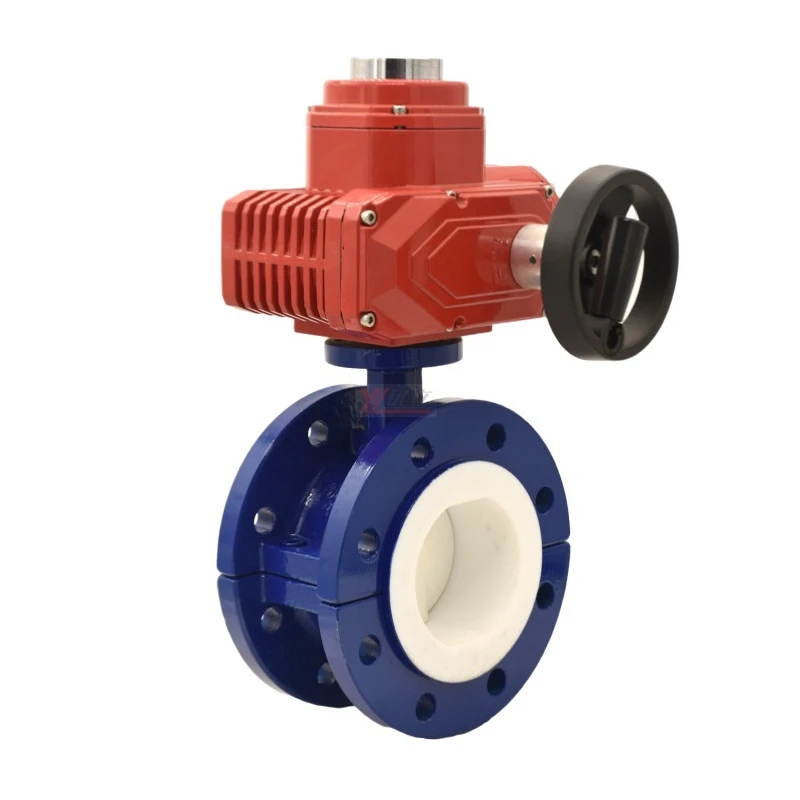

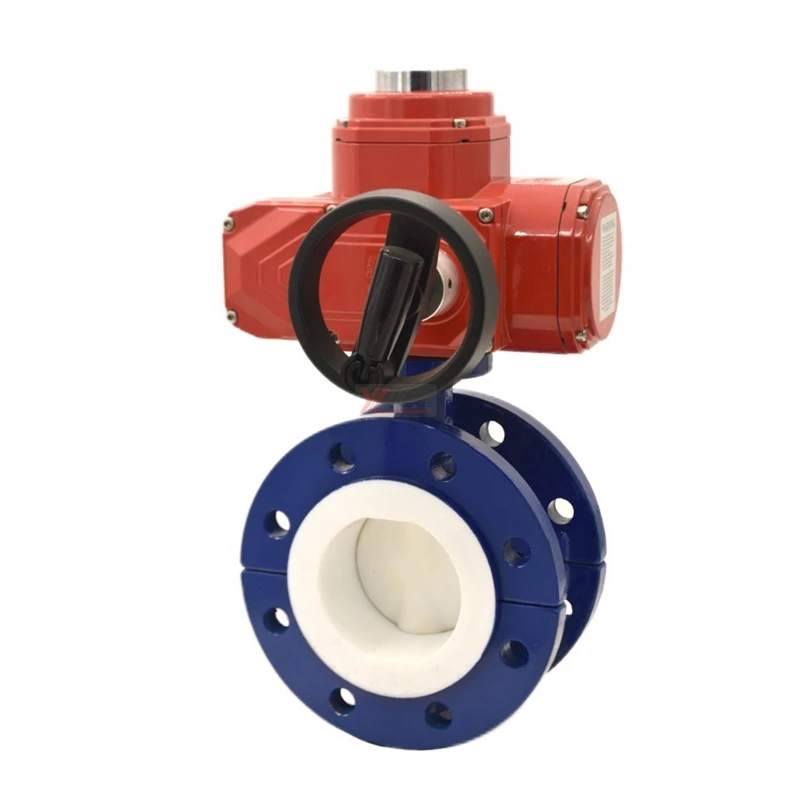

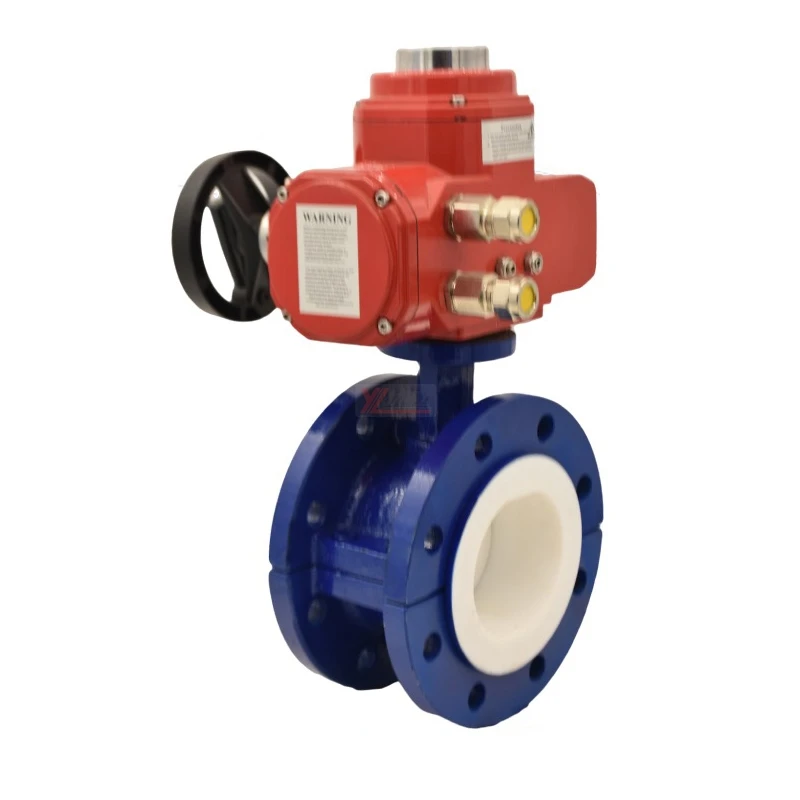

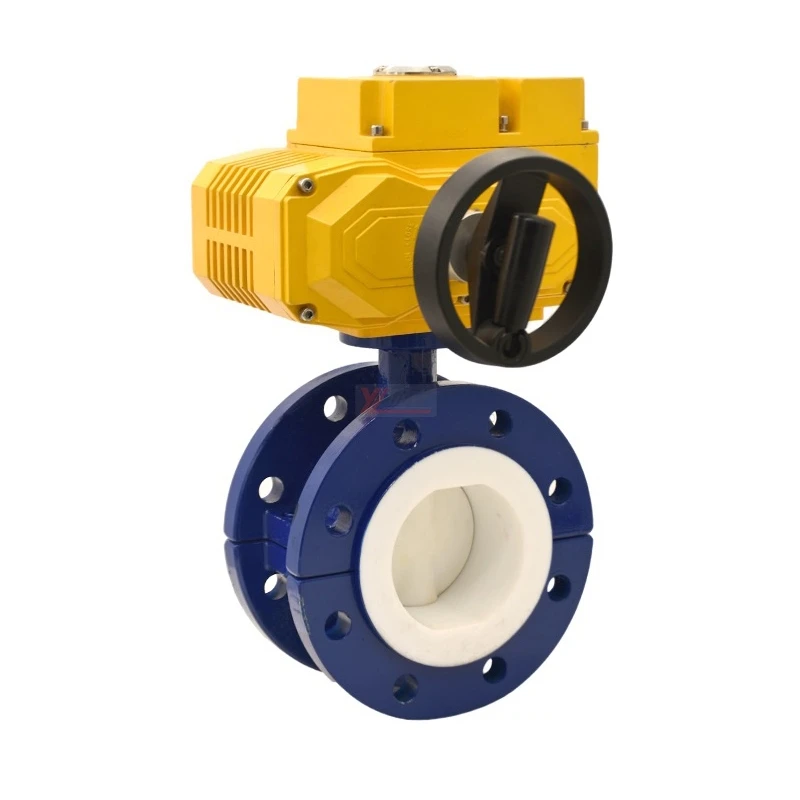

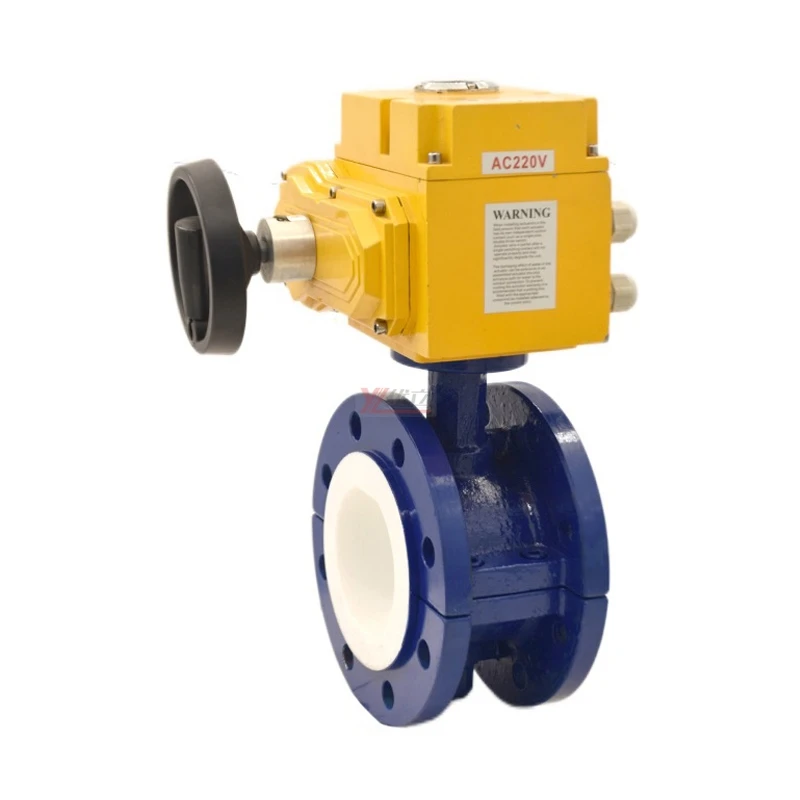

ANSI 150LB Stainless Steel 304 316 JIS 10K Pn16 WCB FEP F46 PFA Fluorine Lined Motorized AC220V Electric Flanged Butterfly Valve
- Category: >>>
- Supplier: Wenzhou Youli Machinery Co. Ltd.Wenzhou Ltd.
Share on (1600835296549):
Product Overview
Description
Product Description
Body material | Carbon Steel(WCB),SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),Cast Iron,Aluminium Alloy etc. |
Full port | 2"-12"(DN50-DN300) |
Working pressure | JIS10-20K,API607,ANSI150-300LB,10-40Bar,PN10-40,1-4Mpa |
Medium temperature | 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 425°C) |
Connection type | Wafer,Flange,Lug,vacuum |
Sealing | F4,F46,PTFE,PFA,Metal,ETC |
Structure | Center sealed ,Single eccentric sealed ,Double eccentric,Triple eccentric sealed |
ISO 5211 Direct mounting pad | Yes |
Electric actuator | 03-Type,05-Type,10-Type,20-Type,200-Type |
Voltage | DC24V,DC220V,AC24V,AC110V,AC220V,AC380V |
No/Off type | Yes |
Run time | 30s,option(5s/8s/15s/50s/100s) |
Waterproof level | IP-67,option(IP-68) |
Rotation angle | option(4-20ma,0-10V,RS485) |
Explosion proof | option(Ex db lC T4/T6 Gb:Ex tb HC T130℃/T80'℃ Db) |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
Capacity to produce | 10000PCS/Mouth |
Certification | CE, ISO, our factory has been inspected by leyon and TUV |
MOQ | 1PC |
HS Code | 8481804090 |
Trademark | YOULI |
Application | Suitable for Aqua regia, sulfuric acid, hydrochloric acid, aminofluoric acid, and various organic acids, strong acids, strong oxidants,corrosive gases, and liquid media etc |
Buyer's drawings or designs are available | |
Package | Cartons without pallet |
Cartons with pallet | |
Or as buyer's requirements | |
Delivery details | According to the quantities and specifications of each order |
Normal delivery time is from 10 to 15 days after receiving the deposit |
Operating Principle.
A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.
Product Appliction
Suitable for water, oil, air and some corrosive liquid etc

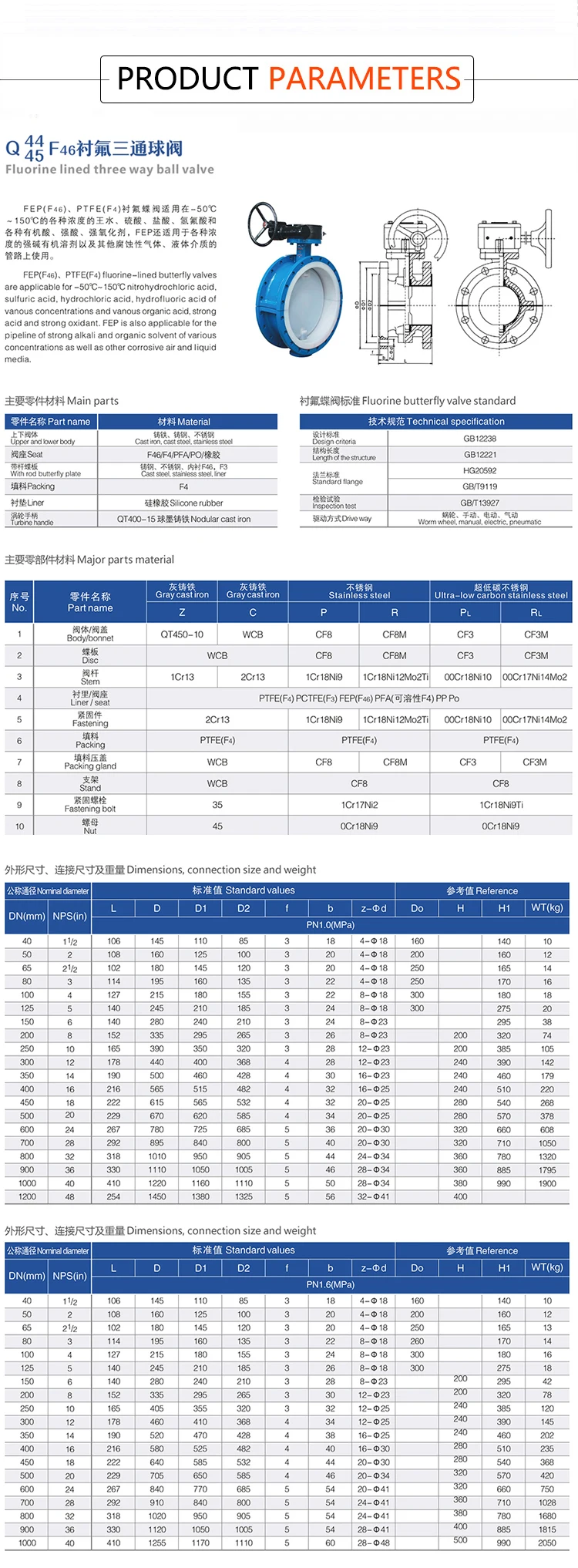

Product Paramenters
Related Products

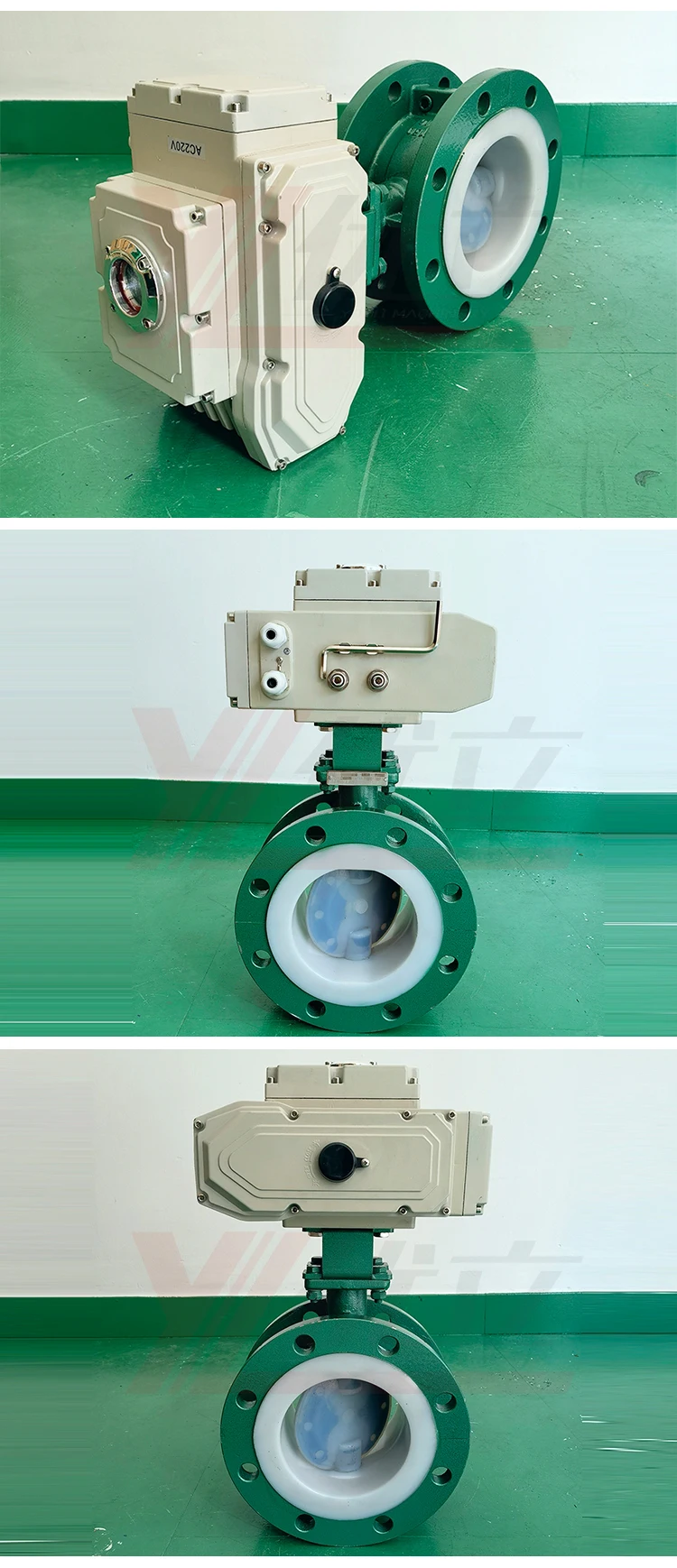

Details Images
