Product Overview
Description
STWSC2PB-E0 Sunlike 3030 SMD LED CRI95 0.2W S1S0-3030xx9503-00000000-0P001 Mid-Power from Seoul Semiconductor Seoulsemicon
| Specifications of STWSC2PB-E0 | |
| Original Korea Brand | Seoul Semiconductor |
| LED size | 3.0*3.0*0.6mm (Surface Mount Pakcage 3030 SMD LED) |
| Emitting color | Addressable dream color RGBW |
| Brightness | Min. 21lm |
| Working current | 65mA |
| Forward voltage | DC 2.8-3.1 volts |
| Power | 0.2 Watt. |
| LED Face color | white |
| Warranty | Two years |
| Packing | 4500 pieces per reel in an anti-static foiled bag |
Description
Key Applications
Features and Benefits
S1S0-3030xx9503-00000000-0P001 – Mid-Power LED
Rev. 1.0 Mar. 26, 2020
Replacement lamps – Bulb, Tube
Commercial
Industrial
Residential

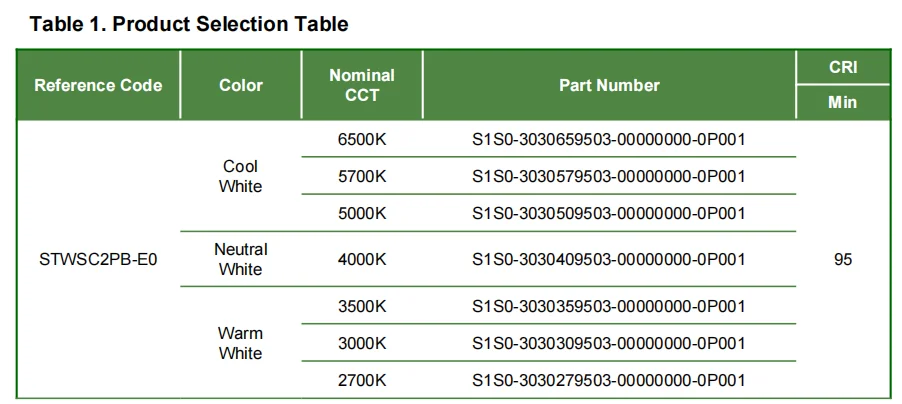

Table 1. Product Selection Table
This White Colored surface-mount LED
comes in standard package dimension.
Package Size : 3.0x3.0x0.6mm
It has a substrate made up of a molded
plastic reflector sitting on top of a lead
frame.
The die is attached within the reflector
cavity and the cavity is encapsulated by
silicone.
The package design coupled with
careful selection of component
materials allow these products to
perform with high reliability.
Thermally Enhanced Package Design
Mid Power to High Power up to 0.2W
Max. Driving Current 150mA
Compact Package Size
High Color Quality with CRI Min.95 (R9>85)
Pb-free Reflow Soldering Application
Eye Safety (Exempt 5000K)

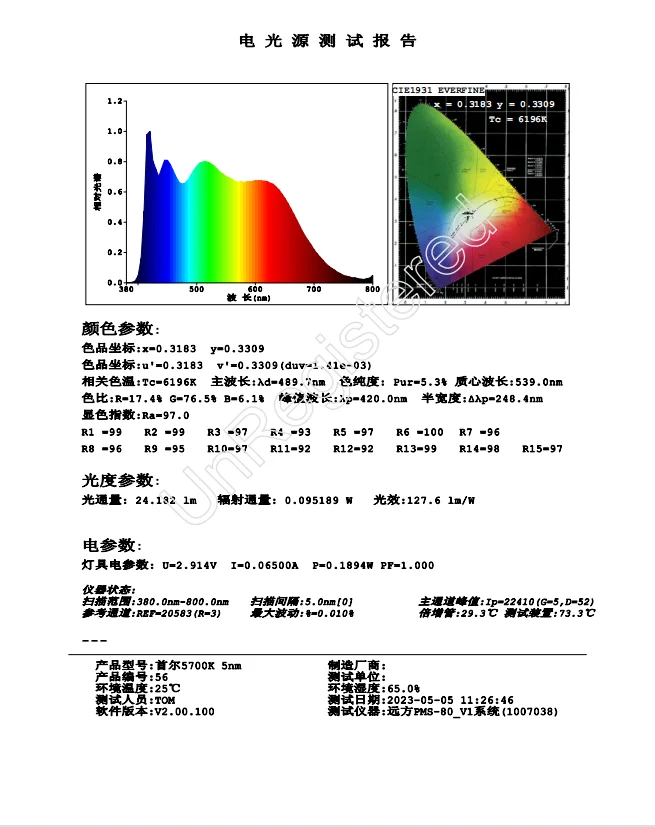

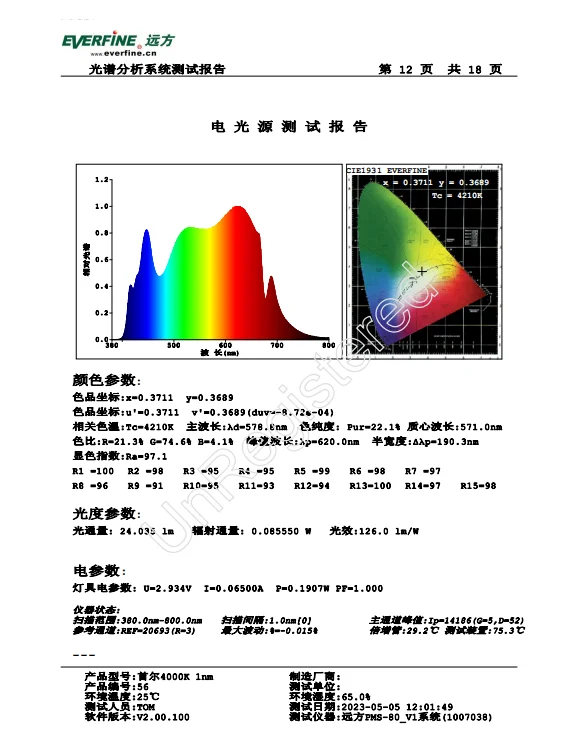

Test Reports

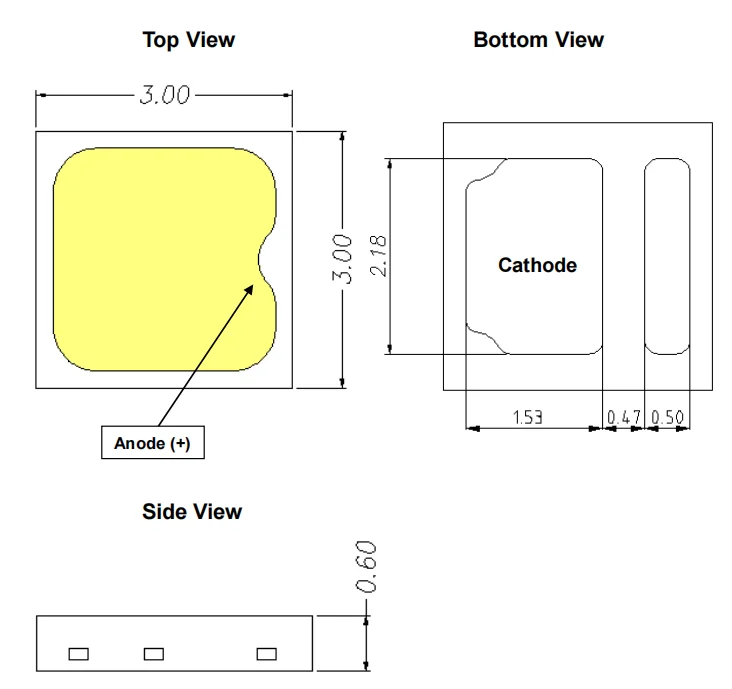

Mechanical Dimensions

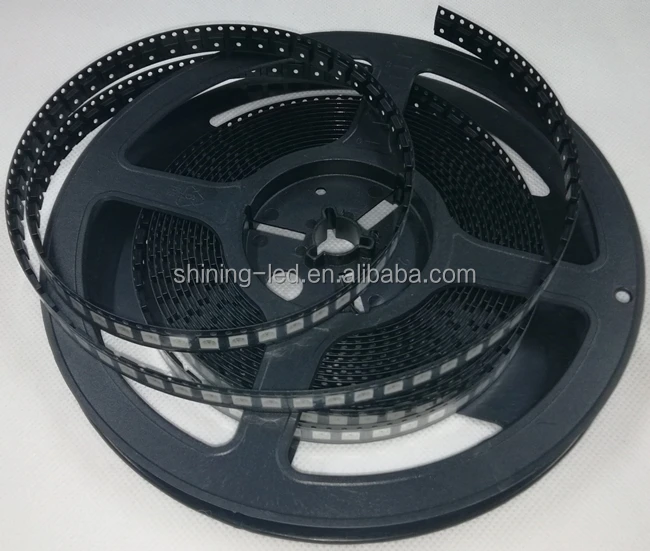

Pakcing example:
4500 pcs per roll in an anti-static bag.
Other addressable SMD LED Chip
