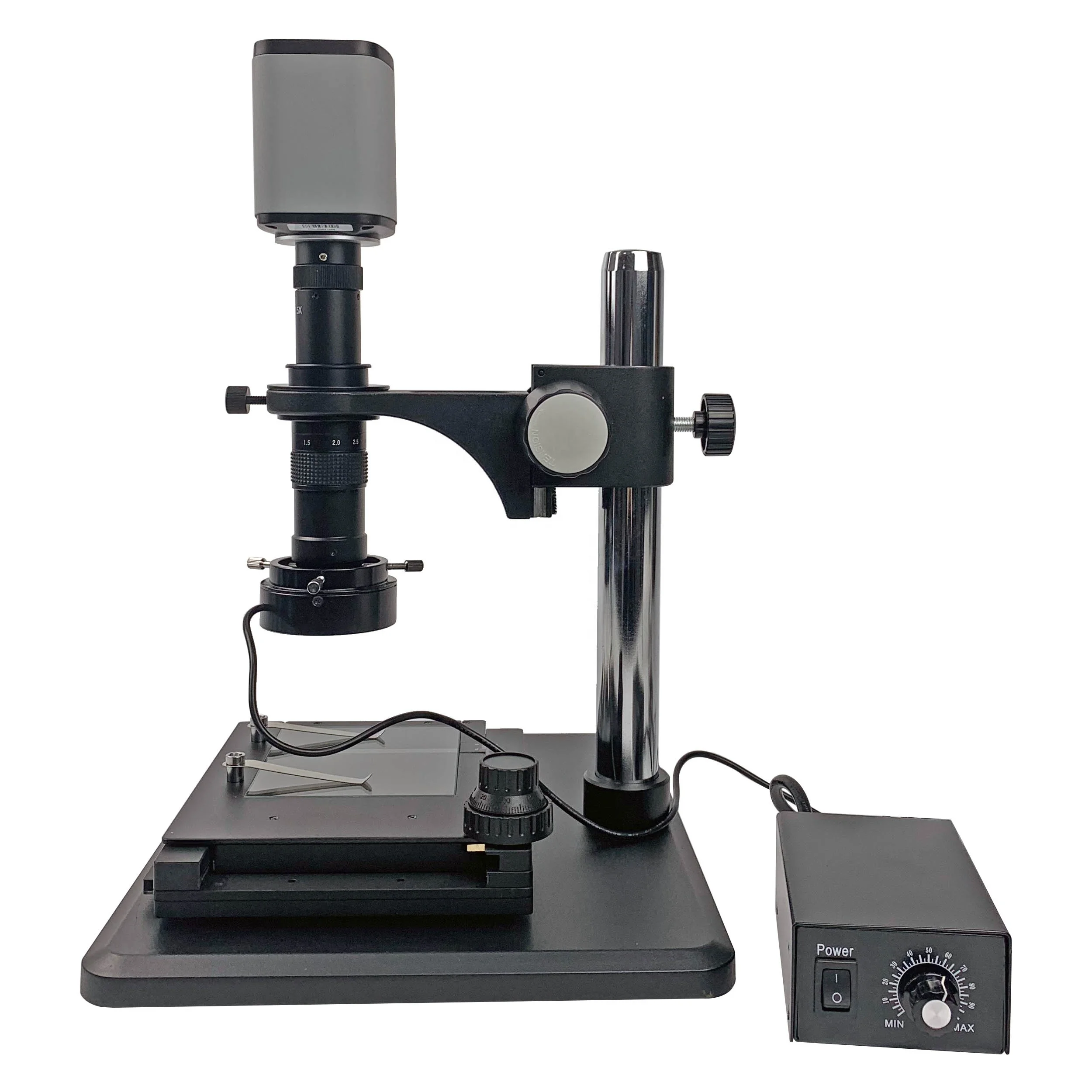

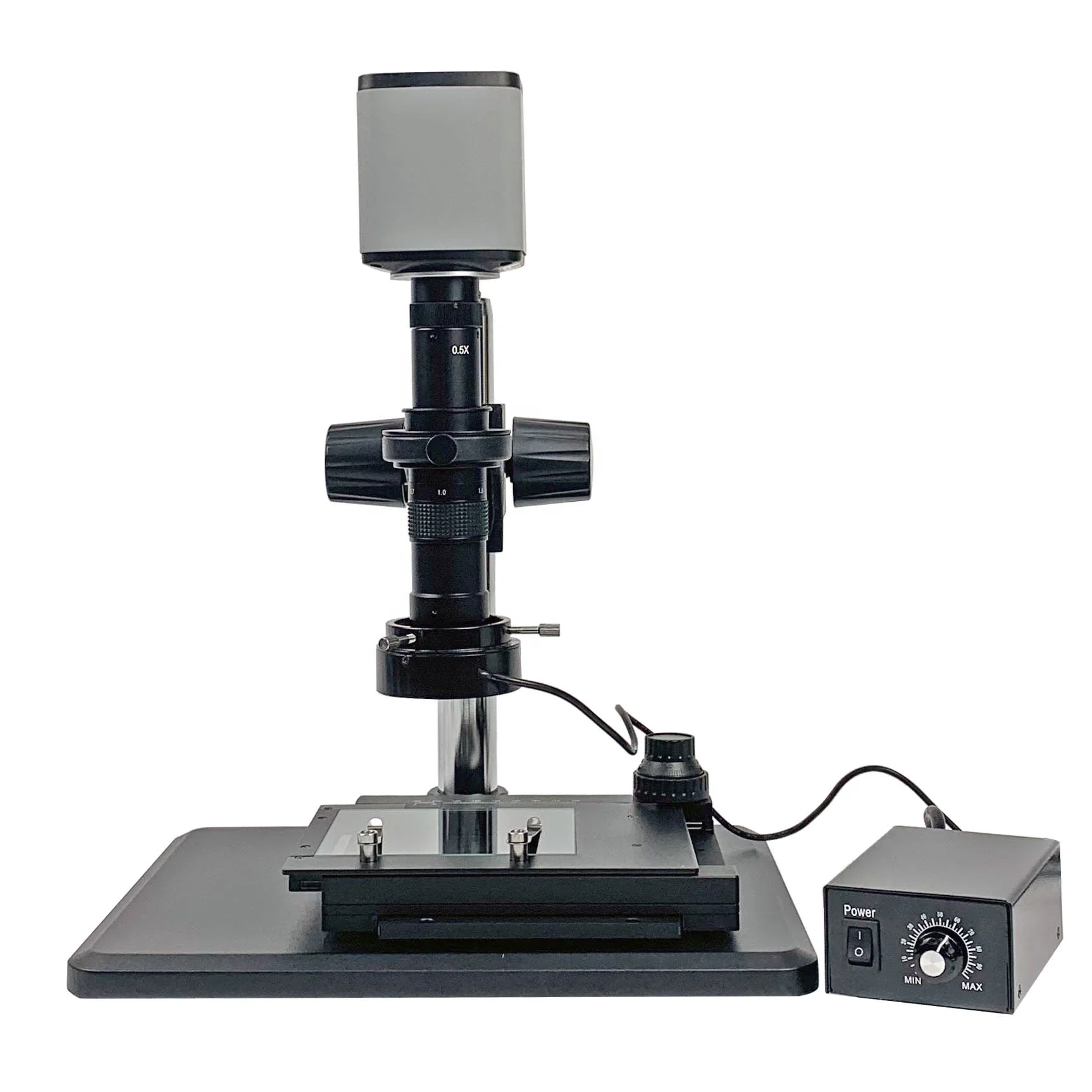

ZMZ45 B3M5 0.7X 4.5X Industrial Inspection Video Zoom Microscope with Illuminator and Camera
- Category: >>>
- Supplier: Ningbo Amz Instruments Co. Ltd.
Share on (1600835313103):
Product Overview
Description
Products Description
● Video inspection microscope systems allow the user to view small parts and circuit boards on a monitor,providing larger images that reduce eye fatigue.
● The modularity of our systems give you the magnification powers of traditional microscopes without the bulk or expense.
● Equipment manufacturers looking for highly repeatable and automated precision optics can easily integrate, assemble and configure our lenses into new instruments achieving smaller footprints and lower prices than older equipment.
● Our zoom lens are perfect for quality control areas where a number of parts need examination throughout the day.
● The modularity of our systems give you the magnification powers of traditional microscopes without the bulk or expense.
● Equipment manufacturers looking for highly repeatable and automated precision optics can easily integrate, assemble and configure our lenses into new instruments achieving smaller footprints and lower prices than older equipment.
● Our zoom lens are perfect for quality control areas where a number of parts need examination throughout the day.
Microscope Specifications | ||

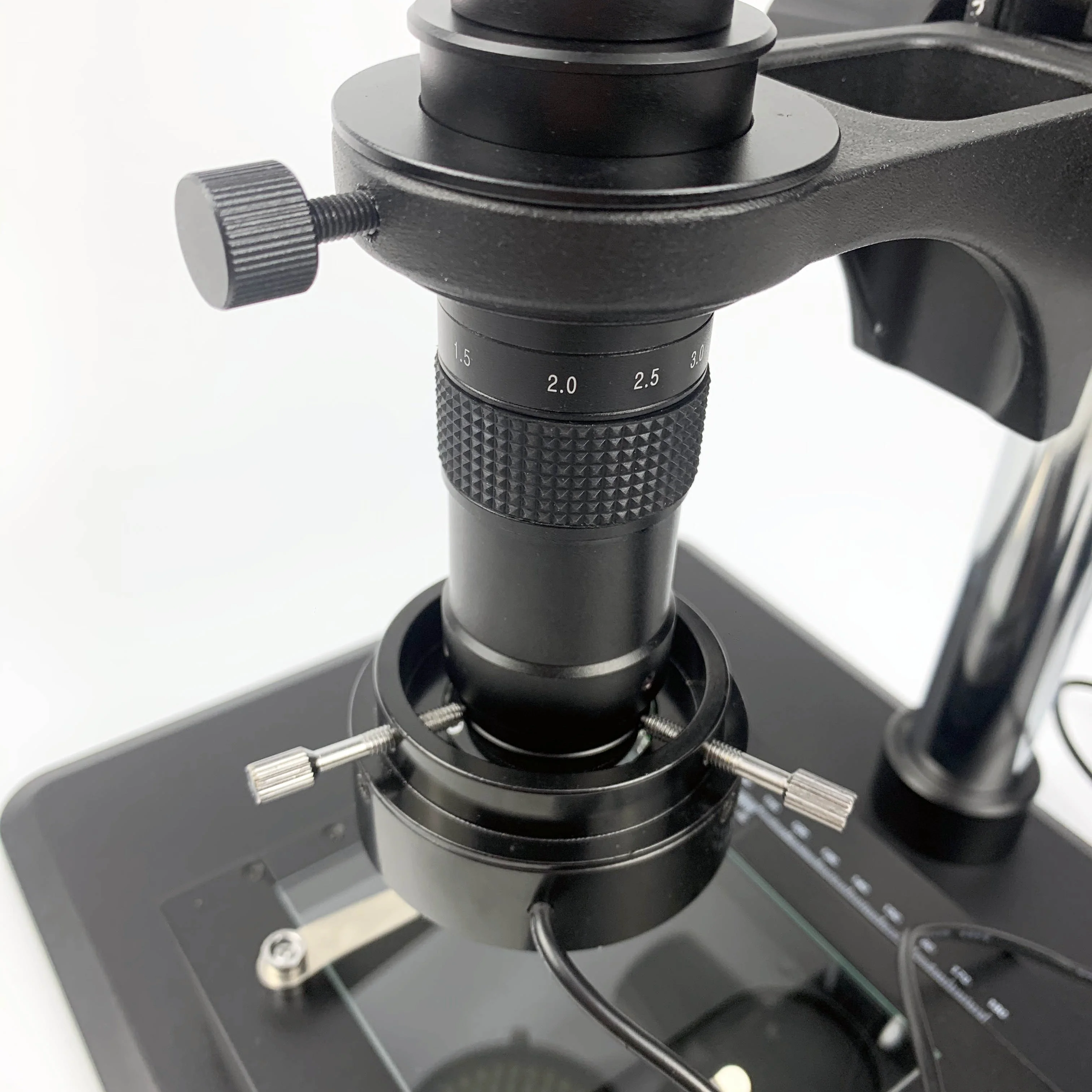

Continuous zoom lens | 0.7-4.5X, zoom ratio 6.4:1 | |
Standard working distance | 100mm | |
Eyepiece | 0.5X (optional 0.35X/1X/2X) | |
Objective | 1X (optional 0.5X, 2X) | |
Base size | 260*380mm | |

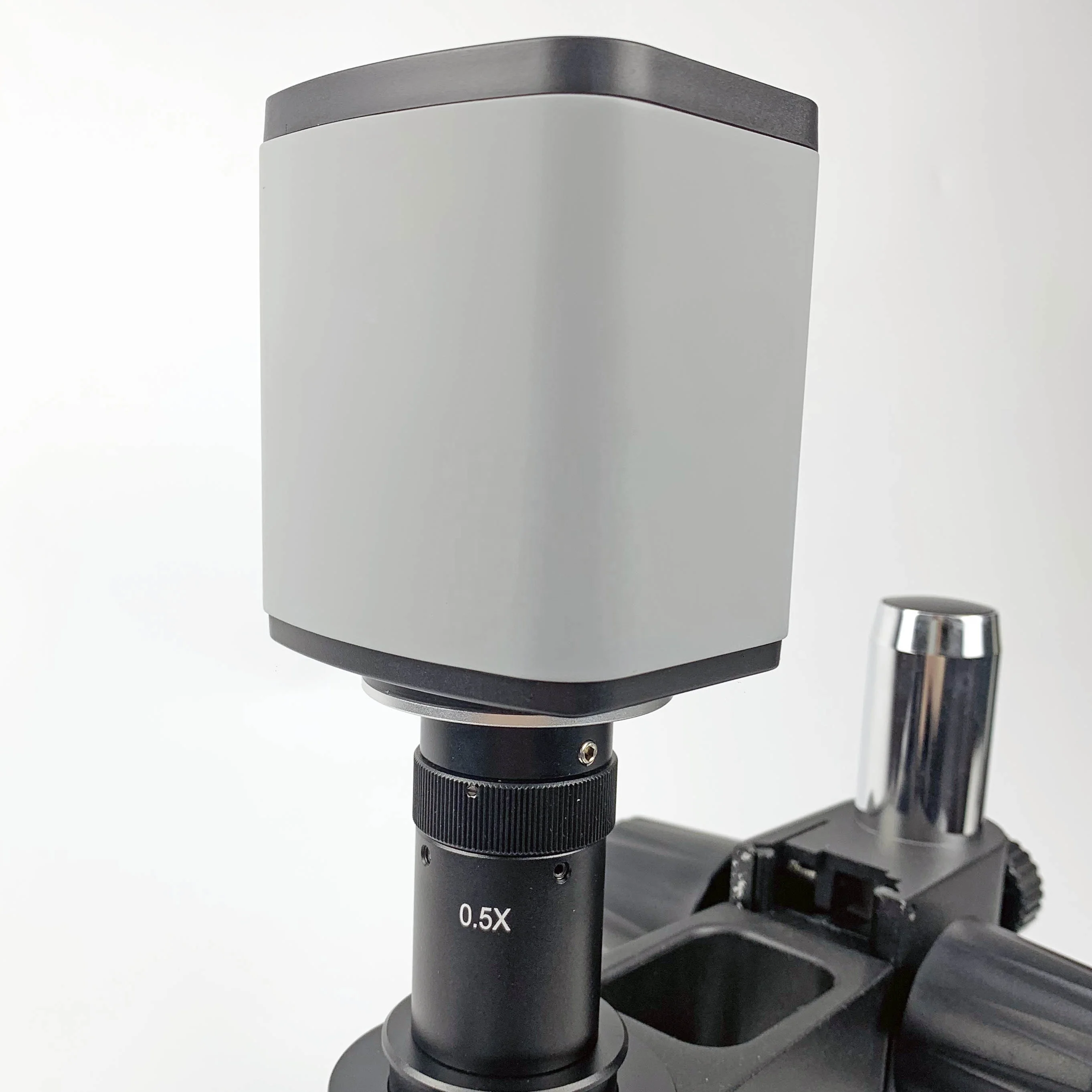

Camera Specifications | ||
Sensor | CMOS Aptina MT9P031 | |
Sensor Size | 1/2.5”, (0.5x C-mount recommended) | |
Live Resolution | 1920 x 1080 | |
Capture Resolution | 5MP (2592x1944) | |
Frame Rate | HDMI (30fps); USB 2.0 (15fps) | |
Video Capture | HDMI: 1080p, 15fps to SD Card, USB 2.0: 1080p, 15fps to PC or Mac ● Exposure Time 0.001sec—10.0 sec | |
White Balance | Auto | |
Settings | White Balance, Exposure Time, Noise, Reduction, Gain, Gamma, WDR | |
PC Imaging Software | CaptaVision Imaging Software (for PC only; Mac OS not supported), Advanced Camera Controls: still image measurement and annotation, flatfield correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPG and TIF | |
Data Interface | USB2.0, SD, HDMI | |
Optical Interface | Windows 7/8/10(32/64bit) | |
Optical Port | Standard C-Mount | |
Camera Size | ||
Illuminator Specifications | 50mm for lens | |
Power Output | 4.5W | |
Brightness | 15000lux @ 100mm | |
Color Temperature | 6400K | |
Mounting Size | up to 50mm in diameter | |
Inside Diameter | 35mm | |
Outside Diameter | 68mm | |

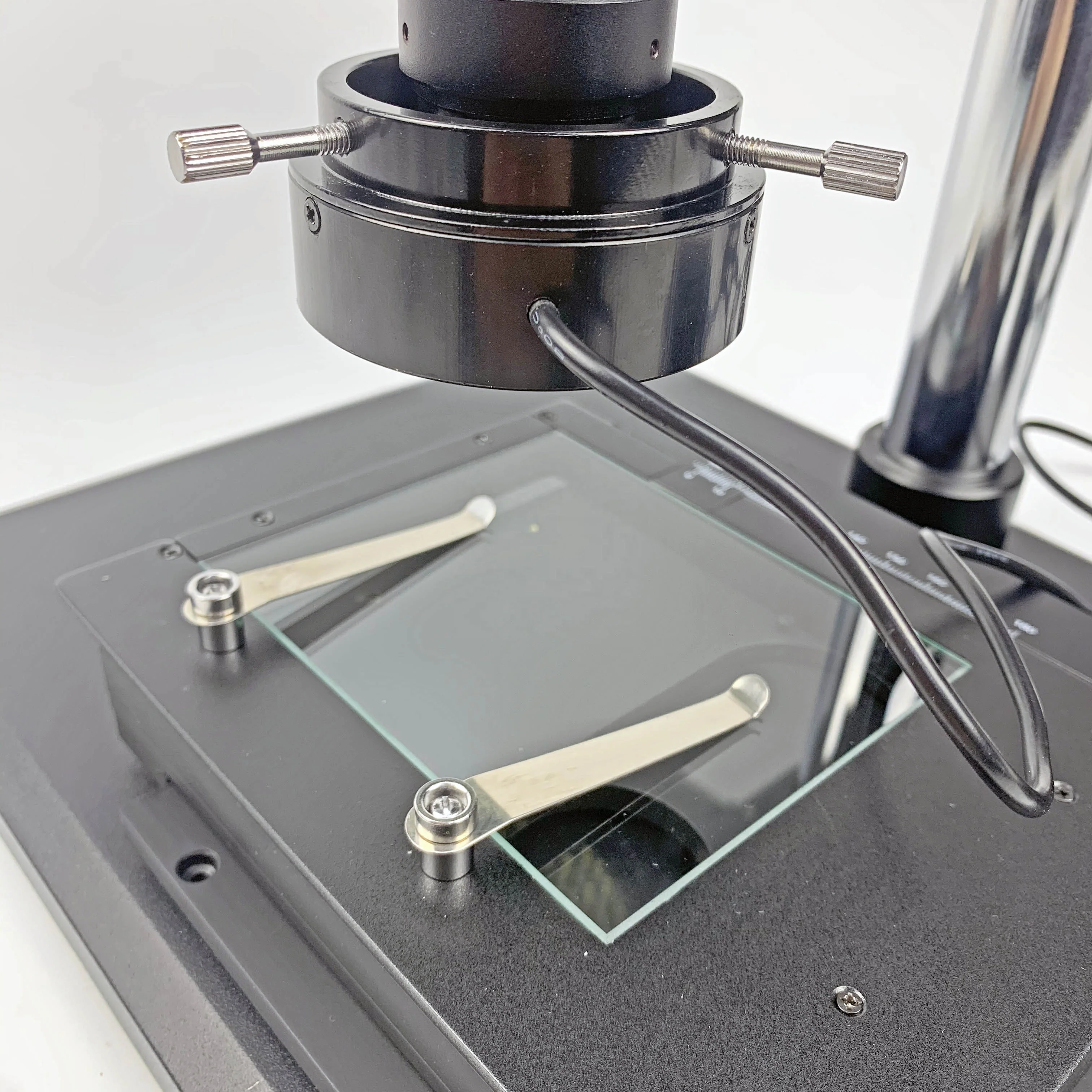

Stage Specifications | ||
Type | Ball bearing rack | |
Stage Dimesion | 180x155x26mm | |
Glass Size | 116X96mm | |
Travel Distance | Horizontal 75mm, vertical 55mm | |
Reading Precision | 0.1mm | |
Connecting Size | ø 95mm | |
