55 65 75 85 98 Inch Digital Whiteboard 4K Dual System Smart Board Interactive Electronic Whiteboard with Stand
55 65 75 85 98 Inch Digital Whiteboard 4K Dual System Smart Board Interactive Electronic Whiteboard with Stand
55 65 75 85 98 Inch Digital Whiteboard 4K Dual System Smart Board Interactive Electronic Whiteboard with Stand
55 65 75 85 98 Inch Digital Whiteboard 4K Dual System Smart Board Interactive Electronic Whiteboard with Stand
55 65 75 85 98 Inch Digital Whiteboard 4K Dual System Smart Board Interactive Electronic Whiteboard with Stand
55 65 75 85 98 Inch Digital Whiteboard 4K Dual System Smart Board Interactive Electronic Whiteboard with Stand
55 65 75 85 98 Inch Digital Whiteboard 4K Dual System Smart Board Interactive Electronic Whiteboard with Stand

55 65 75 85 98 Inch Digital Whiteboard 4K Dual System Smart Board Interactive Electronic Whiteboard with Stand

Share on (1600835339045):


Price:$469.00 - $674.00

Quantity:


Product Overview

Description



Dimensions and Specifications




Model
BAC-TG65B
BAC-TG75B
BAC-TG85B
BAC-TG98B
LCD Screen
Size
65-inch
75-inch
85-inch
98-inch
Screen Type
Backlight
D-LED
D-LED
D-LED
D-LED
Display Parameters
Frequency
60Hz/75Hz
Display Colors
1.07B(10bit)
Resolution
4K 3840*2160(pixels)
Brightness
350nits-400nits
Contrast Ratio
1400:1 (optional 5000:1)
Response Time
＜8ms
Screen Ratio
16:9
Glass Type
4mm Tempered Glass; Anti-glare Coating
Viewing Angle
178°(H)/178°(V)
Camera & MIC
Camera
12-megapixels
Microphone
8 microphones array, up to 10 meters of voice pickup
Speaker
Power
Built-in 2 X 10W (stereo speaker) +1 X 15W (subwoofer)
Power Parameters
Power Consumption
300W
400W
450W
480W
Working Voltage
AC 100V to 240V, 50/60Hz
Power Type
AC power
Standby Consumption
<0.5W
Touch Parameters
Touch Technology
IR technology
Touch Points
20-points Touch optional 40-points
Inductive Objects
Finger, touch pen or other > 2.5mm non-transparent objects
Accuracy
±1mm
Minimum Diameter
2.5mm
Resolution
32767*32767
Response Time
<10ms
Anti-Light
<8000lux
Interface
HDMI
HDMI IN: 3, Max. 4k@30HZ
HDMI OUT:1, Max 4k@60Hz
USB
USB 2.0 * 1, USB 3.0 * 3
VGA
VGA IN * 1
Ethernet
RJ45 (100Mbps ports) * 1
RS232
RS232 * 1
USB Touch
USB Touch * 2
Audio
AUDIO IN * 1,AUDIO OUT * 1,SPDIF OUT * 1
Android OS
Android System
Android 11.0, 4G RAM, 32G ROM
CPU
Amlogic T982
GPU
ARM Mali-G52 MP2 (2EE)
Wi-Fi
2 .4Ghz & 5Ghz
OPS
Processor INTEL®CORE i5 4th generation, RAM 4GB, SSD 128G
Optional:Processor INTEL®CORE i5 8th generation, RAM 8GB, SSD 256G
Processor INTEL®CORE i7 10th generation, RAM 8GB, SSD 256G
Physical Parameters

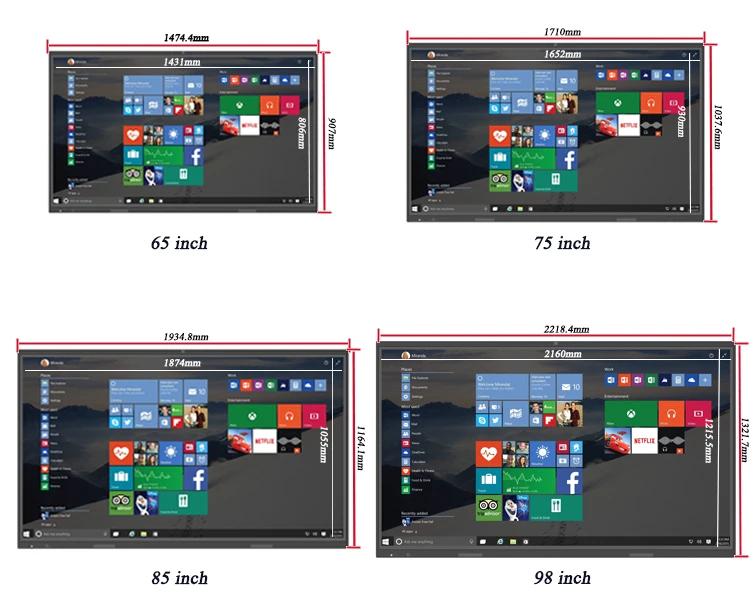

Product Dimensions
1488.4（L）*91.55（W）*892（H）
1710（L）*89.6（W）*1022.6（H）
1934.8（L）*89.6（W）*1149.1（H）
2218.4（L）*93.2（W）*1306.7（H）
Package Dimensions
1600（L）*205（W）*1030（H）
1860（L）*215（W）*1160（H）
2090（L）*215（W）*1290（H）
2330（L）*235（W）*1485（H）
Net Weight (kg)
38KG(±0.5)
54KG(±0.5)
70KG(±0.5)
90KG(±0.5)
Gross Weight (kg)
Carton Packing
45KG(±0.5)
68.5KG(±0.5)
78KG(±0.5)
110KG(±0.5)
General Environment
Operating Temperature
0°C to 50°C
0°C to 50°C
0°C to 50°C
0°C to 50°C
Storage Temperature
-20°C to 60°C
-20°C to 60°C
-20°C to 60°C
-20°C to 60°C
Storage and Operating
Humidity
10% to 90% RH
10% to 90% RH
10% to 90% RH
10% to 90% RH

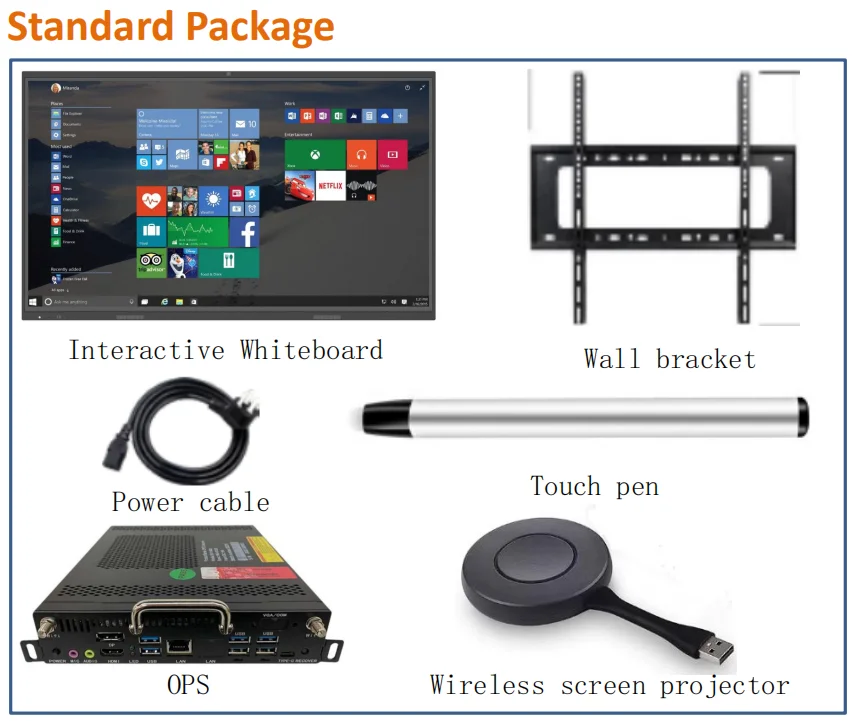

Standard Package
Interactive whiteboard * 1
Power cable * 1
Touch Pen * 2
Wall bracket * 1
Wireless screen projector * 1
OPS*1

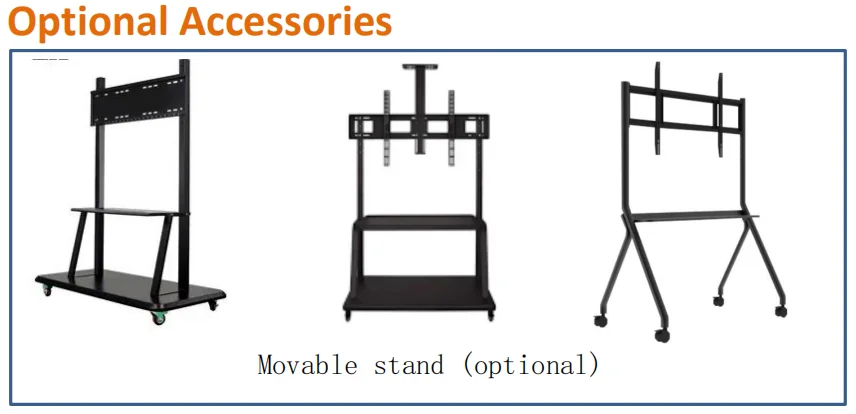

Optional Accessories
Movable stand * 1




Products Description










Interface Details




Product accessories








Client Feedback

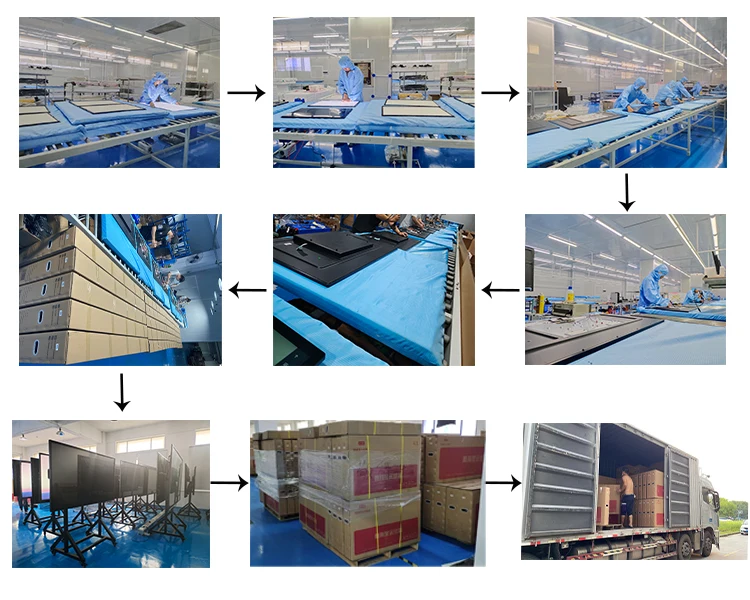

Production Workshop

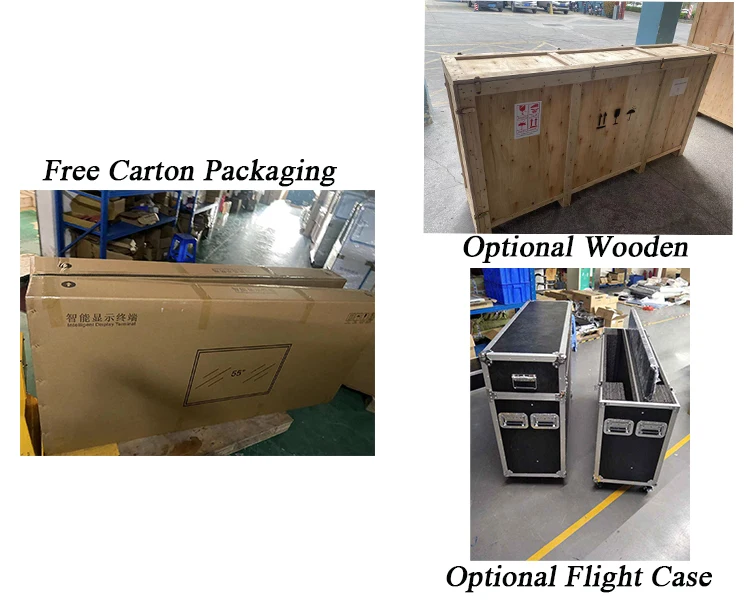

Product packaging






FAQ


1)Are you a factory or trading company ? What is the MOQ of touch screen? A:Yes, we are factory direct sales and have some items
in stock , you can order 1pcs for test.

2) What is the delivery time? Where do you ship of touch screen?
A:Generally speaking , the goods can be delivered within 5-7 days for small orders, and the production time about 15 days for more
than 10pcs. In addition, our factory is located in Wangniudun, Dongguan. If you have forwarder in Shenzhen or Guangzhou, we can
help shipment to your fowarder .

3) Could you provide OEM&ODM service of touch screen?
A:of course , including software, packaging, product logo, etc.,consult customer service for more details.

4) What is the warranty period of touch screen?
A:Normally it is 2 year, we have aprofessional after-sales service team, specific details can consult customer service.

5)How do you guarantee the quality of your touch screen?
A:Our products comply with ISO9001 quality system and CE/FCC/ROHS standards. All our products pass strict QC
inspection in the production process. In particular, export products need to complete 72-hour aging test to ensure no problems
before shipment.

6)How do you arrange transportation for touch screen?
A:If small sample orders suggest express delivery (7-10days) or air freight (10-15 days), if bulk production advise by sea more
favorable , please consult customer service for more details !
