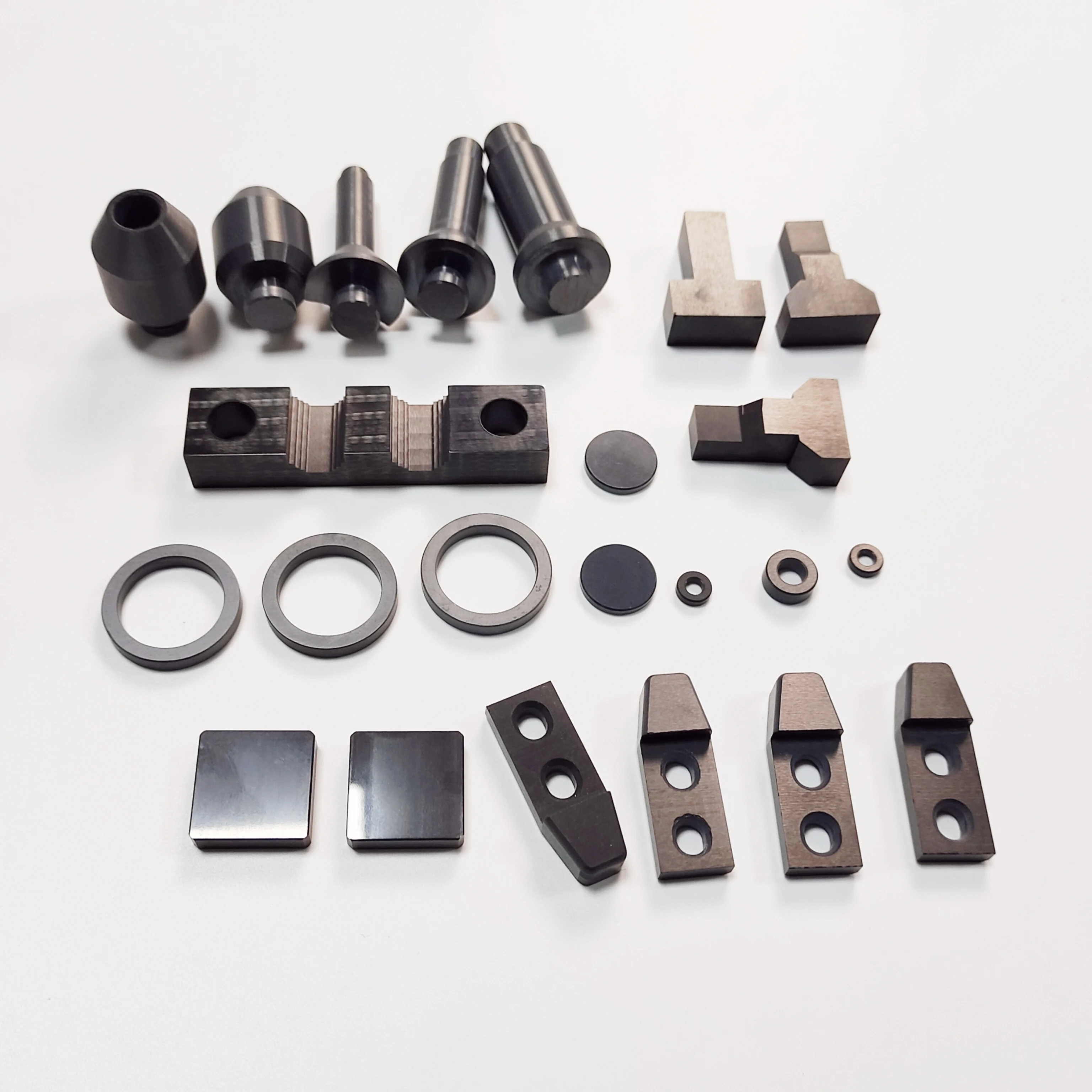

High Purity Advanced Ceramics Alumina Zirconia Silicon Nitride Silicon Carbide Ceramic Supplier In China
- Category: >>>
- Supplier: Shenzhen Qianqi Baihui Trading Co. Ltd.
Share on (1600835343701):
Product Overview
Description
Product Description
Application industry:
Industry,Machinery, Kitchen Ware,Electric industry,Medical,Laboratory equipment,Fiber optic, Food, Tools,Petroleum ,Crafts&Gifts etc.
Specific application:
plunger, ceramic shaft, fiber optic bushing, stub, grinding, ceramic knife, ceramic slide guide, machined plunger, mobile phone shell, watch case, haircut razor blade etc.
Alumina Ceramic
Alumina ceramic is a kind of material based on alumina(AI2O3),which is used in thick film integrated circuit.Alumina ceramics have good conductivity,mechanical strength and high temperature resistance.It needs to be noted that ultrasonic cleaning is needed.Alumina ceramic is a kind of widely used in modern society,meeting the needs of daily use and special performance.
Zirconia Ceramic
Zirconia ceramics is a kind of ceramic material based on zirconia.In terms of structural ceramics, zirconia is different from traditional ceramics. Zirconia has very high strength, wear resistance and flexibility, which far exceeds most other technical ceramics. Zirconia is a very strong industrial ceramic with excellent properties in hardness, fracture toughness and corrosion resistance. Compared with metals,in daily use special ceramics have the characteristics of non-rusting, non-magnetic, wear resistance and insulation, so zirconia ceramics have high toughness, high bending strength and high wear resistance, as well as excellent thermal insulation and Coefficient of thermal expansion similar to steel, so it is widely used in the field of structural ceramics.
Silicon Nitride Ceramic
Silicon nitride ceramic material has the characteristics of high hardness, low density, wear resistance and high temperature resistance. It is an inorganic material ceramic that does not shrink when sintered.Therefore, it has been regarded as the material for making high speed and precision bearings.
Data Sheet
| Alumina Ceramic Properties | 96% Alumina Ceramic | 99% Aliminua Ceramic | |
| Item | Unit | Typical Valves | |
| Physical Properties | |||
| Color | White | Ivory | |
| Density | g/cm3 | 3.7 | 3.85 |
| Alumina Content | % | 96% | 99% |
| Gas permeability | 0 | 0 | |
| Water Absorption | 0 | 0 | |
| Mechanical Properties | |||
| MONS's Hardness | Grade | 9 | 9 |
| Rockwell Hardness | HRA | 80 | 82 |
| Vickers Hardness (Hv50) | Gpa(Kg/mm2) | 15.7(1600) | 15.7(1600) |
| Flexural Strength(20°C) | Mpa | 300 | 330 |
| Compressive Strength(20°C) | Mpa | 2000 | 2000 |
| Modulus of Elasticity | Gpa | 275 | |
| Poisson's Ratio(20°C) | 0.22-0.23 | ||
| Fracture Toughness(20°C) | MPam1/2 | 3.5 | 4 |
| Thermal Properties | |||
| Thermal Conductivity(20°C) | W(m.k) | 25 | 27.5 |
| Thermal Expansion | 10-6/°C | 6.5-7.5 | 7.6 |
| Maximum Use Temperature | °C | 1600 | 1650 |
| Electronic Properties | |||
| Dielectric | KV/mm | >12 | >10 |
| Dielectric Constant | Er | 9-10 | 9.1 |
| Dielectric Loss Angle(1MHz) | 0.0002 | 0.0002-0.0003 | |
| Zirconia Ceramic Properties | ||
| Item | Unit | Typical Values |
| Physical Properties | ||
| Density | g/cm3 | 6 |
| Alumina Content | % | 94.4% |
| Gas permeability | 0 | |
| Water Absorption | 0 | |
| Crystal size | um | 0.5 |
| Mechanical Properties | ||
| Rockwell Hardness | HRA | 78 |
| Flexural Strength(20°C) | Mpa | 800 |
| Compressive Strength(20°C) | Mpa | 2100 |
| Modulus of Elasticity | Gpa | 250 |
| Excellent Fracture toughness | Impact resistance | |
| High temperature resistance | 800°C | |
| The Coefficient of thermal expansion | similar to iron | |
Resistivity | 108/Ω.m | |
| The melting point | 2850°C | |
| Thermal Conductivity | W/m.k | 2.0 |
| Silicon Nitride Ceramic Properties | ||
| Item | Unit | Typical Values |
| Physical Properties | ||
| Density | g/cm3 | 3.24 |
| Mechanical Properties | ||
| Rockwell Hardness | HRA | 90 |
| Flexural Strength(20°C) | Mpa | 800 |
| Compressive Strength(20°C) | Mpa | 1800 |
| Modulus of Elasticity | Gpa | 320 |
| Fracture toughness | 7.0 Mpa·m1/2 | |
| High temperature resistance | 800°C | |
| Maximum use temperaturein | 1200°C | |
| Low linearexpansion coefficient | 3.2x10-6/K | |
| Thermal Conductivity | 80 W/m.k | |
Packaging & Shipping
Packaging details: Box,Carton,Bag,Wooden etc.
Port: Zhongshan,Guangdong
Lead time:
| Quantity (pieces) | 1-5 | >5 |
| Lead time (days) | 10 | To be negotiated |
Company Information
Shenzhen Qianqi Baihui Trading Co., Ltd. is a leading manufacturer for advertising display equipment industry and professional fine ceramic industry,which headquartered in Guangdong, China, that supplies one-stop customized products.
Our main advertising display products include beach feather flag,flag pole,A frame banner,trade show tent,table cover,tension fabric display,custom print banner,display stand and all kinds of flag accessories etc......
While our main precision ceramic products include 95/96 Alumina Ceramic,99 Alumina Ceramic,Zirconia Ceramic,Silicon nitride ceramic,Silicon carbide Ceramic,Machinable Ceramic and other Industrial ceramics.For example, wear-resistant ceramics,insulating ceramics,textile ceramics,porous ceramics,refractory and other structual ceramic materials production,ceramic rod,ceramic Ball Valves,ceramic Tube,ceramic seat and various special-shape Industrial Ceramic Products etc...
We have our own factory with an area of over 1000 square meter,which ensures the supply of stability,competitive price,the quickly delivery date,the honest attitude,and one-stop service for our valued customers from all the World.
If you are seeking a professional manufacturer with one-stop service for outdoor advertising display products and precision ceramic products,congratulation and welcome,we are the one you are looking for!
FAQ
Q: What's products do you mainly supply?
A: We supply One-stop customized products for industrial Ceramics products
(such as alumina ceramic,zirconium oxide and silicon nitride ceramic, aluminium nitride ceramic etc.)
Q: Can I buy samples placing orders?
A: Please feel free to contact us.
Q: What is your lead time?
A: It mainly depends on your order quantity you make the order.
Usually Sample can be finished within 7 days
Q: What is your payment term?
A: T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
Q: What is the shipping method?
A: Shipping by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect.)
