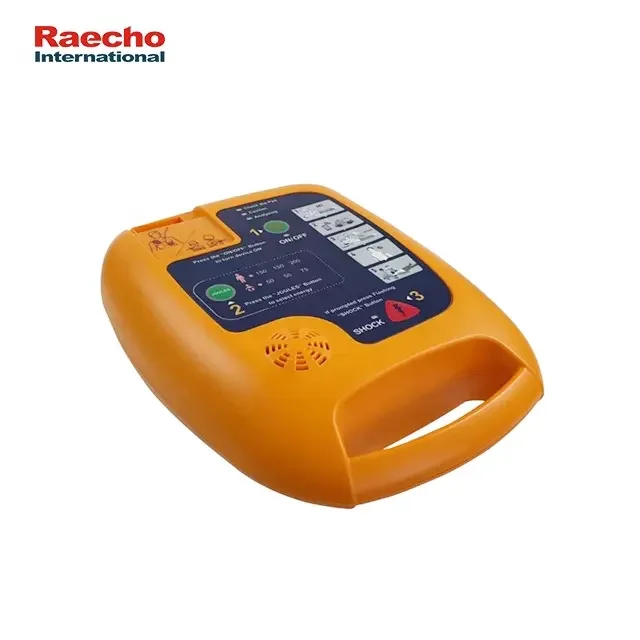

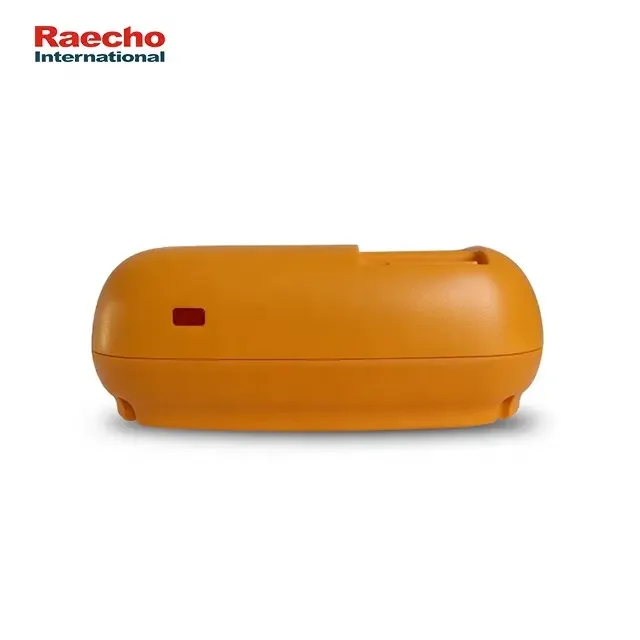

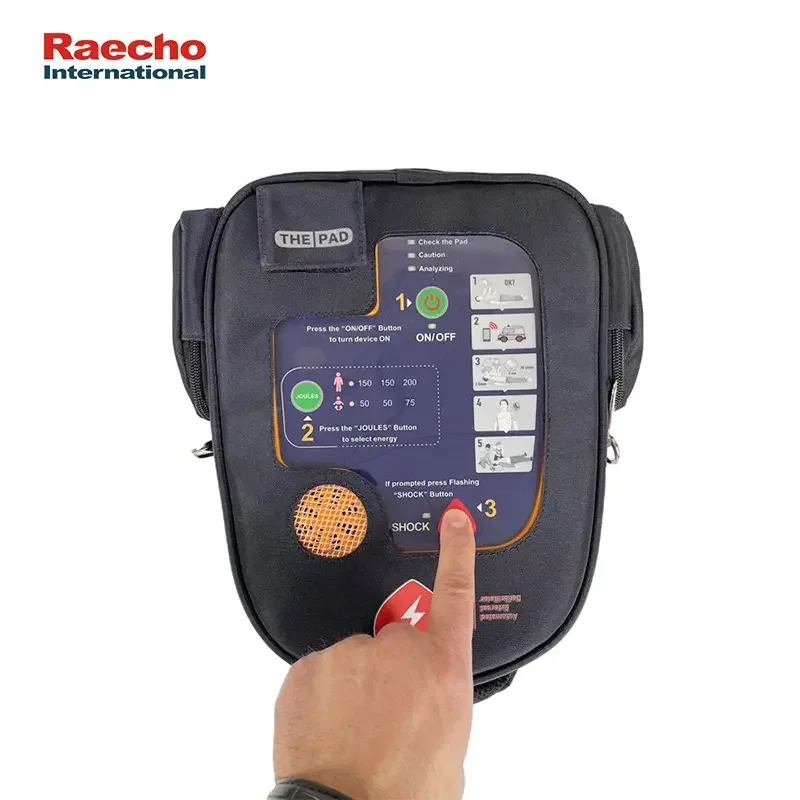

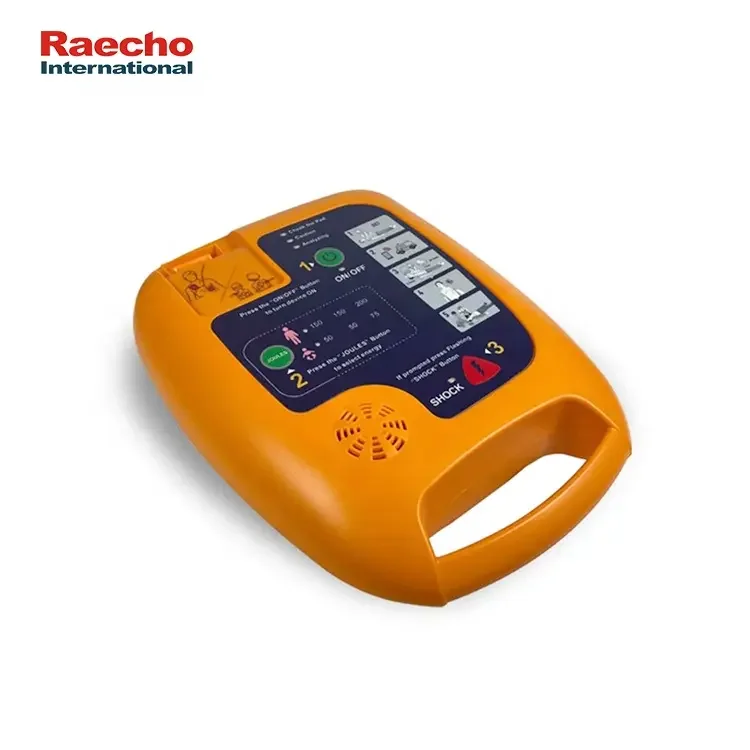

Portable AED Defibrillator Automated External Monitor Cardiac First Aid Device
- Category: >>>
- Supplier: Raecho International Limited
Share on (1600835494834):
Product Overview
Description
Order with Trade Assurance
Product Description
Data Communications
AED storage software supports AED to receive data, which is sent through infrared, Raecho AED storage software supports reading and setting of ECG waves, Setting of AED language, Reading, analysis, deletion of storage data can be achieved by Raecho AED storage software as well.
Case Management
Raecho AED storage software makes selected data file as a case record and stores cases by ACCESS database. Case Management supports data importing and data deletion, which can respond to ECG waveform of data file by selecting cases.
Memory Playback
The interface display status information recorded in the running of the AED, including type, event time ,description, waves. Event type includes on event, self-test event, analyzing event, charging event, discharging event, CPR starting event, CPR stopping event. The event time displayed is when the event happened.
Description shows the parameter information. "OHM" represents the detected impedance of the patient. Power parameter represents the voltage of the finished charging; "need to shock" represents that shock advised after analyzing "no need to shock" represents that no shock advised after analyzing.
ECG
Waveform gain can be set as 5mm/mv, 10mm/mv, 20mm/mv; Waveform speed can be set as 12.5mm/s, 25mm/s, 50mm/s
Print
Print page can preview selected page in the playback interface, which can be used for printing basis information.

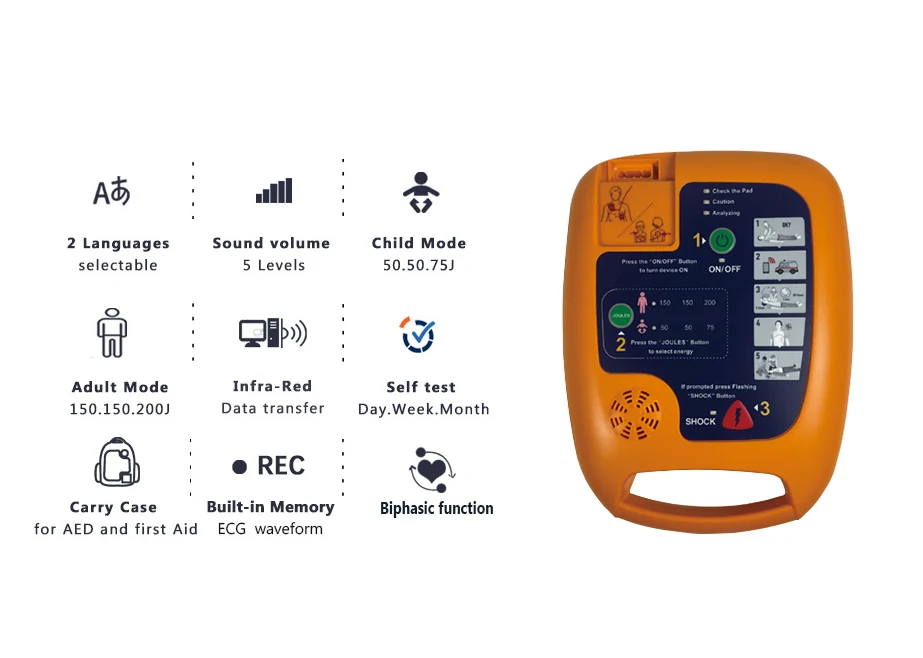

Technical Specifications | ||
Self-test | Daily, Weekly, Monthly | |
Mode | Adult, Child | |
Waveform | Biphasic truncated exponential | |
Energy | 200-Joules max. | |
Energy Sequence | Child Mode: 50/50/75 Joules | |
Adult Mode: 150/150/200 Joules | ||
Charge time (New, at 25℃) | Less than 6 sec.to 150J | |
Less than 8 sec.to 200J | ||
Voice Prompt | Extensive voice prompt | |
Visual Indicators Control | LED prompts | |
Two buttons | ON/OFF, Shock | |
ECG storage | 1500 events | |
Data transmission | Infrared | |
Battery | CR123A - 4*2 2.8Ah 12Volt non-rechargeable Battery | |
Dimensions | 300*240*80mm | |
Weight (with battery) | 1.9kg | |

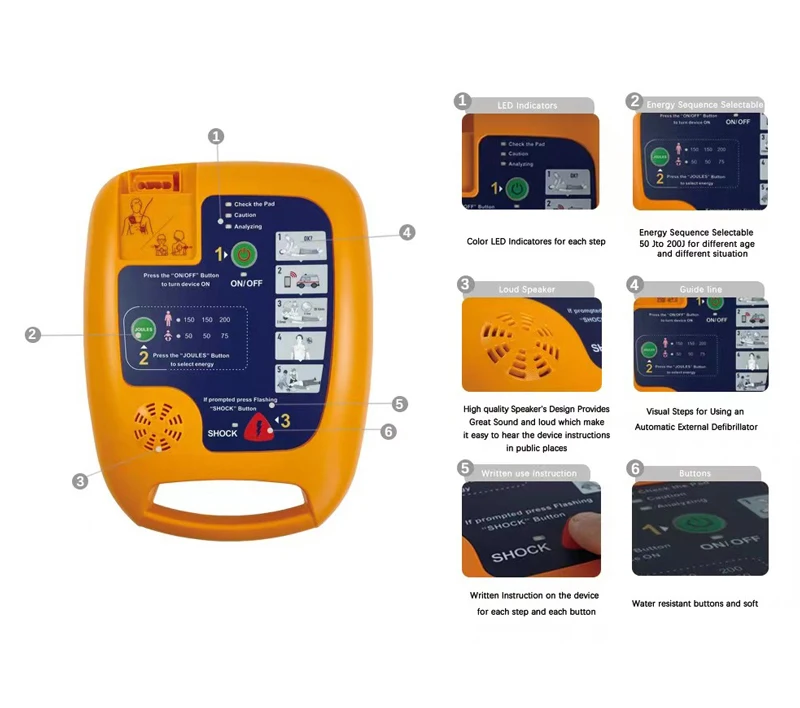

Details Images
