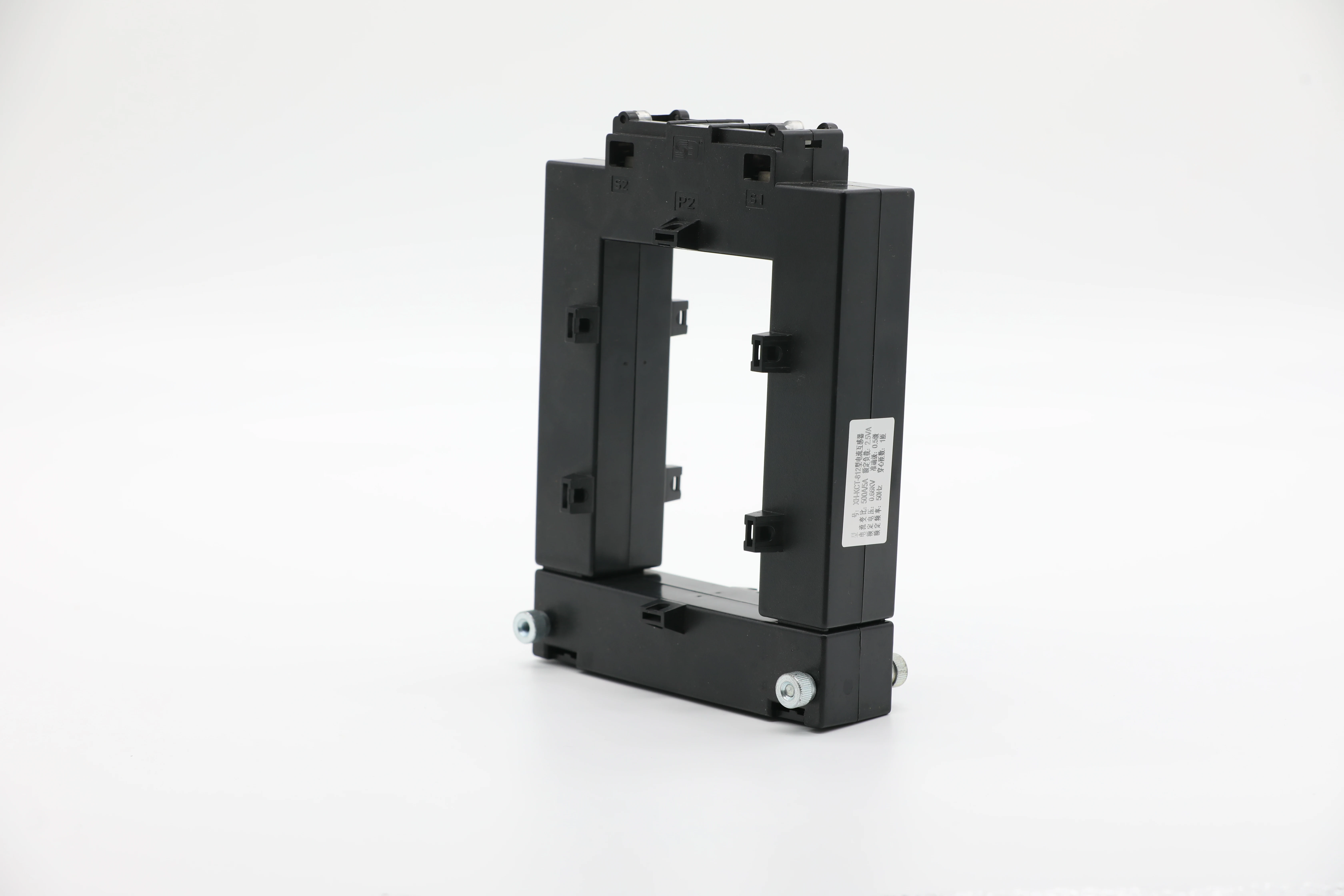

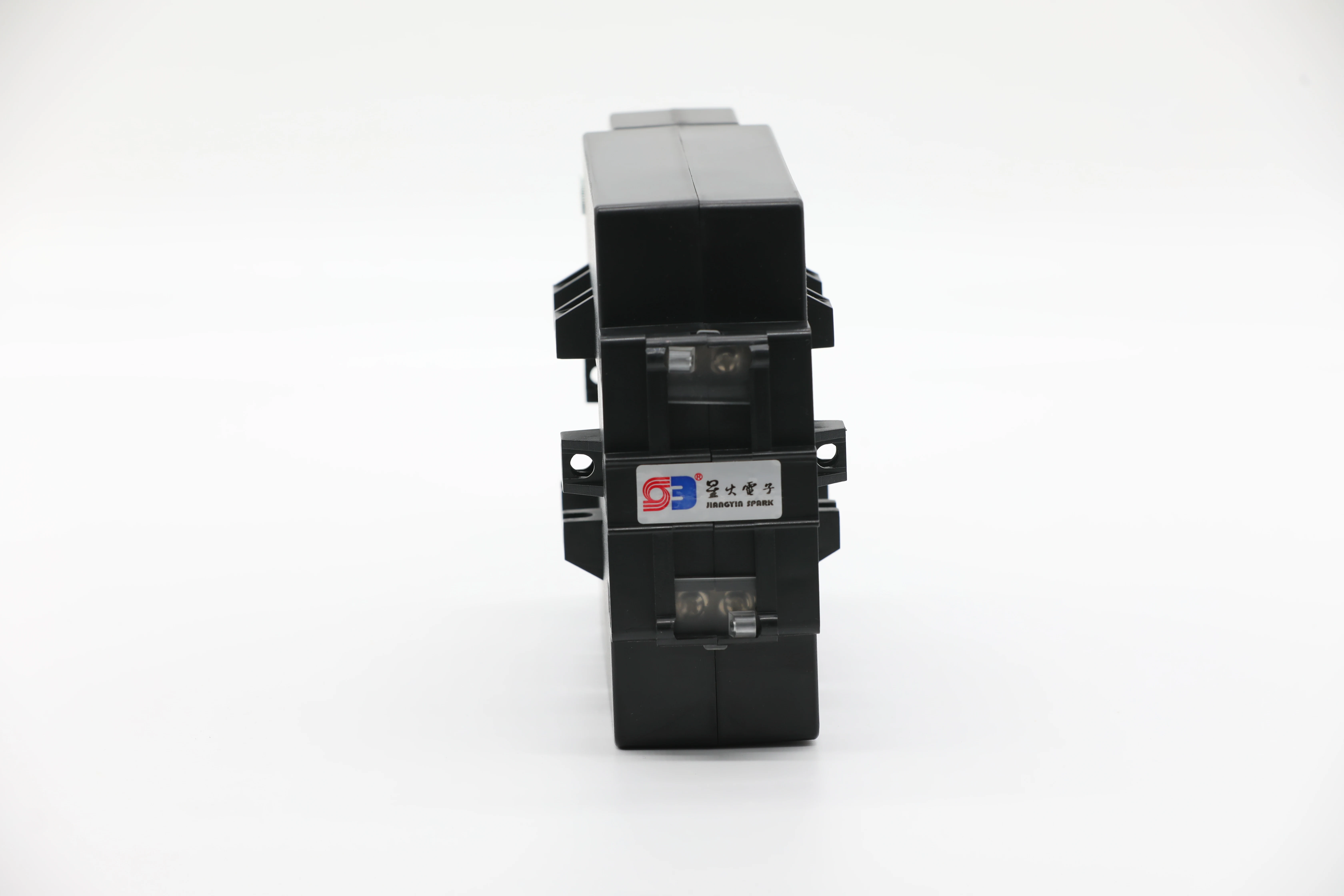

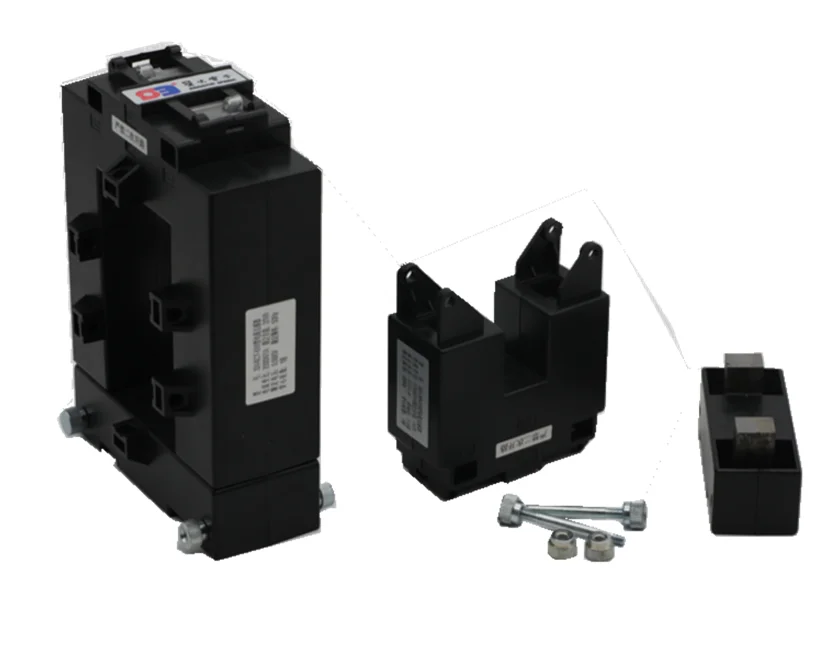

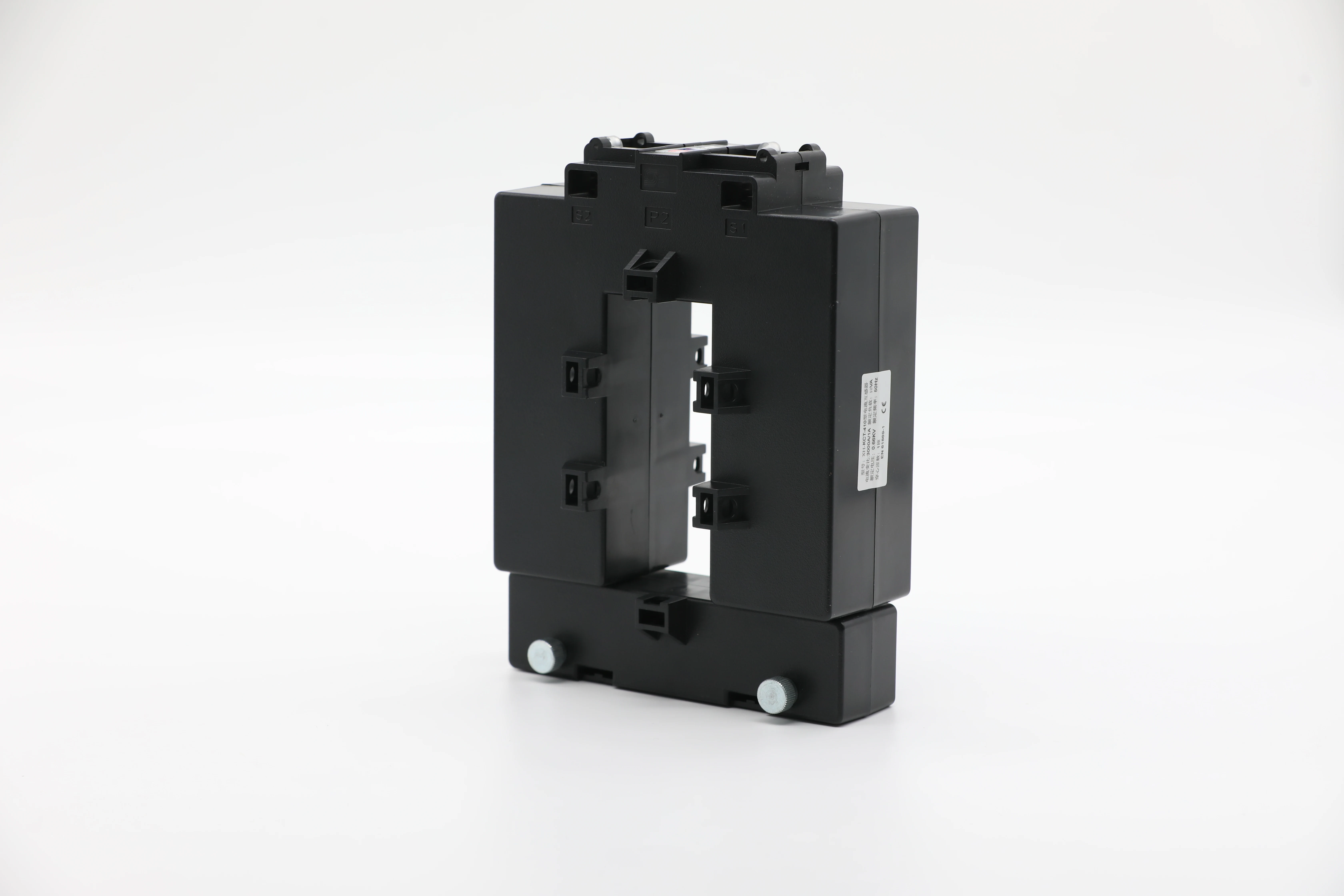

kct610 1000A:5A split core curernt transformers with 60*100mm window size

Product Overview

Description

DP Split Core CT 1A or 5A Output, split core current transformer



Jiangyin Spark The DBP series Split Core Current Transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bur-bars through the transformer core or to connect such cables to the primary terminals. The DBP series transformers core may be easily opened and they may be installed and connected without any supply interruption. Thus saving time and the installation costs.



Features:

Rated primary current: 1000A AC

Rated secondary current: 5 or 1A AC

Rated load: 1, 2.5, 5.0, 10 and 30VA

Accuracy: 0.5 class

Rated short-time thermal current (Ith): 20In

Rated dynamic current (Idyn): 2.5Ith

Highest voltage for equipment (Um): 720V AC RMS

Rated power-frequency withstand voltage: 3, 000V AC RMS

Frequency range: 50/60Hz

Operating temperature: -15 to 60° C

Split core design, safer, easy to install and portable

Accessories: Supplied with feet for base mounting if required

Applications:

Current, power, energy and monitoring devices

Relay protection devices

Power factor correction devices

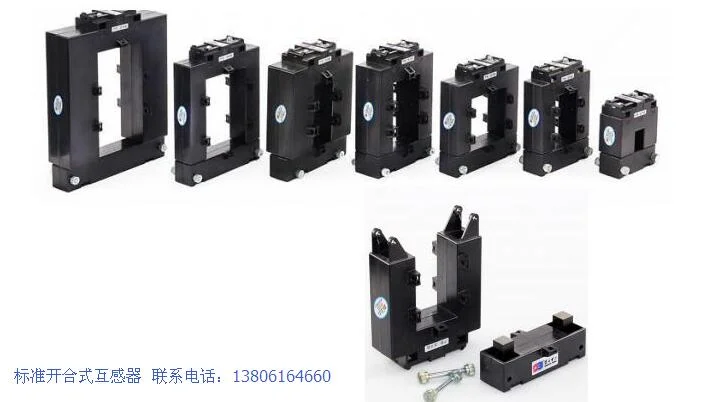

Available in 5 standard sizes

Standard: IEC 60044-1

RoHS Directive-compliant



Model	current	Output	Accuracy	Loading
DP610/KCT610	1200A	5A	0.5	5VA

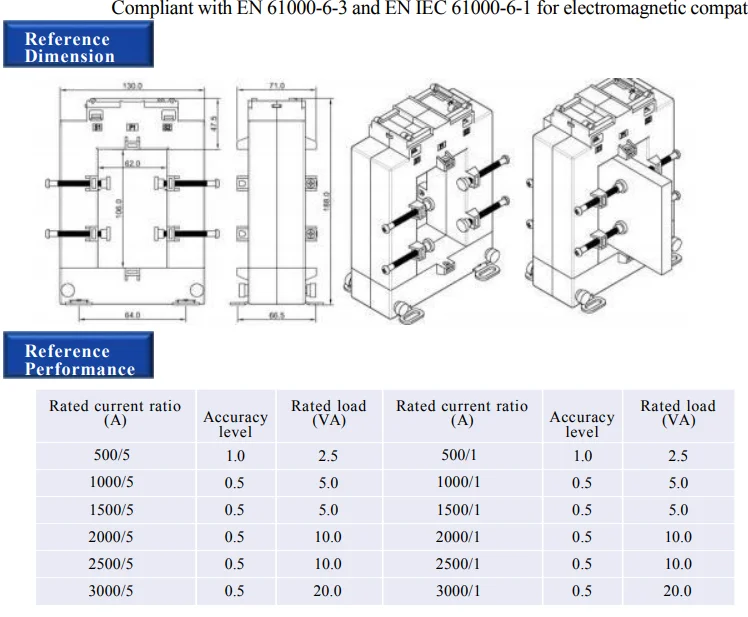

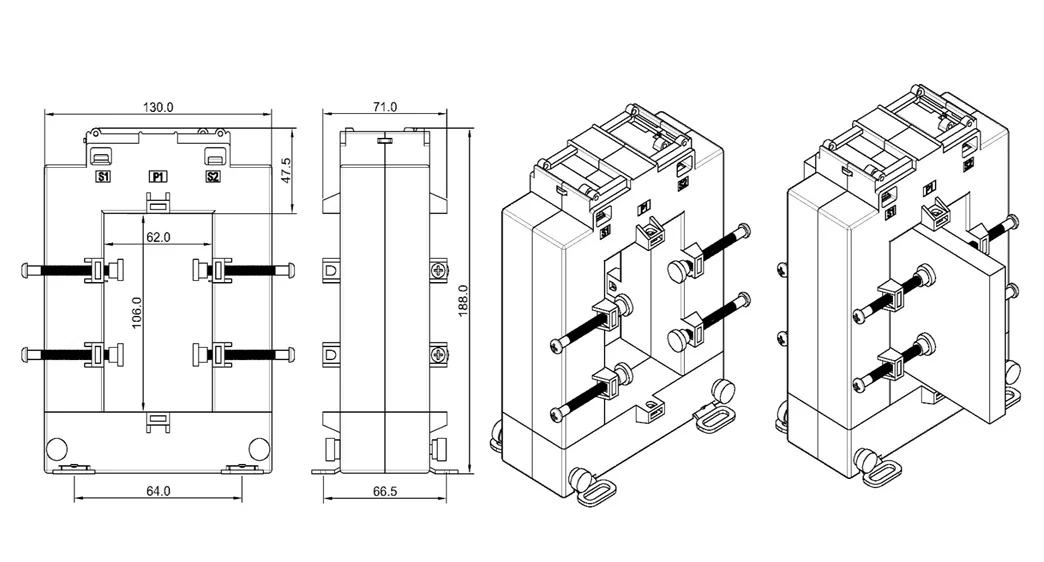

Drawing size
