High Efficiency V200 GPS Receiver Hi Target V10 PRO Imu Gnss Rtk with 800 Channels
High Efficiency V200 GPS Receiver Hi-Target V10 PRO Imu Gnss Rtk with 800 Channels
High Efficiency V200 GPS Receiver Hi-Target V10 PRO Imu Gnss Rtk with 800 Channels
High Efficiency V200 GPS Receiver Hi-Target V10 PRO Imu Gnss Rtk with 800 Channels
High Efficiency V200 GPS Receiver Hi-Target V10 PRO Imu Gnss Rtk with 800 Channels
High Efficiency V200 GPS Receiver Hi-Target V10 PRO Imu Gnss Rtk with 800 Channels
High Efficiency V200 GPS Receiver Hi-Target V10 PRO Imu Gnss Rtk with 800 Channels

High Efficiency V200 GPS Receiver Hi Target V10 PRO Imu Gnss Rtk with 800 Channels

Share on (1600835564616):


Price:$1,650.00 - $1,700.00

Quantity:


Product Overview

Description



Product Description

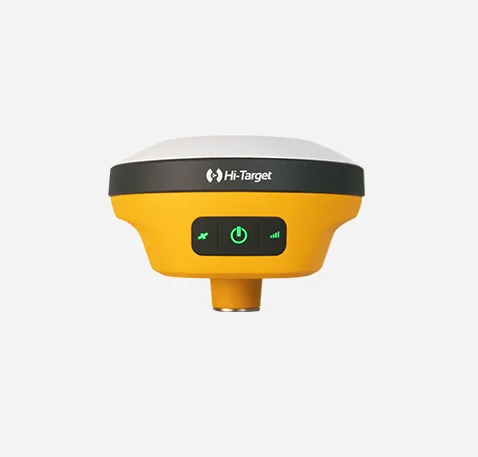

High Efficiency V200 GPS Receiver Hi-Target V10 PRO Imu Gnss Rtk with 800 Channels
V10 pro GNSS RTK Receiver brings superior performance and high efficiency to support your fieldwork with reliable solutions. Its deployment of the advanced RTK engine and new-generation IMU guarantees a 25% performance improvement even in the most demanding environments. Thus you can count on Hi-Target V10 pro for better productivity.




Specification


GNSS Feature
Specification






GNSS Signal
Channels
800+
GPS
L1 / L2 / L5 / L2C
BDS
B1 / B2 / B3 / B1C / B2a
GLONASS
L1 / L2 / L3
GALILEO
E1 / E5 AltBOC / E5a / E5b / E6
SBAS
 L1 / L5
QZSS
 L1 / L2 / L5 / L6
IRNSS
L5














Positioning Performance
High-precision static GNSS Surveying
Horizontal: 2.5mm + 0.1ppm RMS
Vertical:3.5mm + 0.4ppm RMS
Static and Fast Static
Horizontal: 2.5mm + 0.5ppm RMS
Vertical:5mm + 0.5ppm RMS
Post Processing Kinematic            (PPK / Stop & Go)

Initialization time:Typically 10 min for base and 5 min for rover
Initialization reliability:Typically>99.9%
Code Differential GNSS Positioning
Horizontal:±0.25m+1ppm RMS
Vertical:±0.5m+1ppm RMS
SBAS:0.5m (H), 0.85m (V)
Real Time Kinematic (RTK)
Horizontal:8mm+1ppm RMS
Vertical:15mm+1ppm RMS
Initialization time:Typically
Initialization time:Typically 99.9%
Time to first Fix
Cold start:< 45 s
Hot start:< 30 s
Signal re-acquisition:< 2 s
Hi-Fix
Horizontal:RTK+10mm / minute RMS
Vertical:RTK+20mm / minute RMS
Tilt Survey Performance
Additional horizontal pole-tilt uncertainty typically less than 8 mm +0.7 mm / °tilt (2.5cm accuracy in the inclination of 60°)
Communication
Communication
Bluetooth:4.2 / 2.1+EDR, 2.4GHz
Wi-Fi:frequency 2.4GHz, Supports 802.11 b / g / n
Internal UHF Radio
Frequency:410-470MHz
Channel:116 (16 scalable)
Transmitting power:0.5W / 1W / 2W adjustable
Supports multi-communication protocols:HI-TARGET, TRIMTALK450S, TRIMMARK III, TRANSEOT, SATEL-3AS, etc.








Physical
Internal battery
Internal 7.4V / 6800mAh lithium-ion rechargeable battery.
RTK Rover (Network) for 12 hours.
Static:up to 15 hours
External power
Power consumption:4.2W
Dimensions (W×H):132mm×67mm
Charging:using standard smartphone chargers or external power banks.
Weight:≤0.8kg (includes battery)
Data storage:8GB ROM internal storage

Control Panel
LED Lamp
Satellite, Signal, Power

Physical button
1




Environment
Water / Dustproof
IP67

Shock and vibration
Designed to survive a 2m natural fall onto concrete

Humidity
100%, condensing

Operation temperature
-30℃~+70℃

Storage temperature
-40℃~+80℃

I / O Interface
1 × USB port, Type C
1 × SMA antenna connector





Data Formats
Output rate
1Hz-20Hz
Static data format
 GNS, Rinex
Network model
VRS, FKP, MAC; supports NTRIP protocol
CMR& RTCM
CMR, RTCM 2.x, RTCM 3.0, RTCM 3.2
Navigation outputs ASCII
NMEA-0183


Company Profile



Jiangsu Bangjie Trading Co., Ltd. is a comprehensive trading company whose main business is surveying instruments, building materials and international trade. The company was registered in Nanjing, Jiangsu Province, the only megacity in the Yangtze River Delta. The company combined domestic sales with international trade earlier and was always guided by customer needs.
The company currently has three departments: surveying instrument department, building materials department and international trade department. We have a group of professionals who have been engaged in related industries for many years. We can provide you with more authoritative and convenient pre-sale consultation, sales cooperation, after-sales coordination and guidance, and provide comprehensive services.
At present, the company's main surveying instruments are: total station, GPS RTK, UAV, theodolite,plummet，auto level,laser rangefinder and surveying accessories.


FAQ


1. who are we?
We are based in Jiangsu, China, start from 2017,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern Europe(4.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field.
2.All products will have been strictly quality checked in factory before sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
