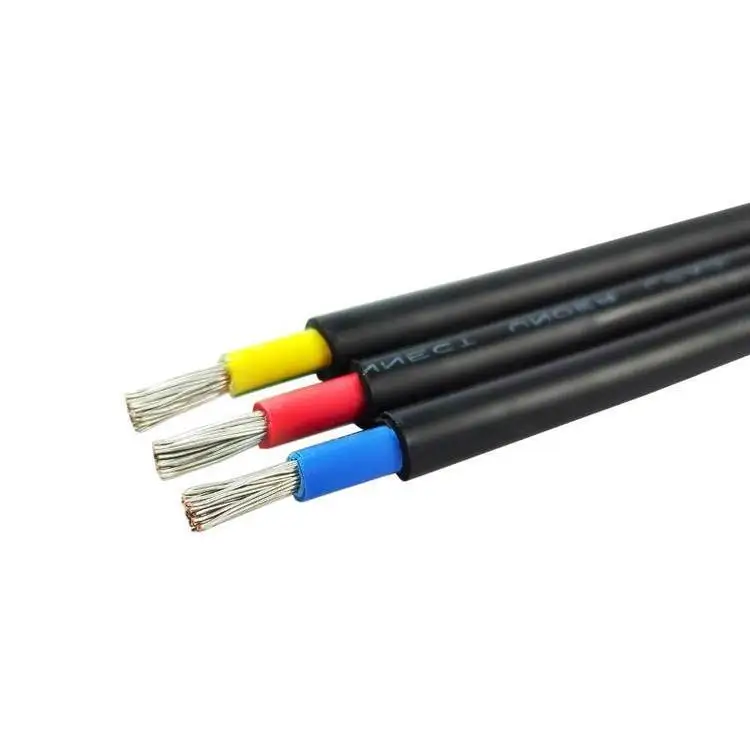

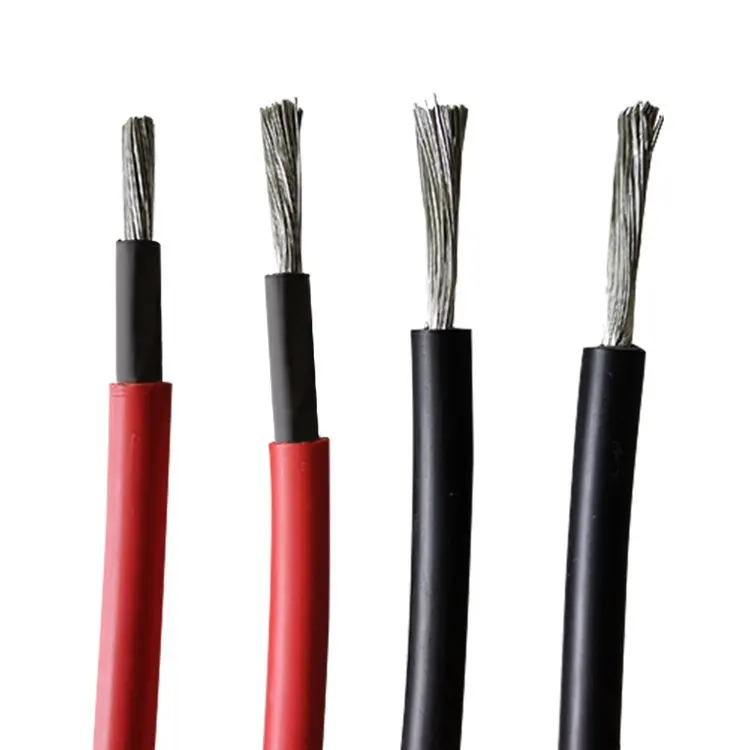

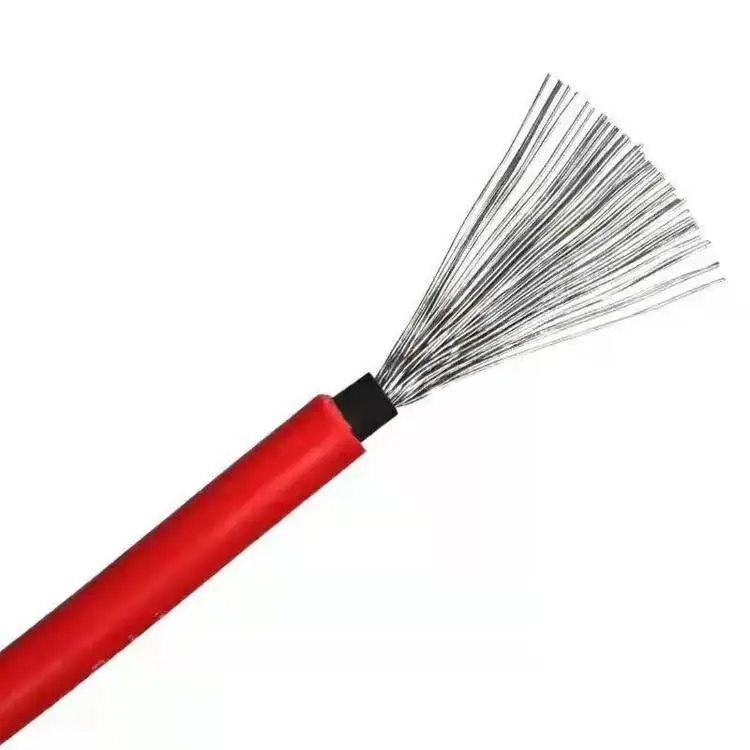

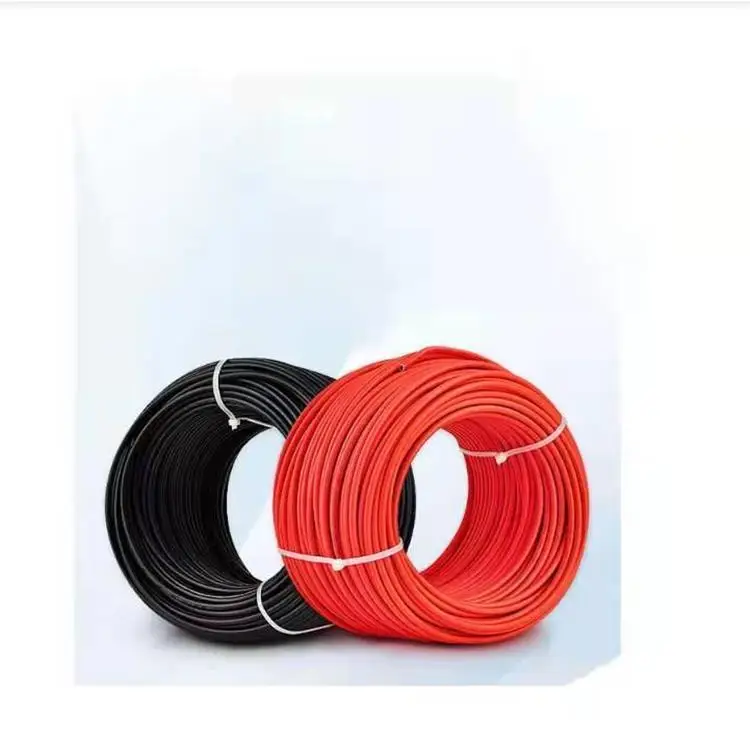

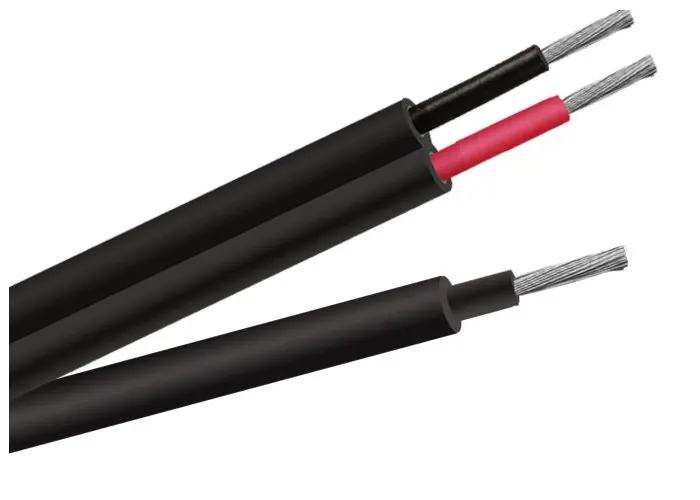

Best Quality China Manufacturer 4mm 6mm Solar Dc Cable Copper Conductor Double XLPE PV solar panel cable photovoltaic cable
- Category: >>>
- Supplier: Shaanxi Jinshenghong Trading Co. Ltd.
Share on (1600835581353):
Product Overview
Description
PRODUCT DESCRIPTION
Technical Data
TYPE | Cross section | Wire struct | Outer diameter | Conductor resistance | Rated voltage | Rated current |
mm² | No.OD (mm) | mm | Ω/Km | V AC/DC | A | |
1X2.5mm² | 2.5 | 48XΦ0.25 | 5.3 | 8.21 | 1500 | 30 |
1X4.0mm² | 4.0 | 56XΦ0.30 | 5.8 | 5.09 | 1500 | 50 |
1X6.0mm² | 6.0 | 81XΦ0.30 | 6.8 | 3.39 | 1500 | 70 |
1X10mm² | 10 | 74XΦ0.40 | 7.5 | 1.95 | 1500 | 95 |
2X2.5mm² | 2.5 | 48XΦ0.25 | 5.4*10.8 | 8.21 | 1500 | 30 |
2X4.0mm² | 4.0 | 56XΦ0.30 | 6.0*11.8 | 5.09 | 1500 | 50 |
2X6.0mm² | 6.0 | 81XΦ0.30 | 7.0*13.8 | 3.39 | 1500 | 70 |
Product Paramenters
NO. OF CORES ×NOMINAL CROSS SECTION | NO. OF STRANDING | NOMINAL CONDUCTOR DIAMETER | NOMINAL INSULATION THICKNESS | NOMINAL SHEATH THICKNESS | NOMINAL OVERALL DIAMATER | NOMINAL WEIGHT |
NO. ×MM² | - | MM | MM | MM | MM | KG/KM |
1×1.5 | 30/0.25 | 1.58 | 1.14 | 0.82 | 5.4 | 52 |
1×2.5 | 50/0.25 | 2.04 | 1.14 | 0.82 | 5.8 | 67 |
1×4.0 | 56/0.30 | 2.59 | 1.14 | 0.82 | 6.4 | 87 |
1×6.0 | 84/0.30 | 3.17 | 1.14 | 0.82 | 7.0 | 113 |
1×10 | 78/0.40 | 4.07 | 1.52 | 0.82 | 8.6 | 178 |
1×16 | 128/0.40 | 5.22 | 1.52 | 0.82 | 9.8 | 254 |
1×25 | 199/0.40 | 6.51 | 1.52 | 0.82 | 11.1 | 363 |
1×35 | 279/0.40 | 7.71 | 1.52 | 0.82 | 12.3 | 473 |
Factory Show
Packing & Shipping
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
