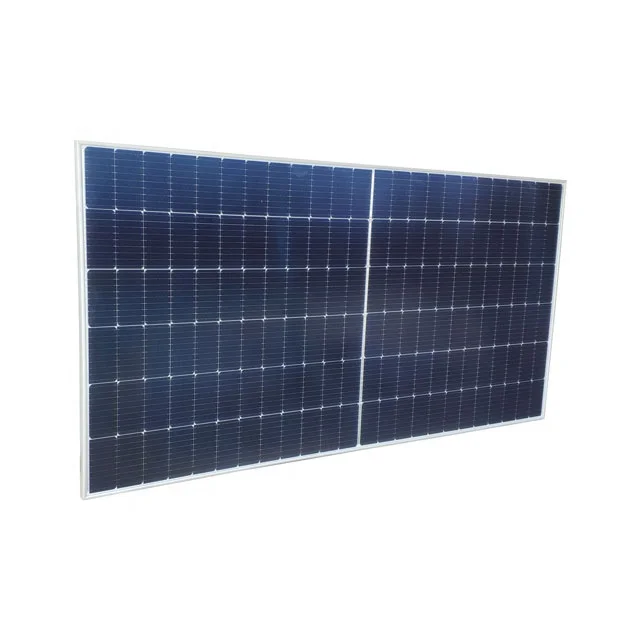

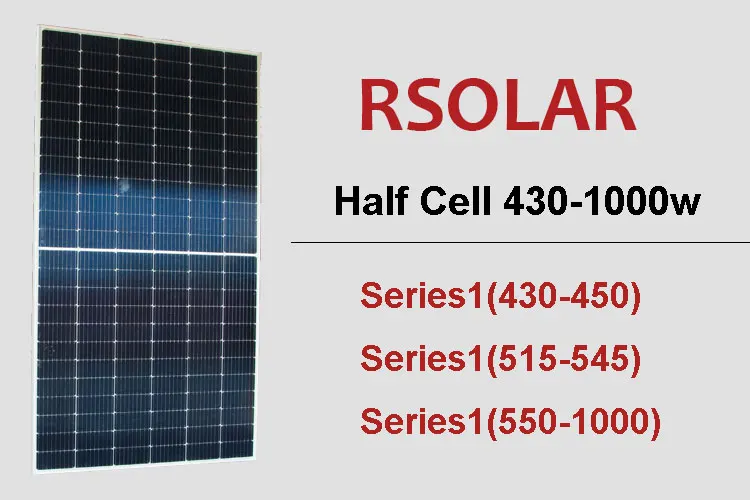

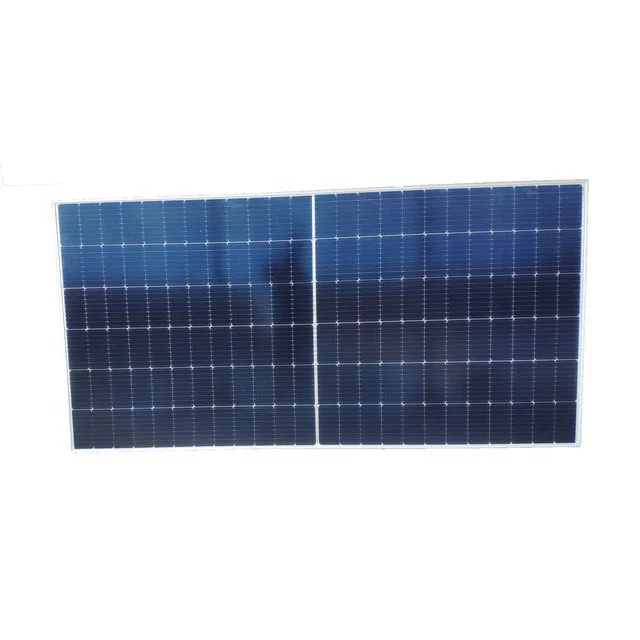

solar panels 1000w price monocrystalline silicon
- Category: >>>
- Supplier: Anyang Hongbai Metallurgy Resistant Material Co. Ltd.
Share on (1600835600109):
Product Overview
Description
Product Overviews
| ITEM | QS430-120HM8 | QS440-120HM8 | QS535-144HM8 | QS545-144HM8 | |||||
| STC/NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Max.Power(Pmax) | 430 | 322 | 440 | 329 | 535 | 397.7 | 545 | 405.1 | |
| Opt.Operating Current(Imp) | 12.85 | 10.28 | 13.01 | 10.4 | 12.84 | 10.3 | 13 | 10.41 | |
| Opt.Operating Voltage(Vmp) | 33.73 | 31.36 | 33.95 | 31.6 | 41.6 | 38.62 | 41.93 | 38.93 | |
| Short Circuit Current(Isc) | 13.53 | 10.93 | 13.69 | 11.06 | 13.61 | 10.97 | 13.81 | 11.13 | |
| Open Circuit Voltage(Voc) | 40.83 | 38.5 | 41.05 | 38.75 | 49.5 | 46.36 | 49.9 | 46.73 | |
| Module Efficiency | 0.1979 | 0.2025 | 0.2093 | 0.2132 | |||||
| Module Power Tolerance | 0/±5W | ||||||||
| Operating Temperature | -40℃~+85℃ | ||||||||
| Max.System Voltage | 1000V/1500V DC(IEC) | ||||||||
| Max.Series Fuse Rating | 20A | ||||||||
| Application Level | A | ||||||||
| STC | Irradiance 1000W/m2,Cell temperature25℃,Spectrum AM1.5 | ||||||||
| NOCT | Irradiance 800W/m2,Cell temperature20℃,Spectrum AM1.5,Wind speed 1m/s | ||||||||
Detailed Images

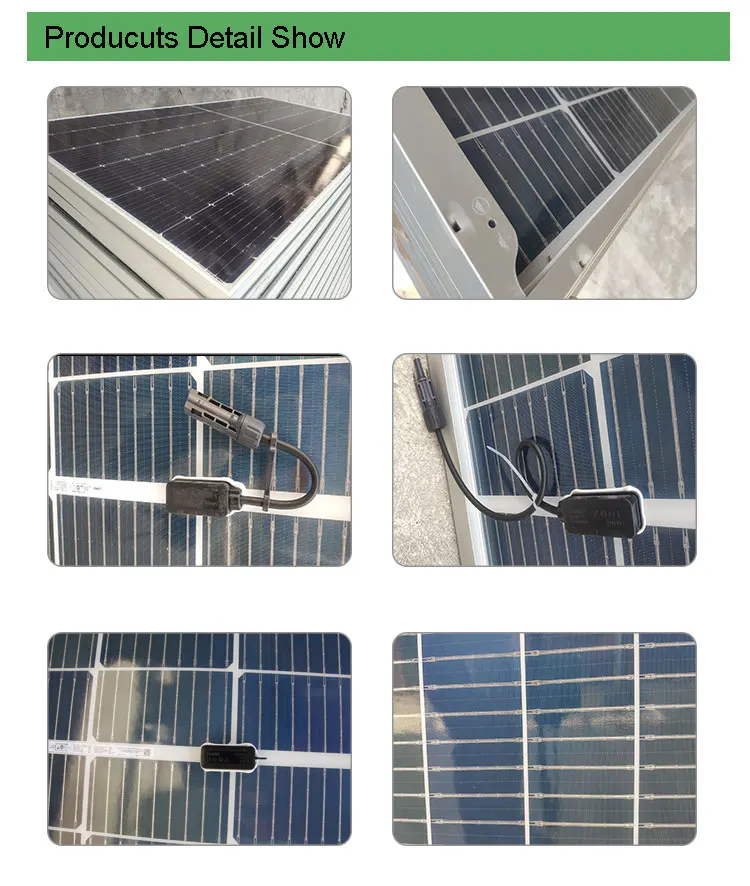

Products Detail Show

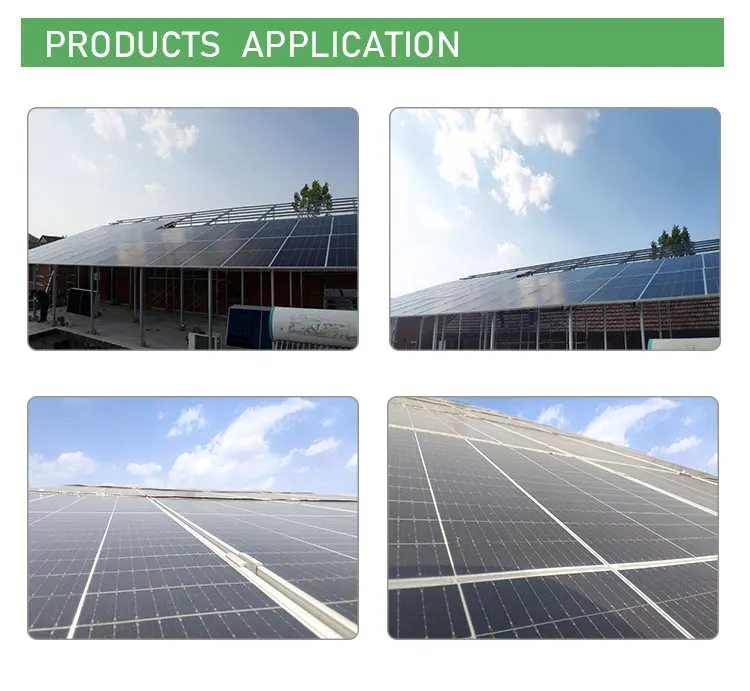

Application
