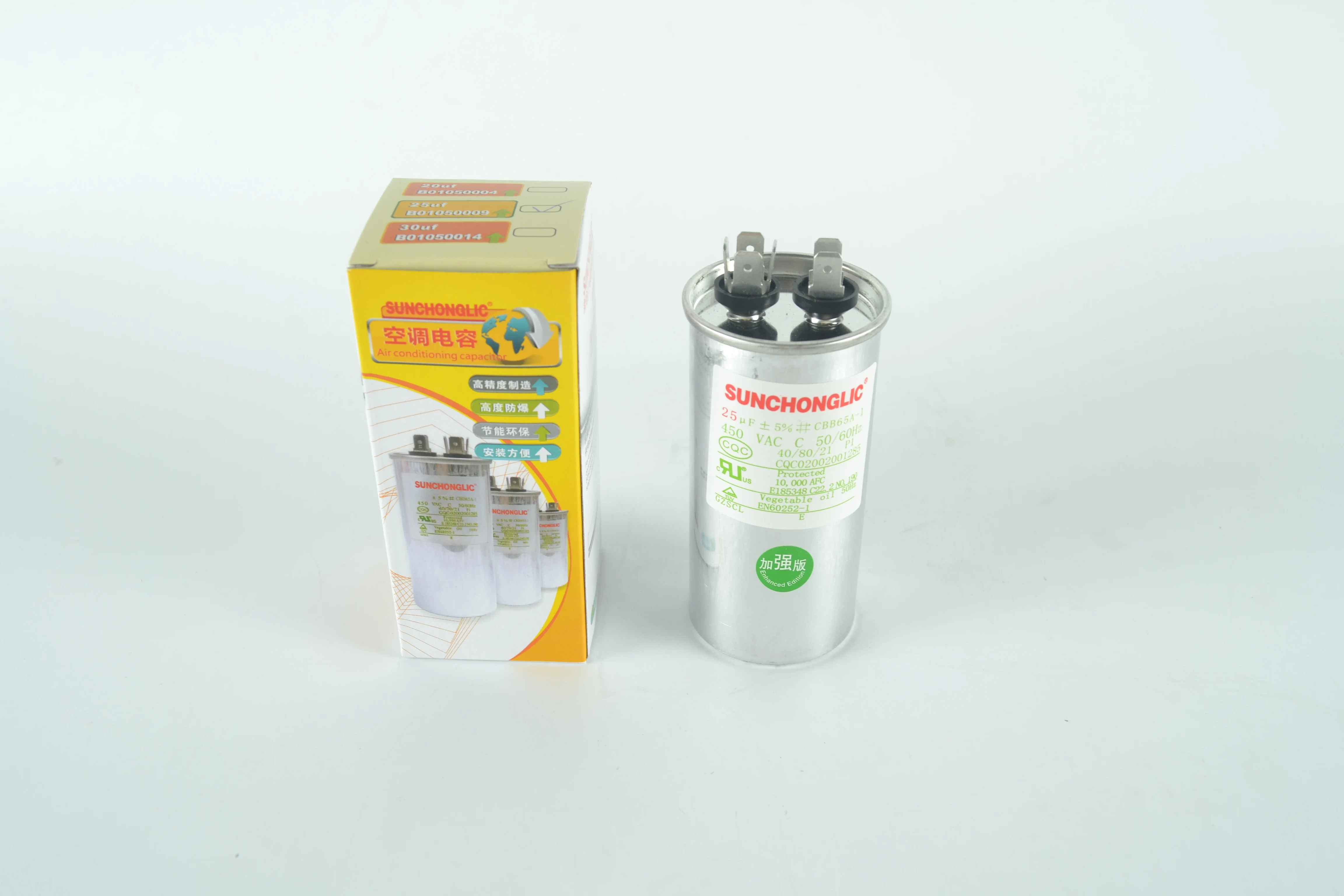

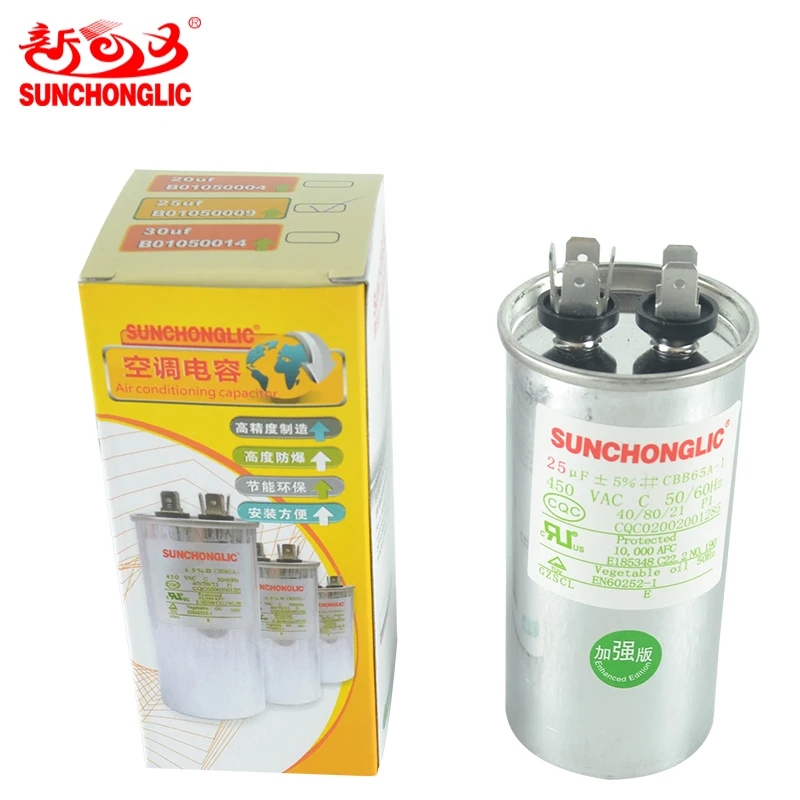

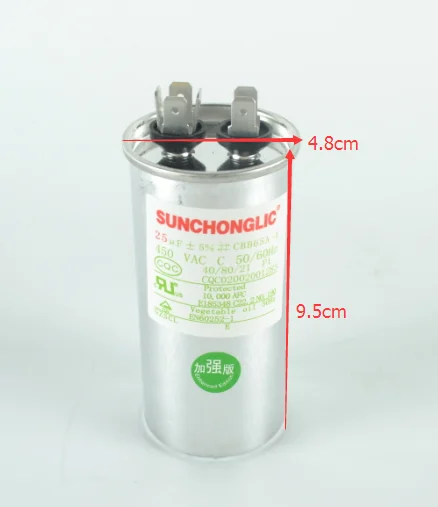

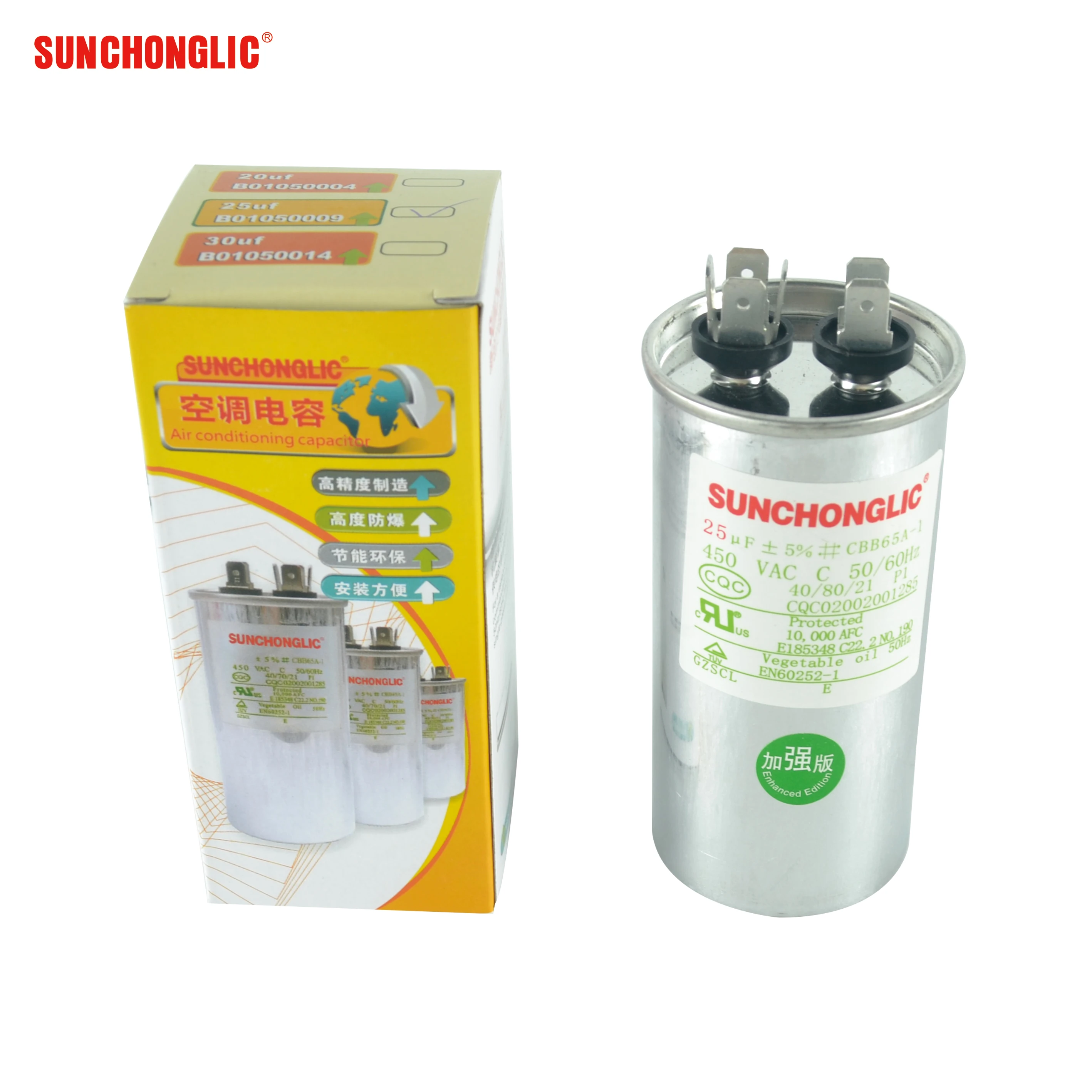

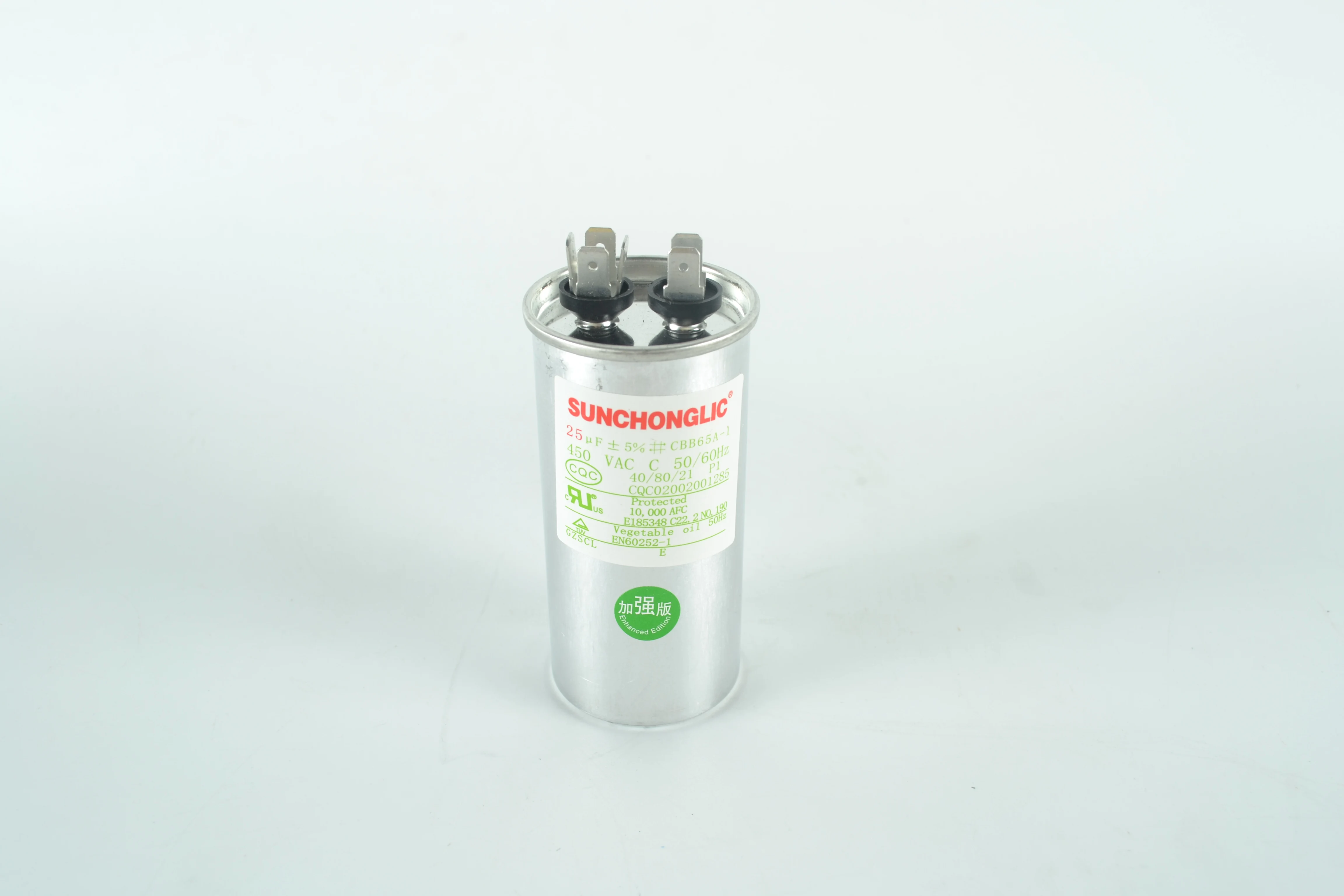

Sunchonglic air conditioner parts of 25uf 450v air conditioner capacitor for sale

Sunchonglic air conditioner  parts of 25uf 450v air conditioner capacitor for sale

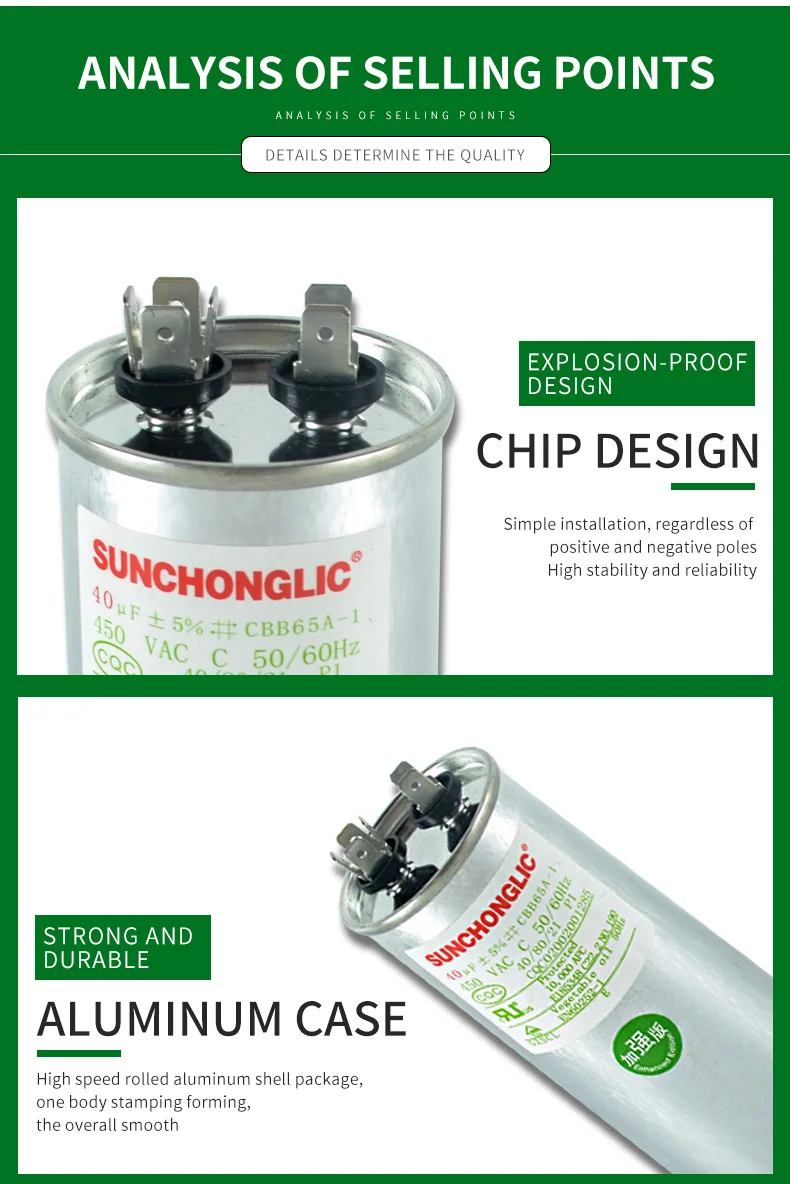

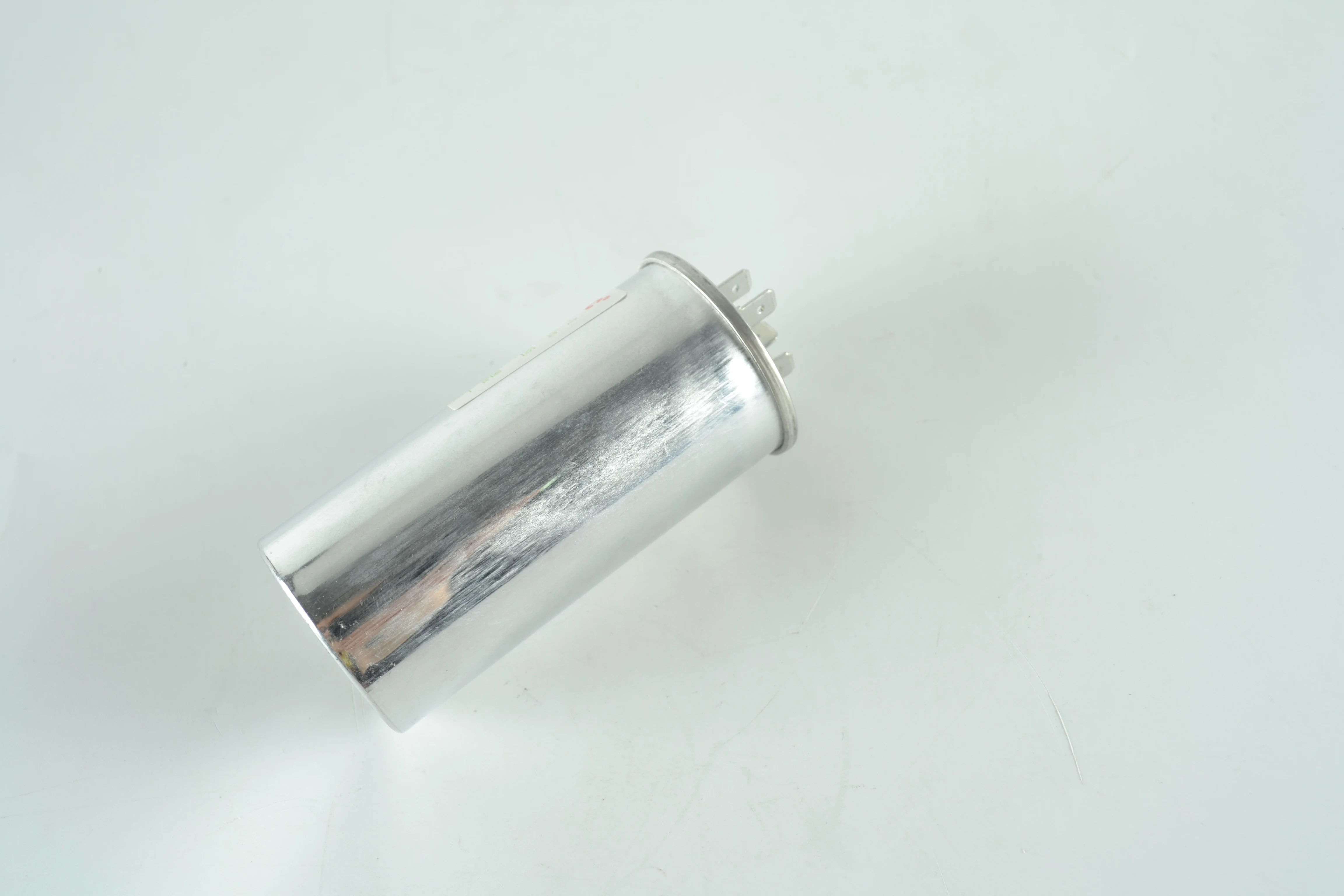

The CBB65 capacitor uses a metalized zinc-aluminum film with a thickened as the electrode and medium. The film is wound by a winder and then packed into an aluminum casing. Then put castor oil in the to keep it in a vacuum state, and can make the product withstand high temperature. The product adopts mechanical explosion-proof design as an explosion-proof means, and the explosion-proof grade is S2.And Capacitors have the characteristics of small size, light weight, low loss, excellent electrical properties, and good self-healing properties. Be applicable

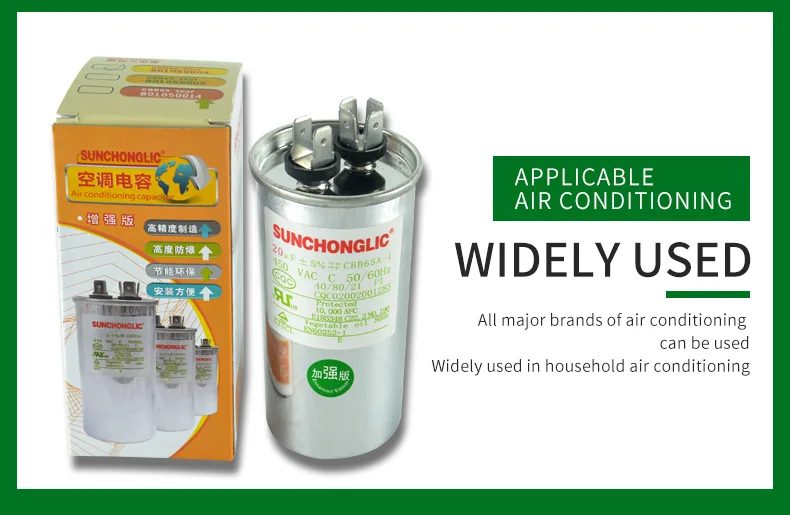

is used to start and run AC motors with a frequency of 50Hz/60Hz, such as air conditioners, compressors, and motors.

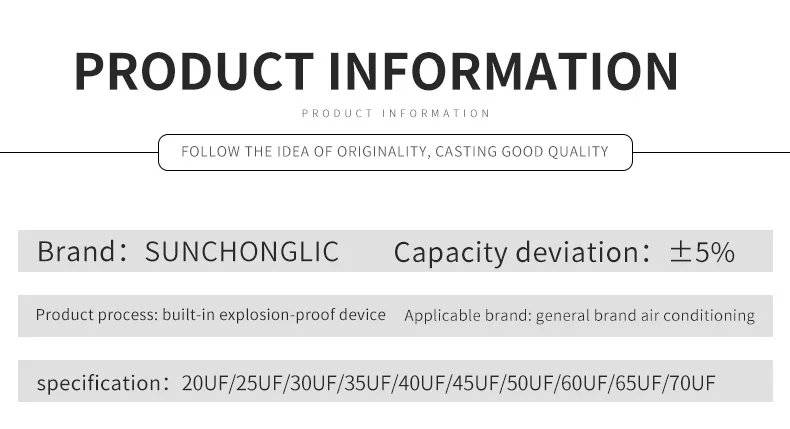

Product specifications:

1.Executive standard: GB/T3667-20052.

2.Product features: Climate category: 40/70/21 or 40/85/21

3.Volume deviation: ±5%

4.Insulation resistance: ≥3000S (MΩ.μF)

5.Loss tangent: tgδ≤0.002 (50Hz~100Hz)

Use details:

1.Altitude: ≤2000m

2.Residual voltage at the time of input: no more than 10% of the rated voltage

3.Maximum allowable voltage: no more than 1.1 times the rated voltage

4.Maximum allowable current: no more than 1.3 times the rated current
Used in AC power system to assemble power factor automatic compensation cabinet, on-site compensation device and UPS power supply, etc.;
Used for starting and running of single-phase motors powered by AC power at a frequency of 50 Hz, and can work continuously;
It is suitable for places with high requirements in coal mines, railways and aerospace.

You can refer to the following capacitor series corresponding
1. CBB60 full range of washing machines, motors, water pumps, running capacitors
2. CBB61 full range of fan operating capacitors

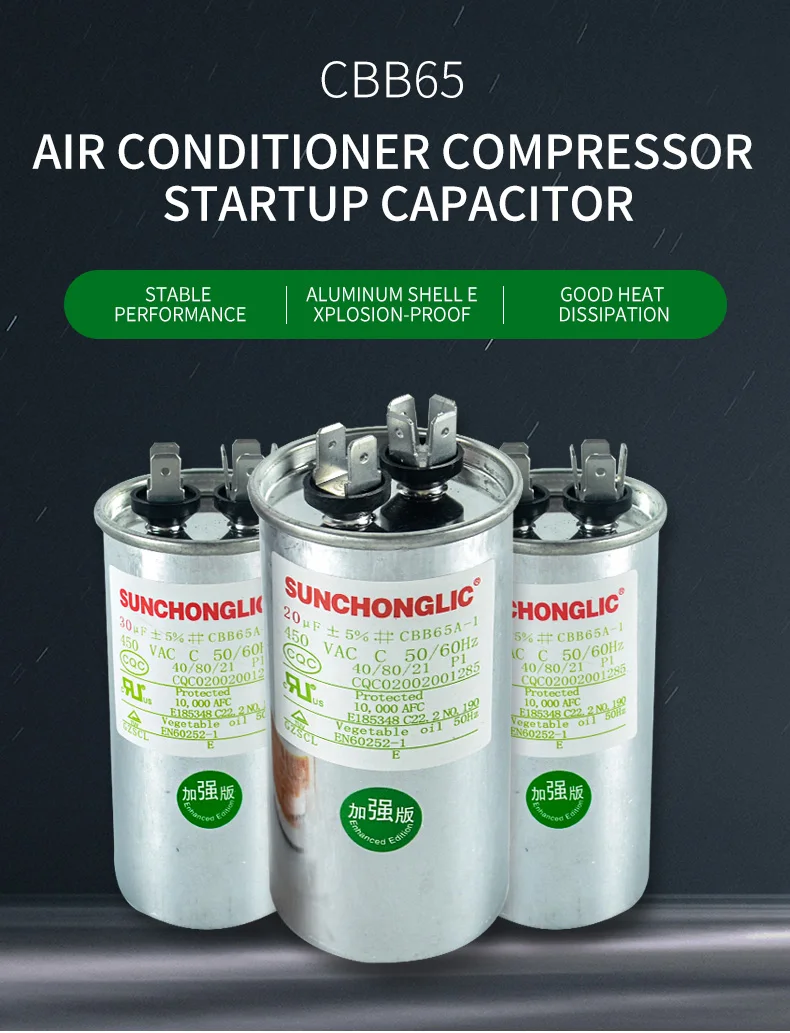

3. CBB65 full range of air-conditioning compressor starting capacitors
4. CD60 full range of motor starting capacitors

1. May I take some samples to test before placing the order ?

Answer:Yes,but customers need to pay for the sample fees and express fees,and it will be returned when next order is confirmed.

2. How long can you offer the samples?

Answer:1~5 days after the deposit payment is confirmed.

3. What's your payment terms for sample?

Answer:You can pay via T/T,Trade assurance,etc.

4. Whats the price terms can you offer for us?

Answer:We can accept EXW,FOB,CIF and so on.

5. Where is your main market for your products?

Answer:Most of our Sunchonglic brand products are exported to Southeast Asia,Africa and Mid East,etc.
