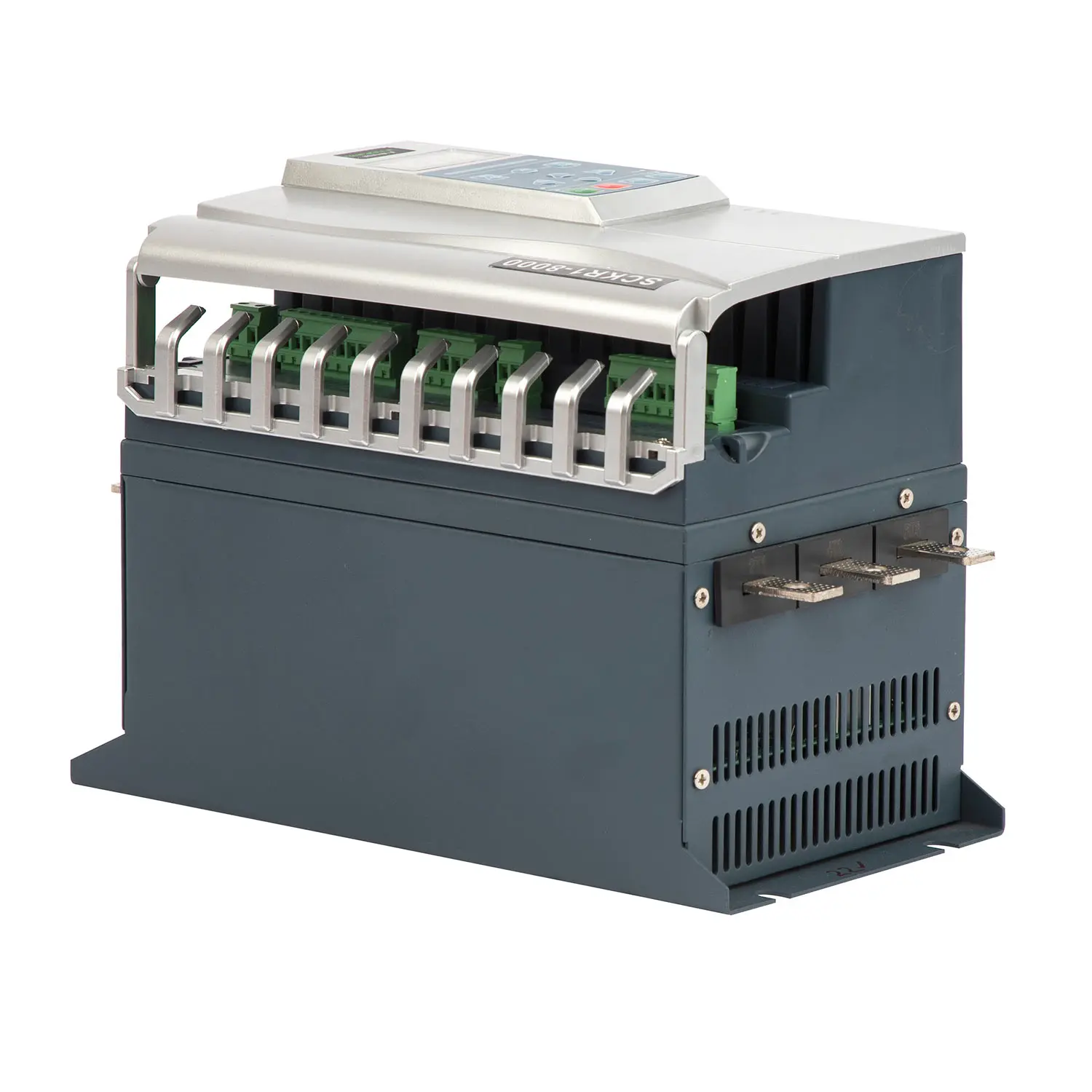

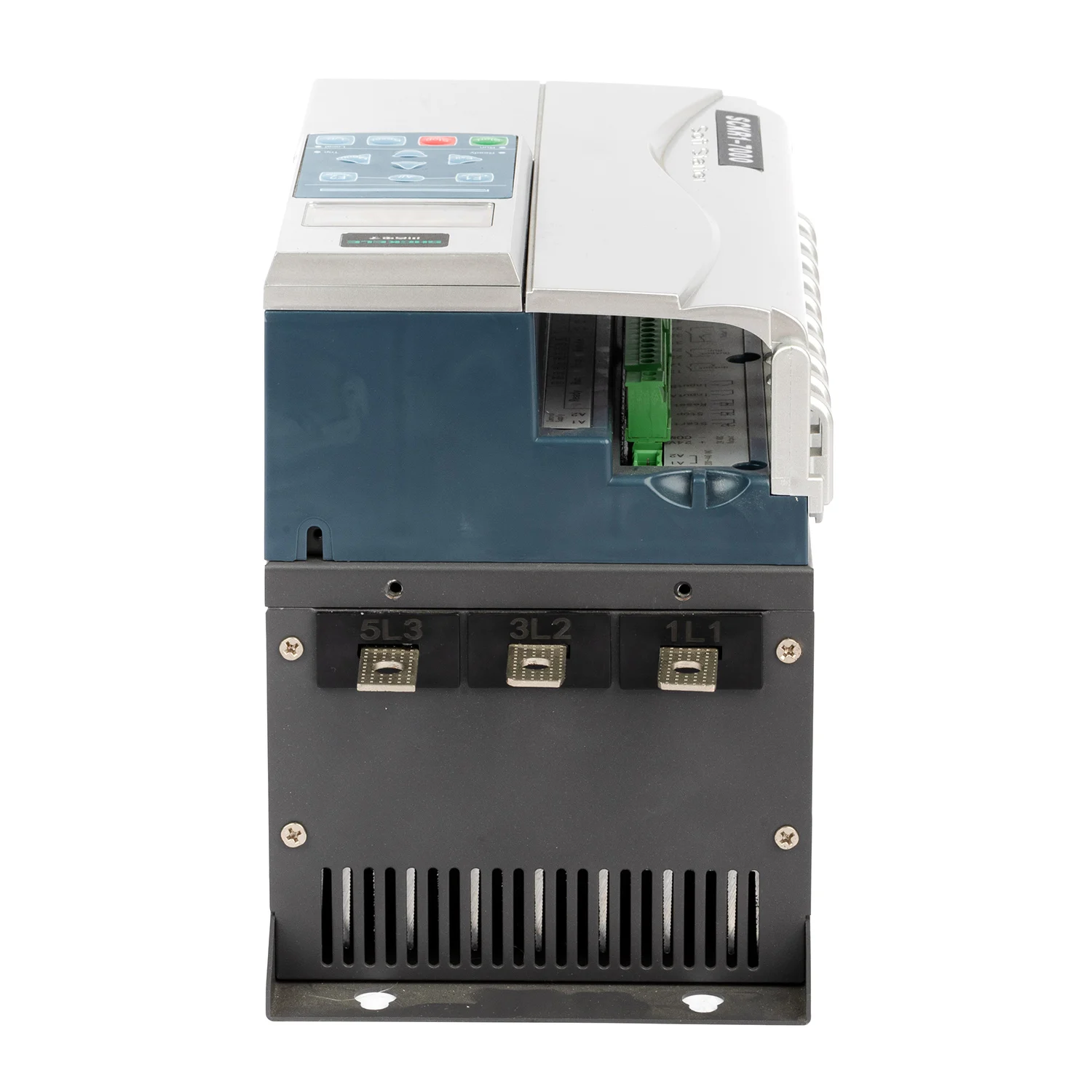

Built in bypass soft starter 55KW SCKR1 7000series Adaptive acceleration control wind generator/pump motor
- Category: >>>
- Supplier: Zhejiang Chuanken Electric Co. Ltd.
Share on (1600835690159):
Product Overview
Description
Product Description
The soft starter is advanced digital soft starter solution is suitable for the power of 5.5kW TO 800KW motor provides a set of perfectand the installation of the system has the function of protection even in the worst environment also can ensure reliable performance
TWO PHASE OPERATION FUNCTION、
When any phase of the SCR of the soft starter breaks down, the emergency function is opened and it can still run normally
Turn on the fire fighting function of the soft starter, and all protection functions will be turned off, so that the soft starter can operate normally and the firemen can put out the fire.
Do not need to install the external bypass contactor, new built-in bypass contactorThree times higher than that of ordinary contactor performance, heat dissipation is 2.6 times and 25% security Energy saving 20% service life can reach more than 100000 times
LCD display size：12.4CM*6.5CM，Thickness 1.6cm

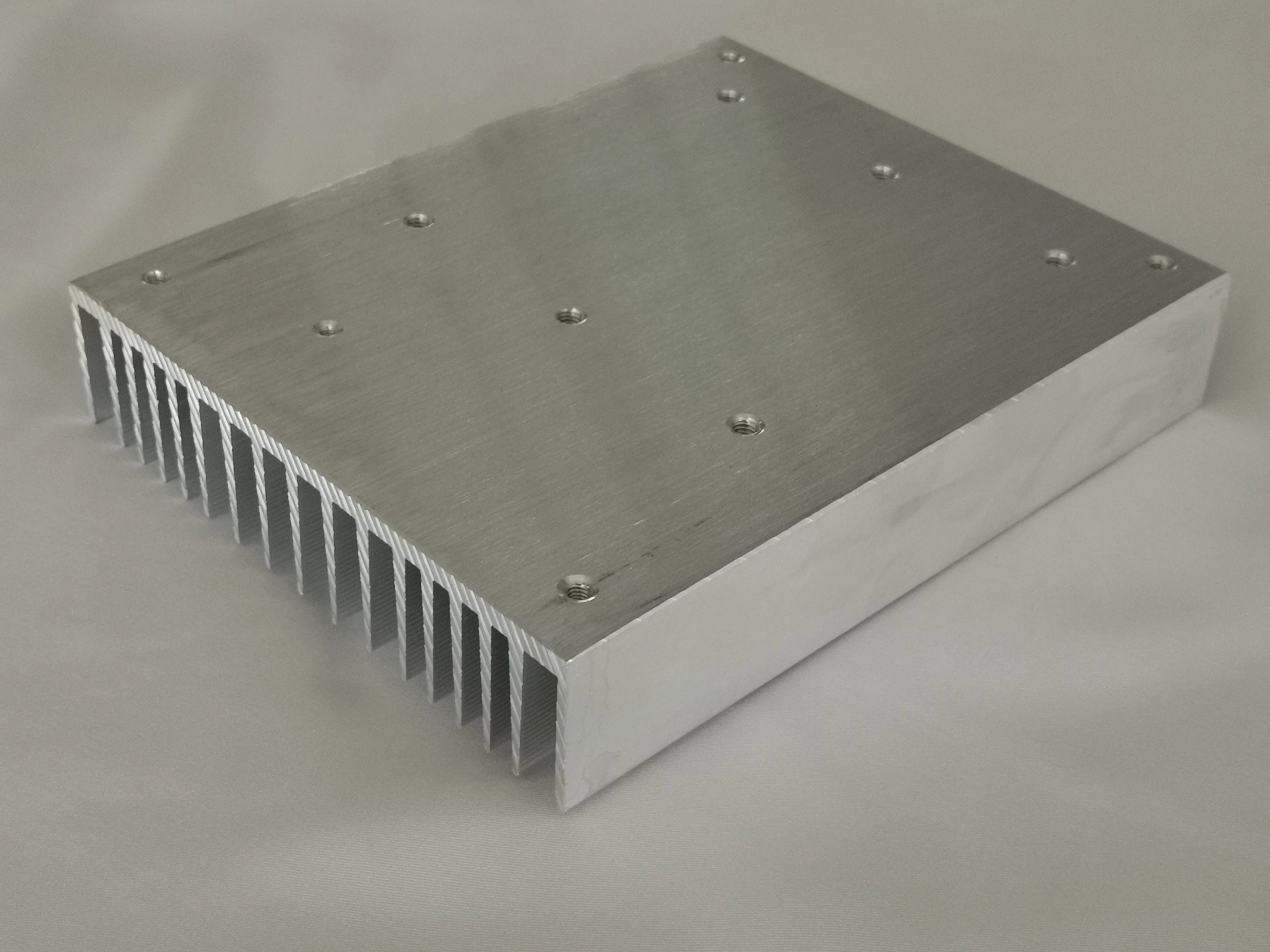

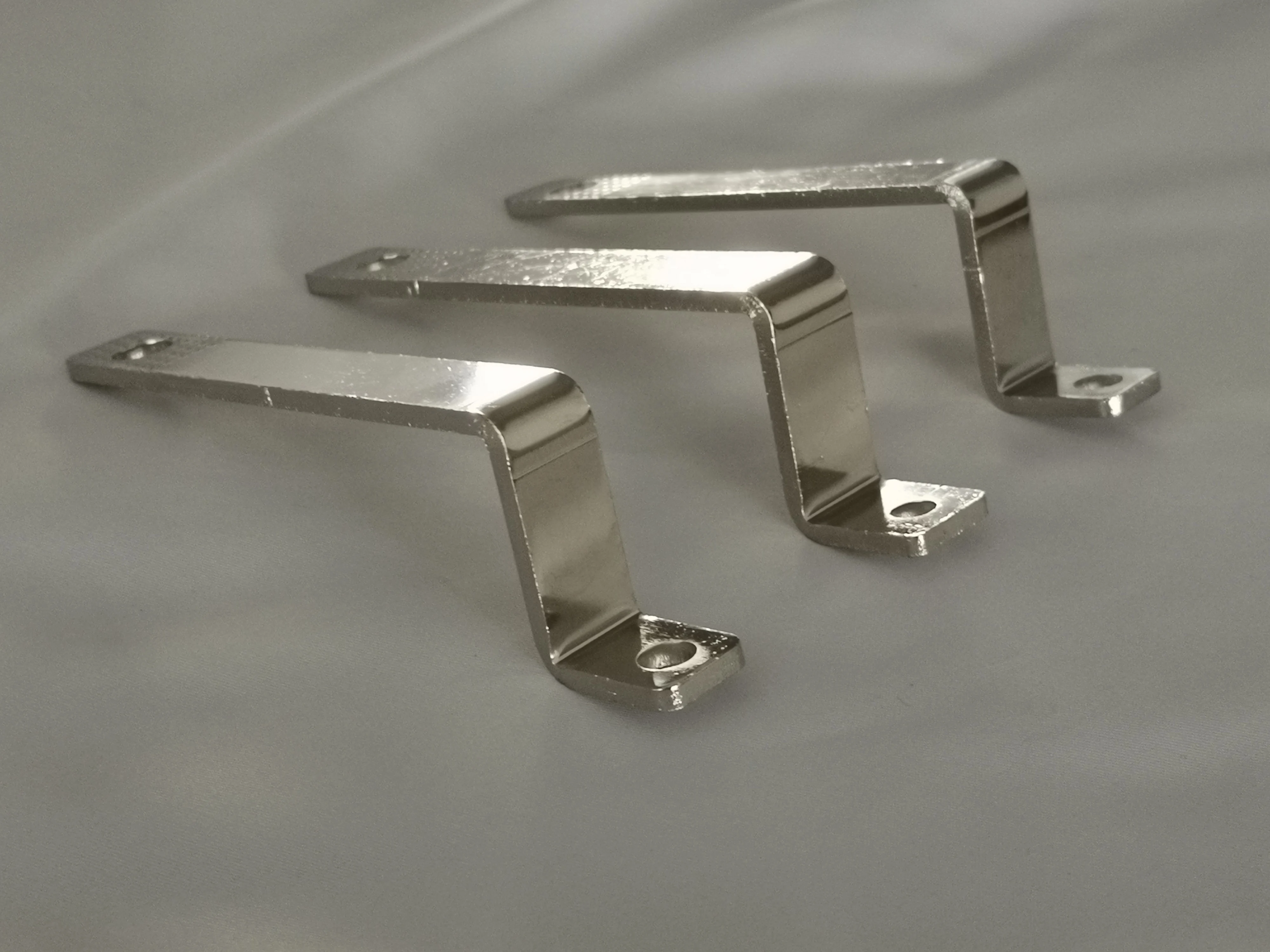

Radiator | module | display panel | copper bar | iron case | communication | Coil transformer LOGO： |
160*130*30 | MTC160A/1600V | Full series unification | 7000series 5.5KW～55KW | 7000 5.5KW～55kW | RS485/Profibus | Recci |
18 MOTOR PROTECT FUNCTIONS | Suitable for all kinds of bad environments |
1.Start overload protection | 2.Running overload protection |
3.Starting overcurrent protection | 4.Running over current proterction |
5. Overvoltage protection | 6.Under voltage protection |
7.Three-phase unbalance protection | 8.Start timeout protection |
9.Jog timeout protection | 10.Underioad Protection |
11.Soft start overheating Protection | 11.Soft start overheating Protection |
13.Phase-to-phase short circuit Protection | 14.Ground Fault Protection |
15.Phase sequence protection | 16.Thyristor breakdown protection |
17.External fault protection | 18.Frequency protection |
series product

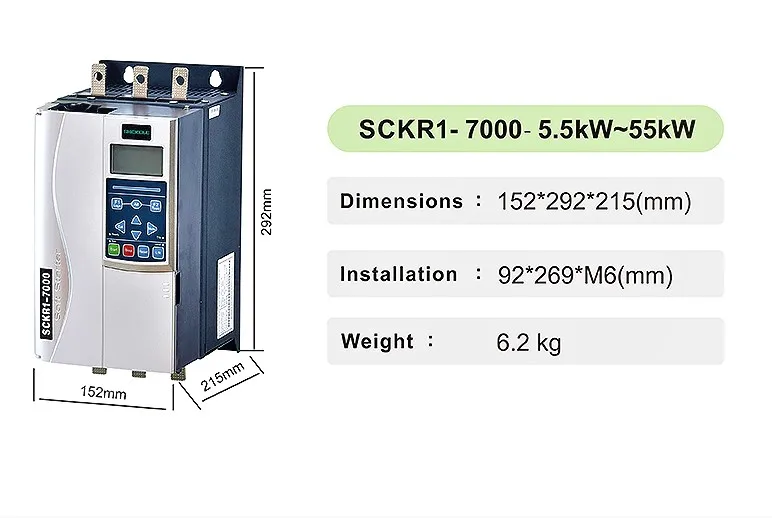

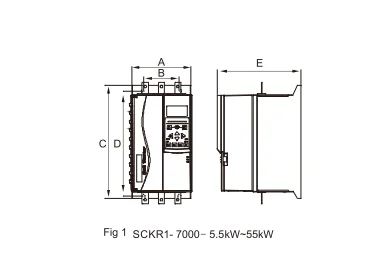

Product dimension
Model | Overall dimension(mm) | Install dimension(mm) | Drawing | ||||||||
A | C | E | B | D | d | ||||||
55KW | 152 | 292 | 215 | 92 | 269 | M6 | 1 | ||||

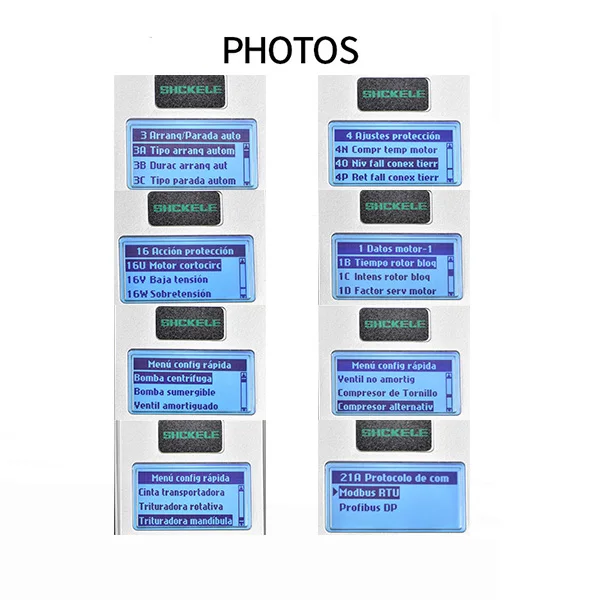

QUICK SETUP
The Quick Setup menu allows you to quickly configure the soft starter for common applications. The soft starter selects
thearameters related to the application and recommends tvpical settines. Yo can adjust each parameter according to your actual needs.Always set parameter A, the rated cul rent of the mptor to match the rated current indicated on the motor plate.The recommended valu is the minimum rated current of the starter
thearameters related to the application and recommends tvpical settines. Yo can adjust each parameter according to your actual needs.Always set parameter A, the rated cul rent of the mptor to match the rated current indicated on the motor plate.The recommended valu is the minimum rated current of the starter
On the screen,the highlighted yalue is the recommended yalueand the value marked with is the loaded value
Feature List | Optional soft start curve | Adaptive control |
Constant current | ||
Current ramp | ||
Optional soft stop curve | Taxi stop | |
Timed voltage ramp soft stop | ||
Adaptive control | ||
Brake | ||
Extended input and output options | Remote control input (3 fifixed inputs, 2 programmable inputs) | |
Relay output (1 fifixed output, 3 programmable outputs) | ||
Analog output | ||
Built-in PT100 RTD input | ||
Optional expansion card | ||

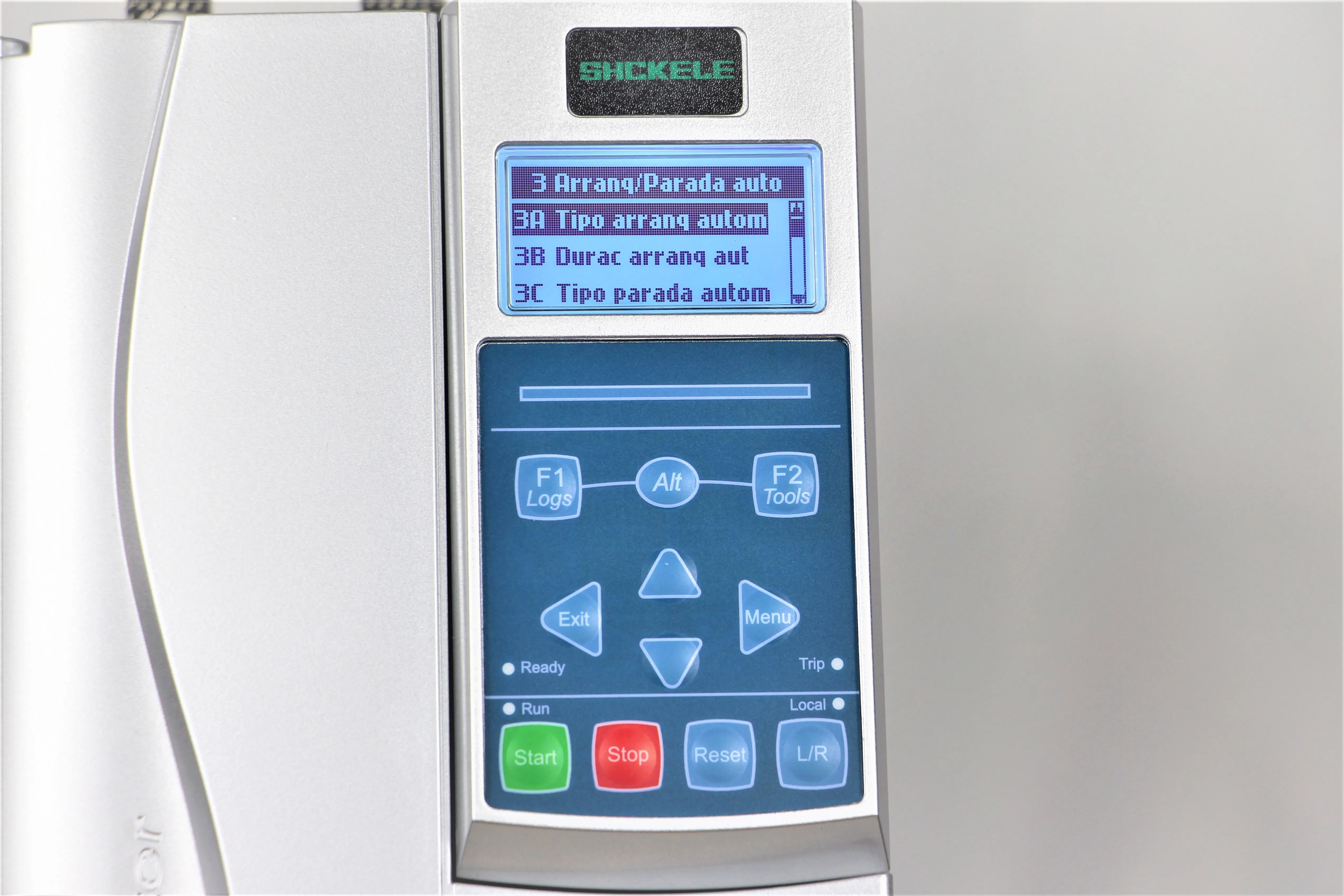

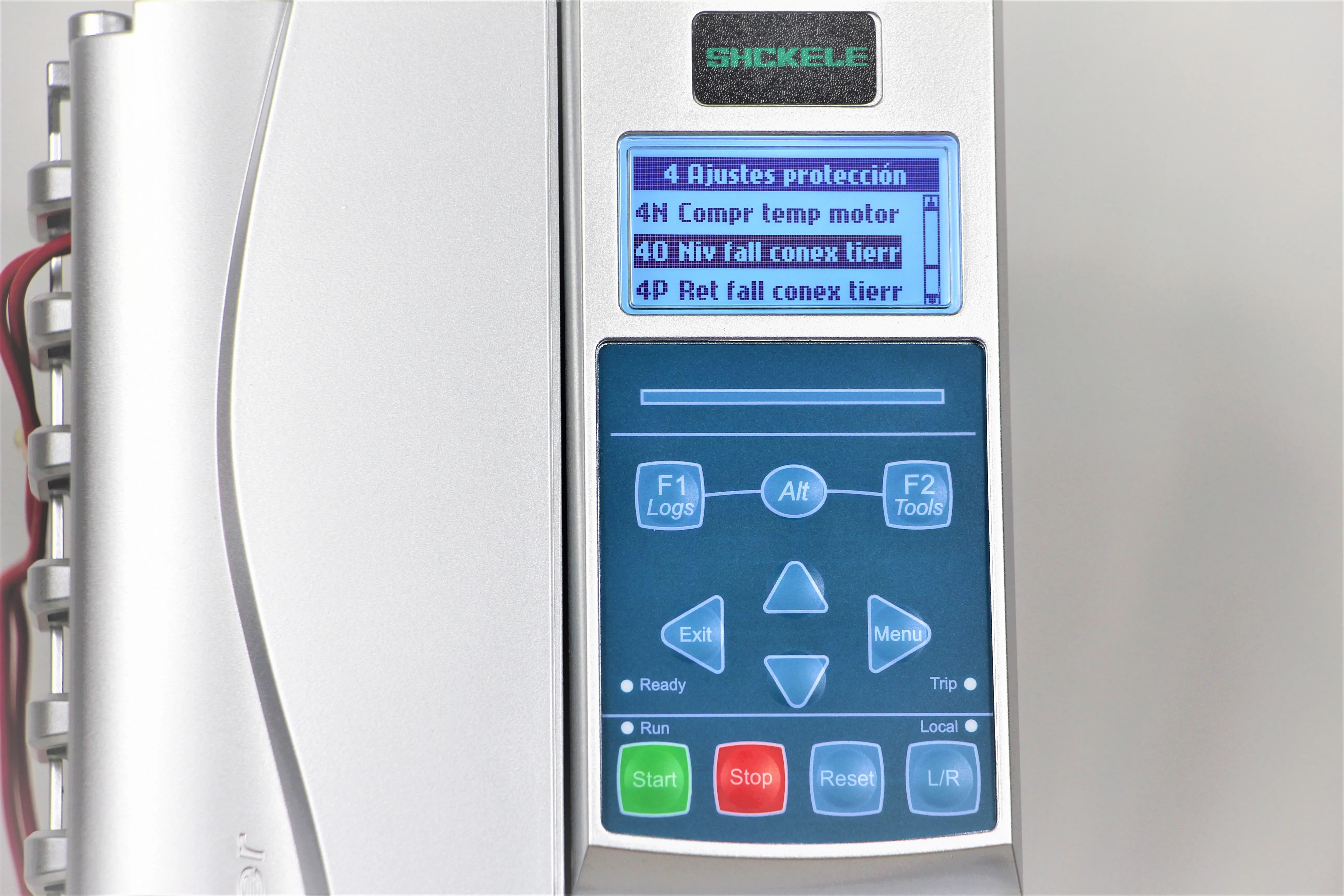

Easy-to-read display shows comprehensive feedback | Removable operation panel | |
Multilingual feedback | ||
Event record with date and time stamp | ||
Working counter (starting times, running hours,kilowatt hours) | ||
Performance monitoring (current, voltage, power factor, kilowatt hours) | ||
User-programmable monitoring screen | ||
Customizable protection | Motor overload | |
Start-up timeout | ||
Under current | ||
Transient overcurrent | ||
Current imbalance | ||
Power frequency | ||
Input trip | ||
Motor thermistor | ||
Power circuit | ||
Phase sequence | ||
Models that meet all your connectivity needs | 23A-1600A (rated) | |
200VAC-440VAC | ||
380VAC-690VAC | ||
Internal bypass selection | ||
Star connection or delta connection | ||
Advanced application optional features | Input / output extension | |
RTD and ground fault protection | ||
DeviceNet, Modbus, Profifibus, Ethernet (Ethernet IP, Modbus TCP, Profifinet) or USB communication module |
