CM 2000 Wet Film Comb architectural coating, color coating, varnish coating thickness meter tester
- Category: >>>
- Supplier: Shenzhen Aermanda Technology Co. Ltd.
Share on (1600835747445):
Product Overview
Description

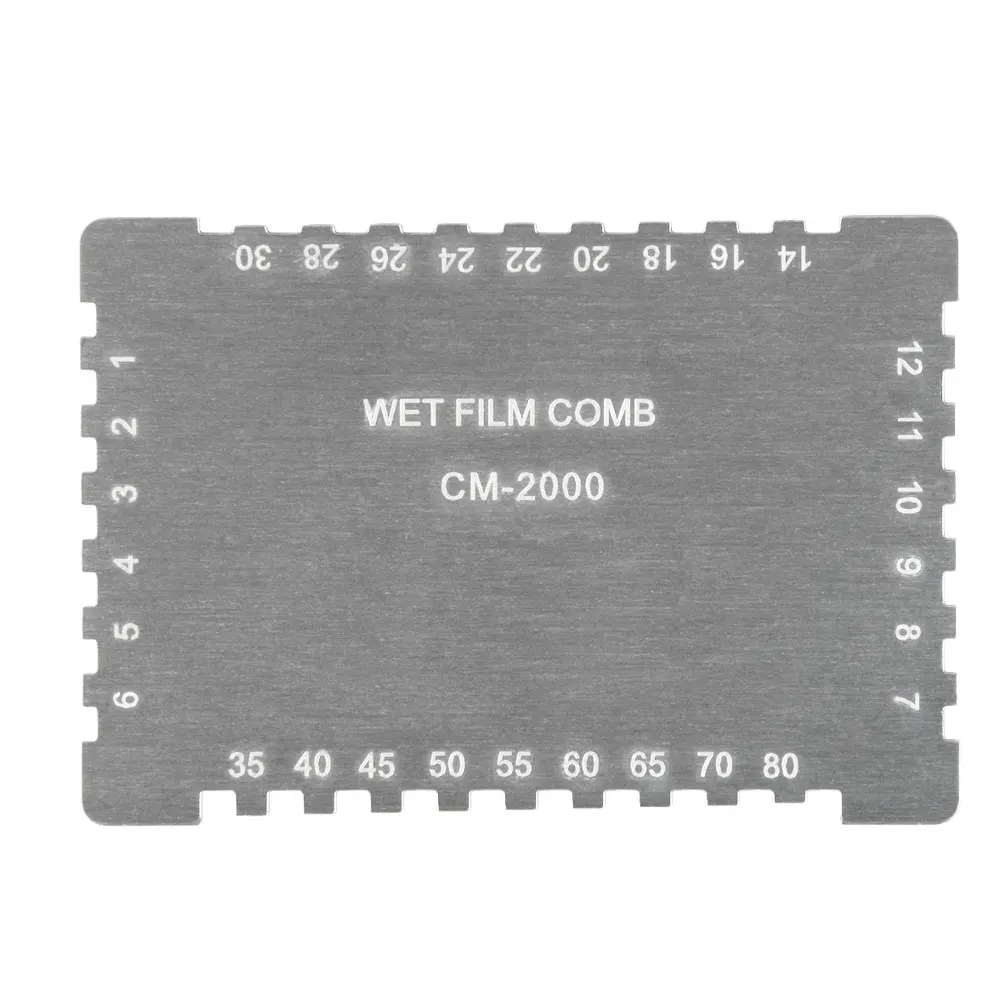

CM-2000 Wet Film Comb architectural coating, color coating, varnish coating thickness meter tester
Used for checking the thickness coating of wet paint, enamel lacquer,adhensive , architectural coating, color coating, varnish, chemical industry,or other coating that has been applied to a smooth sur
Specifications
Standards | GB/T1764-79 GB/T134522-92 ISO2808-74 | |
Range | 25μm~2032μm / 1mil~80mil | |
Values | 25µm, 51µm, 75µm, 102µm, 127µm, 152µm, 178µm, 203µm, 229µm, 254µm, 279µm, 305µm, 356µm, 406µm, 457µm, 508µm, 559µm, 610µm, 660µm, 711µm, 762µm, 889µm, 1016µm, 1143µm, 1270µm, 1397µm, 1524µm, 1651µm, 1778µm, 2032µm | |
1mil, 2mil, 3mil, 4mil, 5mil, 6mil, 7mil, 8mil, 9mil, 10mil, 11mil, 12mil, 14mil, 16mil, 18mil, 20mil, 22mil, 24mil, 26mil, 28mil, 30mil, 35mil, 40mil, 45mil, 50mil, 55mil, 60mil, 65mil, 70mil, 80mil | ||
Measuring Procedure
1. Select appropriate comb according to approximate known thickness.
2. Hold comb perpendicular to surface coating to be measured.
3. Press into coating until the comb stands square on substrate.
4. Wet film thickness is between the highest step which is coated and the next (higher) step which remains uncoated.
