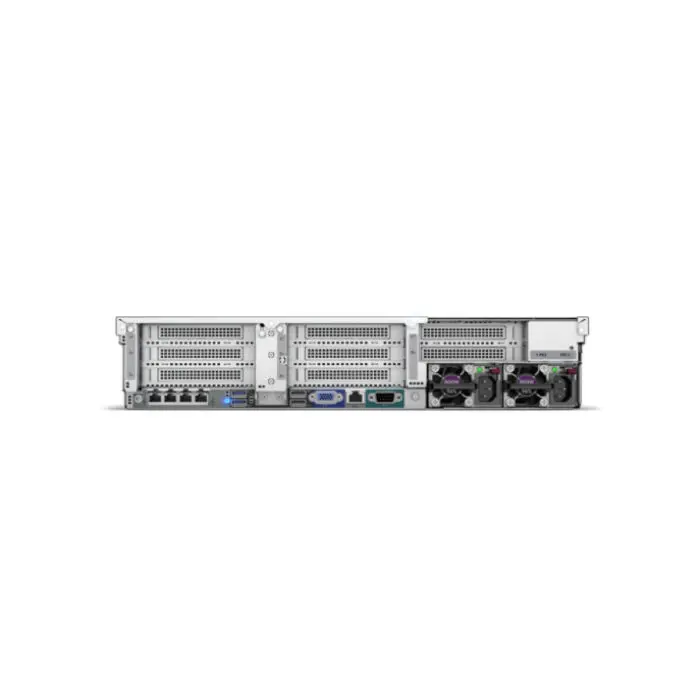

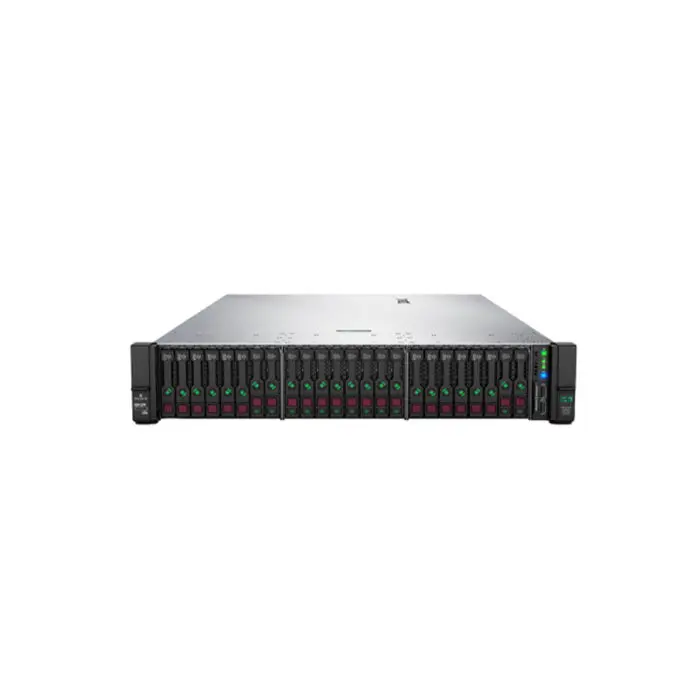

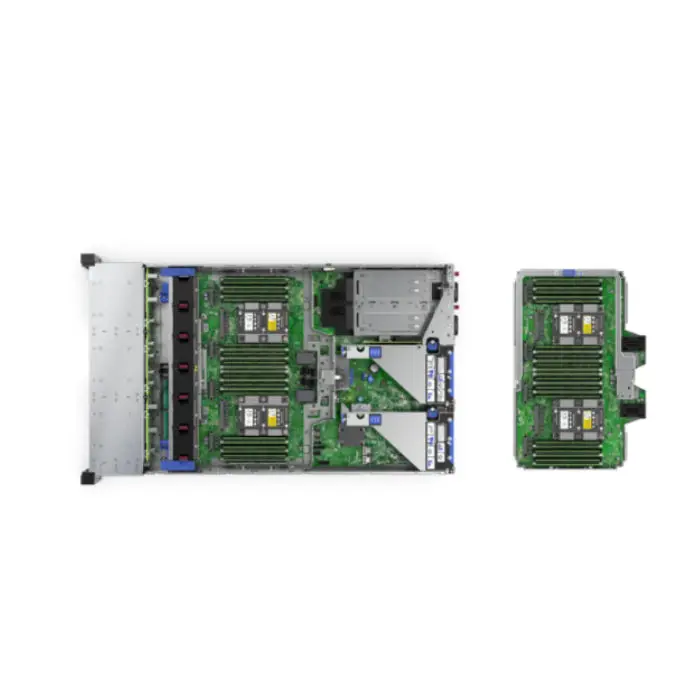

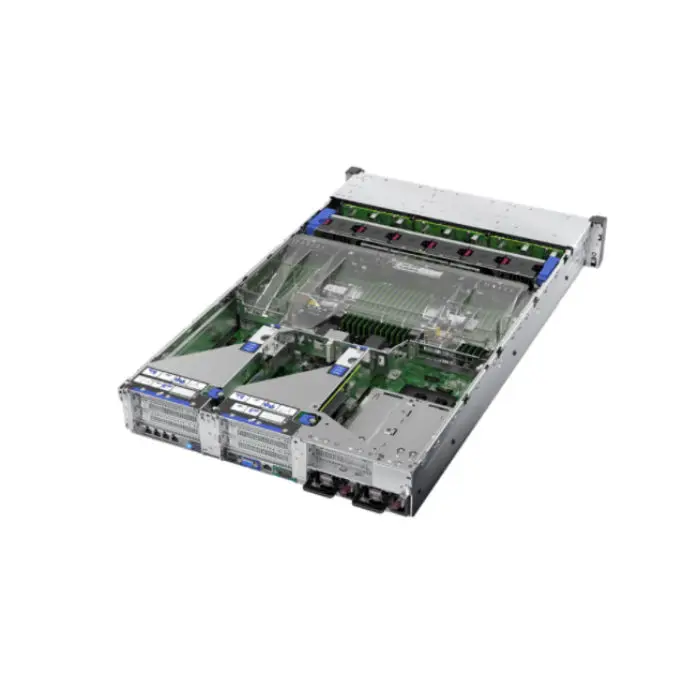

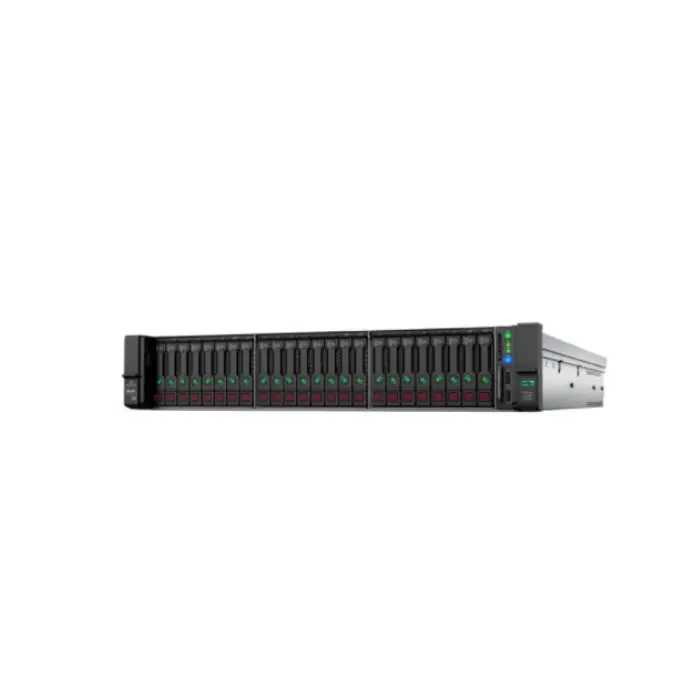

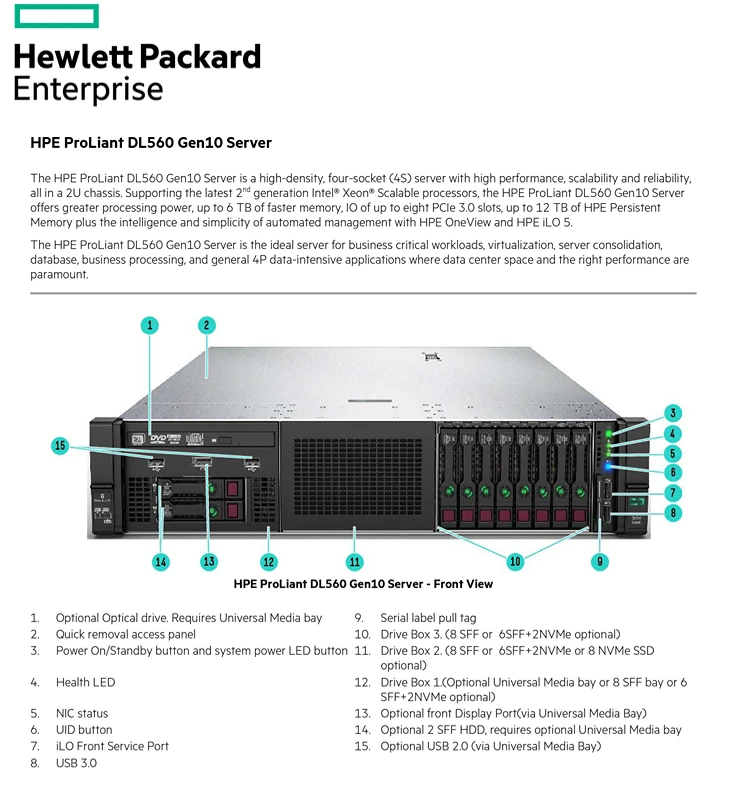

High Performance Original Factory HPE 2U Rack DL560 Gen10 Rack Server

shape/height

2U rack server

processor

4 Intel ® xeon ® Scalable processor, up to 28 cores, maximum power 205W

memory

48 pieces of HPE DDR4 intelligent memory, with a maximum speed of 2933MT/s, supporting RDIMM or LRDIMMs

Drive bays (total/hot-plug)

Support up to 48 2.5 inch hard disks in the front (support hot plug), SATA/SAS/SSD support, including 20 NVMe SSD hard disks in
the front (support hot plug)

Expansion slot

Up to eight full height PCIe 3.0 slots

9 USB ports (5 3.0, 4 2.0, 2 of which are optional), 2 video ports (1 optional), 1 serial port (optional), 1 MicroSD, supporting
dual MicroSD components

NIC port

The optional FlexibleLOM supports 1Gb/10Gb/25Gb, and the optional PCIe network card can support up to 100Gb networks

Power supply

Up to 4 HPE flexible slot power supplies Support 240VDC high voltage DC, depending on model

Storage controller

HPE Smart Array S100i or HPE Smart Array Controller, depending on model, supports up to 4GB cache Support Raid 0/1 (ADM)/10
(ADM)/5/50/6/6

System Management

Standard iLO standard version, optional iLO advanced version and OneView advanced version

Supported operating systems

Microsoft,Red Hat,VMware.

HBA/RAID support

Hardware RAID (up to 24 ports) with flash cache;
up to 16 port HBAs

Limited Warranty

3-year 7 * 24 * 4 limited warranty service and installation service

Equipment size

44.55×75.18×17.48 cm

Package size/ weight

weight: About 50 kg /

Standard configuration 1:

DL560G10 , 2*5218R CPU,64G DDR4 Memory, 2*1.2TB SAS 10K HDD,750WPower Supply

Standard configuration 2:

DL560G10 , 2*6248R CPU,256G DDR4 Memory, 3*2.4TBSAS 10K HDD,2*750WPower Supply

Standard configuration 3:

DL560G10 , 4*5218R CPU,256 DDR4 Memory, 2*960G SSD 3*2.4TBSAS 10K HDD,2*750WPower Supply

Standard configuration 4:

DL560G10 , 4*6248R CPU,512G DDR4 Memory, 2*1.92T SATA SSD 3*2.4TBSAS 10K HDD,2*750WPower Supply

Custom configuration

Customize product configuration as required...
