factory price pvc pe pet rubber tire shredder recycling machine/twin shaft shredder/plastic recycling machines
- Category: >>>
- Supplier: Zhangjiagang Horserider Machinery Co. Ltd.
Share on (1600835849581):
Product Overview
Description

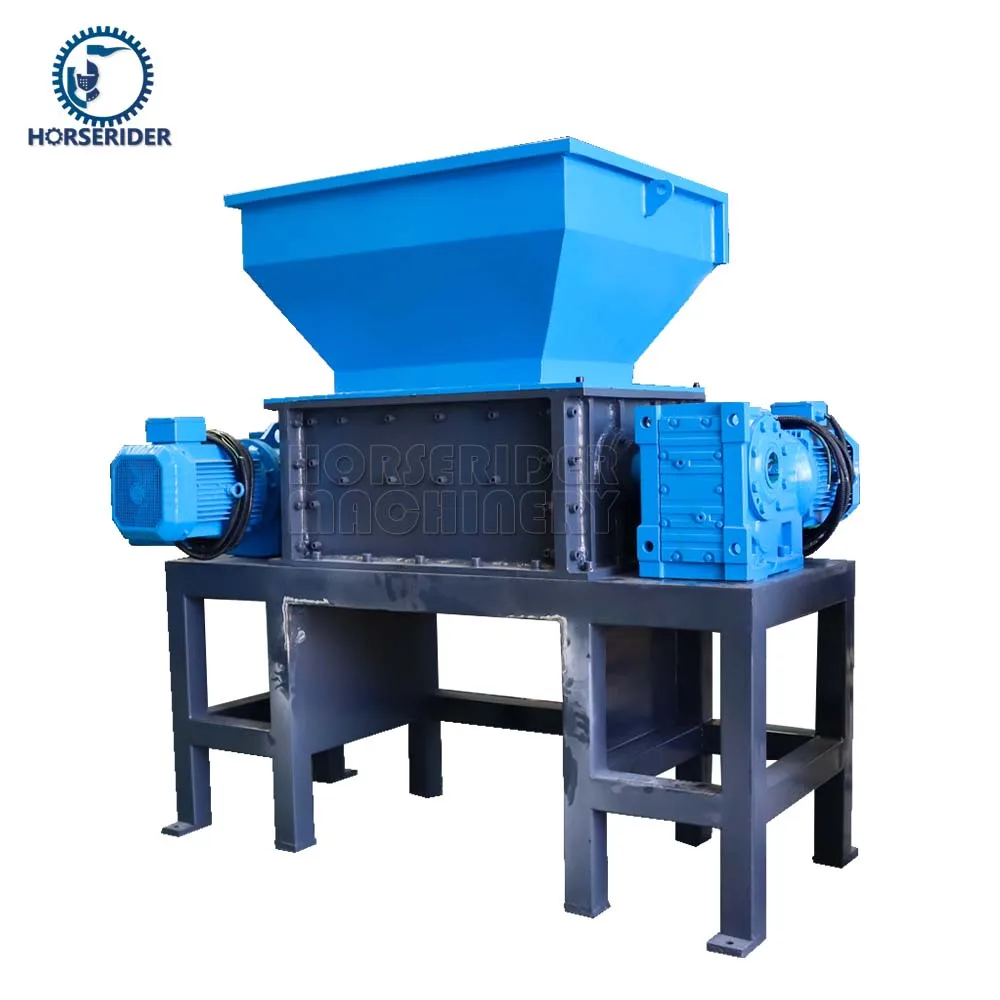

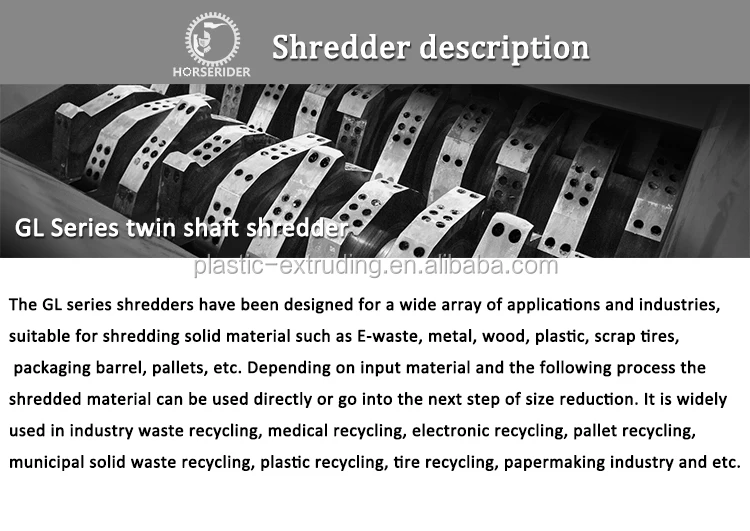

GL Series Twin-Shaft Shredder
( plastic, paper, fiber, rubber, organic waste)

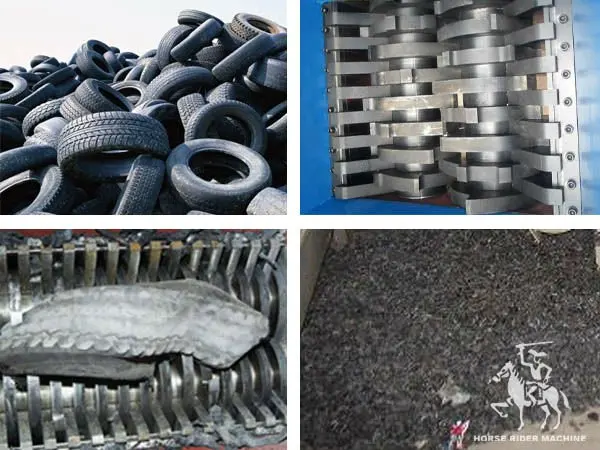

The GL series shredders have been designed for a wide array of applications and industries,suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires,packaging barrel, pallets, etc. Depending on input material and the following process theshredded material can be used directly or go into the next step of size reduction. lt is widelyused in industry waste recycling, medical recycling, electronic recycling, pallet recycling,municipal solid waste recycling, plastic recycling, tire recycling, papermaking industry and etc.
● WORKING PRINCIPLE---------------------------------------------------------

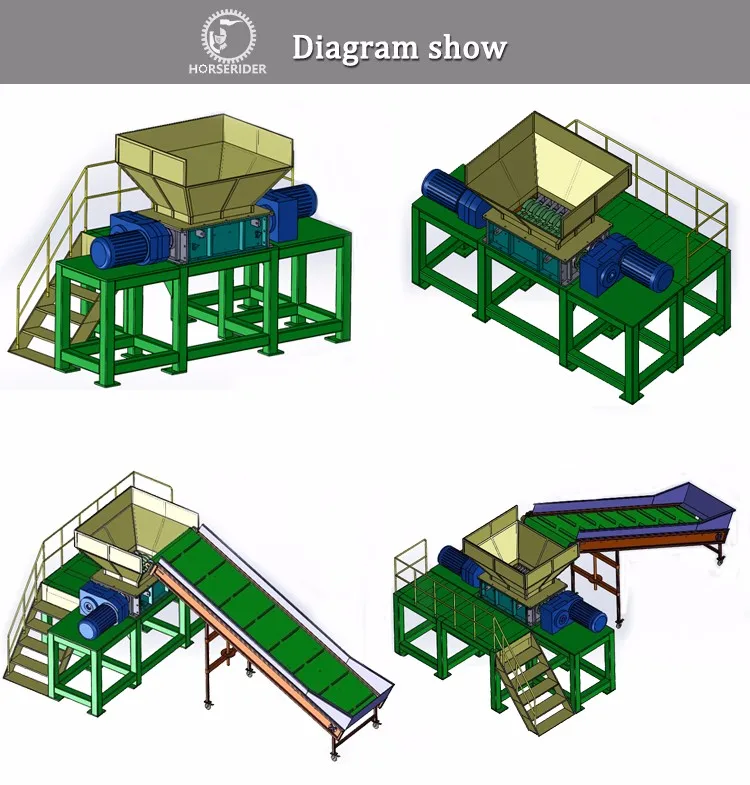

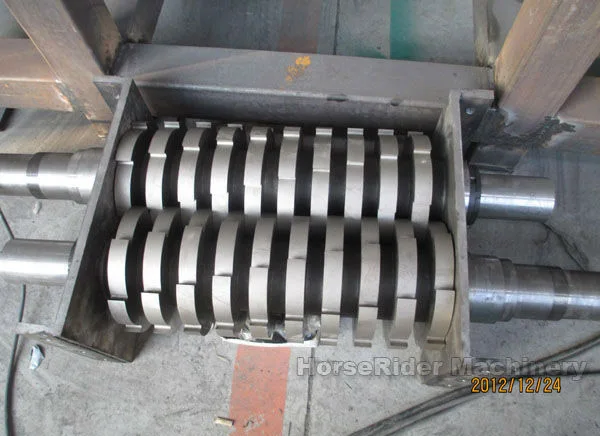

The twin-shaft shredder mainly rotates relative to each other through two knife rollers. The cutting edge is formed between the cutting edge and the cutting edge. At the same time, the knife hook tears the material, so as to achieve the effect of crushing the knife. Its structure is mainly composed of shredding blade group, bearing box, box support, feeding system and power system. The discharge size can be adjusted according to the user's requirements. In the application process of double shaft crusher, the knife speed is low, which ensures no harm to safety, low noise, low energy consumption and strong usefulness
PRODUCT PARAMETERS(partially)-----------------------------------------------------------------------
Model number | GL600 | GL 800 | GL 1000 | GL 1200 | GL 1300 | GL 1600 |
Main motor power | 11+11 | 18.5+18.5 | 22+22 | 30+30 | 37+37 | 55+55 |
Rotor-blade | 20 | 16 | 20 | 24 | 26 | 32 |
Whight /kg | 2200 | 2400 | 5400 | 7000 | 12000 | 14100 |
Rotor diameter(mm) | 340 | 340 | 340 | 340 | 400 | 400 |
Main shaft speed | 15 r/min | 14 r/min | 15r/min | 15 r/min | 14 r/min | 11 r/min |
PRODUCT DETAILS--------------------------------------------------------------------------------
●ATTENTION-------------------------------------------------------------------------
Install the blade correctly
If the blade is installed too loosely or too tightly, the blade of the shredder can not crush materials normally, which will aggravate the damage to the blade in the long term.
Reduce crushing of wetter materials
When too wet materials are crushed, due to excessive extrusion, it is easy to squeeze out the water in the materials and stick to the blade of the shredder, which is easy to rust the blade.
When too wet materials are crushed, due to excessive extrusion, it is easy to squeeze out the water in the materials and stick to the blade of the shredder, which is easy to rust the blade.
Blade screw tightening
If the screw of the machine is too loose, the blade will slip during crushing, and the crushing effect cannot be achieved.
If the screw of the machine is too loose, the blade will slip during crushing, and the crushing effect cannot be achieved.
Choose different shredders according to different materials
Do not put too hard materials in the shredding chamber of the shredder. Too hard materials are easy to wear the blade. Often tear some hard materials, which will directly damage the blade of the shredder and can not crush other materials.
Do not put too hard materials in the shredding chamber of the shredder. Too hard materials are easy to wear the blade. Often tear some hard materials, which will directly damage the blade of the shredder and can not crush other materials.
Related Products

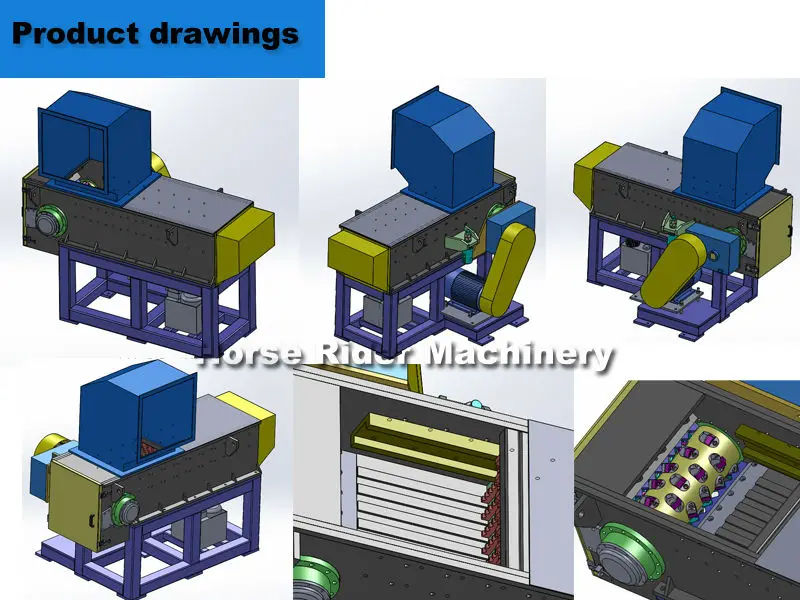

single-shaft shredder
It is suitable for plastic, paper, fiber, rubber, organic waste
double-shaft shredder
It is is mainly used for crushing PP / PE film and woven bags, especially the recycling and crushing of large plastic film or bags.
Company Profile
●COMPANY PROFILE----------------------------------------------------------------------
Zhangjiagang Horserider Machinery Co., Ltd. is an industry and trade company with more than 20 years of import and export experience. Our main business includes plastic recycling cleaning line , plastic extrusion production line and some single machines.We not only provide customized solutions for production lines, but also provide standardized products.
Over the years, we have successfully provided professional and high-quality production equipment for many customers through online platforms and offline exhibitions. Based on excellent products and perfect after-sales service, we have also established long-term and stable cooperative relations with many customers from all over the world.
The company always insists on treating every customer with a professional and honest attitude. With many years'experience, our company can give the most reasonable scheme to customers according to different conditions. If you are engaged in or ready to enter the plastic industry, we will be a very suitable partner for you.
