iso ce approved diesel 150 kw electric generator 220v generators 187.5 kva Shang-chai generador set for sale
Our factory has CCEC Cummins, DCEC Cummins, Perkins, VOLVO, MTU, Deutz, Doosan, Mitsubishi, SDEC, WEICHAI, YUCHAI, etc World and Chinese famous engine for genenrators set. We have specialized in synchronous 100% copper wire alterantor for more than 20 years. LM brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.
Product Description

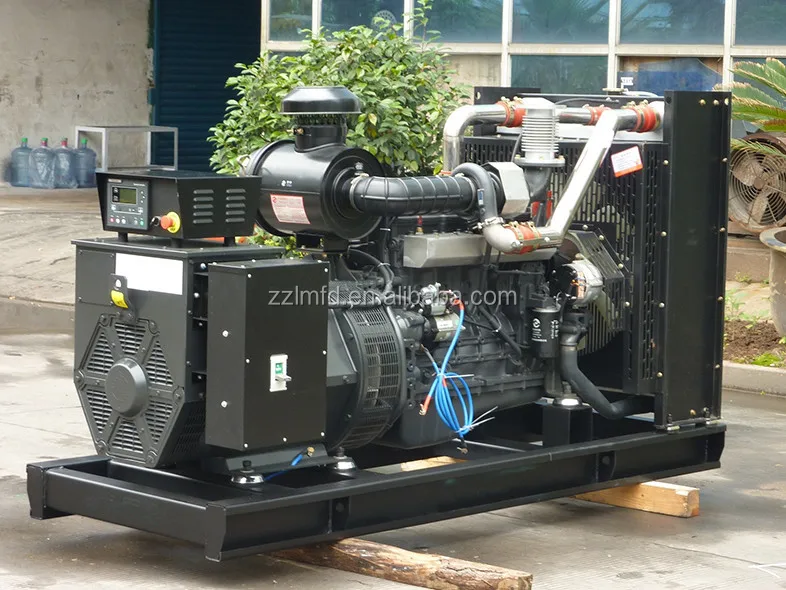

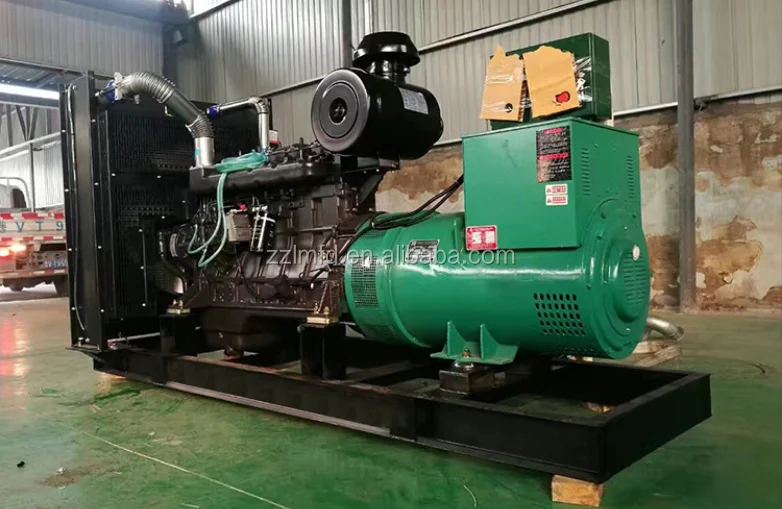

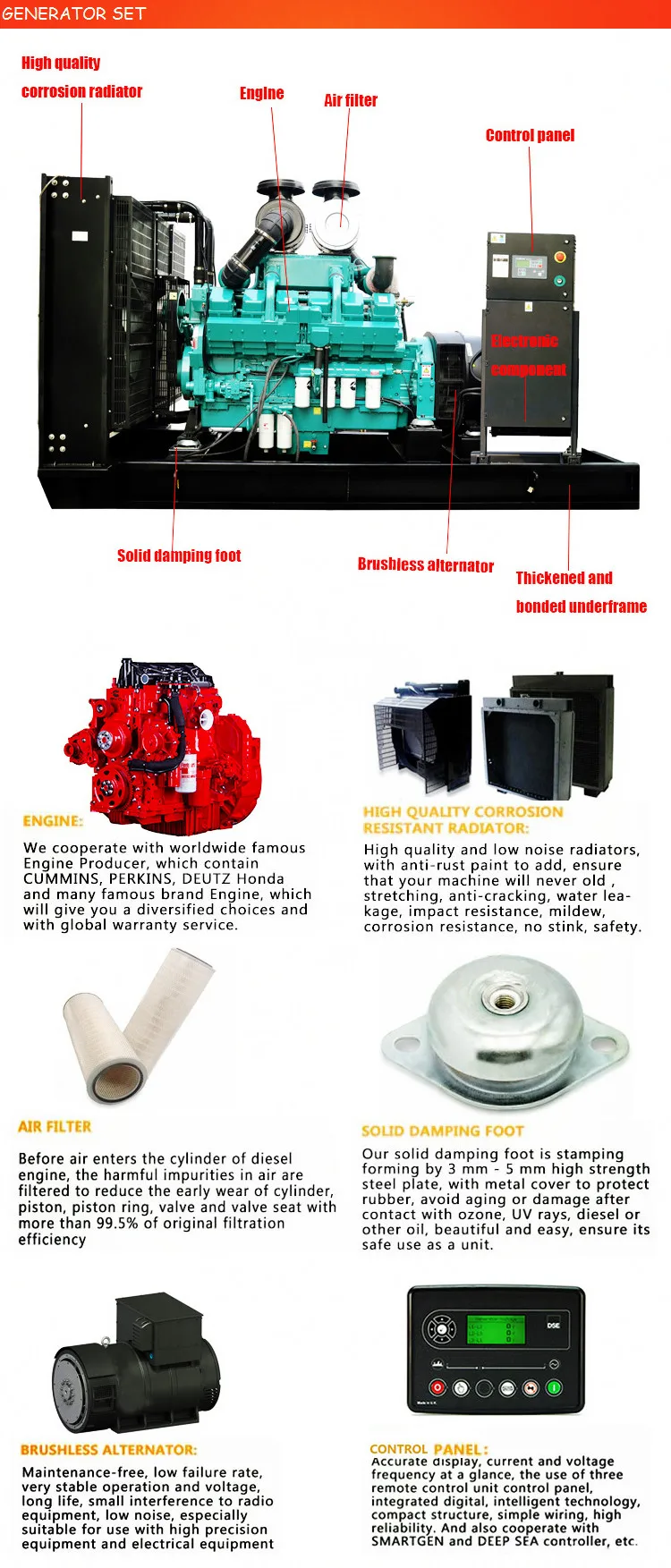

150KW/187.5 KVA Shang-chai Engine Diesel Generator
Our factory has CCEC, DCEC, , VOLVO, Deutz, Daewoo, Shangchai, Weichai Deutz,Jichai etc World and Chinese famous engine for genenrators set. We have specialized in synchronous 100% copper wire alterantor for more than 20 years. LM brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.
Unit parameters | ||||||
Power: | 150KW/187.5KVA | |||||
Rated voltage: | 400V/230V | |||||
Rated current: | 270A | |||||
Rated frequency: | 50Hz | |||||
The factor of rated power: | 0.8 | |||||
The regulating rate of instantaneous voltage: | ≤±15% | |||||
The regulating rate of steady voltage: | ≤±0.5% | |||||
The waving rate of voltage: | ≤0.5% | |||||
Voltage waveform distortion degree: | ≤5% | |||||
The time of steady voltage: | ≤1.5sec | |||||
The regulating rate of steady frequency: | ≤±2% | |||||
The regulating rate of instantaneous frequency: | ≤±5% | |||||
The time of steady frequency: | ≤3sec | |||||
The waving rate of frequency: | ≤±0.5% | |||||
The waste of fuel with full load: | 200g/kw.h | |||||
Size(mm): | 2800*1100*1750mm | |||||
Weight(kg): | 2400KG | |||||
The main parameters of the engine | ||||||
Brand: | Shang-chai | |||||
Model: | SC7H250D2 | |||||
Standby power: | 270KW | |||||
Type: | four strokes, waste gas turbine boost,direct spurting type | |||||
Cooling way: | water cooling | |||||
With type: | Inline type | |||||
Bore*Trip: | 114*128mm | |||||
Cylinder: | 6 | |||||
Displacement: | 8.3L | |||||
Lubricating Capacity： | 20L | |||||
Speed adjustment way: | Electronic speed governor | |||||
Rotating speed: | 1500r/min | |||||
Starting way: | starting with electricity | |||||
The main parameters of the generator | ||||||
Brand: | Rayming | |||||
Model: | RMF274E | |||||
Type: | brushless (AVR automatic voltage regulating) | |||||
The connecting way of the phase: | three phases four lines | |||||
Insulation degree: | H degree | |||||
TIF: | <50 | |||||
THF: | <2% | |||||
The factor of rated power: | ≤±1% | |||||
Grading Protection: | IP23 | |||||

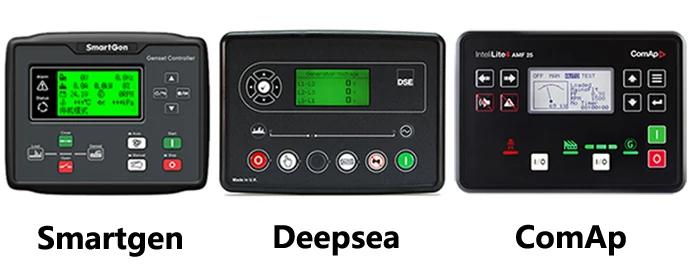

Genset Controllers
Main Products

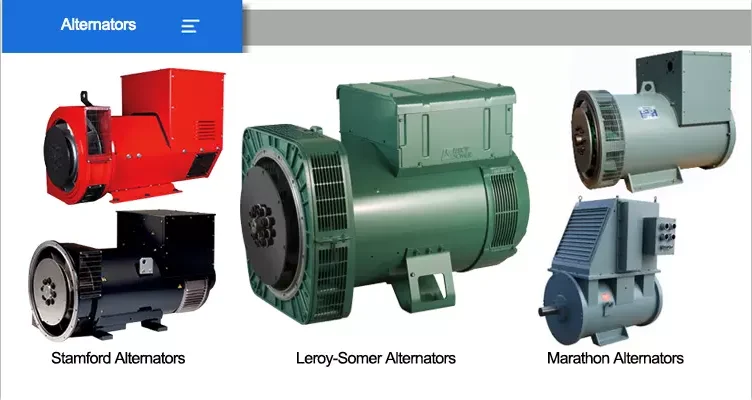

Alternators
