Professional Manufacturer Double Station Semi Auto Stretch Film Aluminum Foil Rewinding Machine
- Category: >>>
- Supplier: Zhangjiagang Fineness Aluminum Foil Co. Ltd.
Share on (1600835883440):
Product Overview
Description
FEATURES AT A GLANCE
Products Description
Item | Value |
Raw Material | Aluminum Foil/ Baking paper/Film |
Thickness of Raw Material | 0.009 0.025mm |
Width of Raw Material | 120 -500mm |
Maximun Unwinding Diameter | ф1100mm |
Inner Diameter of Raw Material Roll Core | ф75mm |
Inner Diameter of Finished Product Roll Core | ф35mm. ф38mm ф40mm |
Cutting Length of Roll | 30- -500m |
Production Efficiency | 4-5m Per second |
Decoil Centering Stroke | +/-20mm |
Air Pressure | 0.5Mpa |

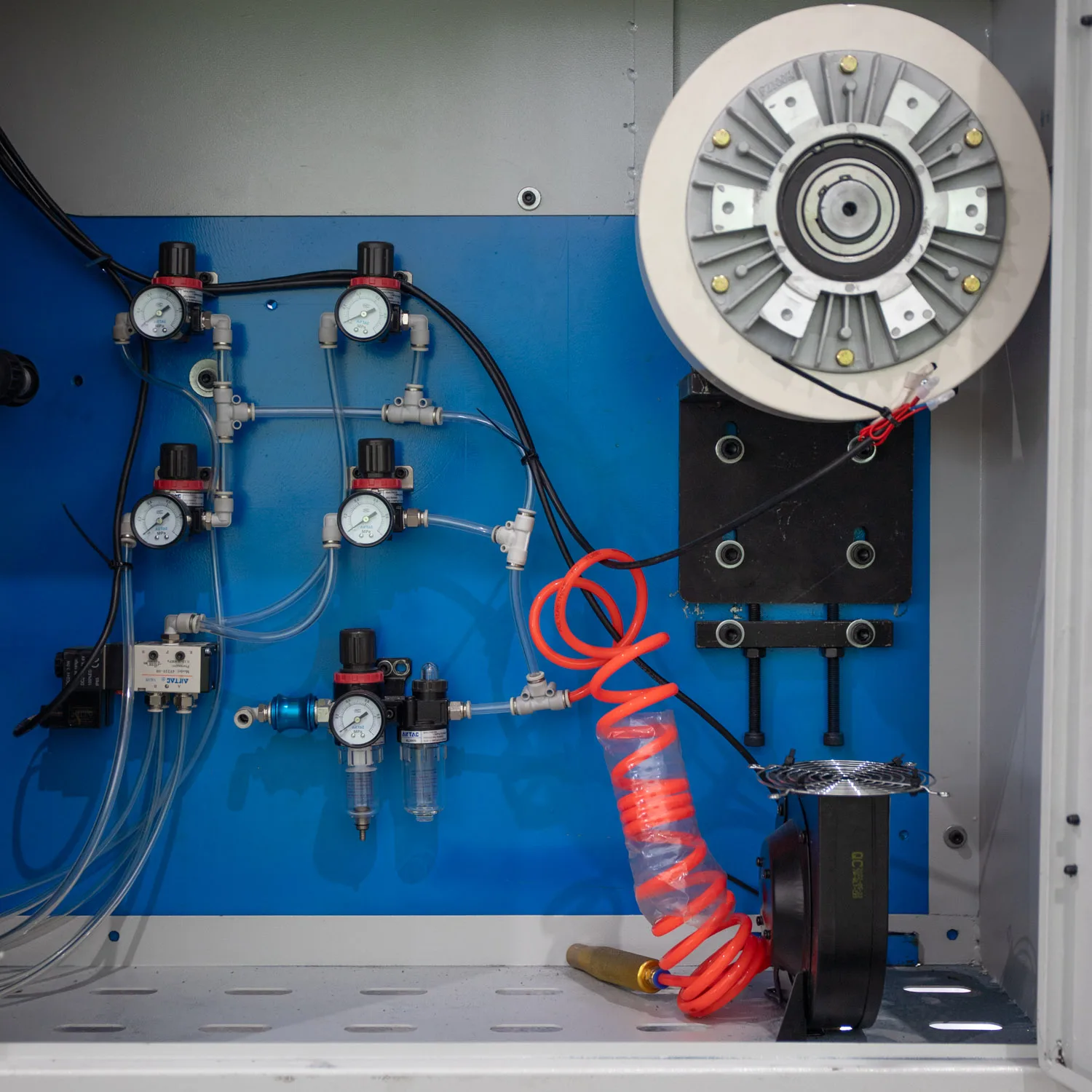

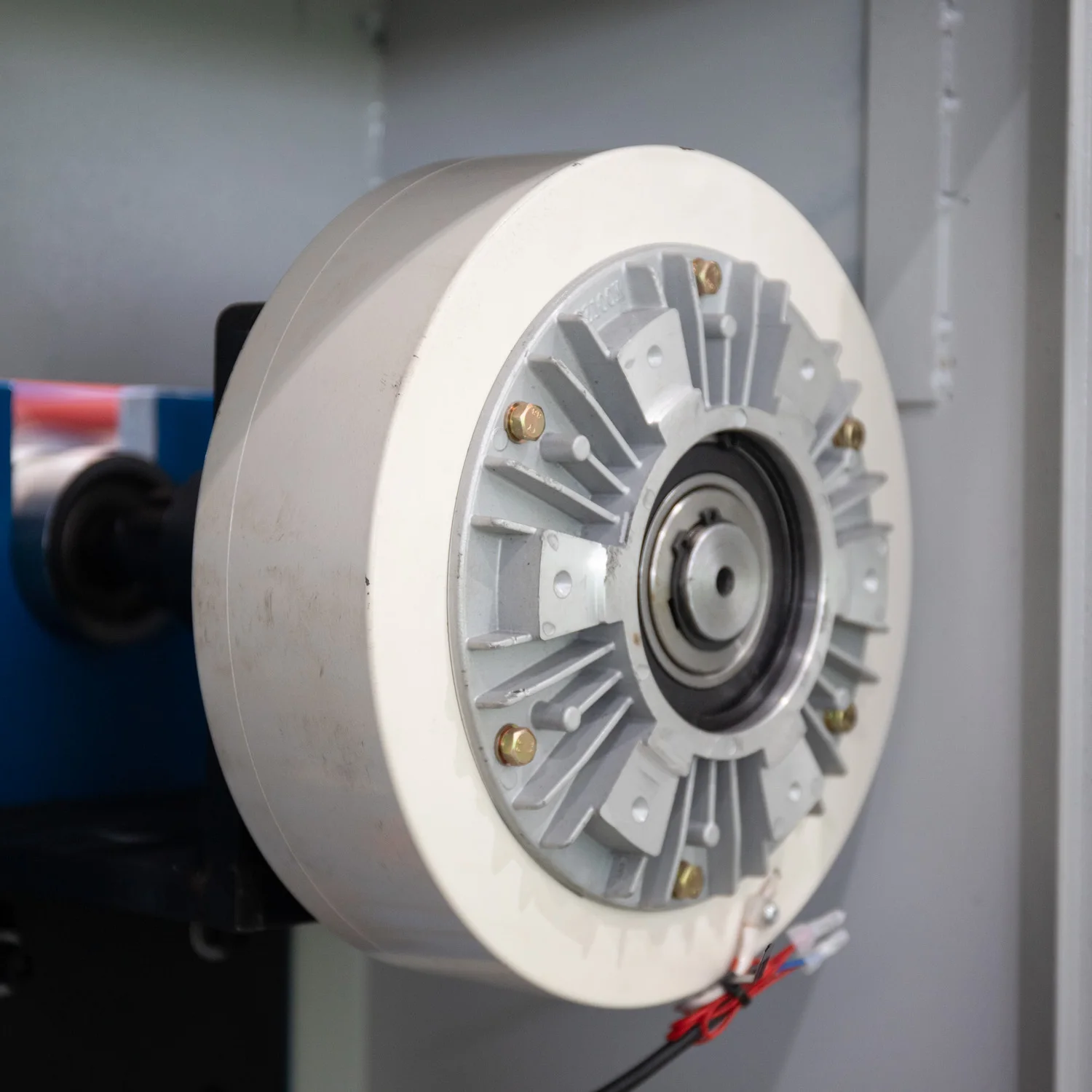

Magnetic Powder Brake | 50N.m |
Overal Dimension | 1520*1280*1000mm |
Power supply | 380V, 50Hz, 3ph |
Total Power | approx. 3KW |
Total Weight | approx. 850Kg |
