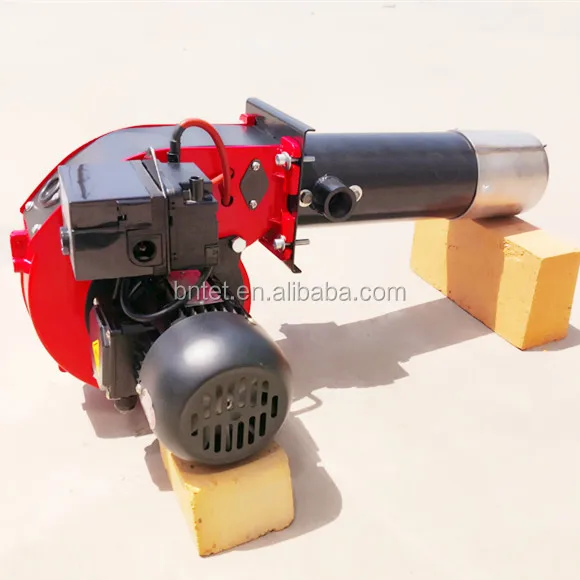

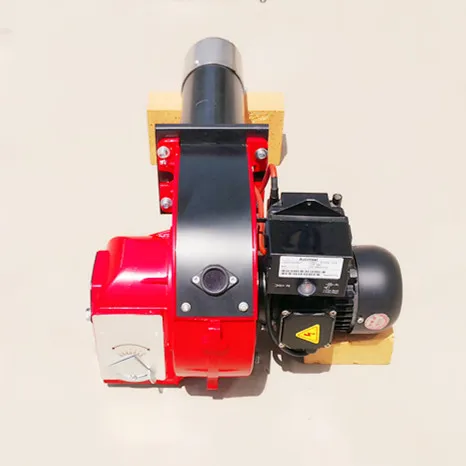

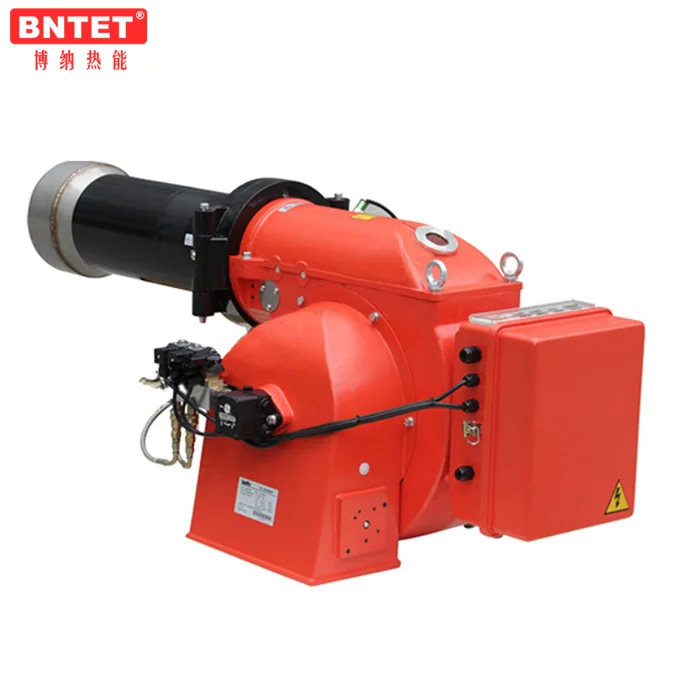

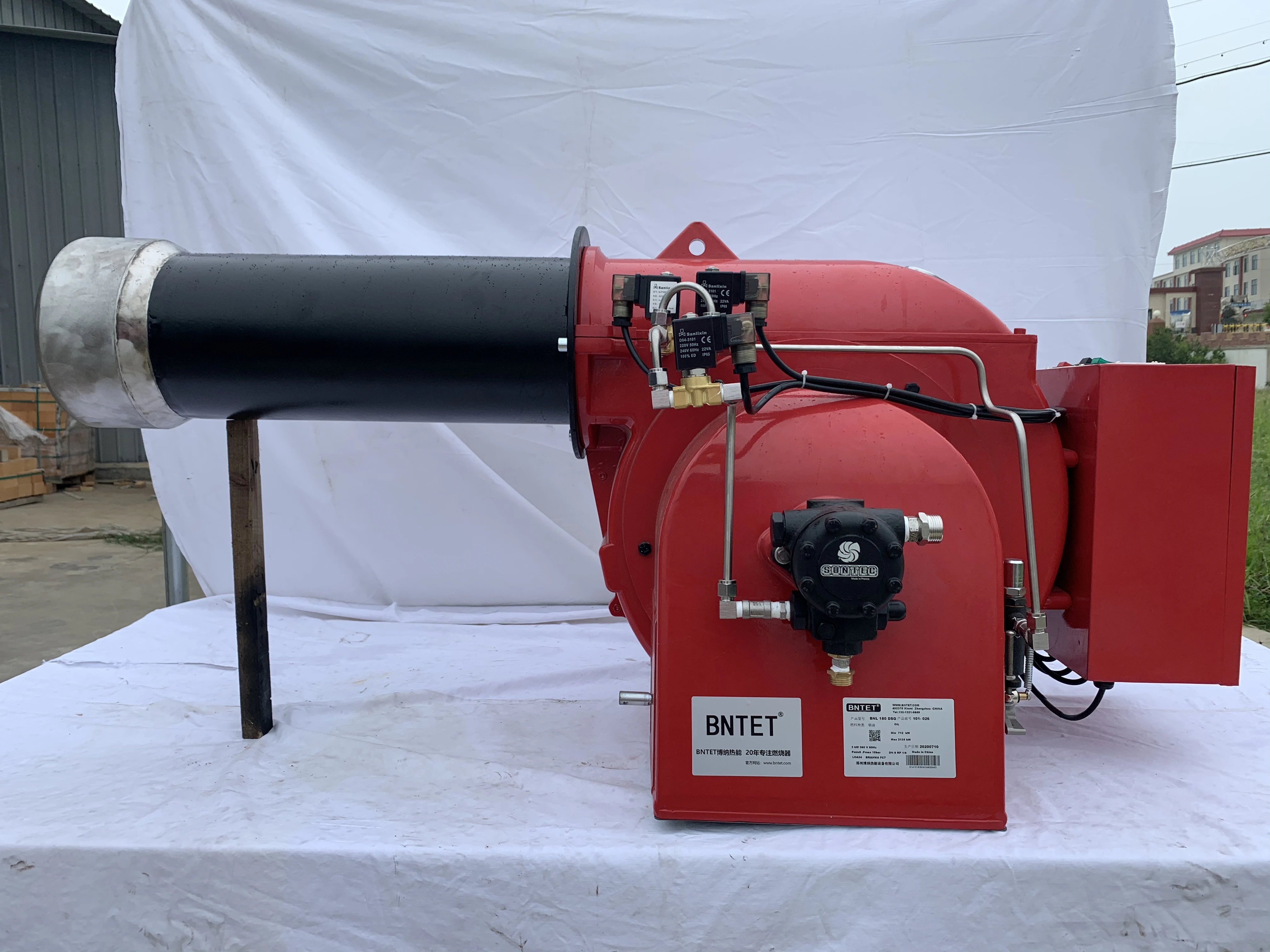

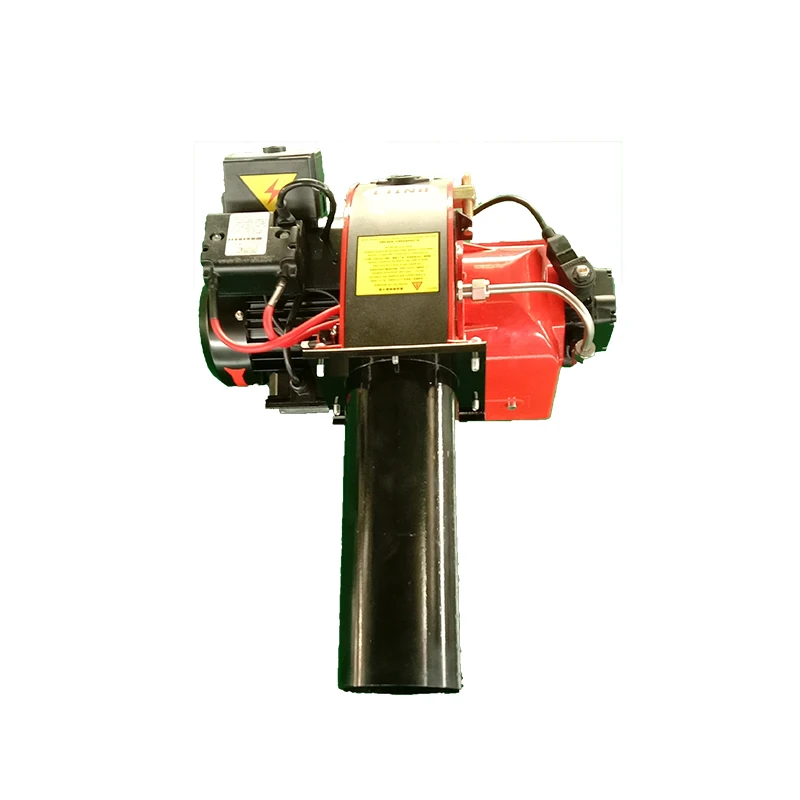

Oil Oil Boiler Diesel Burner Oil Furnace Manufacturer
- Category: >>>
- Supplier: Zhengzhou Bona Heat Energy Equipment Co. Ltd.
Share on (1600835895750):
Product Overview
Description
Burner Modle | Kcal | Power(Kw) | Oil Flow（kg/h) | Control Method | ||||
BNL 5 | 50,000 | 24-66 | 2-5.5 | Single Stage | ||||
BNL 10 | 100,000 | 61-122 | 5.1-10.2 | Single Stage | ||||
BNL 14 | 147,920 | 89-172 | 7.5-14.5 | Single Stage | ||||
BNL 18 | 180, 000 | 90-213 | 7.6-18 | Single Stage | ||||
BNL 26 | 264,880 | 154-308 | 13-26 | Single Stage | ||||
BNL 35 | 336,260 | 178-391 | 15-33 | Single Stage | ||||
BNL 40 DSG | 459,240 | 237-534 | 20-45 | Two Stage | ||||
BNL 55 DSG | 560,720 | 332-652 | 28-55 | Two Stage | ||||
BNL 75 DSG | 773,140 | 415-899 | 35-75 | Two Stage | ||||
BNL 100 DSG | 1,019,960 | 533-1186 | 44-100 | Two Stage | ||||
BNL 120 DSG | 1,427,600 | 474-1660 | 40-140 | Two Stage | ||||
BNL 180 DSG | 1,836,100 | 712-2135 | 60-180 | Two Stage | ||||
BNL 250 FC | 2,739,960 | 873-3186 | 73.6-268.6 | Modulating | ||||
BNL 300 FC | 3,314,440 | 3,314,440 | 109.9-324.9 | Modulating | ||||
BNL 350 FC | 3,569,860 | 1364-4151 | 115-350 | Modulating | ||||
BNL 600 FC | 4,748,920 | 1840-5522 | 155.1-465.6 | Modulating | ||||
Contact us for more models and product details | ||||||||
Technological performance and structural descriptions:
1. Light oil burner.
1. Light oil burner.
2. Single/Two stage operation (on/off).
3. High pressure mechanical atomisation of fuel using nozzle .
4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
5. Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
6. Single stage manual flow adjustment.
7. Two stage air flow regulation for first and second stage by means of hydraulic regulator.
8. One flange and one insulating seal for boiler fastening.
9. Combustion air intake with air flow adjustment device.
10. Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
11. Sliding boiler coupling flange to adapt to head protrusion of the
various types of boilers.
12. Monophase electric motor to run fan and pump.
13. Flame presence check by photo resistance.
14.Electrical plant protection rating Ip40.
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK

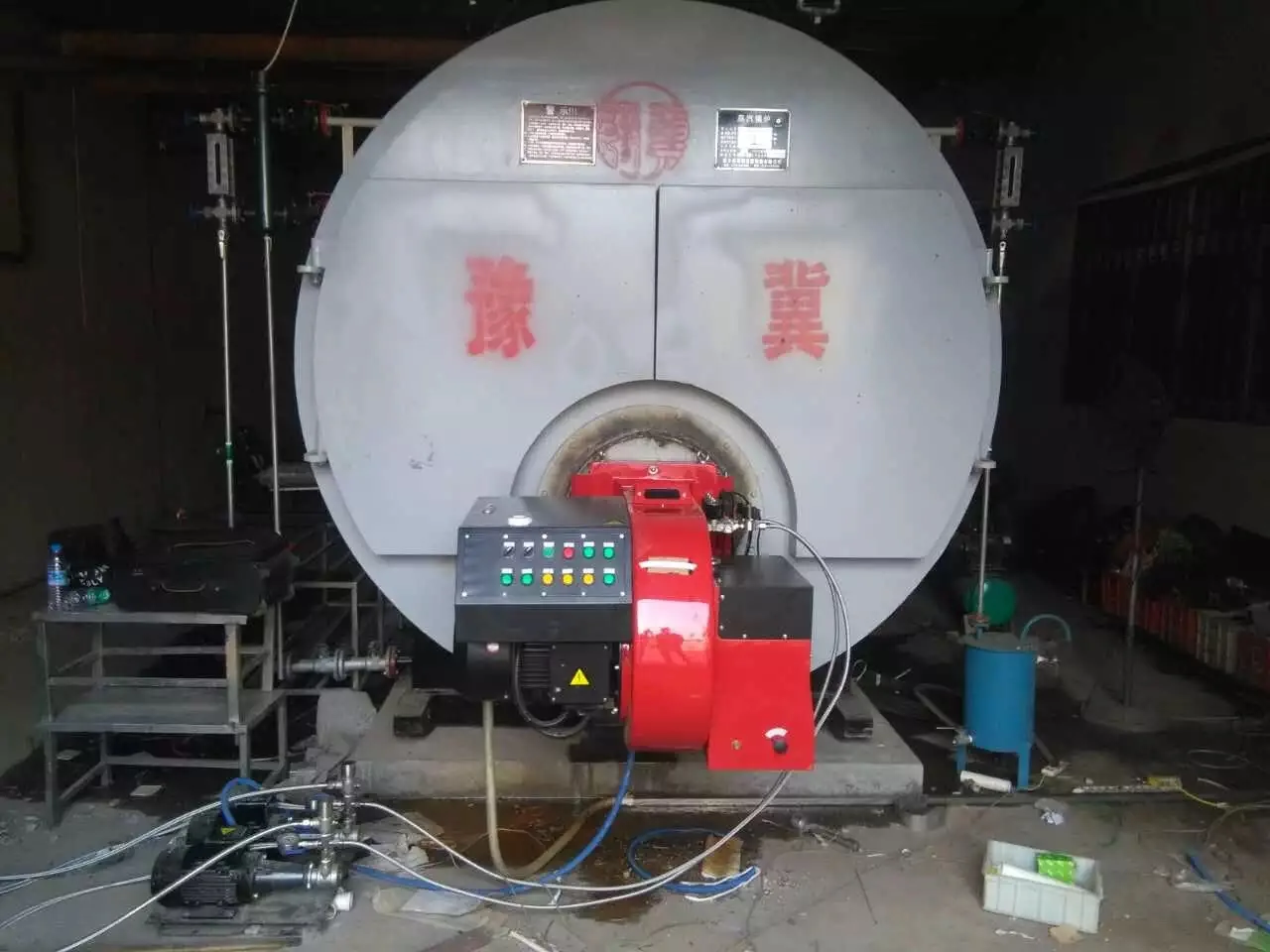

Successful Project
