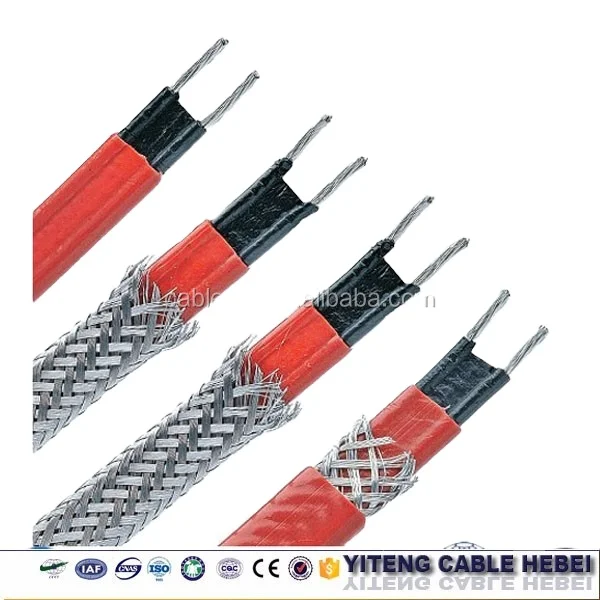

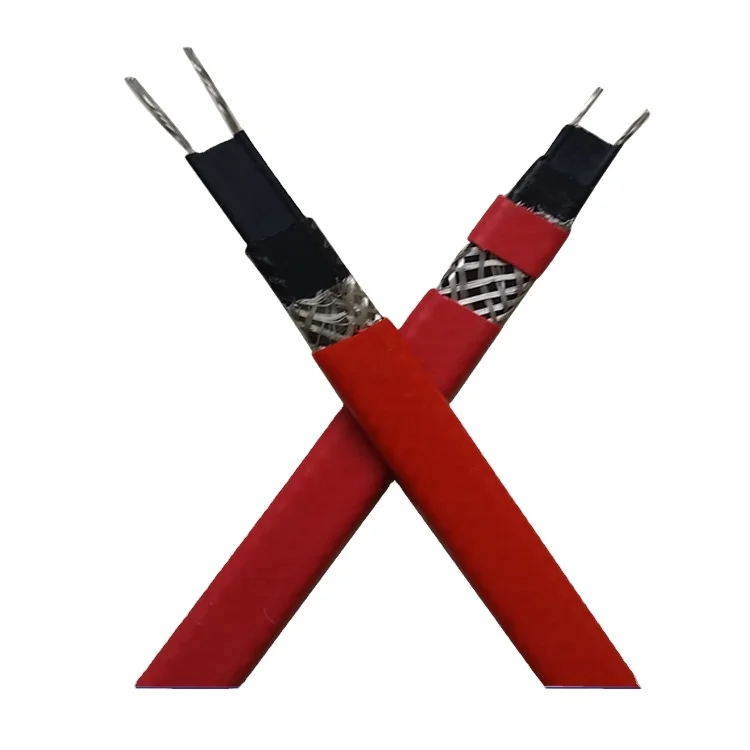

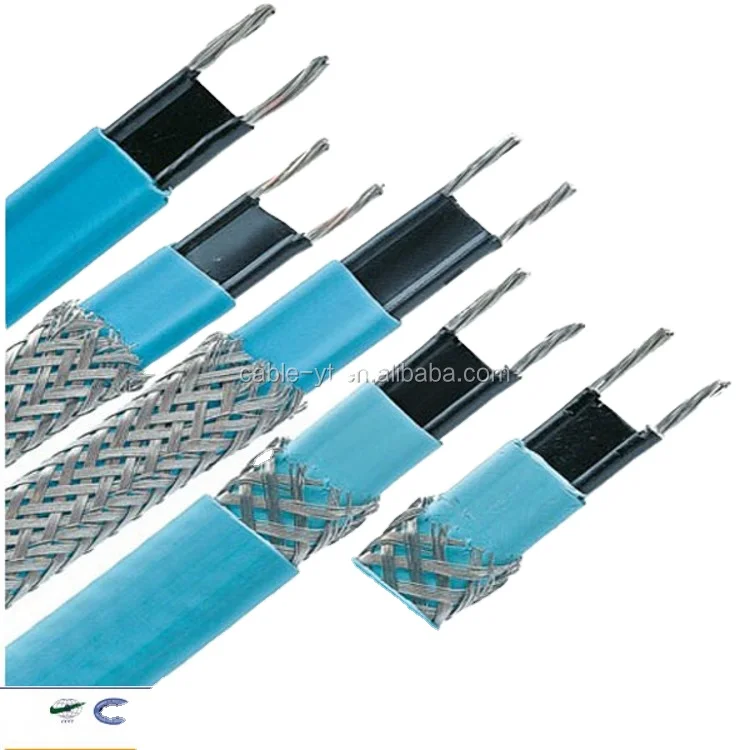

roof pipe driveway low voltage 220v electric self regulating heating cable

Description:  yiteng selforegulating cable provides safe, reliable heating tracing for   freeze  protection

of pipes, values, tanks and similar applications. Low watt density  electrical heaters designed to be cut to

the desired lengths in the field, eliminating  the need for prefabricate costs. No special training is required.

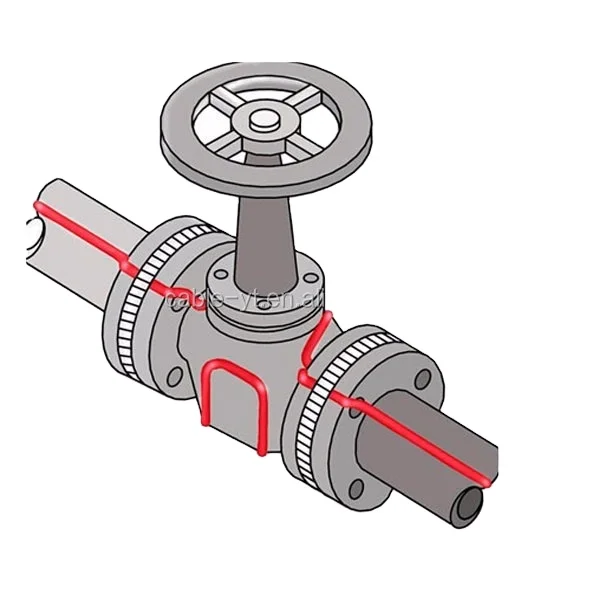

Application:  Pipelines

                       Drains

                       Water Lines

                       Safety showers

                       Sprinkler systems

                       Freeze Protection

                       Viscosity control

                       Low to high temperature maintenance

                       Ordinary locations

                       Hazardous locations

                       Heat Tracing Applications

                       Temperature Raise

                       Tank Heating

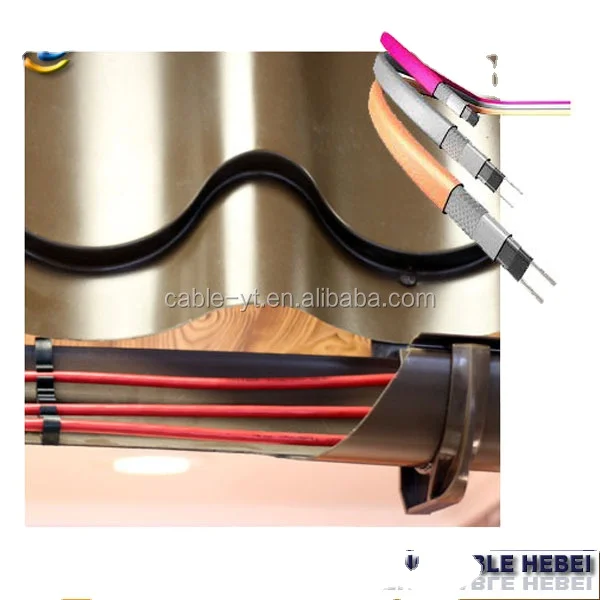

                       Roof and gutter de-icing and driveway snow melting

                       Hot water systems

                       Greenhouse heating

                       Garage ground heating

                       Soil Heating

                       Animal's care room heating etc.

Technical Data:

1.SSR

 Output wattage:35,45,60(w/m)

 Maximum maintain temperature:105℃

 Maximum exposure temperature:205℃

 Minimum installation temperature:-40℃

 Work voltage:110v-120v /220-240v

 2.MSR

 Output wattage:10,17,25(w/m)

 Maximum maintain temperature:65℃

 Maximum exposure temperature:85℃

 Minimum installation temperature:-40℃

 Work voltage: 110v-120v /220-240v

 3.LSR

 Output wattage:10,15,25,30,40(w/m)

 Maximum maintain temperature:65℃

 Maximum exposure temperature:85℃

 Minimum installation temperature:-40℃

 Work voltage: 110v-120v /220-240v

Advantage:

• Safe, no need thermostat


• Energy efficient


• Easy to install, cut to length at the job site


• Can be overlapped


• Automatically temperature control ed


• Eco-friendly, no emissions

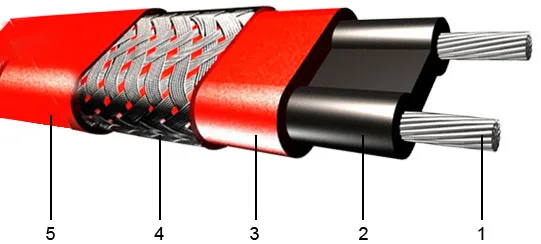

Product Construction:

self-regulating heating cable:Self-Regulating / Self-Limiting: Automatically adjusts heat

output based on surface temperature. Ideal for freeze protection and low

temperature process maintenance.

constant wattage heating cable:Provides precise and constant temperatures up to 500 oF (260 °C ).

Ideal for a wide range of applications.

Attention:

1.Every year,there must be a detection before using in when winter is coming to test its insulation and

water-proof..with megger,the insulation resistance must be more than 20 Mohm when it pointered to 500V and 1000V

2.when using it,the belt must be protected by something warm.If is bare,it will lost much energy,reduce the using life time

3.one connector are connected with power and both connectors must be water-proof

4.you also could install a thermometer to it,when the temperature is near to 0 degree,it start to work,,protect the pipe freezed.

5.you should install a leakage protection switch to that belt,it would be more safe,it also should be worked in a dry environment.
