Cheap Automatic Paper Cup Machine Price Paper Cup Forming Machine Paper Cup Making Machine Prices In India Pakistan
Product Description

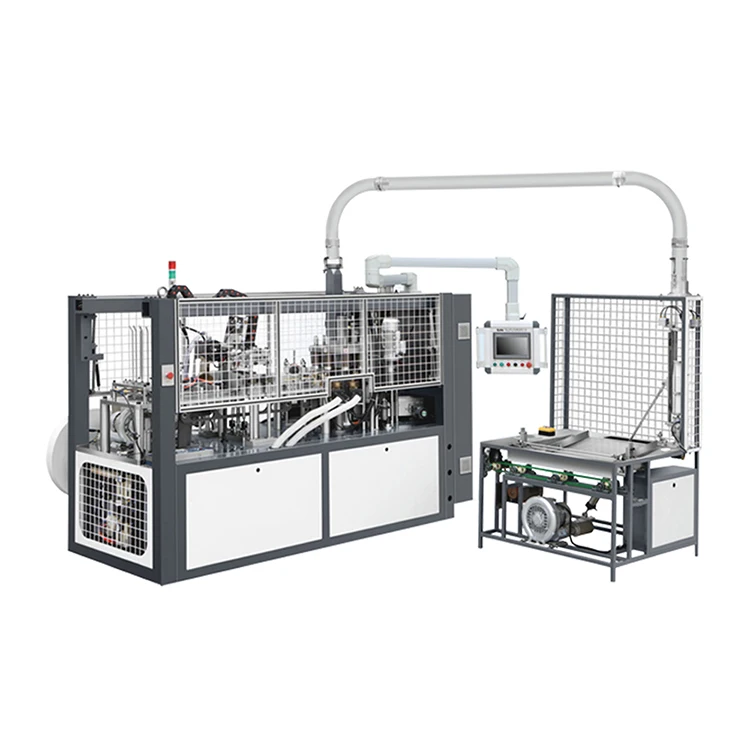

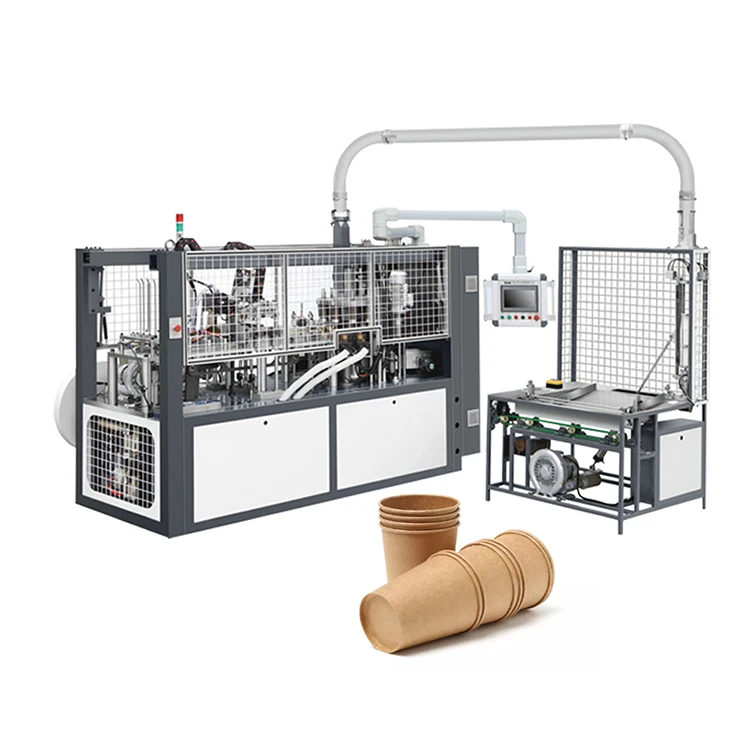

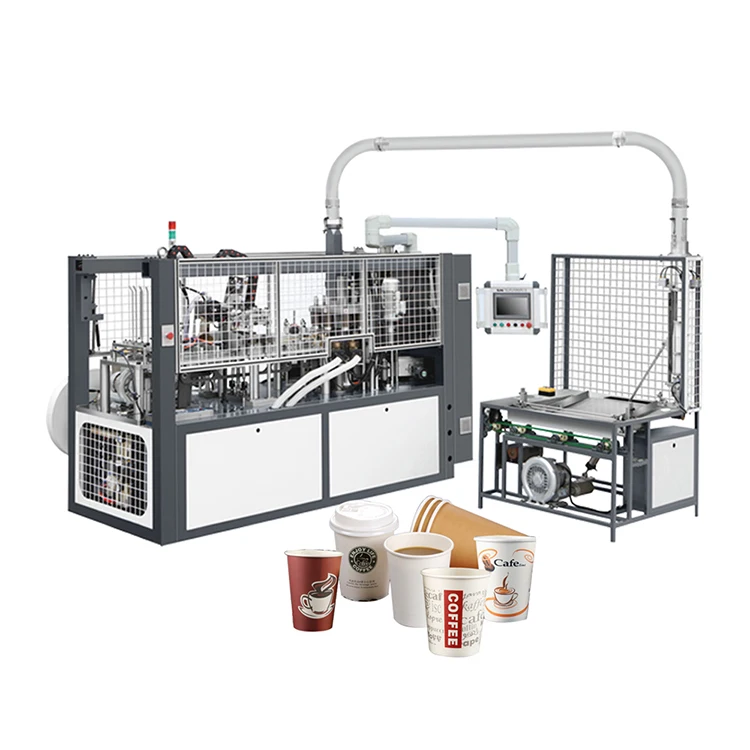

Yugong Paper Cup Forming Machine
Paper Cup Marking Machine
1.Paper cup machine for producing paper cup, tea cup, coffee cup, advertisement cup, ice cream paper cup or other food.
2.Automatic control adopts optically controlled non-contact switch, Micro-controlled transducer,Step-less speed adjustment
3.Easy changing molds produce different sizes paper cups
4.Easy operating by operator (one operator is enough)
5.Easy maintenance with minimum cost
2.Automatic control adopts optically controlled non-contact switch, Micro-controlled transducer,Step-less speed adjustment
3.Easy changing molds produce different sizes paper cups
4.Easy operating by operator (one operator is enough)
5.Easy maintenance with minimum cost
High Efficiency and Energy Conservation:

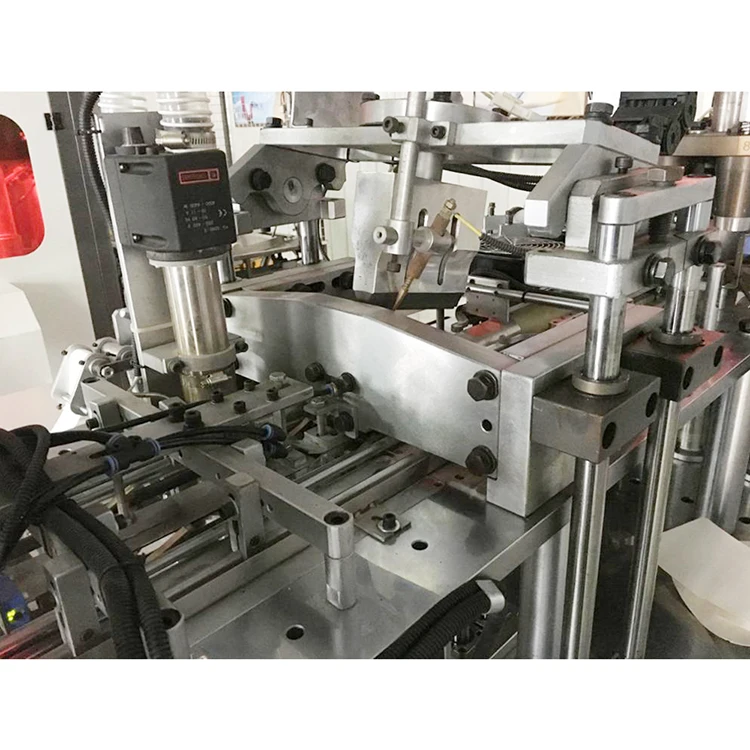

Advanced high-precision cylindrical cam driving unit working with gear drive system make sure the precisely working of every station.
Bottom paper feeding controlled by servo tracking system,and raw material paper can be saved effectively.
Advanced high-precision cylindrical cam driving unit working with gear drive system make sure the precisely working of every station.
Bottom paper feeding controlled by servo tracking system,and raw material paper can be saved effectively.
Foreign technical and Made in China:
Paper bottom heating system(Switzerland Leister)uses 2 steps flameless heating.
Every step in production is monitored by photocell (Japan Omron)and be reported.
Paper bottom heating system(Switzerland Leister)uses 2 steps flameless heating.
Every step in production is monitored by photocell (Japan Omron)and be reported.
User-friendly design:

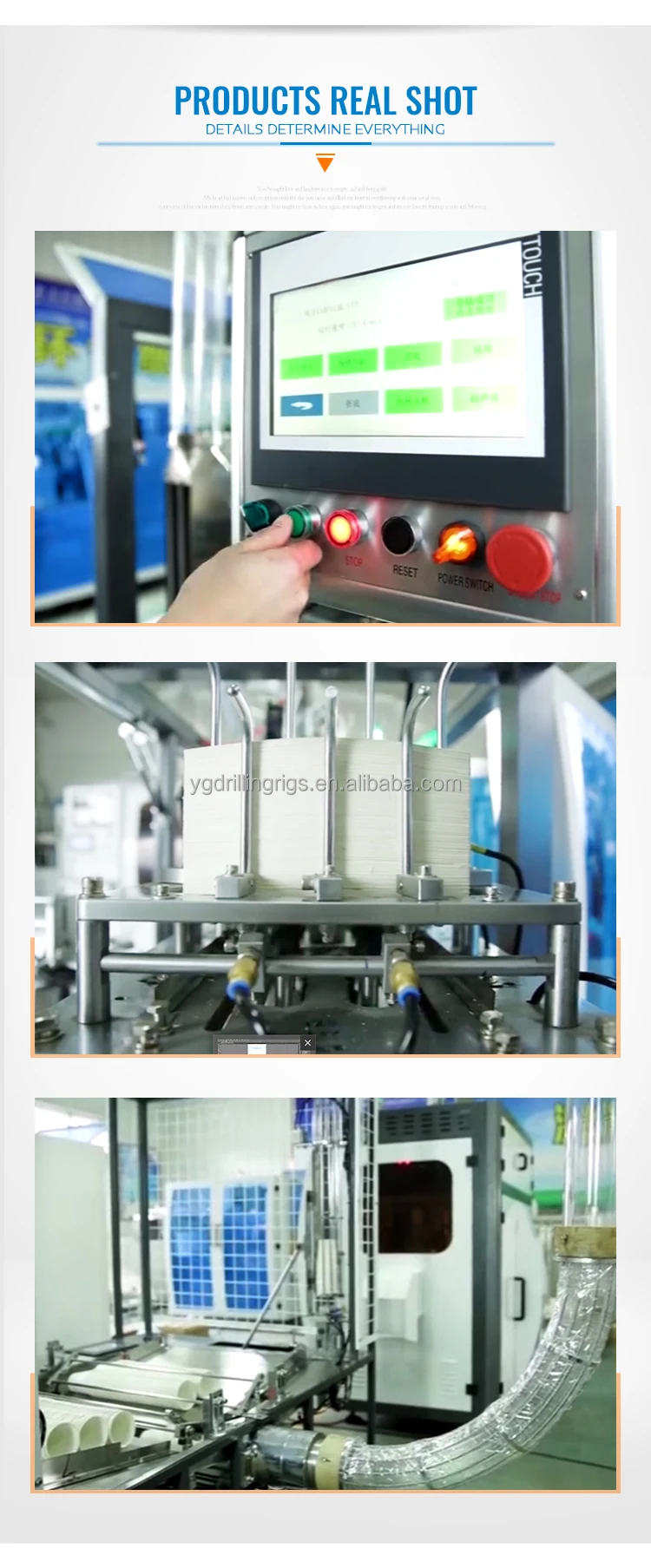

The function of machine is controlled by human-computer interface and PLC system.
Manual operation can be replaced by automatic paper cup counting and collection table with appropriate setting.
The function of machine is controlled by human-computer interface and PLC system.
Manual operation can be replaced by automatic paper cup counting and collection table with appropriate setting.
| Cup size | 6~16oz(outside diameter of a cup 60-90mm,outside diameter of bottom 50~70mm,height of cup 50~135mm,depth of bottom 5~10mm) |
| Rated speed | 90-110pcs/min |
| Main motor power | 2.2KW |
| Electro thermal power | 8.6/13.2KW |
| Air source | 0.6m/min;0.6MPa customer-owned |
| Applical base paper | 190~350g/(single or double PE coating paper) |
| Weight | 3.8T |
| Main size | 2700*1500*1800mm |
| Paper cup collector size | 1150*850*2000mm |
| Actual power consumption | 7.5KW |
| Remark | The paper thickness error margin is ±0.05mm for the same set of mould |

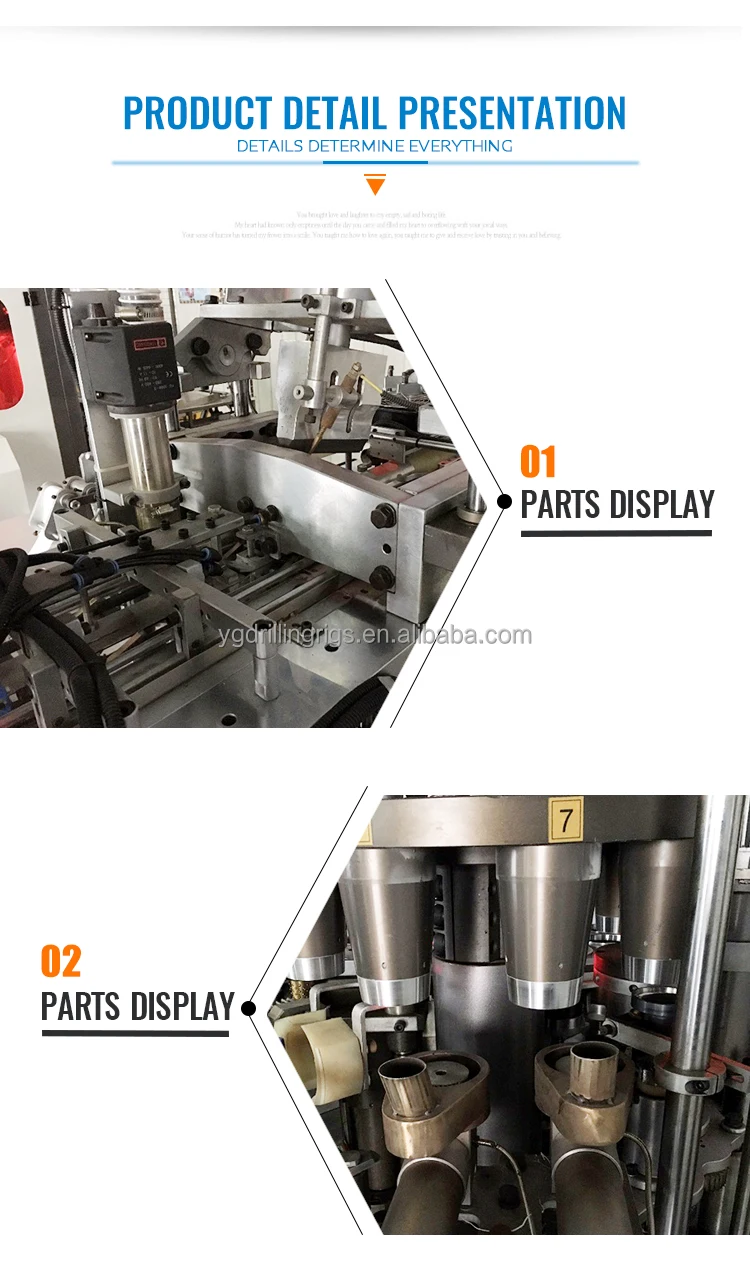

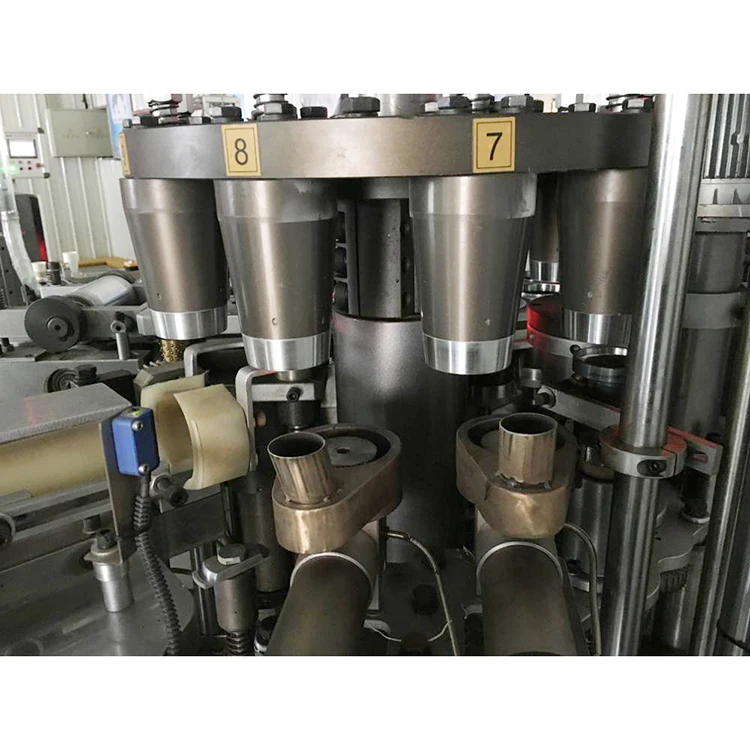

1: Advanced indexing cam open structure .manufacturing precision,ensuring and stability of the machine operation.
2: Swiss import Leiter flameless hot air system, stable performance, high production efficiency.
3: Using high-strength structural profiles.compact machine structure stable.
4: AIl use of standardized parts production,versatility.excellent interchange eability ,casy maintenance of equipment.
5: Using automatic lubrication system ensures high speed operation of the machine for a long time without a break.
6: Intelligent design.PLC automatic control.servo motor,automatic fault alarm.counting. detection.parking
7: Automatic shutdown isolation.
8:we use spray lubrication to add oil,so you only need to use three barrels of oil which is much less than other company
2: Swiss import Leiter flameless hot air system, stable performance, high production efficiency.
3: Using high-strength structural profiles.compact machine structure stable.
4: AIl use of standardized parts production,versatility.excellent interchange eability ,casy maintenance of equipment.
5: Using automatic lubrication system ensures high speed operation of the machine for a long time without a break.
6: Intelligent design.PLC automatic control.servo motor,automatic fault alarm.counting. detection.parking
7: Automatic shutdown isolation.
8:we use spray lubrication to add oil,so you only need to use three barrels of oil which is much less than other company
