1200 degree high vacuum Quartz tube furnace Resistance wire heating furnace for Annealing and Sintering
- Category: >>>
- Supplier: Henan Mingguan Scientific Instruments Co. Ltd.
Share on (1600835945819):
Product Overview
Description
1200 degree high vacuum Quartz tube furnace Resistance wire heating furnace for Annealing and Sintering
Product Description
Product application: Widely used in enterprises and institutions scientific research and small batch production, as well as colleges and universities involved in scientific research and teaching of ceramics, metallurgy, electronics, glass, chemical, machinery, refractory materials, new material development, special materials, building materials in the field.
The detail specifications of high temperature lab electric furnace
Max.temperature | 1200C |
Working temperature | 0-1100C |
Tube diameter | 100mm or as your requirement |

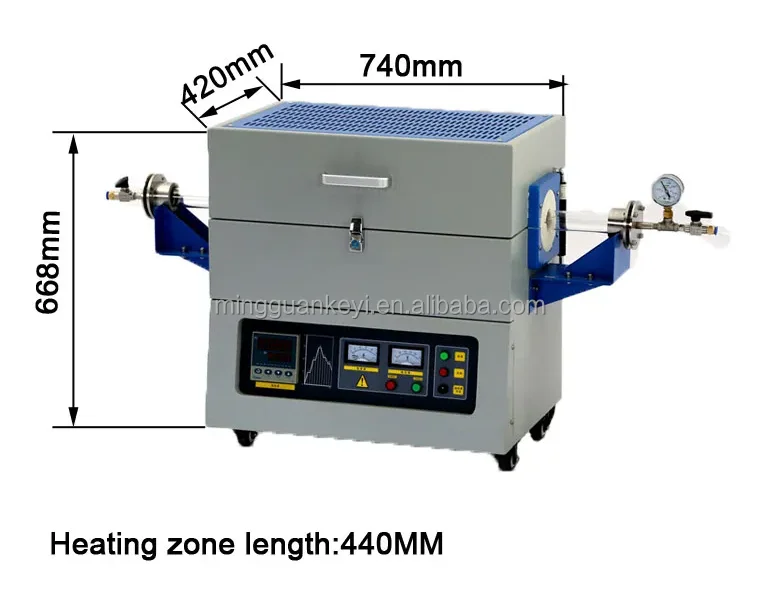

Tube heating length | 440mm |
Tube material | High quality 99% quartz tube |
Heat element | Resistance wire |
voltage and frequency | 220v 50Hz/60Hz |
Heating rate | 0-20C/min |
Temperature accuracy | ±1°C |
Thermocouple | K type |
Temperature control | Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
Max.vacuum | -0.1Mpa |
Inlet gas/Atmosphere | It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc |
Gas control | The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
Vacuum system | Use Stainless steel vacuum flange with vacuum gauge,valve;Easy to unload, double seal |
Appearance design | The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use. |
Furnace shell structure | Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
Furnace Chamber material | Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
Furnace chamber design | Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
Sandard accessories | Vacuum pump 1pc, Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace |
Other temperature options | 1200C,1400C,1700C,1800C |
Furnace standard Tube size | Tube diameter:40mm,60mm,80mm,100mm or other OEM size; Heating zone length:200mm,350mm,440mm or other OEM size. |
Waranty | One year |

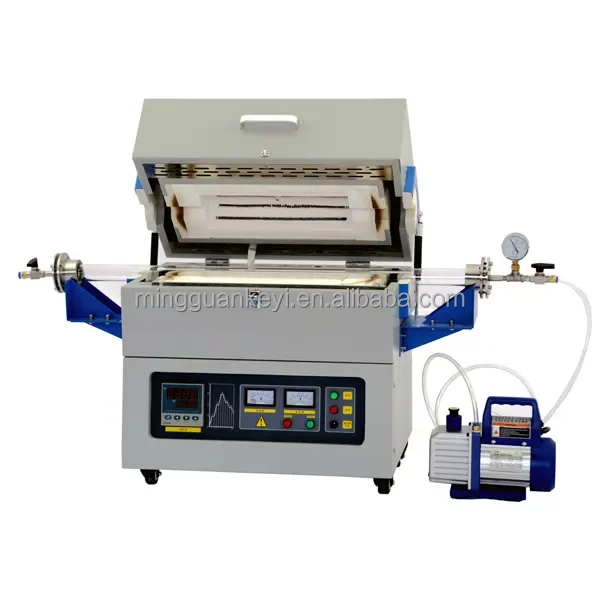

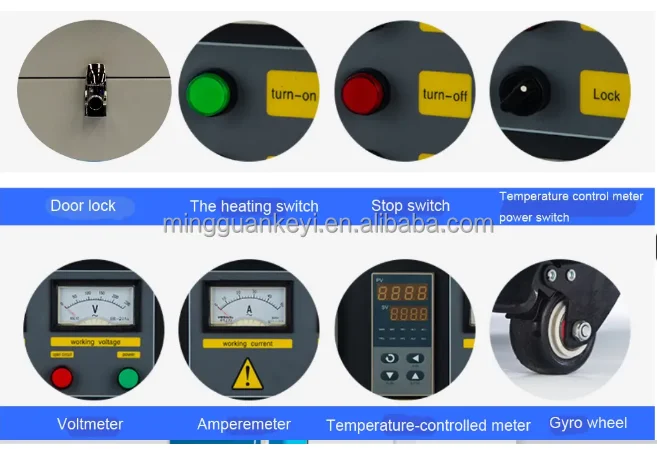

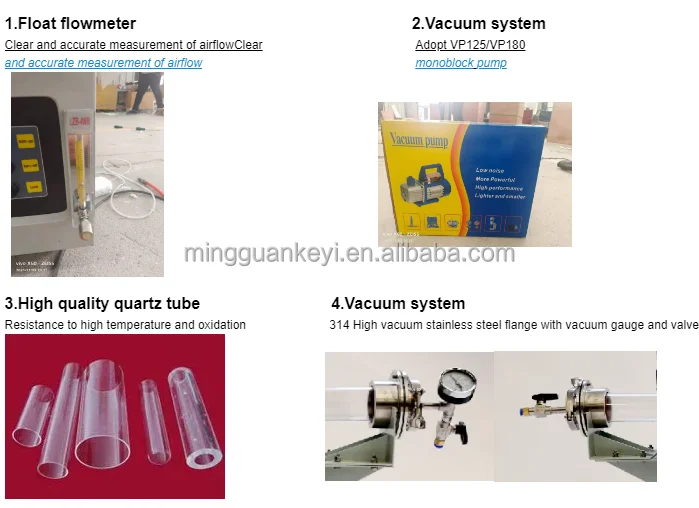

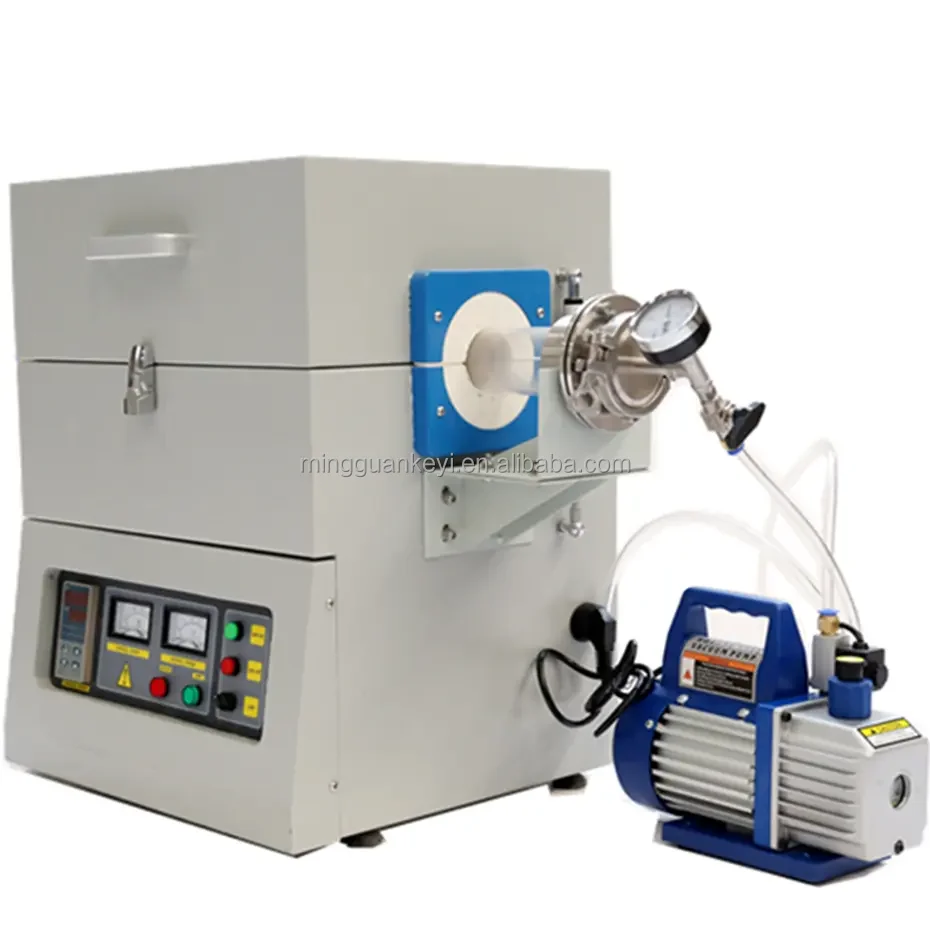

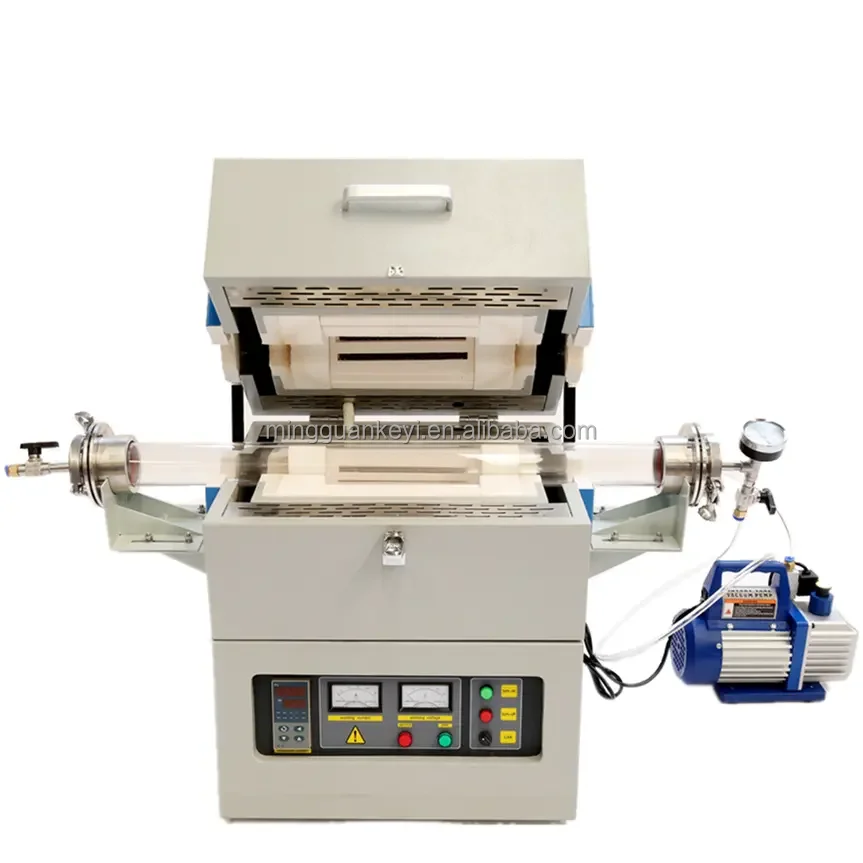

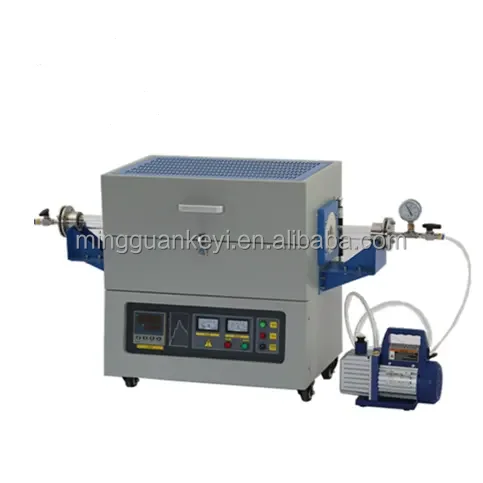

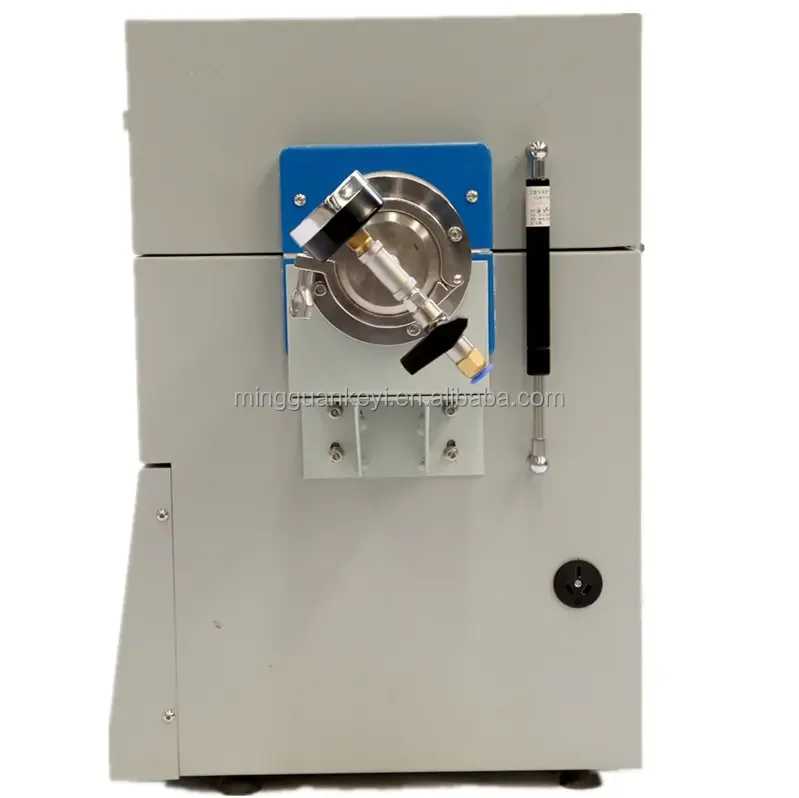

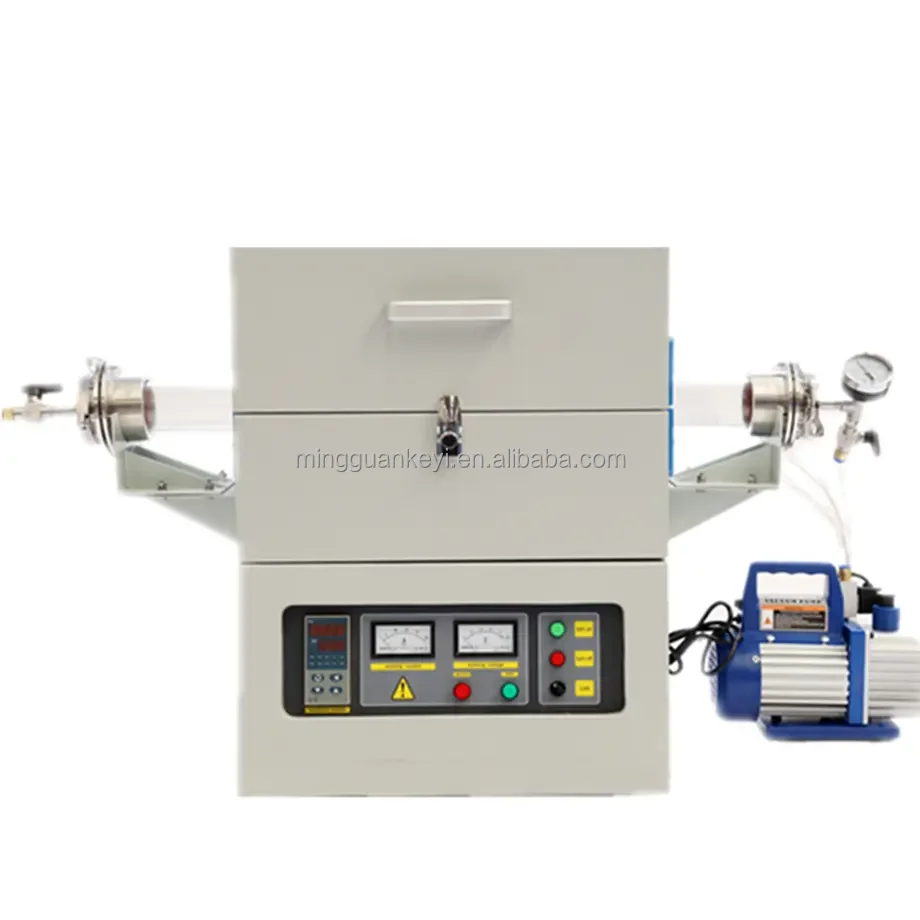

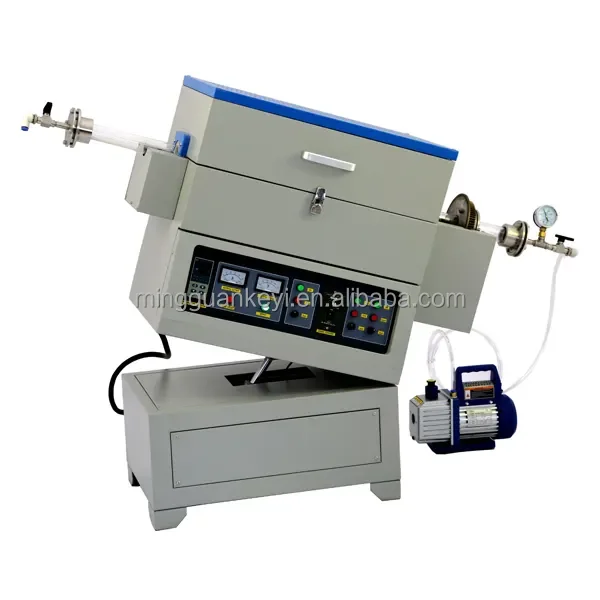

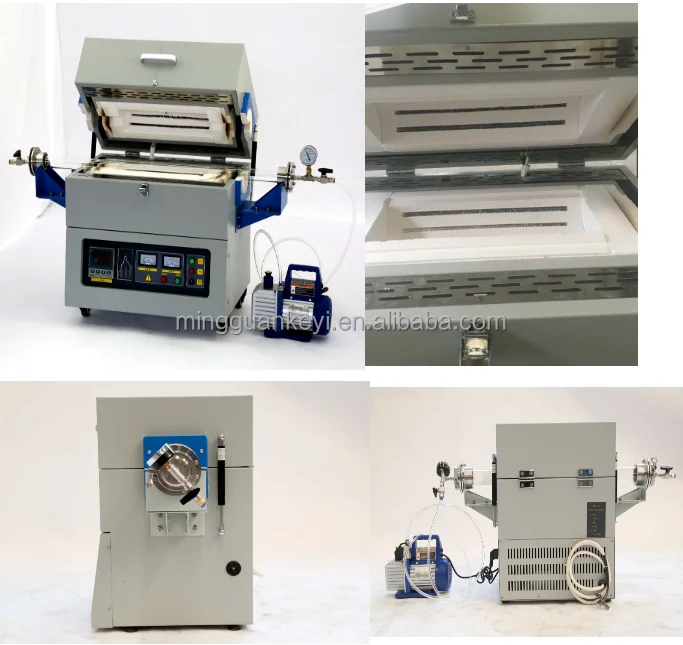

Product pictures
Company Profile
We are a foreign trade company that specializes in laboratory equipment sales, and we are committed to providing high-quality laboratory equipment and solutions to customers worldwide. Since our establishment, we have always adhered to the business philosophy of "customer first, quality first," continuously innovating and optimizing our products and services to provide customers with the best shopping experience.

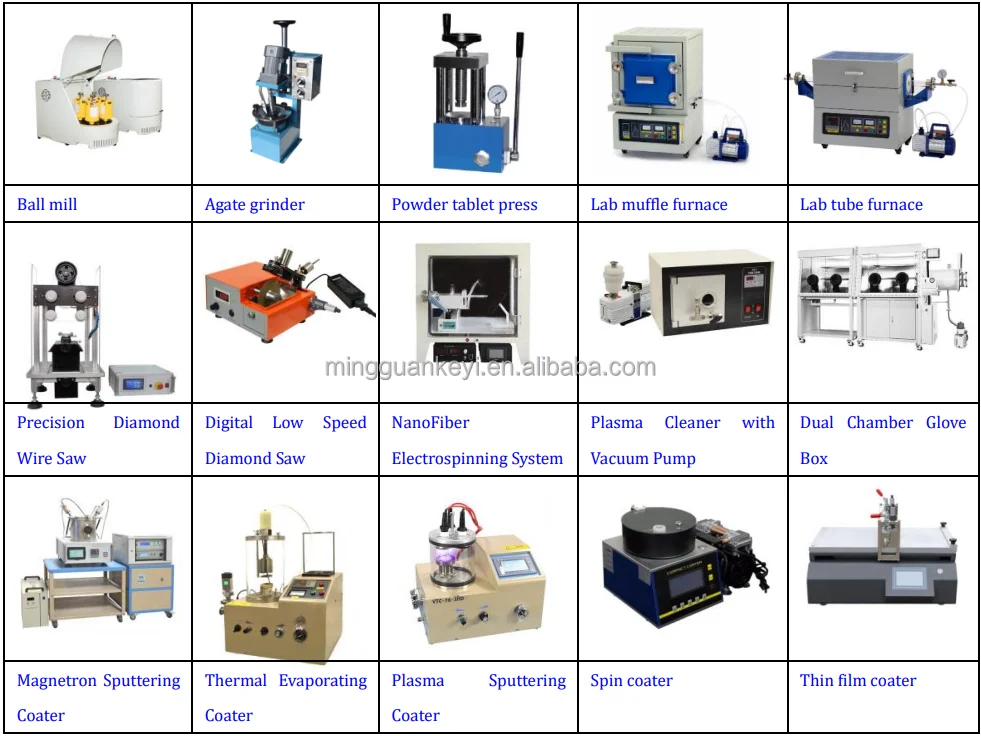

Our products mainly include ball mills, tablet presses, various laboratory sintering furnaces, cutting machines, grinding and polishing machines, plasma cleaning machines, plasma coating machines, magnetron sputtering systems, thermal evaporation coating machines, high-speed spin coaters, thin film coaters, electrospinning machines, glove boxes, battery equipment, etc., which provides excellent equipment for scientific research in the fields of chemistry, physics, materials, electronics, polymer engineering, new material preparation, and research and development. We have established long-term and stable cooperative relationships with globally renowned brands to ensure that our product quality and technological advantages are always in a leading position in the industry.
Our team is composed of experienced and high-quality professionals with a deep background in laboratory equipment sales and technology, capable of providing customized solutions to customers. Whether you are a research institution, a production enterprise, or a medical institution, we will provide you with the highest quality and most suitable laboratory equipment and services.
If you are looking for high-quality, high-performance lab equipment, please contact us, and we will wholeheartedly provide you with high-quality products and services.
Our Services
1. Factory prices with the best quality.
2. One year free-of-charge maintenance for all the equipment
3. Customized service for special demand
4. Fast and flexible delivery, by sea, by air, by express
5. Quick response within 24 hours
How to order
1. If you are interested in our products, please tell us the model number and quantity.
2. We will make a proforma invoice for your order.
3. We will deliver the product ASAP on receipt of the payment
Guarantee
1. Guarantee for one year after shipment.
Payment
1.Telegraphic transfer
2.Western Union
3.Secure Payment through Alibaba
4.L/C
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
