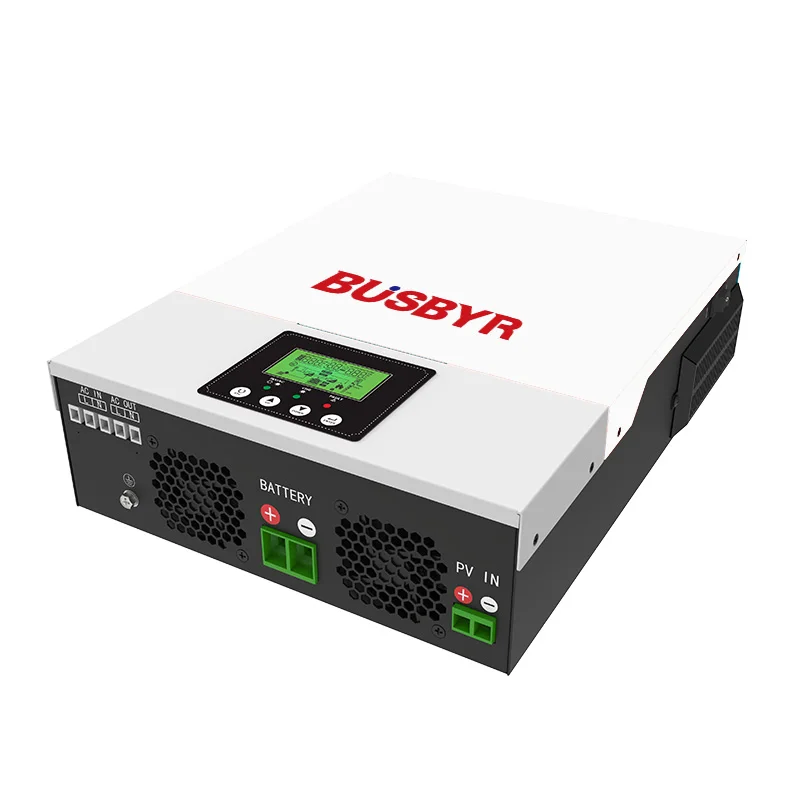

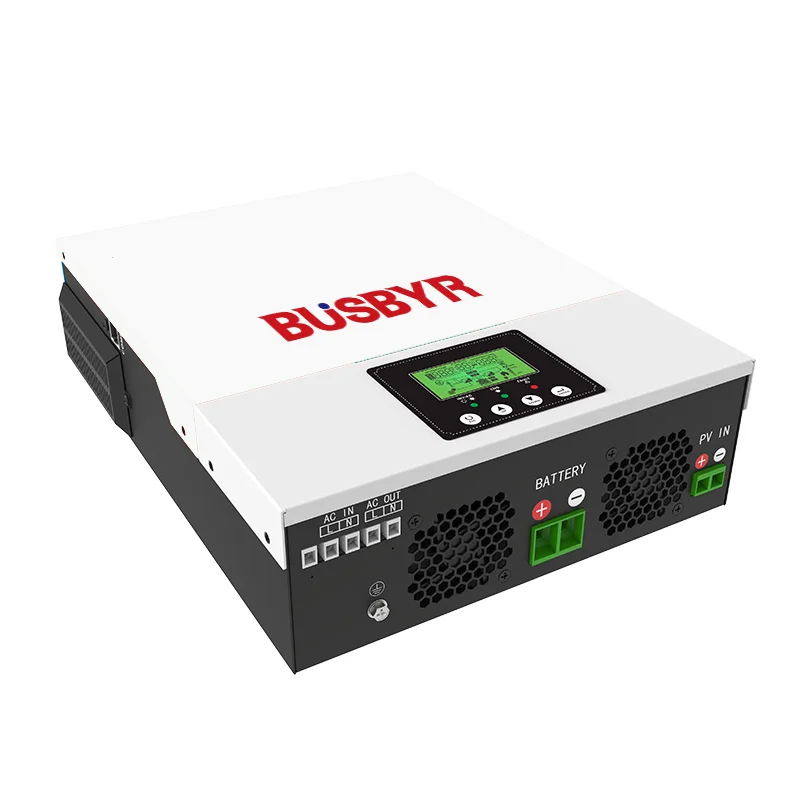

wholesale price inverter off grid single phase 1600W 3000W bulit in 80A MPPT solar charger sine wave pv inverter for solar panel
- Category: >>>
- Supplier: Shenzhen Busbyr New Energy Technology Co. Ltd.
Share on (1600835979121):
Product Overview
Description
Products Description
wholesale price inverter off grid single phase 1600W 3000W bulit-in 80A MPPT solar charger sine wave pv inverter for solar panel
Key Features
●Pure sine wave solar inverter
●Output pf=1.0
●WIFI&GPRS available for App
●Built-in 80A MPPT solar charger
●High PV input voltage range(30~400VDC)
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
●Meet the rich customize needs of customers
●Compatible with lithium battery
●Solar energy is provided directly to the load first
●Output pf=1.0
●WIFI&GPRS available for App
●Built-in 80A MPPT solar charger
●High PV input voltage range(30~400VDC)
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
●Meet the rich customize needs of customers
●Compatible with lithium battery
●Solar energy is provided directly to the load first
Specification
Model | BS4 Plus -2kw | BS4 Plus -3.2kw | |
Rated Power | 2000VA/1600W | 3200VA/3000W | |
AC Input | |||
Volatage | 230V AC | ||
Selectable Voltage Range | 170~280V AC(For Personal Computers) | ||
90~280V AC(For Home Appliances) | |||
Frequency Range | 50 Hz/60Hz(Auto sensing) | ||
AC OUTPUT | |||
AC Voltage Regulation | 230V AC ±5% | ||
Surge Power | 4000VA | 6400VA | |
Efficiency(Peak) PV to INV | 98% | ||
Efficiency(Peak) Battery to INV | 94% | ||
Transfer Time | 10ms (For Personal Computers); 20ms (For Home Appliances) | ||
BATTERY&AC CHARGER | |||
Battery Voltage | 12V DC | 24V DC | |
Floating Charge Voltage | 13.5V DC | 27V DC | |
Overcharge Protection | 16V DC | 33V DC | |
Maximum AC Charge Current | 60A | ||
SOLAR CHARGER | |||
Maximum PV Array Power | 2000W | 3000W | |
MPPT Range @ Operating Voltage | 30~450V DC | 6200W | |
Maximum PV Array Open Circuit Voltage | 450V DC | 2067W | |
Maximum Charging Current | 80A | 44VDC | |
PHYSICAL | |||
Dimension,D X W X H(mm) | 357*273*95 | ||
Net Weight(kgs) | 4 | 5 | |
Communication Port | RS232/WIFI//GPRS | ||
OPERATING ENVIRONMENT | |||
Humidity | 5% to 95% Relative Humidity(Non~condensing) | ||
Operating Temperature | -10-50℃ | ||

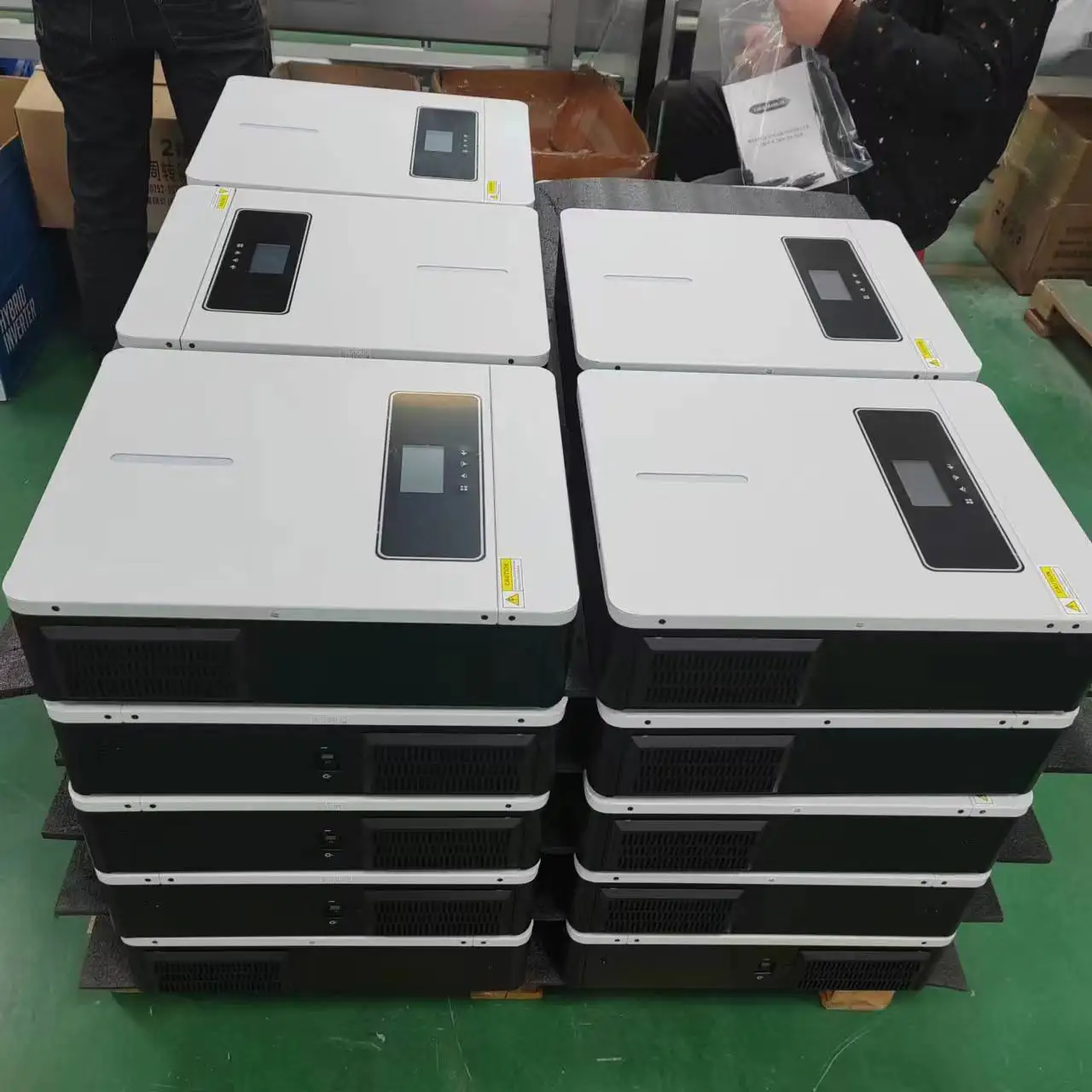

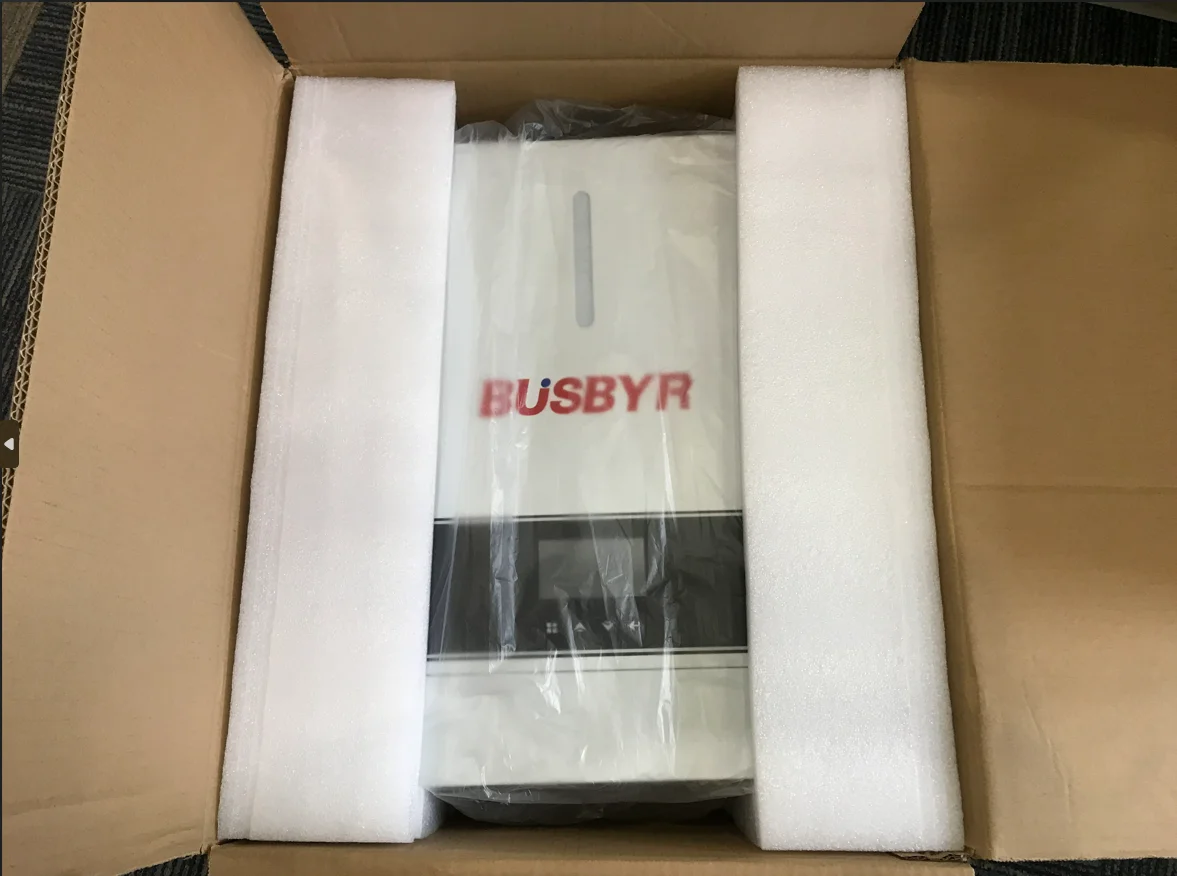

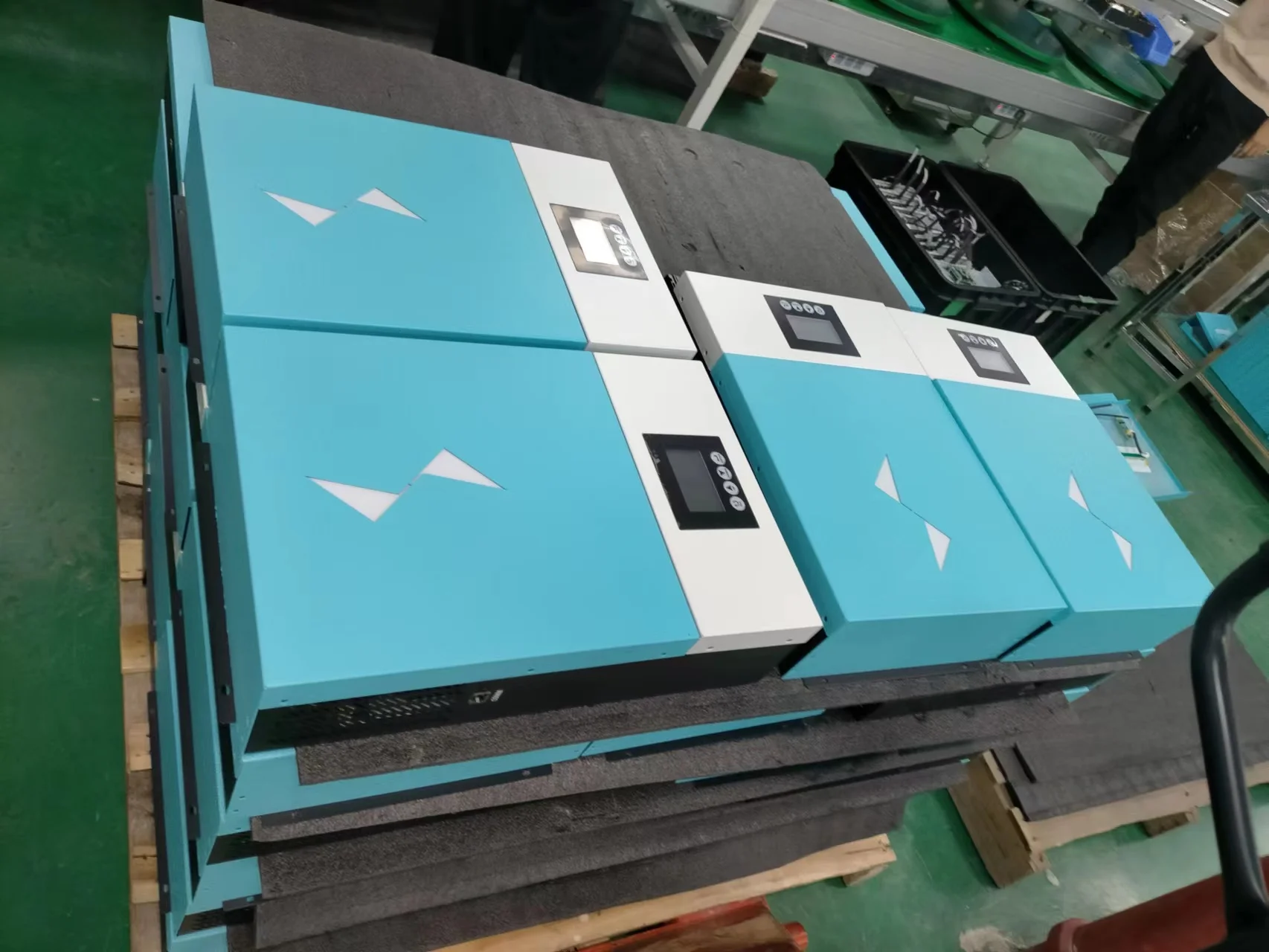

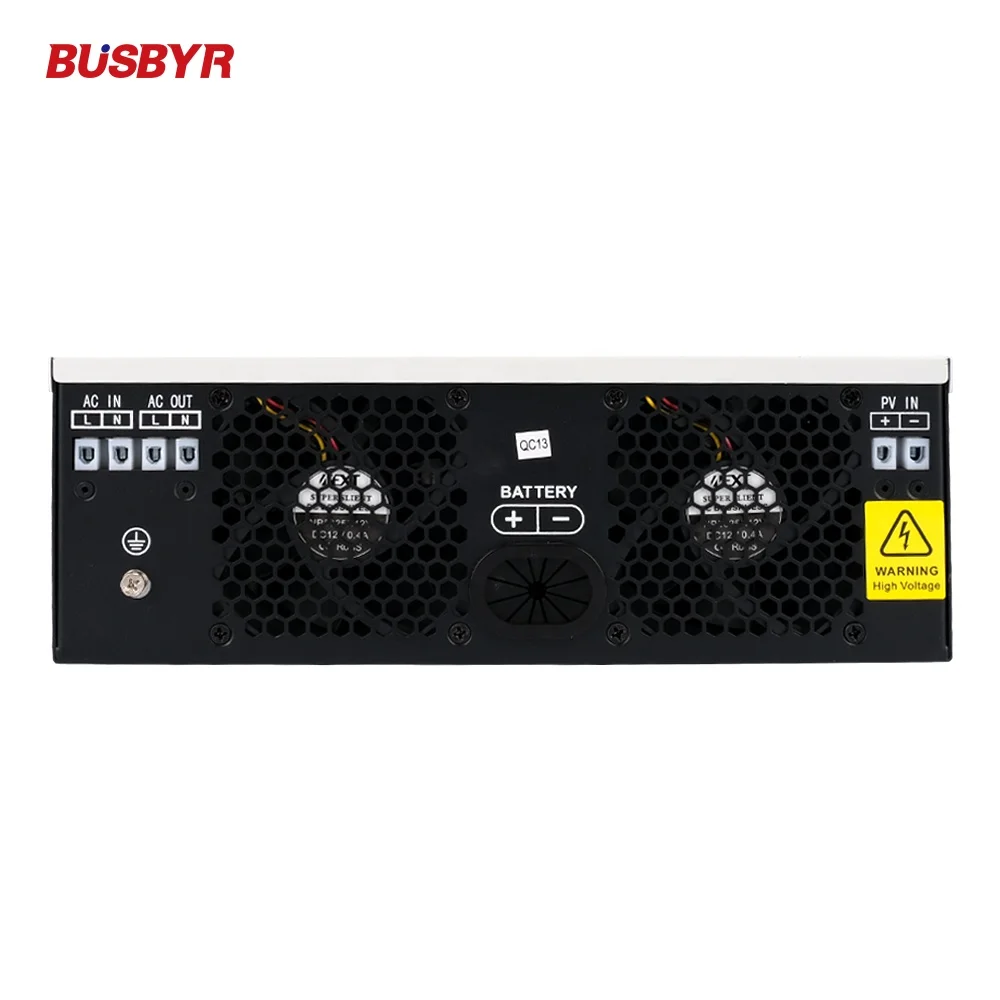

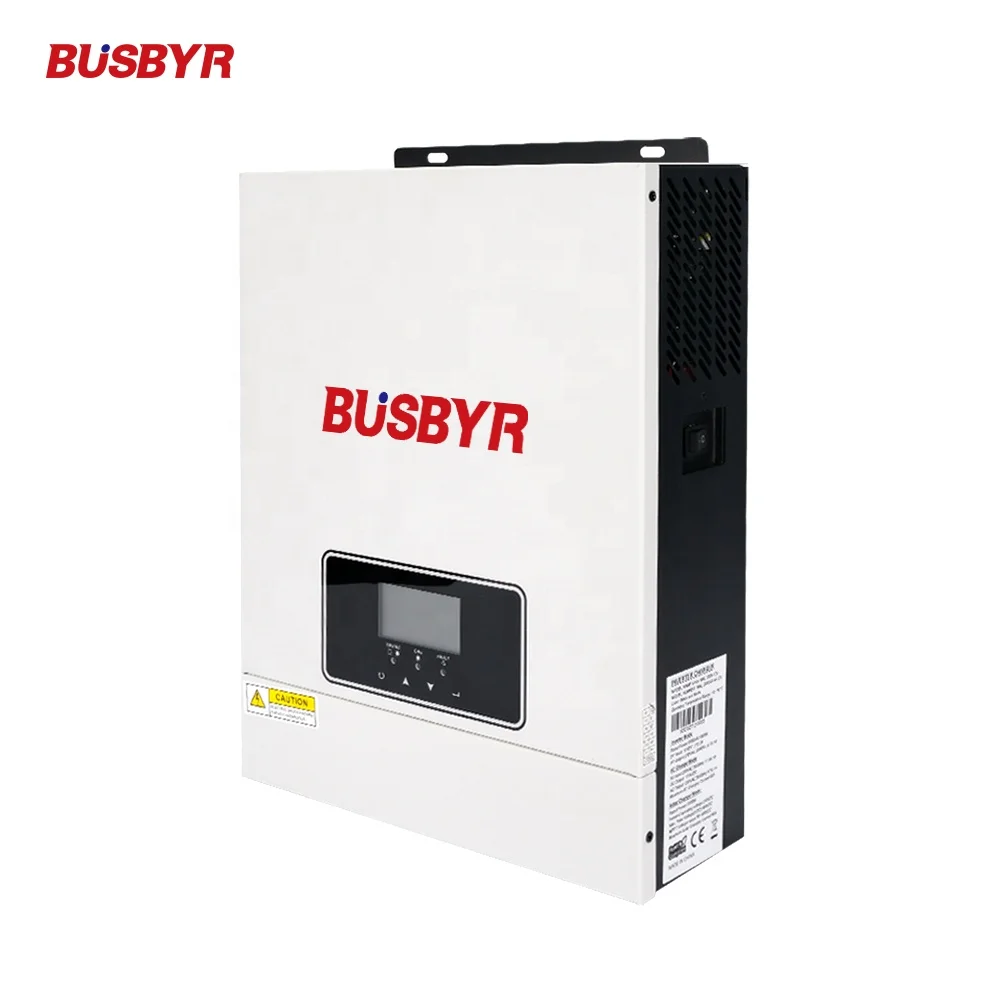

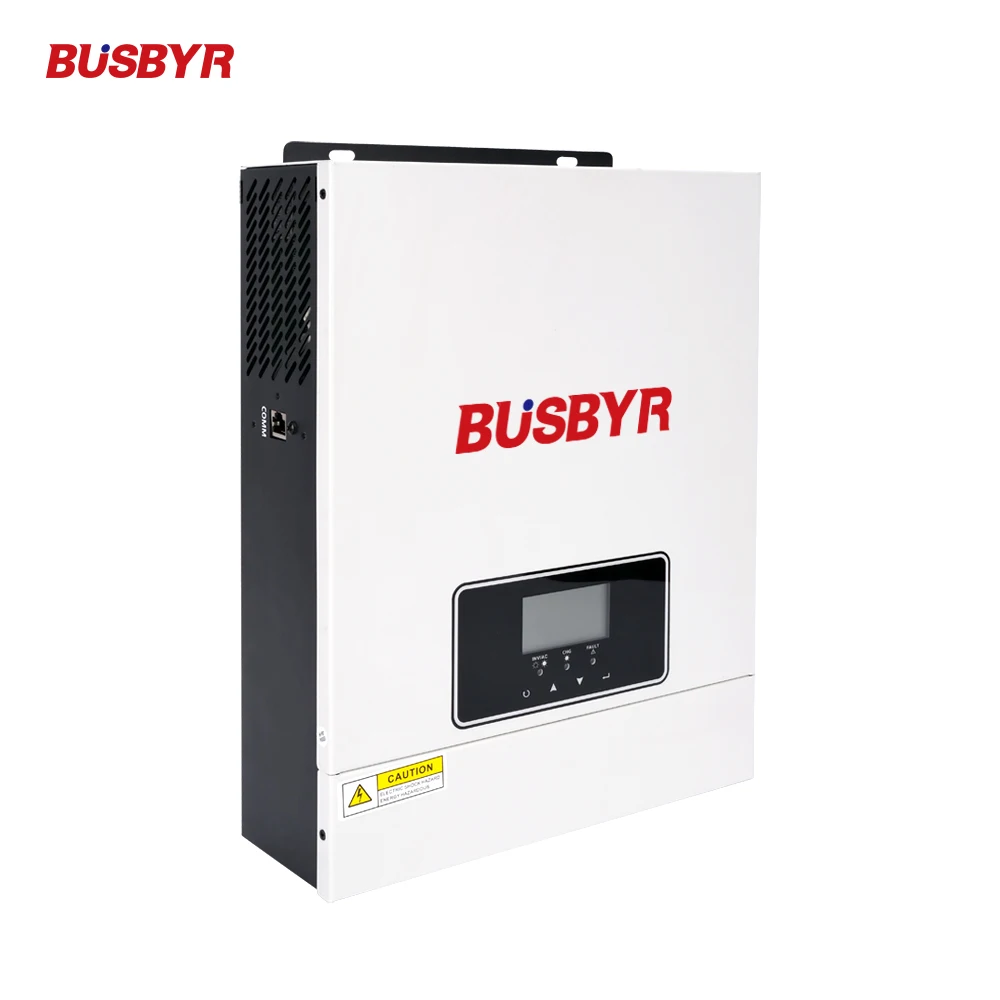

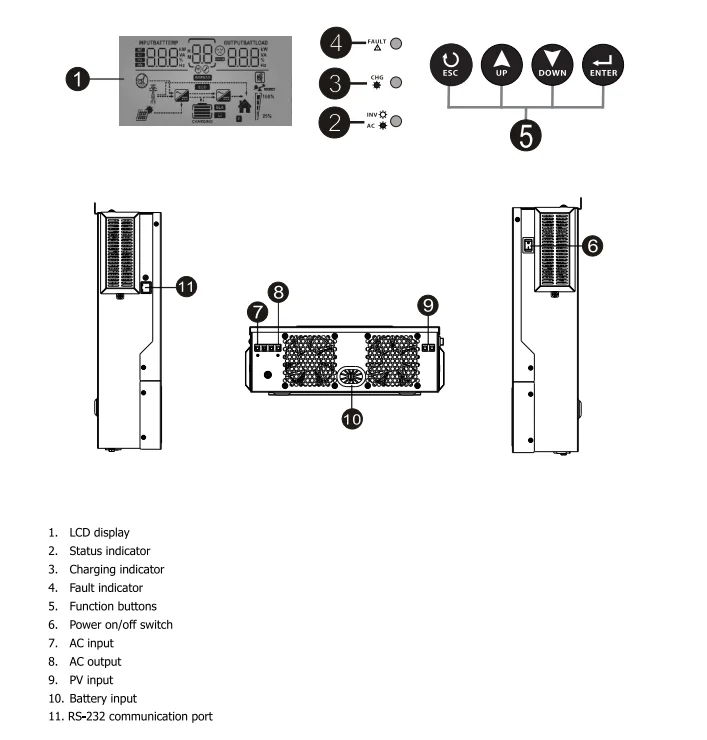

Details Images
Our Advantages

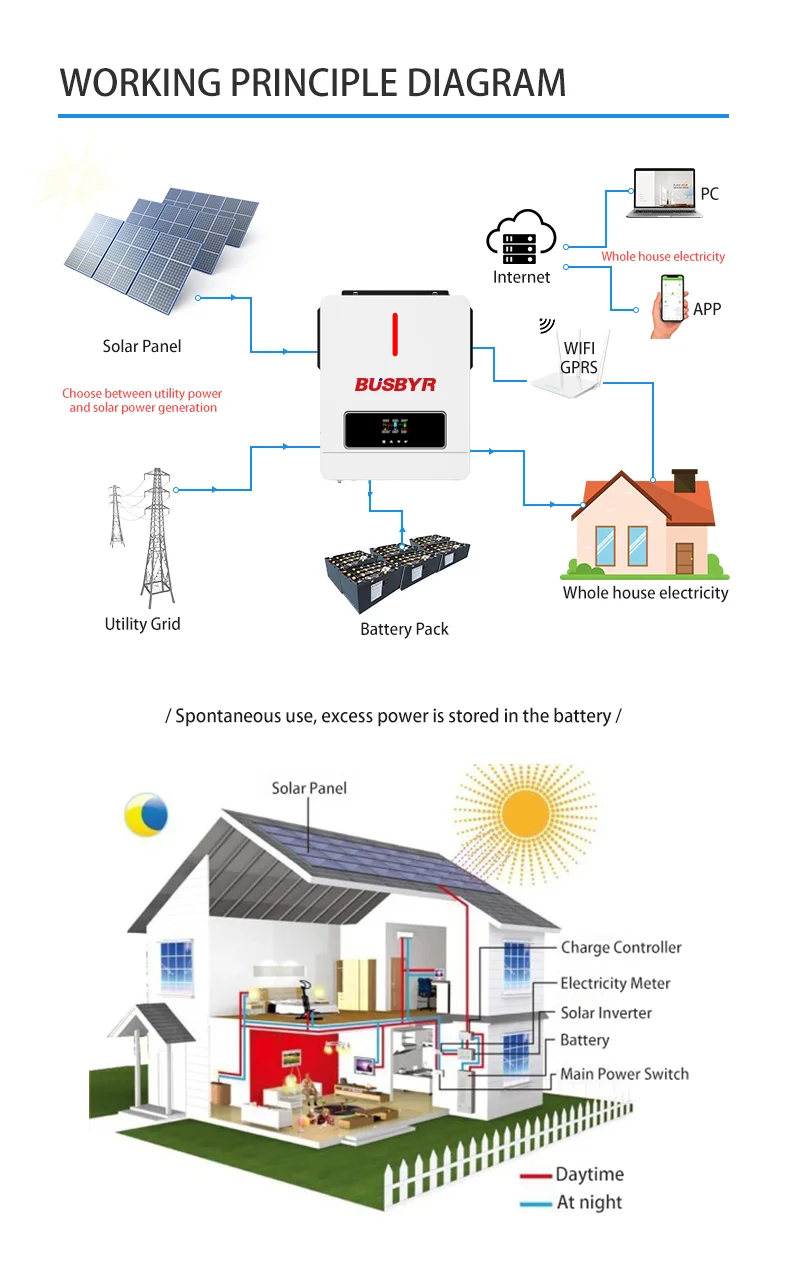

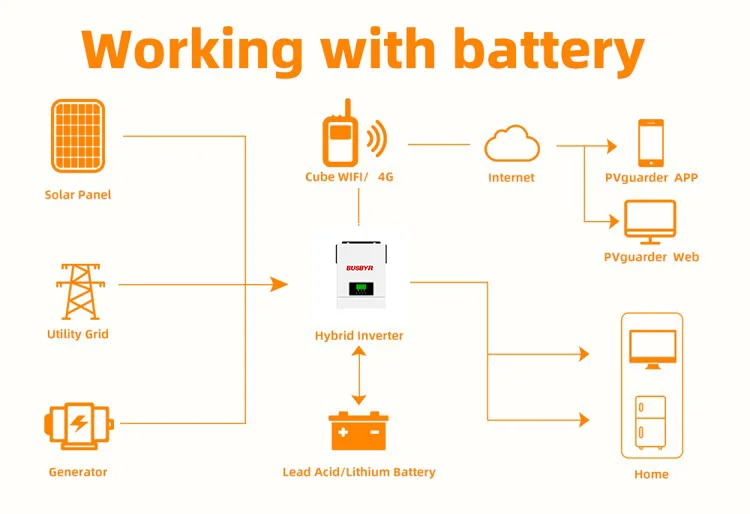

1. On/Off-Grid Inverter
Hybrid inverters can effectively overcome the limitations of existing solar inverters that can only be connected to the grid to generate electricity, and off-grid inverters are limited in the load power consumption when the sunlight is weak, and can effectively improve the utilization of solar energy by equipment Efficiency, especially suitable for occasions where the grid is unstable or the cost of grid power supply is high.
2. Pure Sine Wave
The sine wave inverter has little interference to radio, communication equipment and precision equipment, low noise, strong load adaptability, can meet the application of all AC loads, and the efficiency of the whole machine can reach more than 98%.
3. Built-in MPPT
All Busbyr products have built-in MPPT, so there is no need to purchase an additional MPPT controller, saving costs. Its optimization process can ensure that the solar cells always operate at the maximum power point to make full use of the output energy of the solar cell array. Compared with traditional PWM, the charging efficiency of MPPT solar regulator is increased by at least 20%-30%, and it can still maintain excellent performance under the condition of low solar energy.
4. Running Without Battery
Many off-grid inverters need to be connected to batteries when working, but some of Busby's inverters can be used without batteries, which can save battery costs when the module pv system is sealed. When the photovoltaic off-grid system is not connected to the battery and the power grid fails, the system converts the direct current generated by the photovoltaic panel into alternating current to supply power to the load.
5. WiFi Optional
Using the WiFi module, you can download the Optical Storage App on your mobile phone, and monitor the real-time data through the App.
Hybrid inverters can effectively overcome the limitations of existing solar inverters that can only be connected to the grid to generate electricity, and off-grid inverters are limited in the load power consumption when the sunlight is weak, and can effectively improve the utilization of solar energy by equipment Efficiency, especially suitable for occasions where the grid is unstable or the cost of grid power supply is high.
2. Pure Sine Wave
The sine wave inverter has little interference to radio, communication equipment and precision equipment, low noise, strong load adaptability, can meet the application of all AC loads, and the efficiency of the whole machine can reach more than 98%.
3. Built-in MPPT
All Busbyr products have built-in MPPT, so there is no need to purchase an additional MPPT controller, saving costs. Its optimization process can ensure that the solar cells always operate at the maximum power point to make full use of the output energy of the solar cell array. Compared with traditional PWM, the charging efficiency of MPPT solar regulator is increased by at least 20%-30%, and it can still maintain excellent performance under the condition of low solar energy.
4. Running Without Battery
Many off-grid inverters need to be connected to batteries when working, but some of Busby's inverters can be used without batteries, which can save battery costs when the module pv system is sealed. When the photovoltaic off-grid system is not connected to the battery and the power grid fails, the system converts the direct current generated by the photovoltaic panel into alternating current to supply power to the load.
5. WiFi Optional
Using the WiFi module, you can download the Optical Storage App on your mobile phone, and monitor the real-time data through the App.
Recommend Products

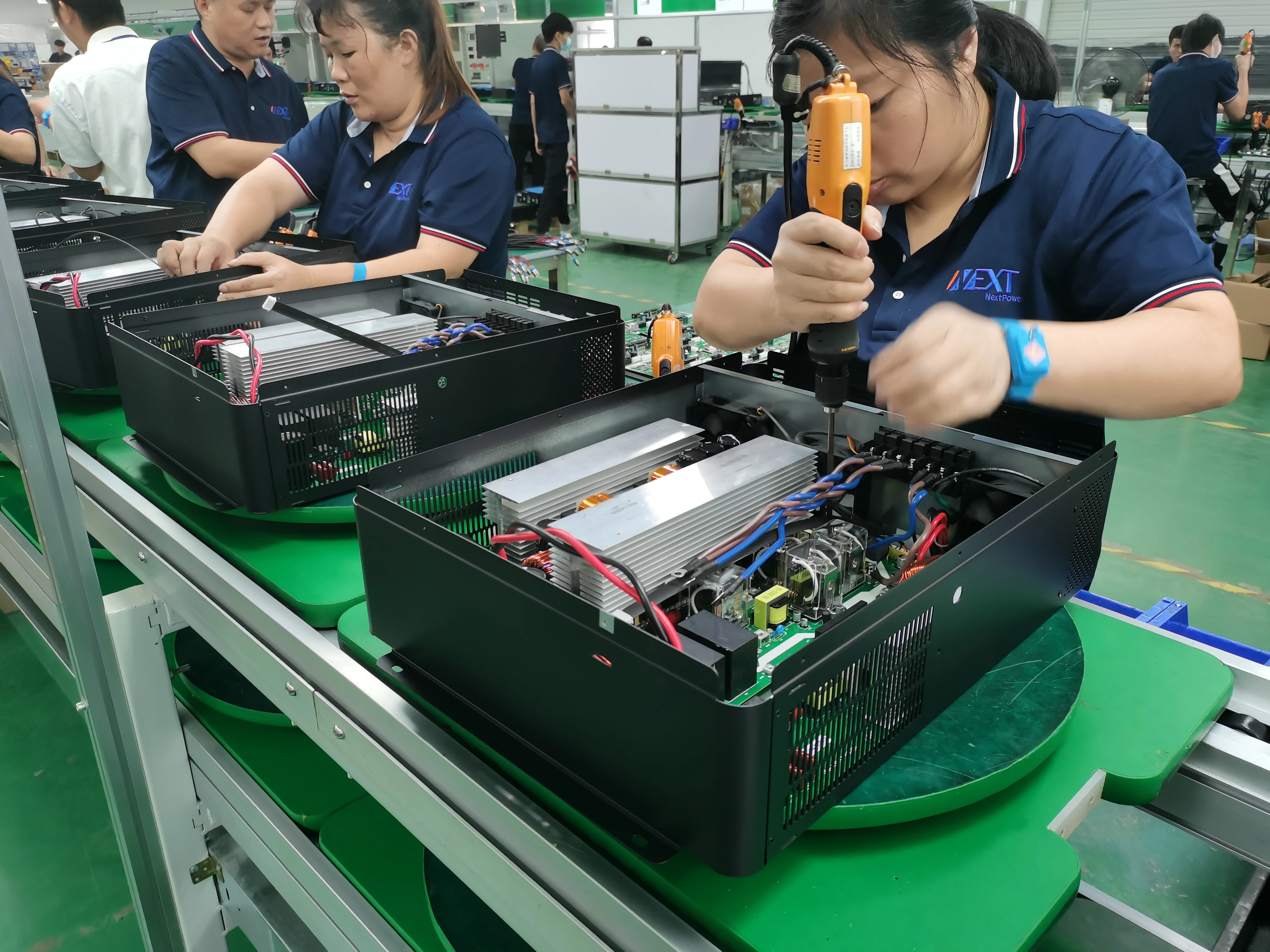

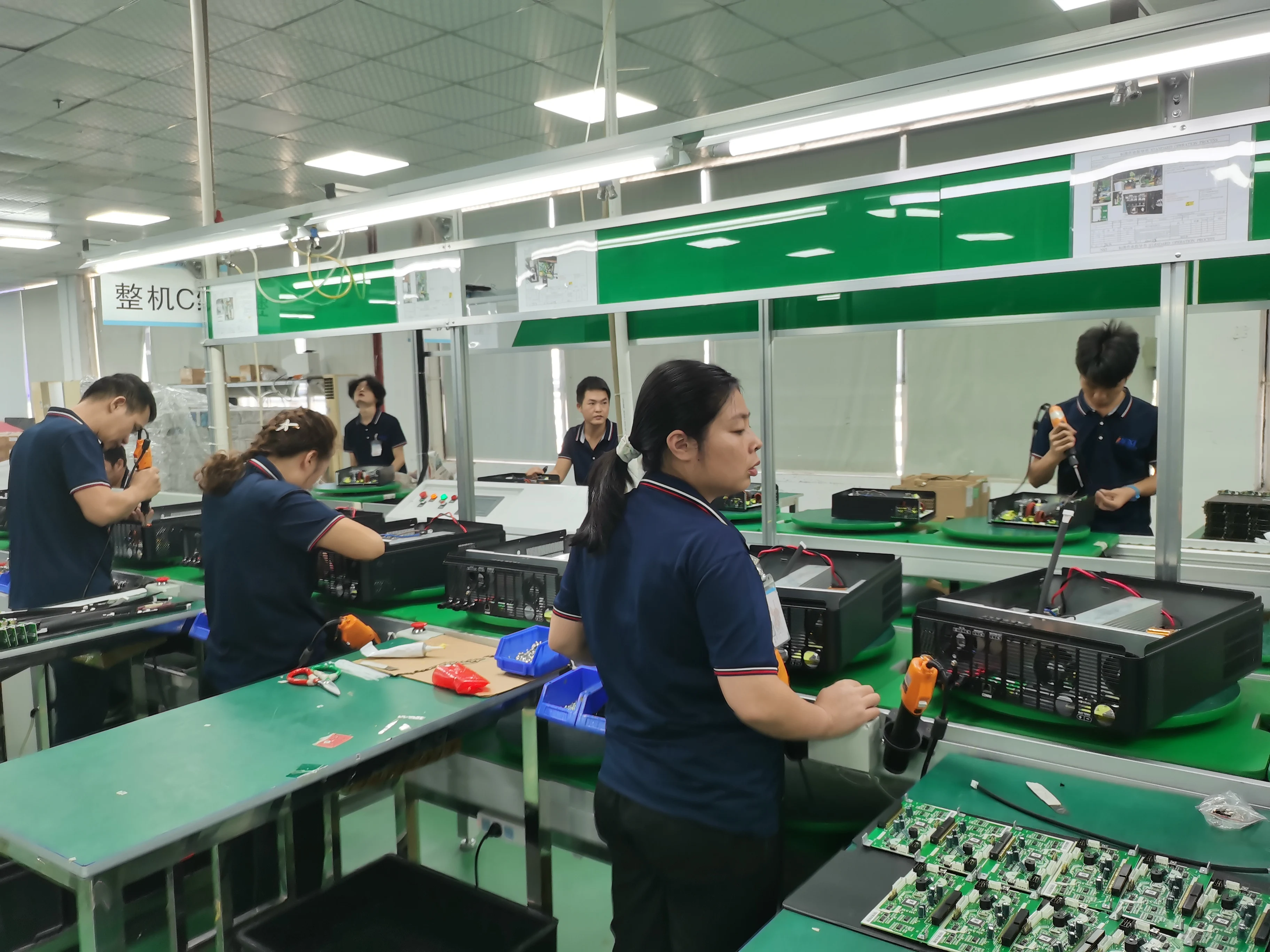

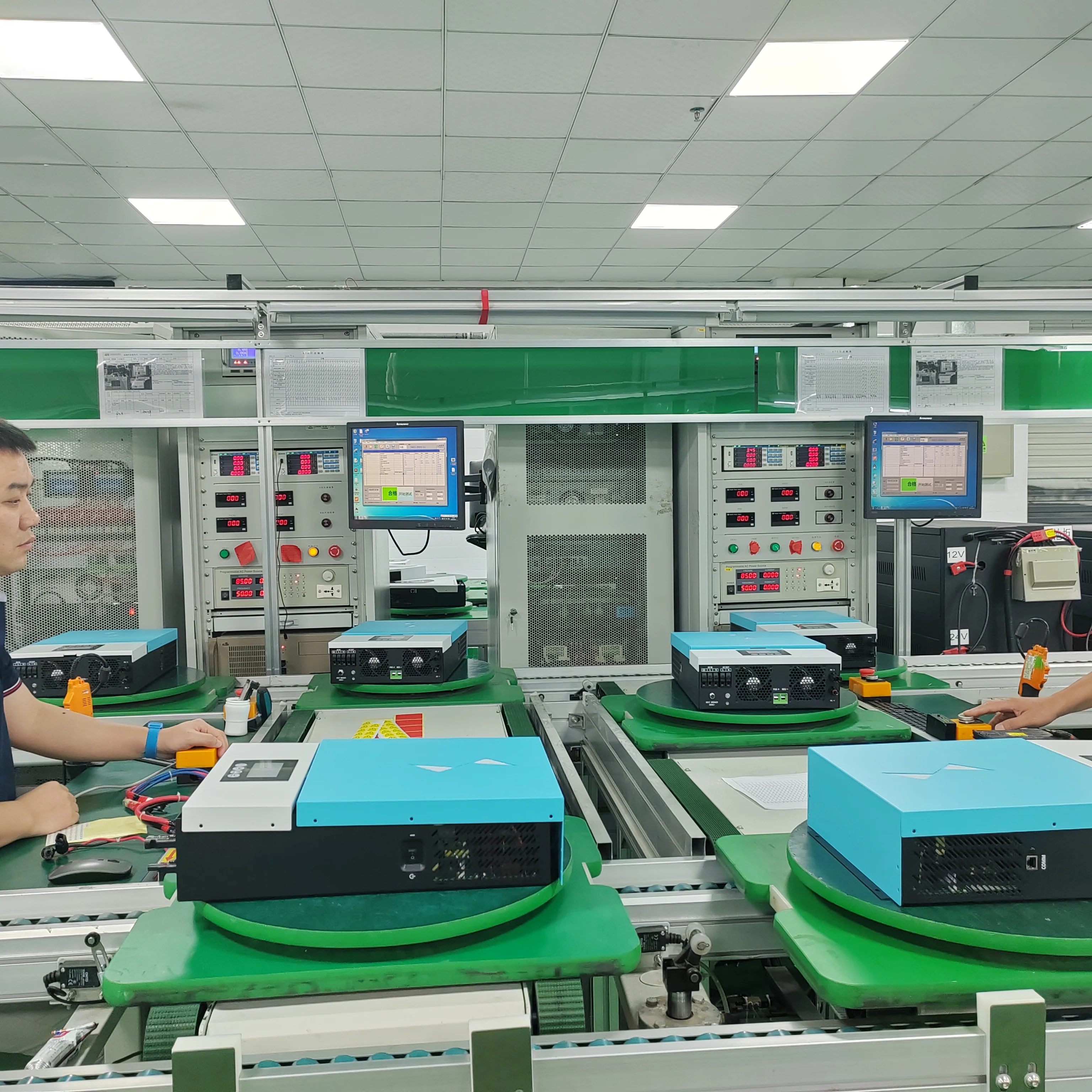

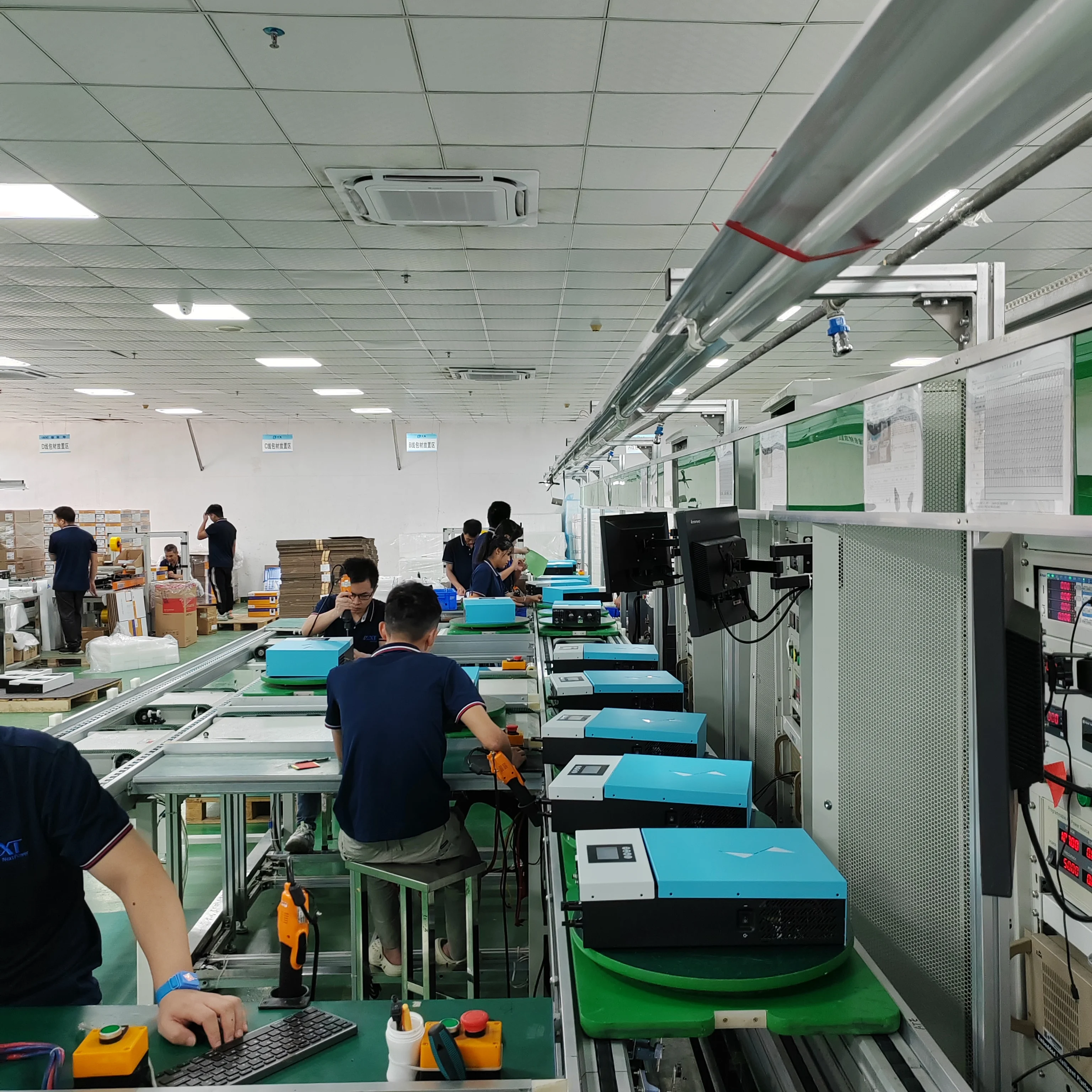

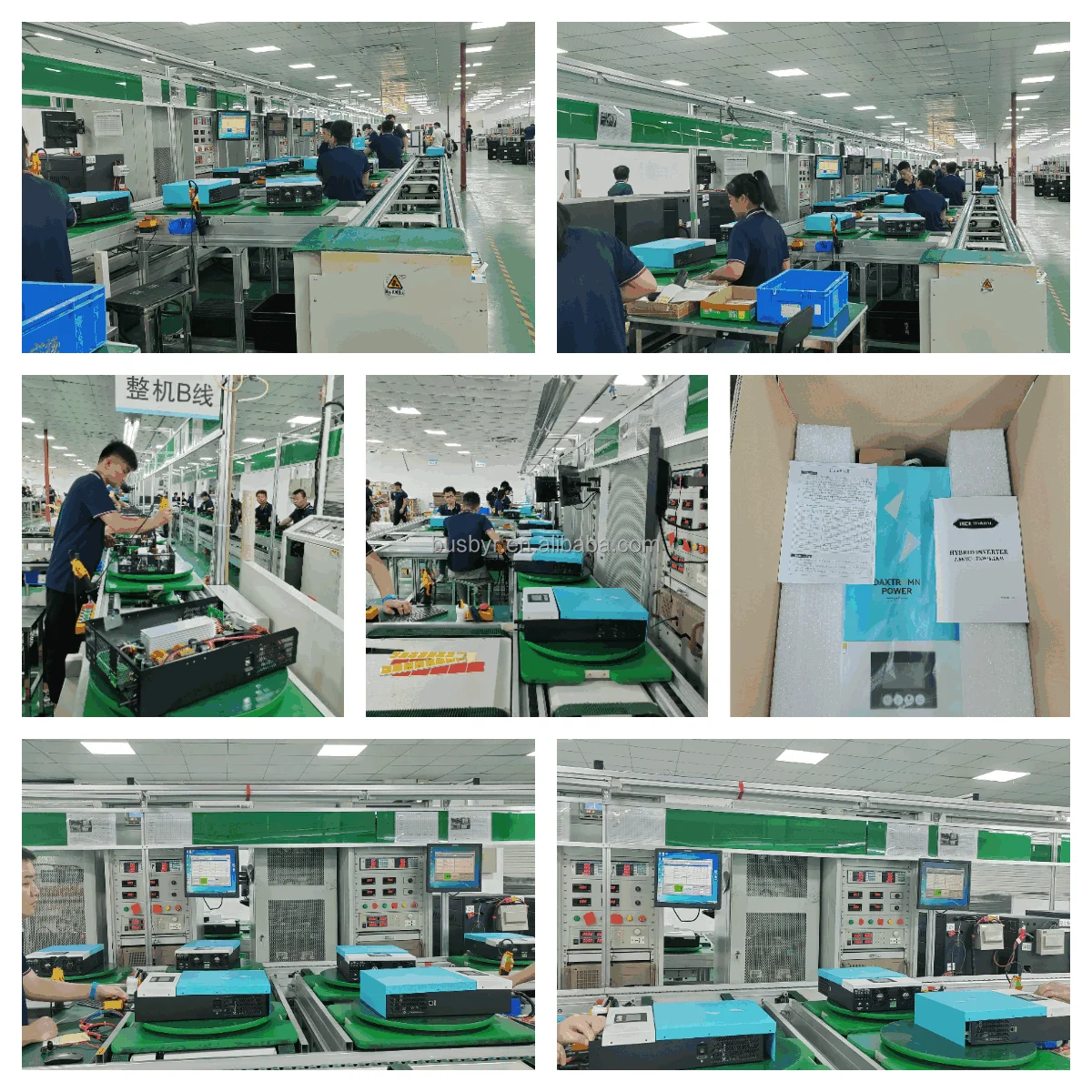

Company Profile
Shenzhen Busbyr New Energy Technology Co., Ltd. was established in 2017. As one of China’s high-tech innovative enterprises, Busbyr is dedicated to offering complete solar power system solutions, including residential and commercial power plant solutions (grid tie inverter, off grid inverter and hybrid inverter systems), covering a wide power range of 1.5kw, 2kw, 3kw, 3.6kw, 4.2kw, 5kw, 6kw, 7.2kw, 8kw, 10kw, 15kw., etc.
Our team focuses on sustainable green energy power generation, power storage, power consumption and digital energy. All partners shoulder responsibility and take "creating value for customers" as their mission, and adhere to the principle of "technological innovation, quality and service first", committed to creating a sustainable green smart ecological home for human beings and providing high-quality energy solutions.
Busbyr company has a reliable R&D, sales and 24-hour online service team. Until now, our customers are all over Asia, Europe, Africa, America and Oceania. Generally welcomed by customers from US, Germany, Denmark, Netherlands, Poland, Spain, UK, Brazil, Turkey, Arab, Egypt, and South Africa.
Our team focuses on sustainable green energy power generation, power storage, power consumption and digital energy. All partners shoulder responsibility and take "creating value for customers" as their mission, and adhere to the principle of "technological innovation, quality and service first", committed to creating a sustainable green smart ecological home for human beings and providing high-quality energy solutions.
Busbyr company has a reliable R&D, sales and 24-hour online service team. Until now, our customers are all over Asia, Europe, Africa, America and Oceania. Generally welcomed by customers from US, Germany, Denmark, Netherlands, Poland, Spain, UK, Brazil, Turkey, Arab, Egypt, and South Africa.
FAQ
Q:Are you factory?
A: Yes, our factory and sales department are located in Shenzhen and we would be pleased to welcome you in our factory at any time when you are in Shenzhen
Q:What is the warranty for this inverter?
A: All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL, UPS, TNT, EMS and FedEx. Ship by sea.
Q:What is the payment method?
A:We normally require T/T advance payment 30% deposit and 70% before shipping.
Q:Can we design packaging?
A:Yes. We can do customer's own packing.
Q:Can we customize product?
A:Yes. OEM&ODM.
A: Yes, our factory and sales department are located in Shenzhen and we would be pleased to welcome you in our factory at any time when you are in Shenzhen
Q:What is the warranty for this inverter?
A: All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL, UPS, TNT, EMS and FedEx. Ship by sea.
Q:What is the payment method?
A:We normally require T/T advance payment 30% deposit and 70% before shipping.
Q:Can we design packaging?
A:Yes. We can do customer's own packing.
Q:Can we customize product?
A:Yes. OEM&ODM.
