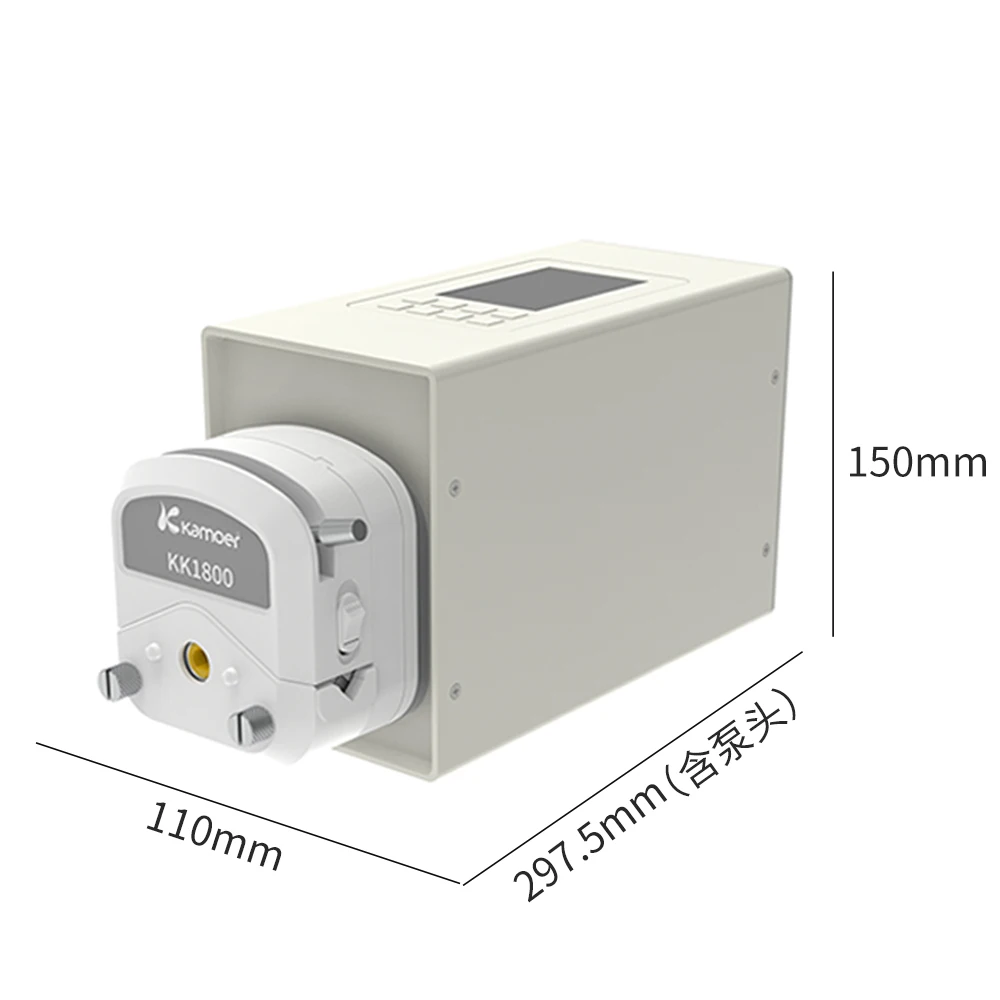

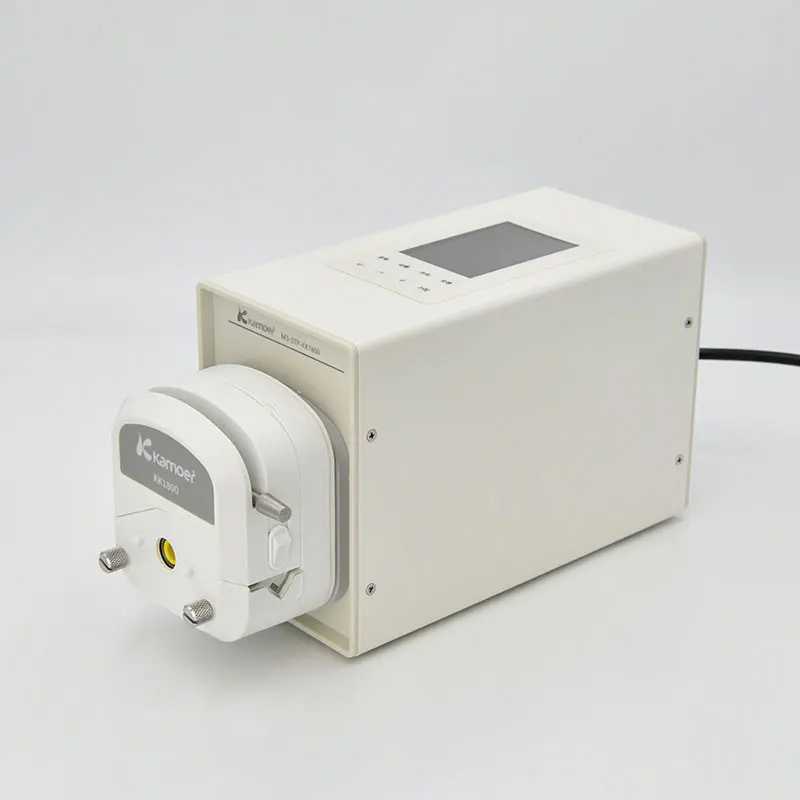

Kamoer M3 High Precision Smart Peristaltic Dosing Pump System
- Category: >>>
- Supplier: Shanghai Utrao Bio-Engineering Co. Ltd.
Share on (1600835979699):
Product Overview
Description
M3-STP Smart Peristaltic Pump
Specifications:
| Power supply | AC:100-240V |
Power | Less than 75W |
Motor type | Stepper motor |
Working environment | Temperature 0℃~60℃, Relative Humidity<80%RH |
Storage environment | Temperature -20℃~80℃, relative humidity 10%~90% (non-condensing) |
Total Weight | About 2.945Kg (including pump head) |
Reference noise value | ≤65dB |
Dosing accuracy | <±2% |

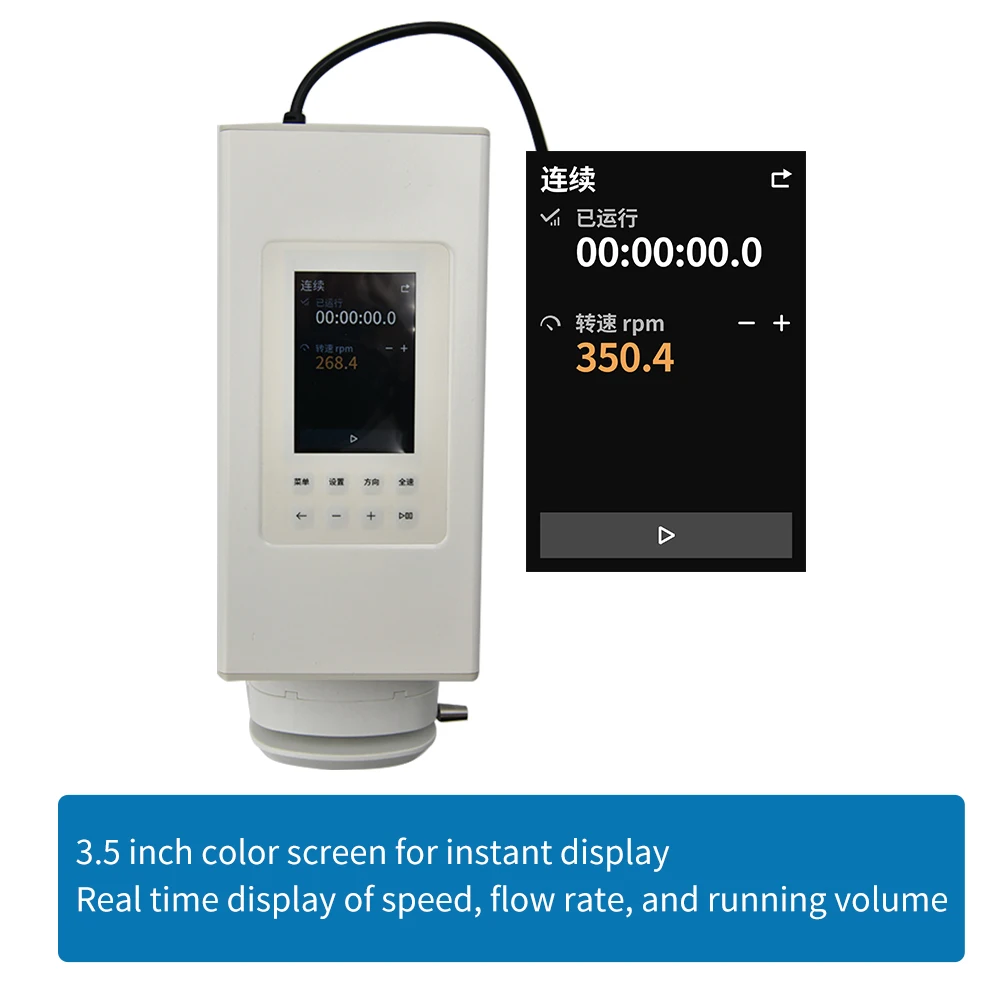

Display method | Color LCD screen |

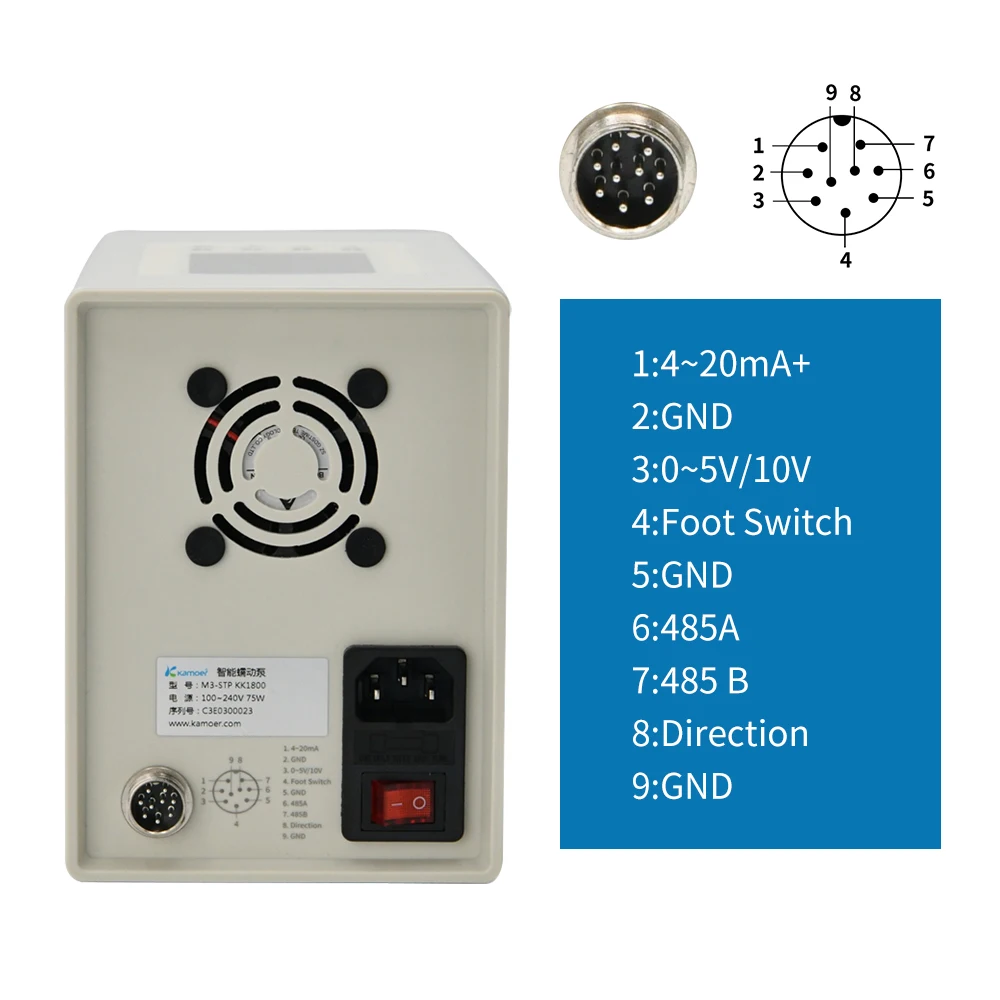

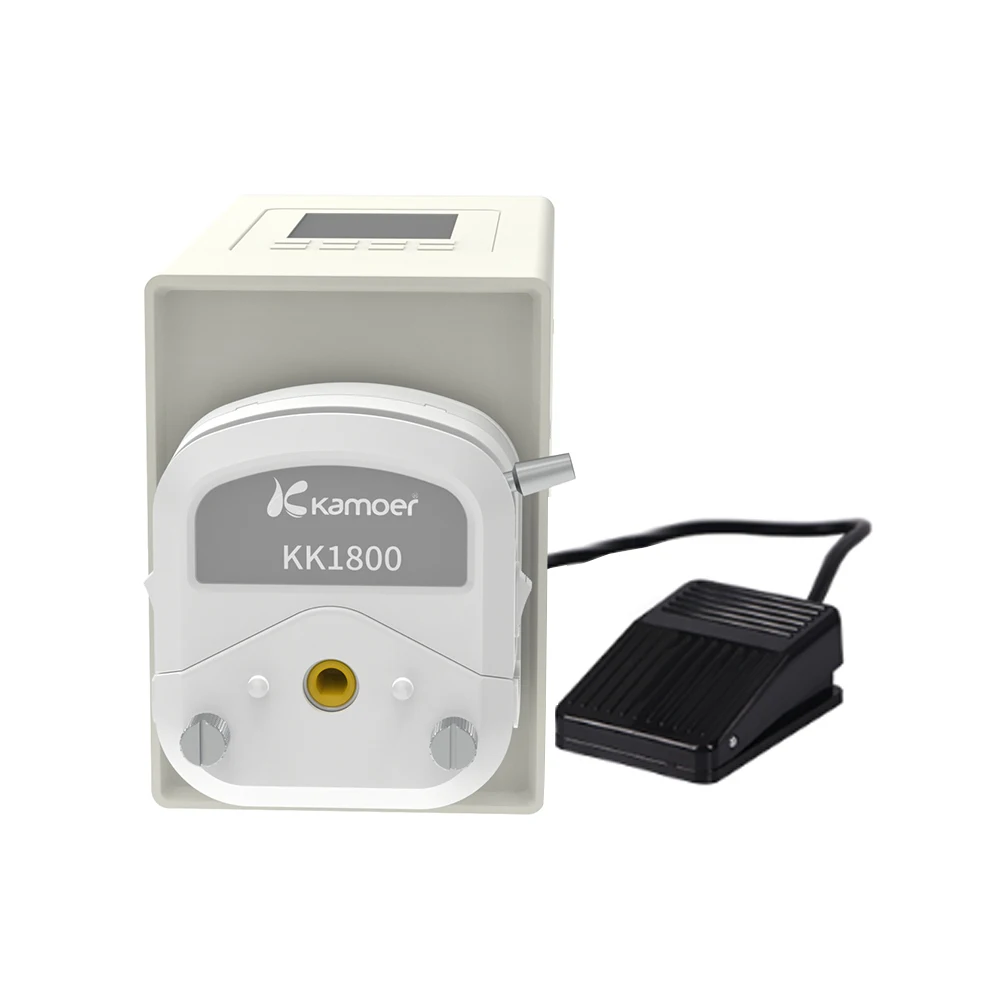

| Control method | Push button, foot switch, external analog (0-5V, 0-10V or 4-20mA), 485 communication control |
| Operating mode | Time mode, volume mode |
| Way of working | Continuous operation, cyclic dosing time operation, cyclic dosing volume |
| Support function | Start/stop, reversing, speed regulation, calibration, sucking back, parameter memory, etc. |
| Speed range | 0.1-350rpm |
| Speed resolution | 0.1rpm |
| Flow rate range | ≤1460ml/min |
Remark | The above maximum flow rate is obtained at room temperature (about 25°C), using a new pump tube that has been aged for 30 minutes to test water, and is for reference only. Ambient temperature, the material and elasticity of the pump tube, the viscosity of the test liquid and other factors will affect the actual flow rate |
