Kamoer M2 High Precision Smart Peristaltic Dosing Pump System
- Category: >>>
- Supplier: Shanghai Utrao Bio-Engineering Co. Ltd.
Share on (1600835987553):
Product Overview
Description

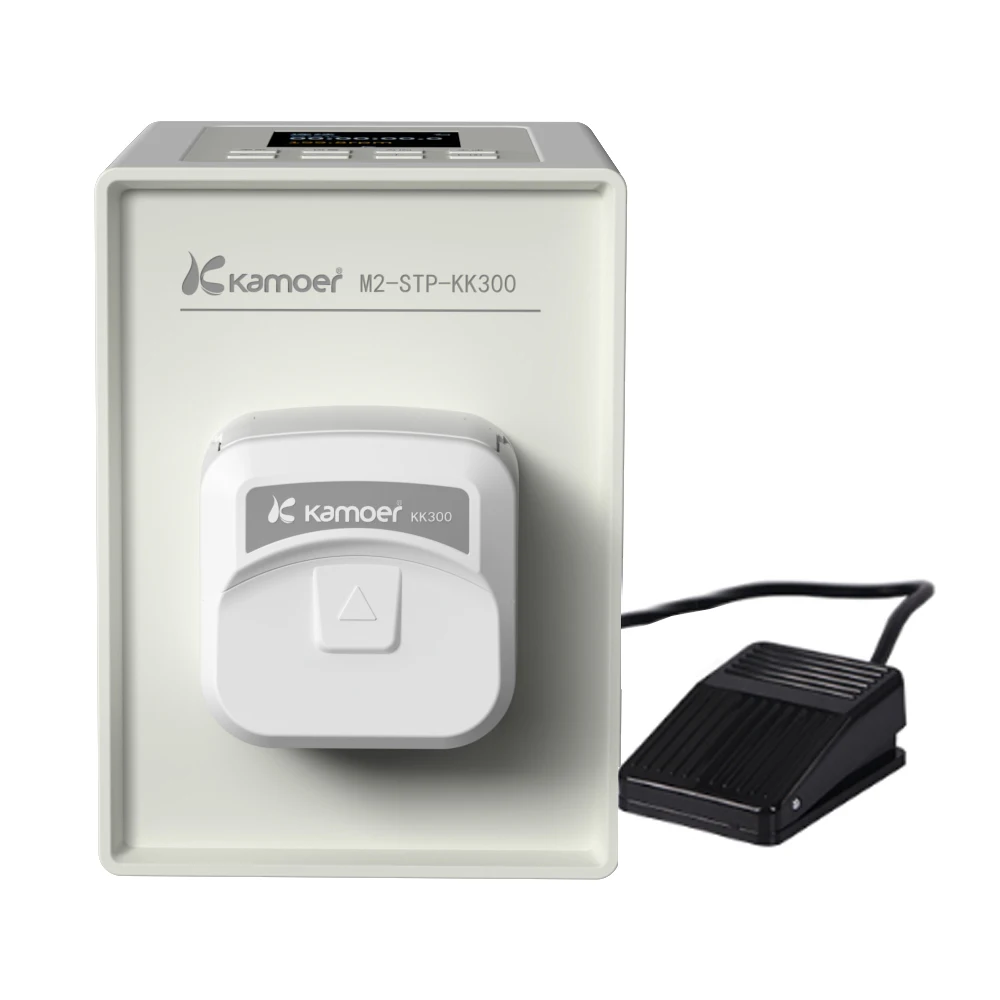

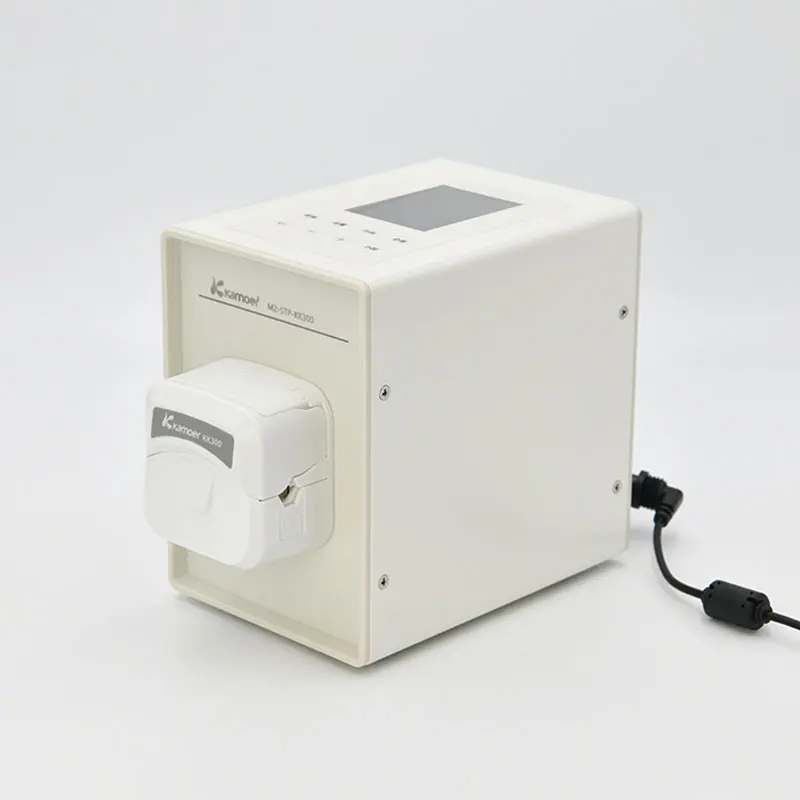

M2-STP Smart Peristaltic Pump
Specifications:
Operating Voltage | DC24V 2A power adapter |
Power | Less than 50W |
Motor type | Stepper motor |
Working environment | Temperature 0℃~60℃, Relative Humidity<80%RH |
Storage environment | Temperature -20℃~80℃, relative humidity 10%~90% (non-condensing) |
Total Weight | About 1.4Kg (including pump head) |
Reference noise value | ≤65dB |
Dosing accuracy | <±2% |

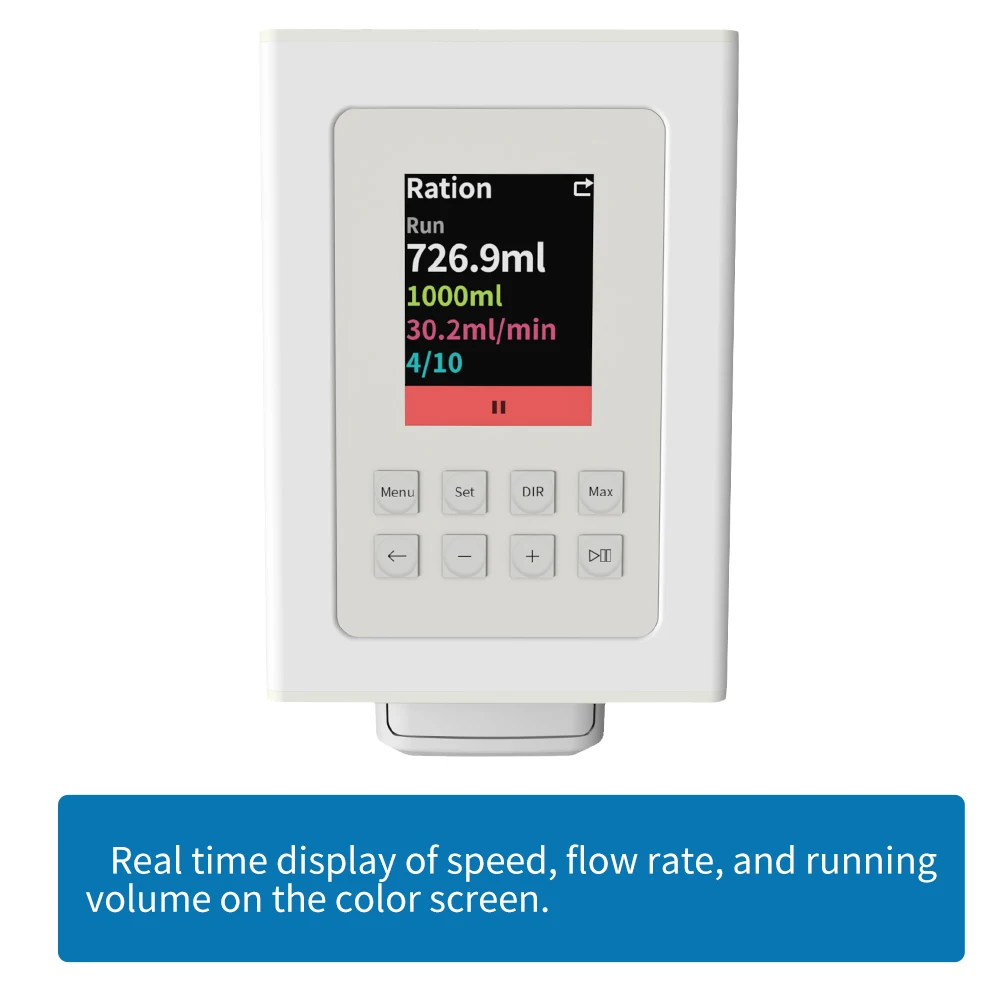

Display method | Color LCD screen |
| Speed range | 0.1-350rpm |
| Speed resolution | 0.1rpm |
| Flow rate range | ≤140ml/min |

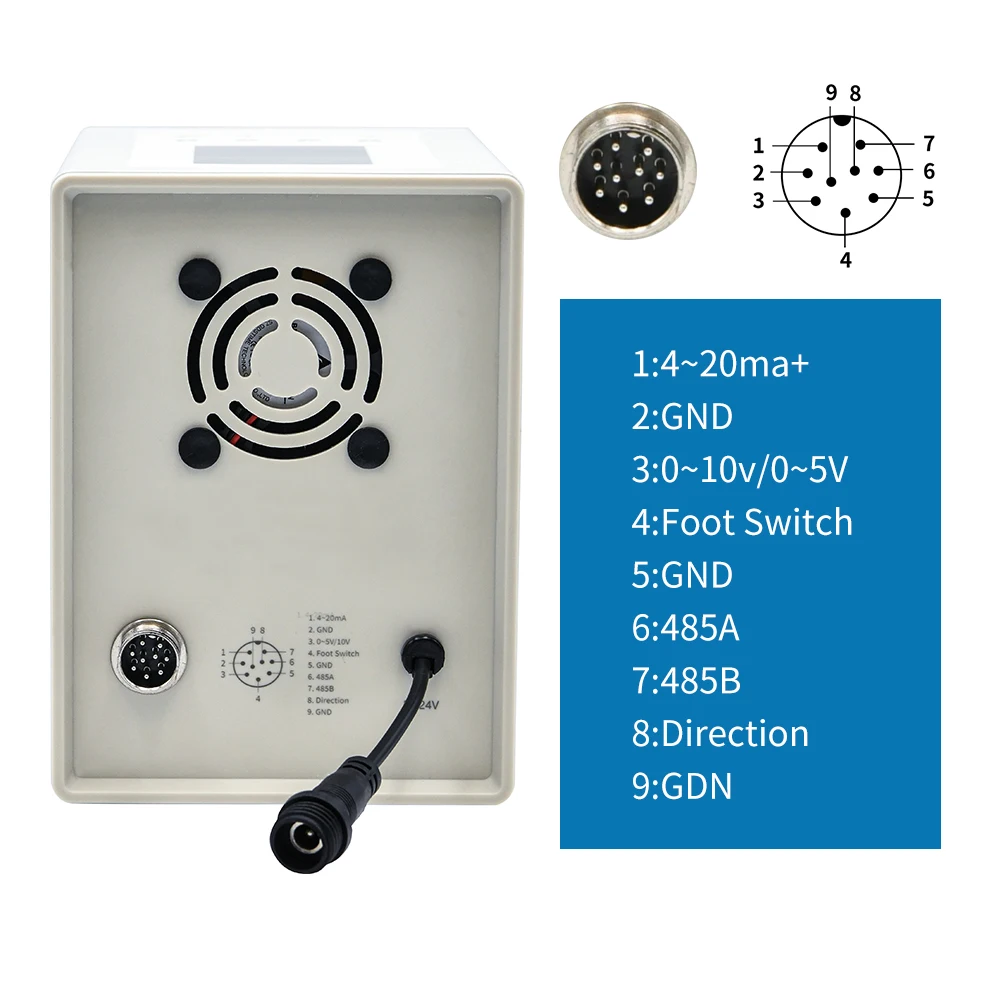

| Control mode | Push button, foot switch, external analog (0-5V, 0-10V or 4-20mA), RS485 communication control |
| Working mode | Continuous, quantitative, remote control |
| Support function | Start/stop, reversing, speed regulation, calibration, sucking back, parameter memory, etc. |
Remark | The above maximum flow rate is obtained at room temperature (about 25°C), using a new pump tube that has been aged for 30 minutes to test water, and is for reference only. Ambient temperature, the material and elasticity of the pump tube, the viscosity of the test liquid and other factors will affect the actual flow rate |
