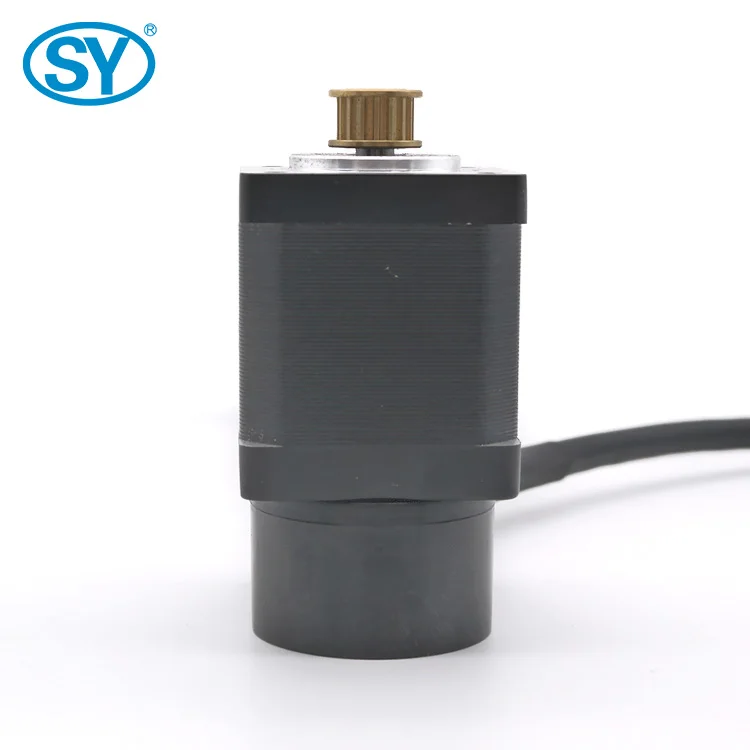

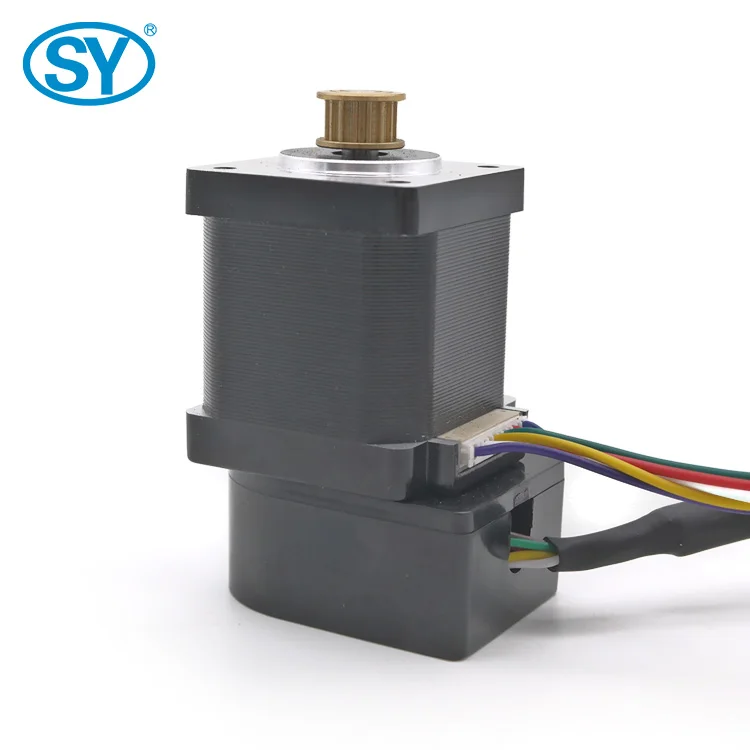

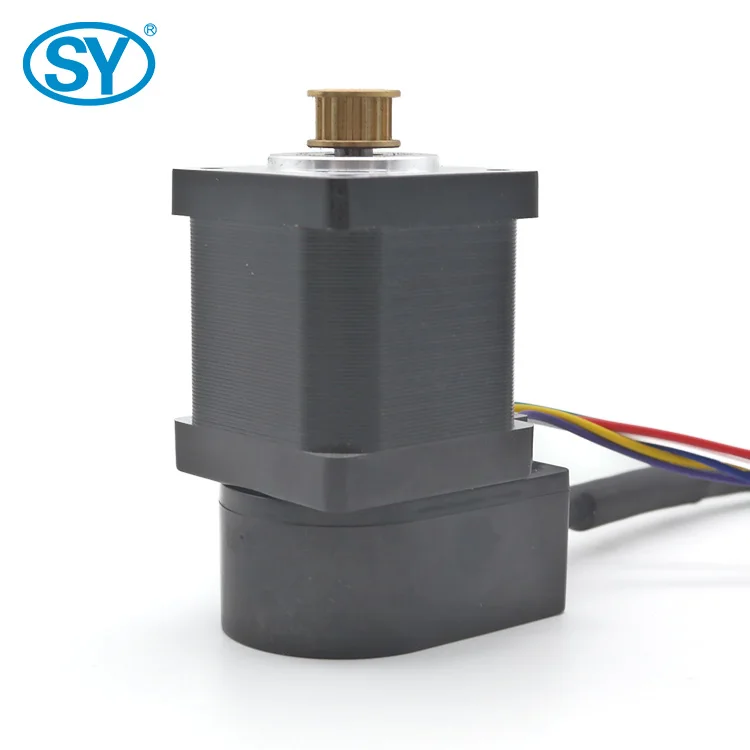

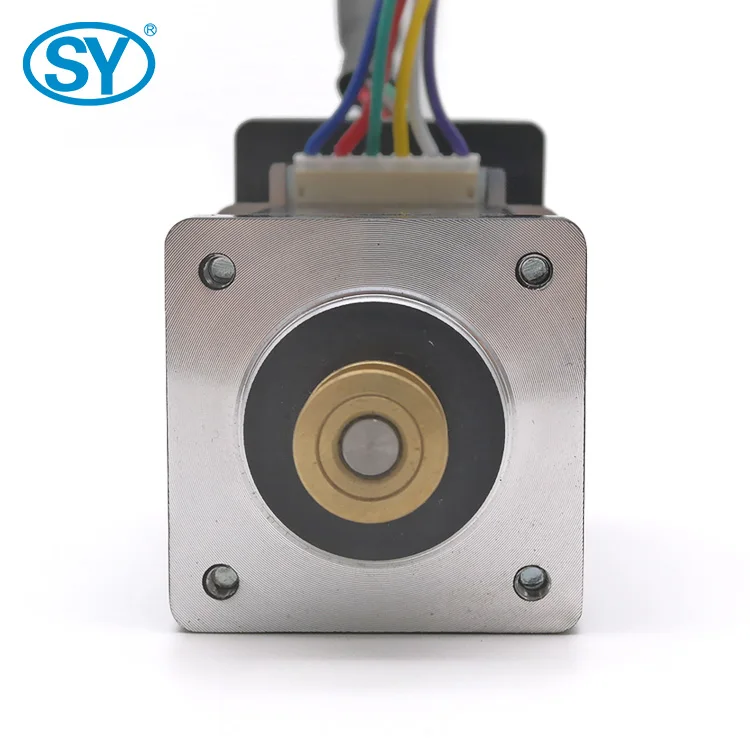

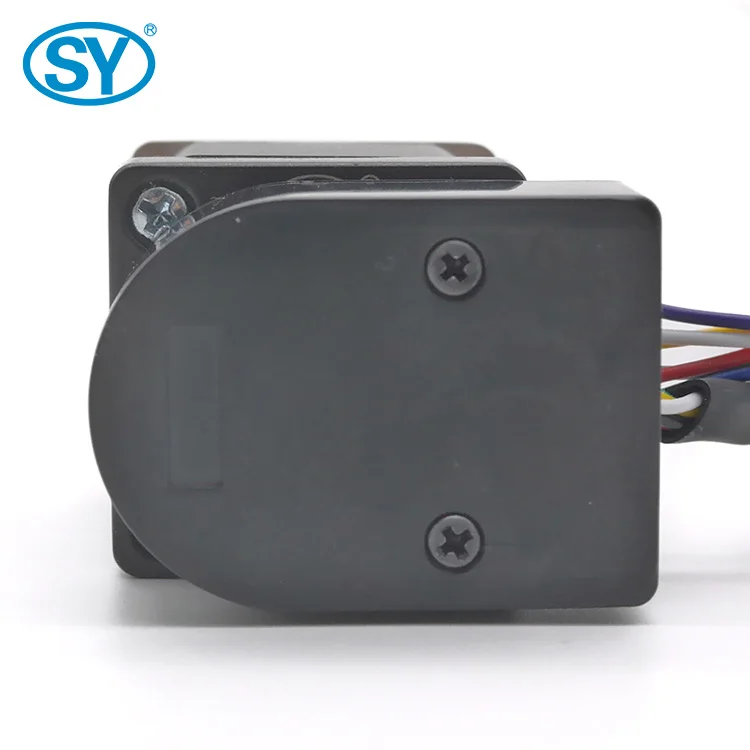

Commercial Nema 14 High Torque Industrial Control Electric Spindle Stepper Motor
- Category: >>>
- Supplier: Zhongshan Shengyang Motor Co. Ltd.
Share on (1600835994656):
Product Overview
Description
Products Description
Height | Model | Static moment | Rated Current | Each phase resistance | Each phase inductance | Detent Torque | rotational inertia | Weight |
mNm | A | Ohm | mH | mNm | g.Cm² | kg | ||
20mm | 35BYGF0701 | 80 | 0.35 | 22 | 19 | 7 | 8 | 0.11 |
35BYGF0702 | 80 | 0.7 | 5.5 | 4.5 | ||||
35BYGF0703 | 80 | 1.0 | 2 | 1.6 | ||||
22mm | 35BYGF0901 | 110 | 0.35 | 20 | 20 | 7 | 9 | 0.13 |
35BYGF0902 | 110 | 0.7 | 6.5 | 6.5 | ||||
35BYGF0903 | 110 | 1.0 | 2.5 | 2.5 | ||||
25mm | 35BYGF1201 | 130 | 0.4 | 21 | 24 | 9 | 10 | 0.15 |
35BYGF1202 | 130 | 0.8 | 4.7 | 4.7 | ||||
35BYGF1203 | 130 | 1.2 | 1.9 | 2 | ||||
28mm | 35BYGF1501 | 160 | 0.4 | 23 | 22 | 9 | 12 | 0.17 |
35BYGF1502 | 160 | 0.8 | 5 | 5.5 | ||||
35BYGF1503 | 160 | 1.5 | 1.7 | 1.9 | ||||
36mm | 35BYGF2301 | 240 | 0.7 | 13 | 22 | 12 | 20 | 0.21 |
35BYGF2302 | 240 | 1.0 | 7 | 11 | ||||
35BYGF2303 | 240 | 1.5 | 2.2 | 3.8 | ||||
45mm | 35BYGF3201 | 300 | 0.6 | 15 | 24 | 14 | 28 | 0.25 |
35BYGF3202 | 300 | 1.2 | 3 | 4.7 | ||||
35BYGF3203 | 300 | 2.0 | 1.6 | 2.6 | ||||
55mm | 35BYGF4201 | 450 | 0.8 | 14 | 25 | 16 | 35 | 0.3 |
35BYGF4202 | 450 | 1.2 | 4.7 | 9 | ||||
35BYGF4203 | 450 | 2.2 | 1.5 | 2.8 |
Product Details
Hot Product
Company Information
How To Contact Us
FAQ
1.Is SY Motor a manufacturer or a trading company?
We are a factory where located in Zhongshan City, near Zhongshan port and Shenzhen, convenient for domestic or international
transportation.
2.How about the production lead time?
Sample qty less than 10pcs, lead time in 15days. Bulk order production lead time in 25days.
3. What is SY Motor’s competitive advantages?
Factory found since years 2011. Flexible customized service, directly supplied. ISO 9001-2015 quality control, 1 year or 5000hrs
working time quality guarantee.
4. Any quality approval?
CE, ROHS, REACH, ISO;
We are a factory where located in Zhongshan City, near Zhongshan port and Shenzhen, convenient for domestic or international
transportation.
2.How about the production lead time?
Sample qty less than 10pcs, lead time in 15days. Bulk order production lead time in 25days.
3. What is SY Motor’s competitive advantages?
Factory found since years 2011. Flexible customized service, directly supplied. ISO 9001-2015 quality control, 1 year or 5000hrs
working time quality guarantee.
4. Any quality approval?
CE, ROHS, REACH, ISO;
