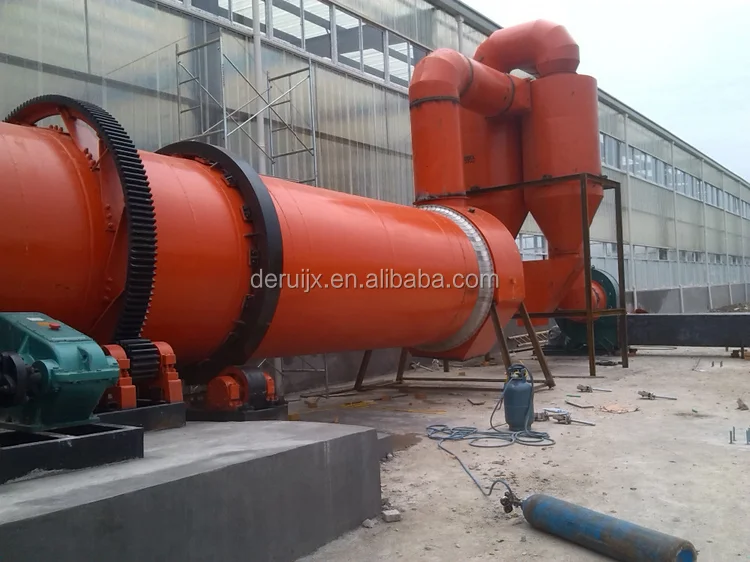

Professional Soil Drum Dryer Machine Clay Cylinder Dryer Plant Diesel Rotary Dryer For Clay

Description of Rotary Dryer

Rotary dryer, also called rotating cylinder drying machine, which is mainly used for mineral processing, building materials, metallurgy, chemical, cement industry and other departments drying certain wet degree or the size of material. Rotary dryer is mainly consisting of rotary body, raw material feeding plate, driving and supporting device, etc. Rotary dryer strong adaptability to raw materials can be drying a variety of materials, and the equipment is simple and reliable, so widely used. It is of high efficiency and has the features of reasonable structure, high capacity, low consumption easy operation, etc. It can make final products free from dirt and impurities and reduce the high quality sand loss.

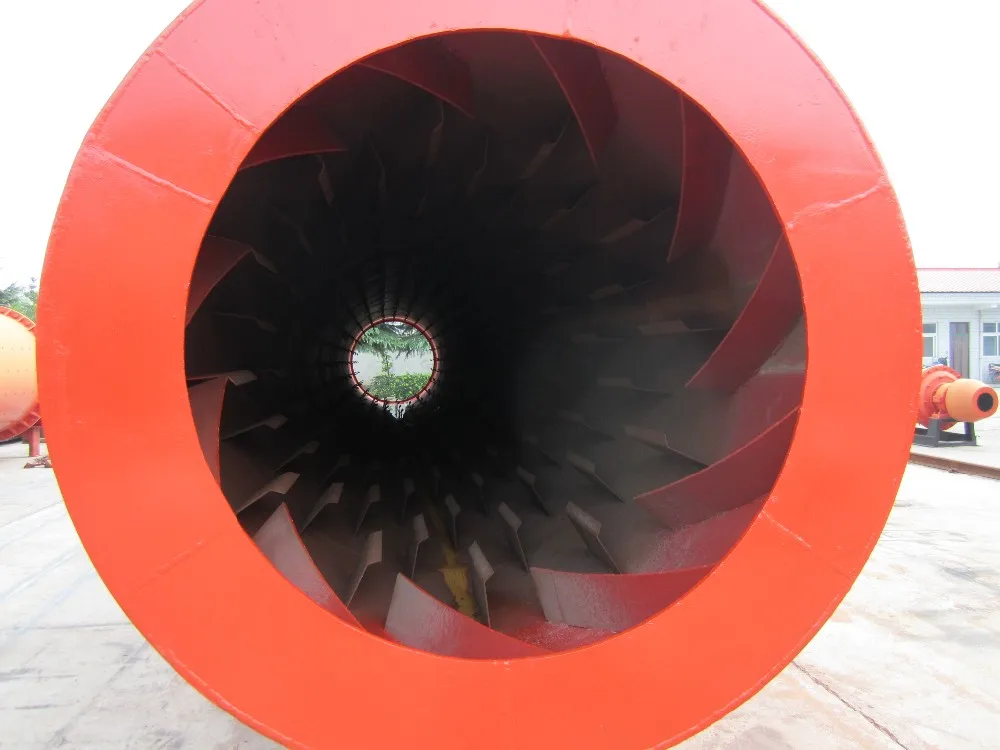

Rotary dryer internal structure of the lifting plate type :

In order to increase the material evenly distributed on the cross section of the cross section and the drying medium has good contact, in the cylinder body install lifting plate,. There are several kinds of lifting plate for the rotary dryer:

1. Lifting type Lifting plate: suitable for large lump material or easy to be bond in the wall of the material.

2.Four grid type lifting plate: applicable to large density, not brittle or not easily dispersed material. The lifting plate will divide the inside cylinder into four grid, will form a fan operation room not communicating with each other, the contact area of the material and the hot air is larger than the lifting type,and it can increase the material filling rate and reduce material falling height and reducing the amount of dust loss.

3. cross shape or frame shape plate: suitable for more brittle and easily dispersed small pieces of material, so that the material can be evenly distributed in the entire section of the cylinder.

4. sleeve type lifting plate: for multiple heat transfer (or semi diameter heating) rotary drum dryer.

5. cellular type (fan) plate is suitable for fine particles and easy to cause the powder fly. When material feeding is piled up in the lattice board, when the cylinder rotates, the material is stirred and constantly in contact with hot air, at the same time for the material landing height decreases, reducing the possibility of drying materials taken by hot air.

In various forms of lifting plate above can be distributed throughout the whole rotary dryer cylinder, in order to cause the material to quickly and evenly to the lifting plate,can install screw guide material plate at the feed end of 1~5m, in order to avoid the accumulation of wet material bonding on the cylinder wall. At the same time because of dry material is very easy to be raised and was taken away by the waste gas, and in the discharge end of the 1~2m is not installed any lifting plate.

The working principle

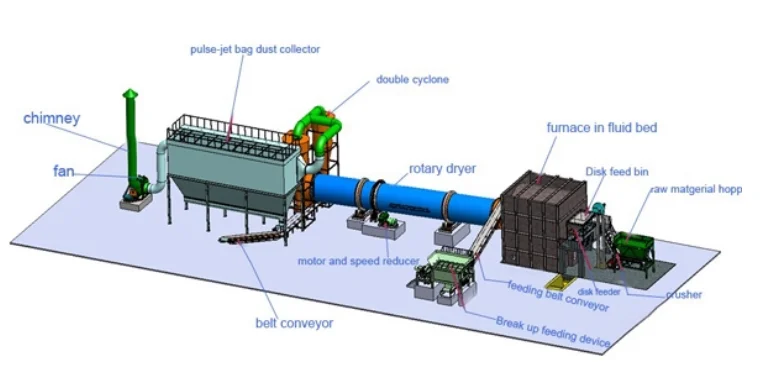

Rotary dryer’s heat source is a combustion apparatus. It adopts direct flow heating with heat source from firing unit. The material to be dried is pushed back immediately by spiral board after going in the shell from feeding tank or feeding chute. Because the drier is installed in an inclined position, material flows to the back end under gravity and rotation force. At the same time, it is lifted by board repeatedly and thrown down accordingly, which makes the material form an even curtain, so that it can exchange heat sufficiently with the heat flow. At last, water in the material is dried by repeatedly scattering.

Product Features

Advantages of our rotary dryer

1. The rotary speed is adjustable ,control moisture to be some extent.

2. The dryer can dry high moisture content and large volume materials.

3. There is elastic plate sealing strip in feed inlet and outlet , improve heat usage efficiency .

4. There is lifting blade in the inner cylinder, it can make the material mixed with the heat flow fully.
