T3 piston compressor type wall split air conditioner R410a cooling only 24000btu

Product Overview

Description



T3 piston compressor type wall split air conditioner R410a cooling only

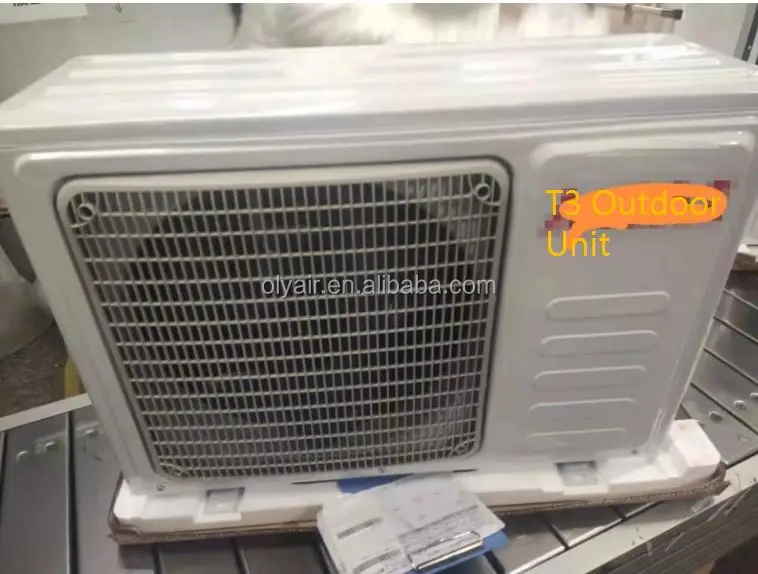

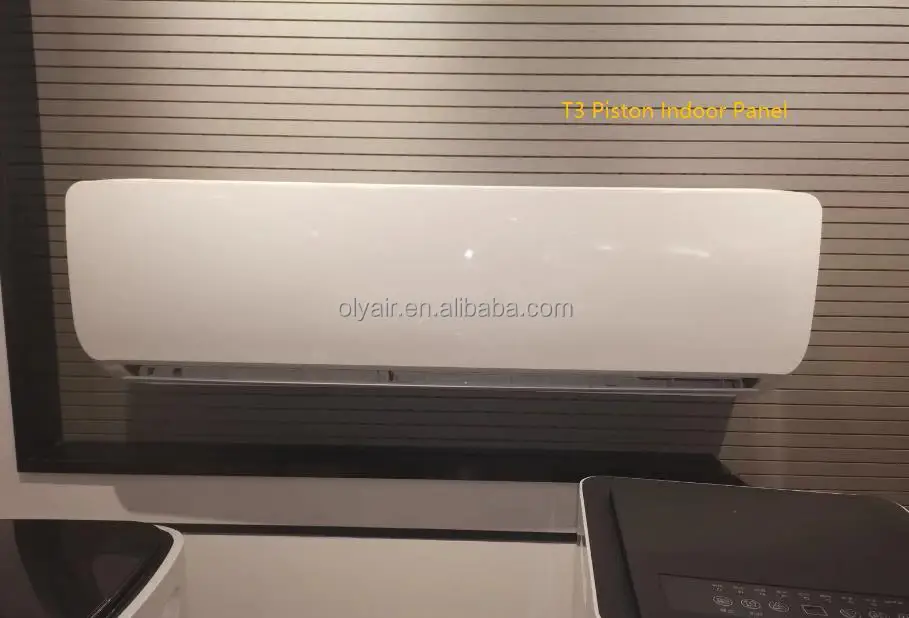

Actual T3 Reciprocating type air conditioner picture













Specification Sheet



Model			OL-24C53AL4-902(T23)		OL-30C53AK4-970(T23)
Power supply			1Ph / 220-240V/50Hz		1Ph / 220-240V/50Hz
			T1	T3	T1	T3
Cooling		Capacity	24000	18850	30000	24600
			7030	5525	8790	7210
		Input	2080	2250	2600	2920
		Rated current	9.45	10.23	11.82	13.27
		EER	11.54	8.38	11.54	8.42
Max. input consumption			3100		3700
Max. current			14.83		17.70
Outdoor unit	Outdoor fan motor	Model	YYS85-6		YYS85-6
		Brand	DONGFANG		DONGFANG
		Output Power	85		85
		Capacitor	2.5		5
		Speed	860±30		860±30
	Outdoor coil	a.Number of row	2		2
		c.Fin spacing	1.5		1.5
		Fin  material	Non-hydrophilic		Non-hydrophilic
		Tube outside dia.and material	φ7, Inner Grooved		φ7, Inner Grooved
	Noise level		57		60
	Unit dimension (W*H*D)		943X379X658		1003x456x810
	Packing   (W*H*D)		1026X425X750		1105*495*885
	Net weight		52		67
	Gross weight		57		73
	Refrigerant type		R410A		R410A
	Refrigerant charge		1355		1755
	Design pressure		4.5		4.5
Refrigerant pipe		Liquid side	Φ6		Φ6
		Gas side	Φ15.88		Φ15.88
		Max. refrigerant pipe length	15		15
		Max. difference in level	10		10
Operation temperature range			16℃-53℃		16℃-53℃
Ambient temperature range			16℃-58℃		16℃-58℃
Application area			40~75		50~85
Qty’per 40HQ			142		105







Features:







Mute Operation

On the basis of low noise air duct system and quiet design, you can shut off the AC beep and display by pressing mute operation to create a super quiet environment.



Selectable Control Modes

Apart from the conventional remote control, Aurora split provides a variety of optional, including wired control, front desk control, and central control.

Optional functions:   (If you need below add functions, please let me know)



 1. Active carbon Filter



2. Photocatalyst Filter



3. Catechin Filter



4. Vitamin-enriching Filter



5.  Nano Silver Filter



6. Air Ionizer





1. Olyair Appliances insist high-quality products reach every client are safe without worry, so we will fully test each pc of the product before leaving the factory.

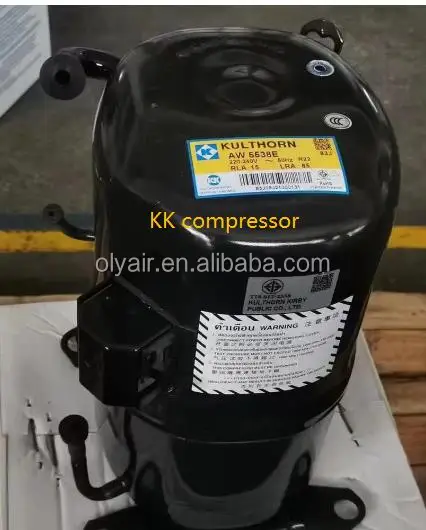

2. As HVAC products we provide a three-year warranty for the whole unit and the compressor all use famous brands like Toshiba, rechi, etc.

and it lasts five years warranty also.



3. Each full container we will free to combine with 0.5%-1% spare parts based on each product's request.



4. Olyair Provide OEM service which will is responsible for design the indoor and outdoor carton box. If you need to have our own panel design request just contact us we will ask the engineer to give a strong idea for your long term development.



5. In general, when we receive your inquiry message, our information dept will send a related colleague for the first time. So you will receive a reply within one hour. And if no response, please contact our service team or visit our web to get some contact information.



6. We thank you for each client to read any products on the web, so please let both of us value time before sending an inquiry. please consider the products and it's a specification you really need.  Sometimes,  some inquiries no subject and don't confirm what they want, but just request to inform the payment terms and MOQ which made us difficult in reply to an inquiry.



















1. Why the heating of the air conditioner does not function?

Answer: Our remote control is designed to have both ‘cooling only’ mold and ‘cooling & heating’ mold. Users need to activate either the ‘cooling only’ mold or the ‘cooling & heating’ mold. If ‘cooling only’ mode is activated, the heating function of the air conditioner will not work, it will starting heating up the room temperature only when you turn it into a ‘cooling & heating’ mold. The way of setting is demonstrated in detail in the user’s manual.

2. Why the air conditioner does not blow out hot air until several minutes after it is activated?

Answer: This is because when the heating mold just started, the temperature of the evaporator is relatively low and the wind blow out would be cool. Therefore, there has designed a function of cool air protection, which will stop the indoor fan from working until the evaporator reaches the set temperature. Thus, there will not be any wind blow out at the beginning.


3. Why the air conditioner does not work for the first 3 minutes, after it is restarted after a sudden power lost?



Answer: This is because our air conditioning has been set up with the power lost memory function (AUTO - RESTART), when suddenly power off and then immediately power on, the air conditioner will operate according to the same setting before the power off. Therefore, in order to prevent the impact of imbalance system to the compressor on its startup, the compressor will re-start operating 3 minutes delay. Thus, the condition will not either heat up or cool down the room temperature in these 3 minutes.

4. Why the capacity of the new air condition seemed not strong enough to cool down the room temperature?





Answer: There could be various reasons:
1) The capacity is insufficient, professional will be necessary for checking.
2) The wrong model of an air conditioner is brought, as the choice of models has a direct relationship with the following conditions:
A. The area of the room.
B. The cooling load of the room. It is related to the heat leakage, which is affected by the thermal insulation of room wall, large glass window and no. of heating source such as high voltage home appliances. The heat leakage will also be affected in places such as dining room and living room.
To our experience, capacity of air conditioner = room area X cooling load, cooling load can be between 160 to 220, depend on the heat leakage. For example, if there are not any large voltage home appliances and the thermal insulation is ok, the cooling load of a single room can be estimated as 160, and 170 for a double room, 200 for a living room and 220 for a dining room. Commercial areas should be estimated according to real situations.





Welcome to contact our service team for your project on the air conditioner business. We count to be your wise supplier!
