Product Overview

Description

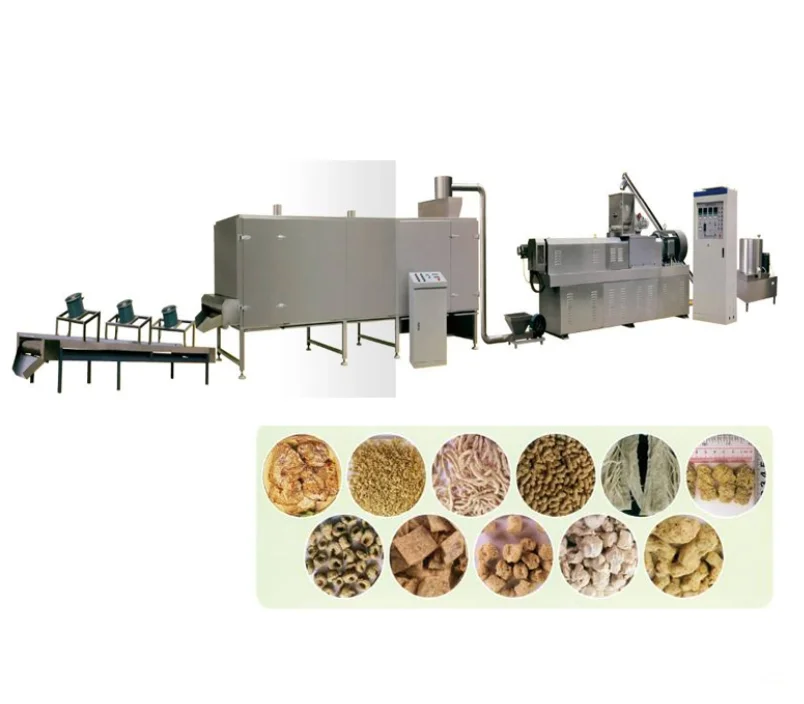

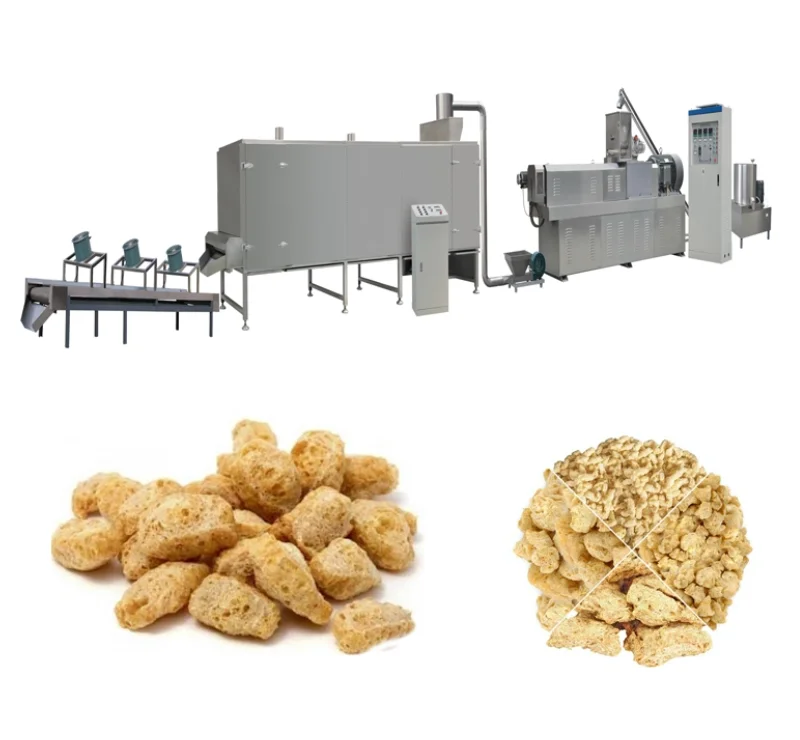

Good price square shaped vegeterian soya meat making machine soy bean protein processing line

Jinan Xilang Soybean protein food processing line is a new kind of inflating processing line which is produced and developed according to our rich experiences and the requirement of food market. This line adopts low-tempretyre soybean powder as main material to produce new foods which looks like muscle and has the sense of mastication. This kind of food has high nutrition and can be widely applied in many industries: ham, cam, fast-food, instant-cool food, etc.

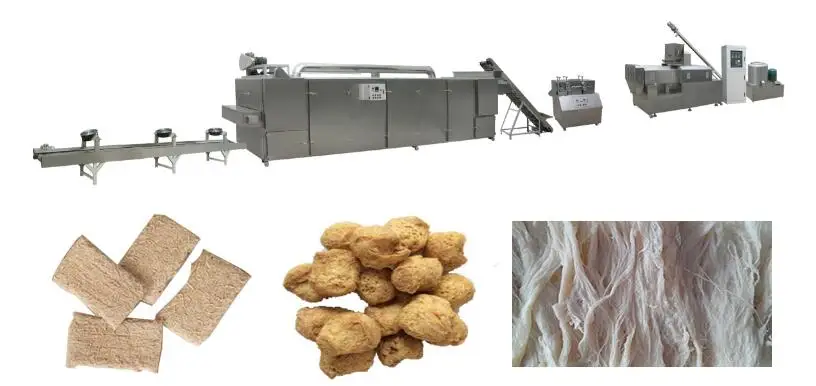

Sample Photos:

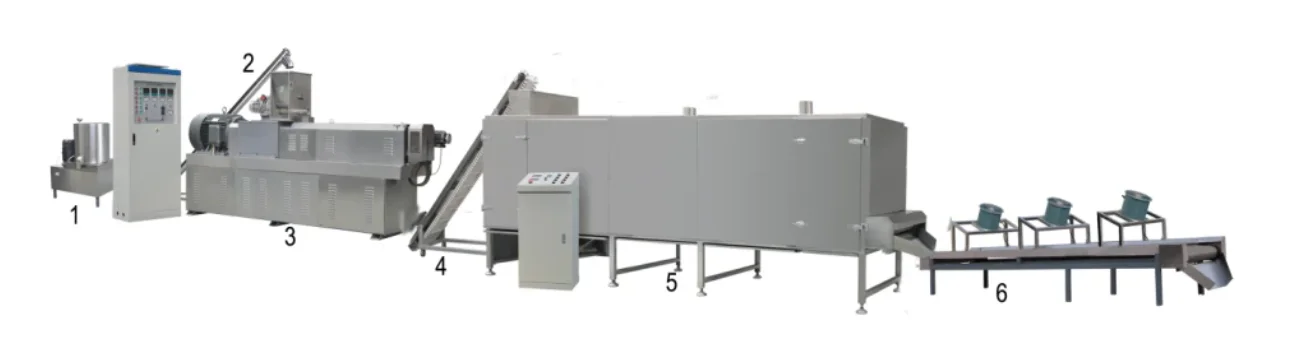

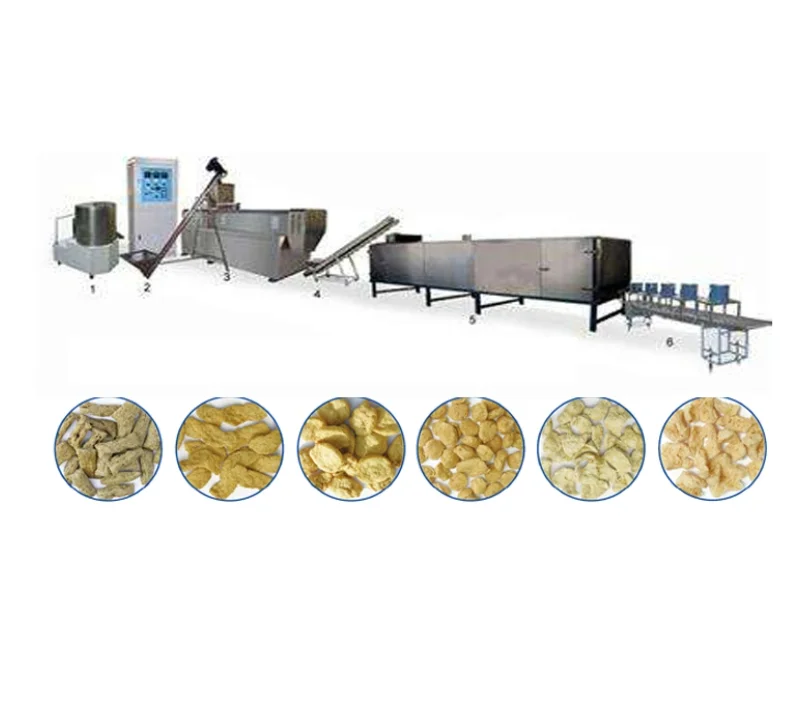

1. Processing flow: Mixer - Screw Conveyor - Twin screw extruder - Air Conveyer - Three-layer Electrical roasting Oven - Cooling Conveyer

2. Machine Capacity: 100kg/h - 1500 kg/h

3. Machine floating Voltage: Three phases: 380 V/50 Hz, Single phase: 220 V / 50 Hz. we can make it according to customers' Local voltage according to different countries.

4. Final products: ham, cam, fast-food, instant-cool food, etc.

5. Machine material: Stainless steel 304 or as customer's request.

6. Raw material: Soybean powder, Peanut Powder.

Techinical parameter for Snack Food Extruder:

Detailed specification of a single machine:

	Name: Mixer Capacity: 50kg/batch Power: 7.5kw Size:1410*760*1350mm Function: It max the raw material, water, and other raw material.
	Name: Screw conveyor Capacity: 500kg/h Power: 1.1kw Size:2670*600*2545mm Function: Converying the raw material to Twin Screw Extruder. Working Principle: The Motor drives the screw in elevator, lifting the matrial from the low end to the high end.

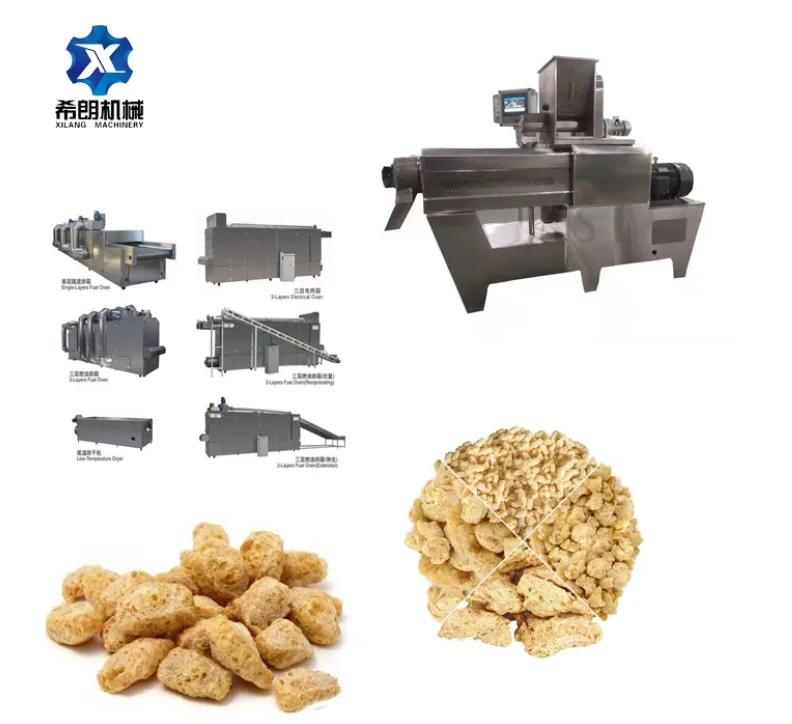

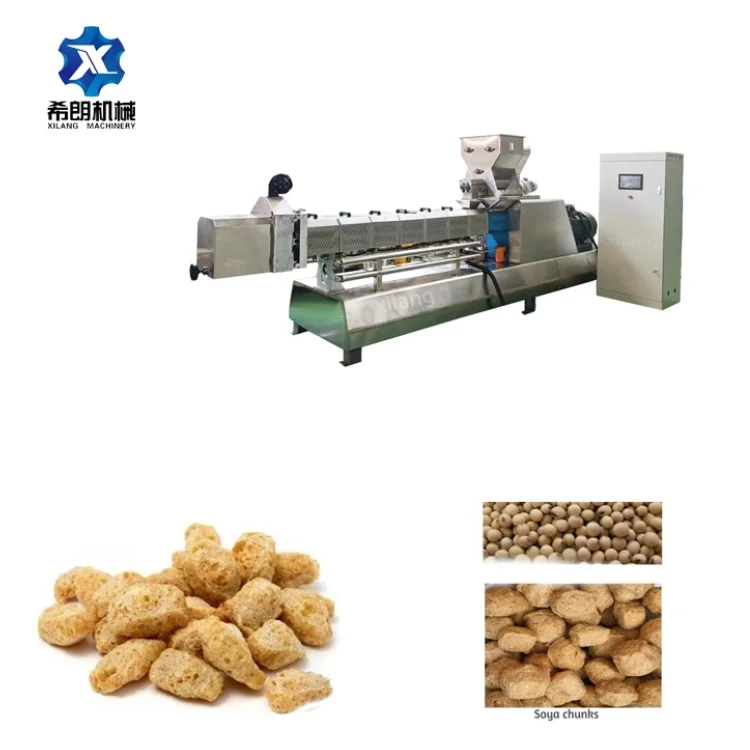

	Name: Twin Screw Extruder Capacity: 500-800kg/h Power: 84kw Size: 413*1030*2360mm Function: This equipment is developed on twin roating screw technology. It contains extrusion system, transmission system. Feeding material system, roll cutting system and control system. The frequency of electrical motor is adjustable with transducer. The main functions of extruder are extrusion and material puffing.
	Name: Air Conveyor Capacity: 500kg/h Power: 1.1kw Material: Food Grade 304 stainless steel  Function: This machine is to convey the soya chunk to the dryer and pre-dry the soya chunk.
	Name: Dryer Capacity: 500kg/h Power: 80kw Material: Food Grade 304 stainless steel Function: As pet food go through the drier, they will be dried quickly in a clean condition.

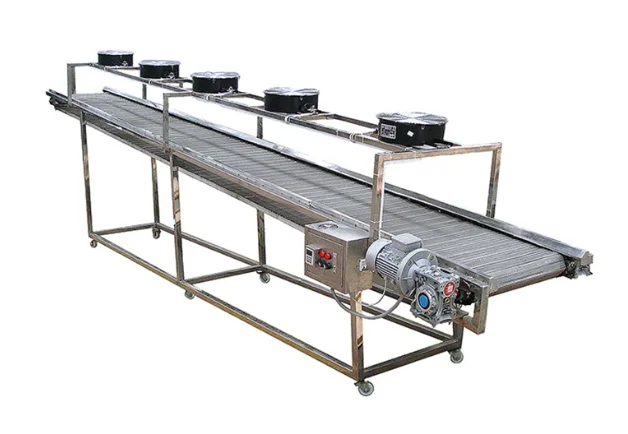

	Name: Cooling Conveyer Capacity: According the extruder capacity Material: Food Grade 304 Stainless Steel Function: The product is cooled to natural temperature after passing through a high-temperature oven, which is convenient for the next step of packaging.



    As a manufacturer of extrusion equipment, Jinan Xilang Machinery Co., Ltd has gathered a group of technical teams with rich industry experience, Since its establishment, it has been committed to the research and development of extrusion equipment. The company's products have developed into diversified varieties and supporting series. It has become a mature manufacturer of main extrusion equipment in China.
    Through the unremitting efforts of all employees of the company, the technical level and processing level of the enterprise have been continuously improved, and the market competitiveness and comprehensive strength of the enterprise have been enhanced. High-quality products and perfect after-sales service have earned Xilang a good reputation in the industry and won the recognition of customers at home and abroad.

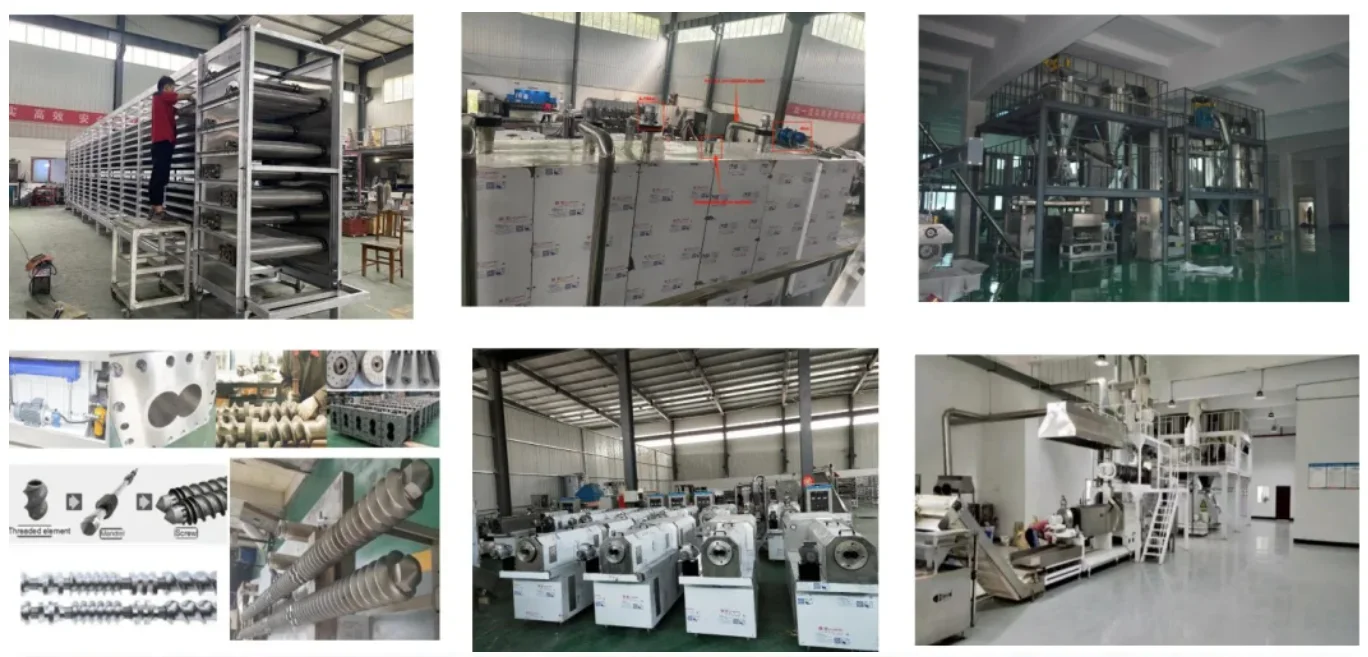

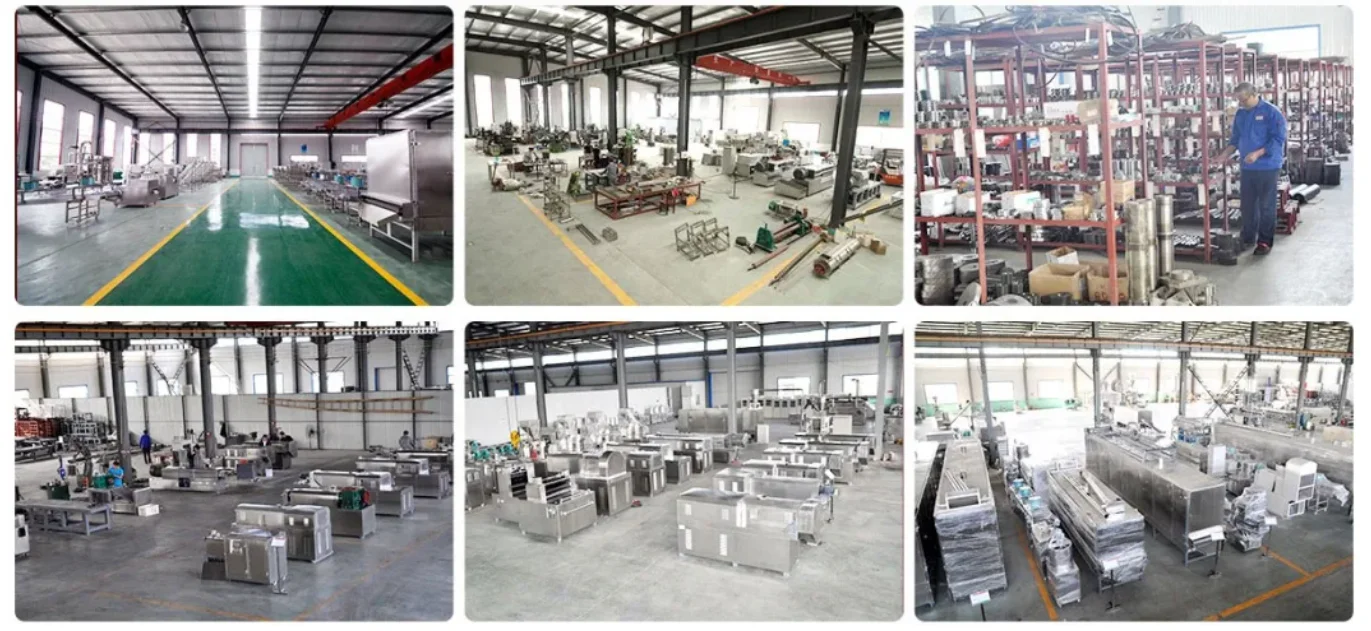

Factory Show:

1. Who are we?
We are based in Shandong, China, start from 2017,sell to Domestic Market(50.00%),Southeast Asia(12.00%),Africa(8.00%),Mid East(7.00%),South America(7.00%),Eastern Europe(6.00%),Eastern Asia(5.00%),South Asia(5.00%). There are total about 51-100 people in our office.



2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3.What can you buy from us?
Fish Feed Making Machine,Pasta Macaroni Extruder Processing Machine,Nutritional Rice Production Lin,Microwave Drying Sterilization Equipment,Pet Food Production Line



4. Why should you buy from us not from other suppliers?
1 Good quality control
2Highly competitive prices
3 Prompt delivery
4 smooth communication
5 OEM &ODM service



5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW;

Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese

6. How long is your delivery time?

Generally the delivery time is 10 - 20 working days after receiving the deposit. But the exact delivery time will depend on your quantity and your ordering time.

7. Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

8. Warranty period?
Within one year.

If you are intrested in our products, feel free to contact me.
