Product Overview
Description

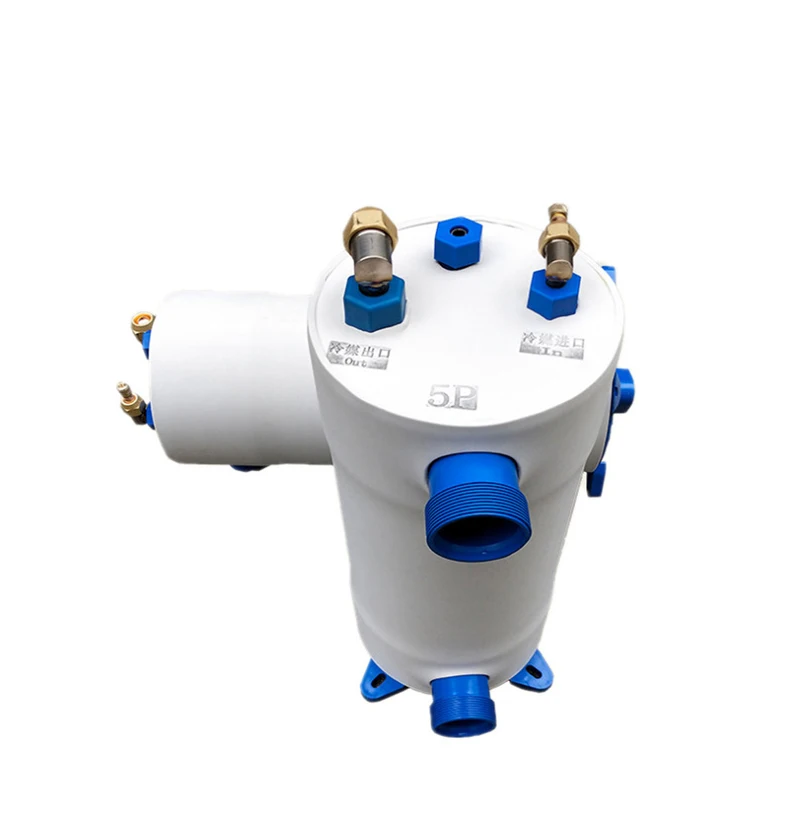

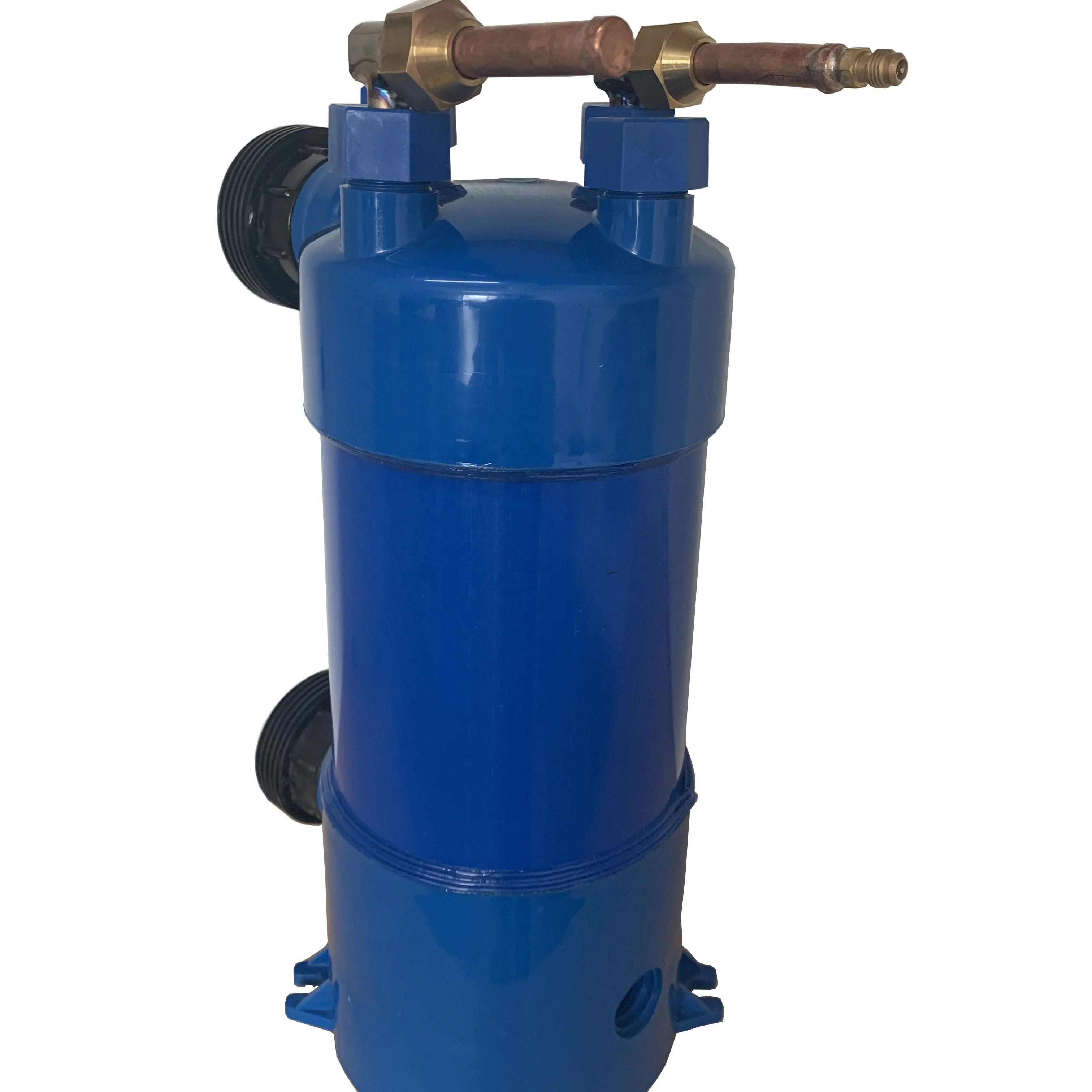

Screwed titanium tube pvc shell heat exchanger for swimming pool heat pump aquarium chiller evaporator
Product Description

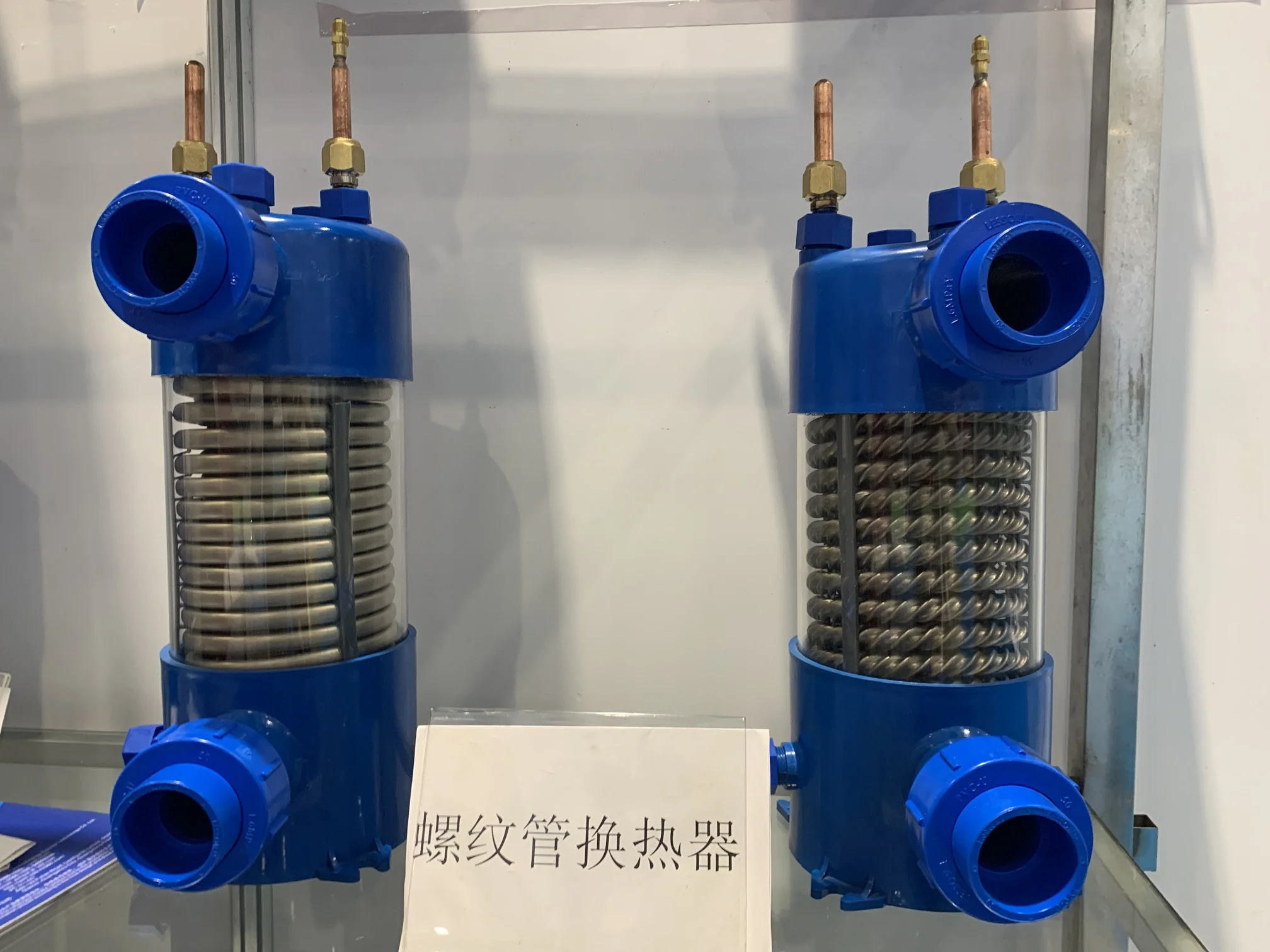

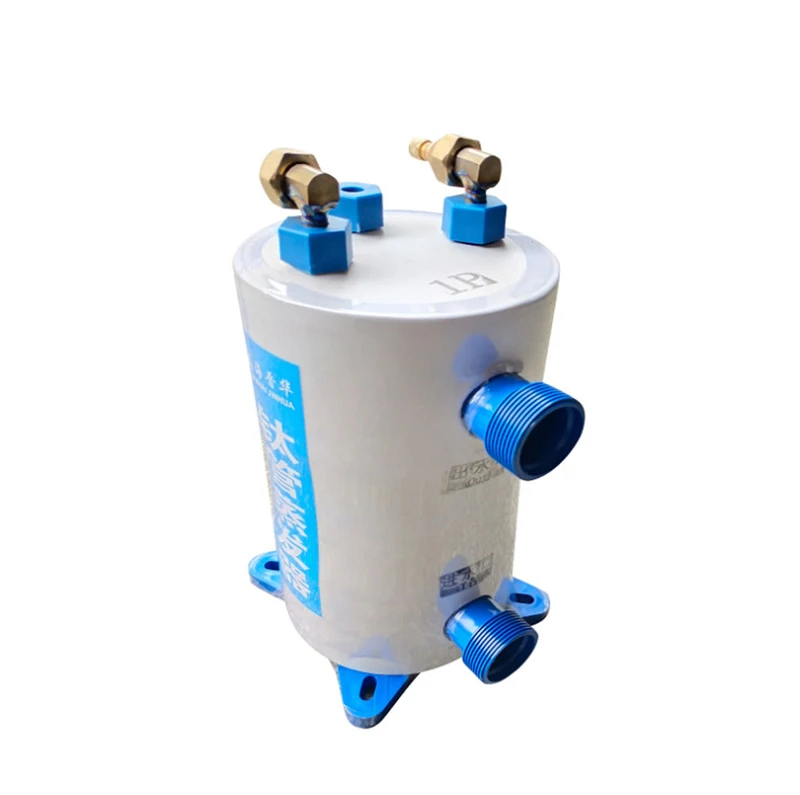

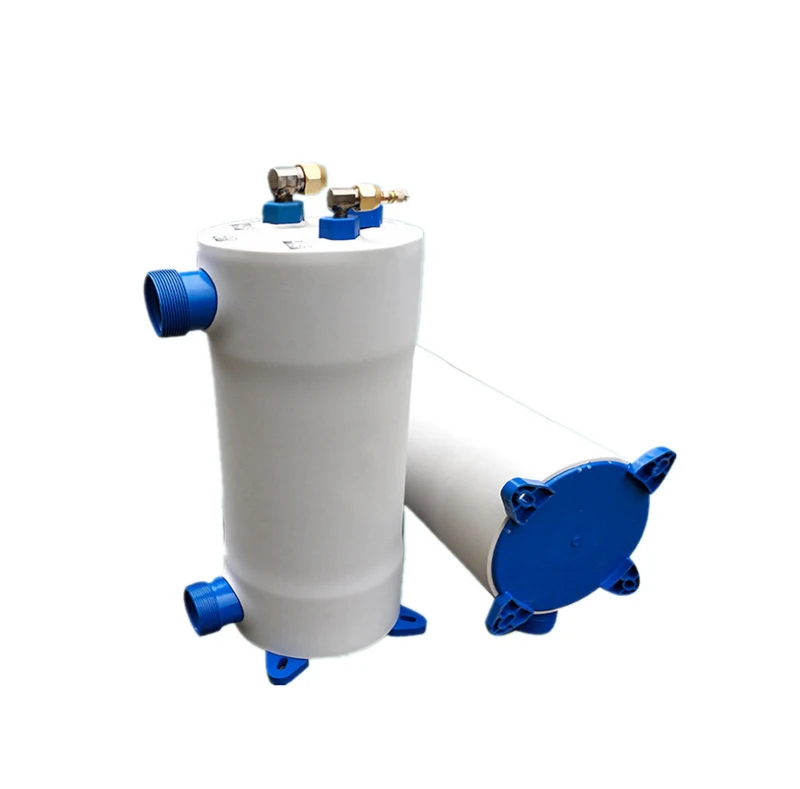

Titanium Heat Exchanger for SPA Pool Heat Pump / Aquarium Chiller
The internal heat exchanger is made of pure titanium, has a good corrosion resistance effect and high heat exchanging efficiency.
It is non-magnetic, non-toxic and can resist heating well. The outer barrel adopts injection molding with high strength plastics,
press solvents into shape.
It is non-magnetic, non-toxic and can resist heating well. The outer barrel adopts injection molding with high strength plastics,
press solvents into shape.
It has a good chemical stability and would not be influenced by environmental factors and medium composition of the pipeline.
Also it has a good corrosion resistance,low efficiency of thermal conductivity, insulation, energy-saving effect through a professional welding.

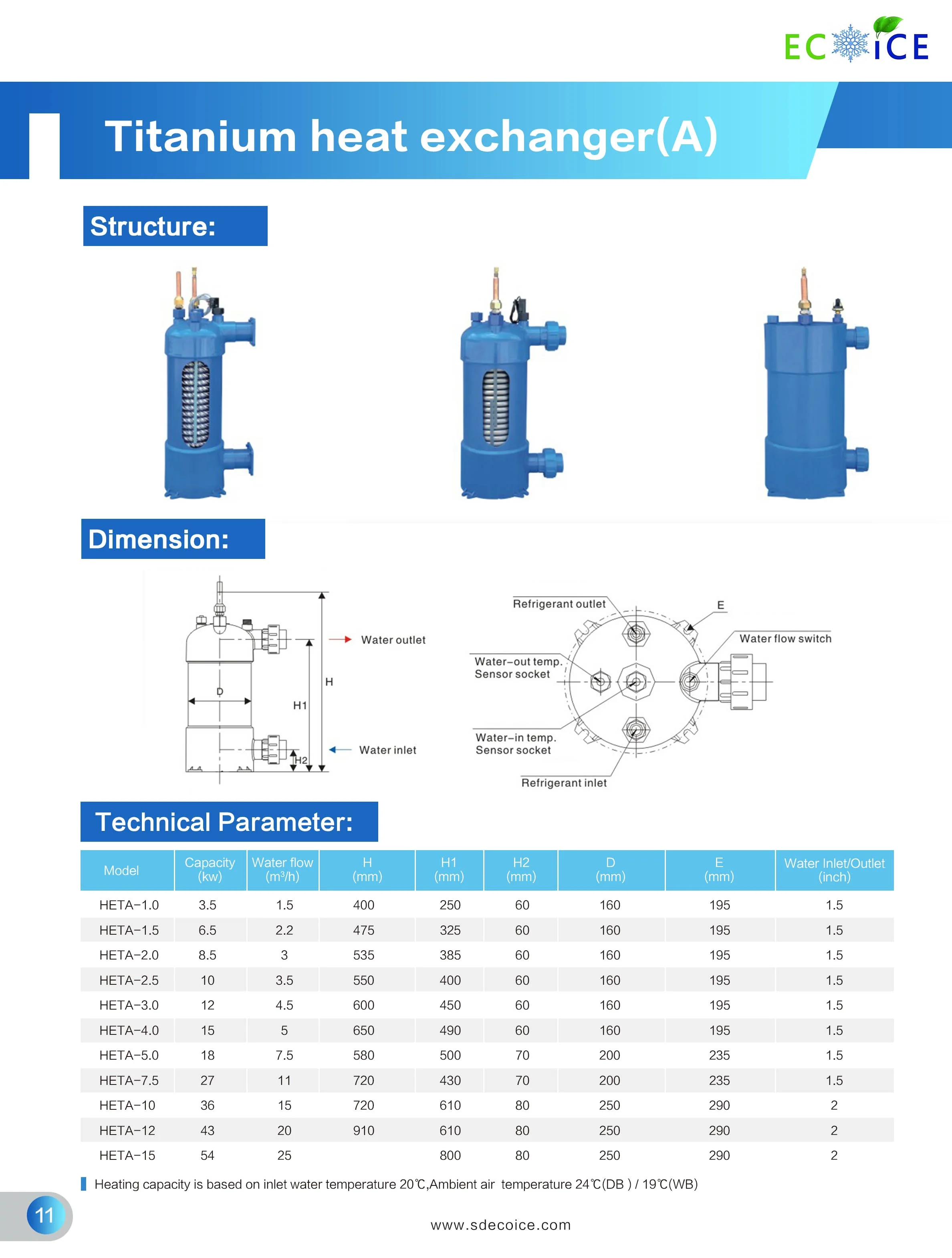

Specification
Modle | Capacity(kw) | Water flow (m3/h) | H (mm) | H1 (mm) | H2 (mm) | D (mm) | E (mm) | Water inlet &outlet (inch) |
HETA-1.0 | 3.5 | 1.5 | 400 | 250 | 60 | 160 | 195 | 1.5 |
HETA-1.5 | 6.5 | 2.2 | 475 | 325 | 60 | 160 | 195 | 1.5 |
HETA-2.0 | 8.5 | 3 | 535 | 385 | 60 | 160 | 195 | 1.5 |
HETA-2.5 | 10 | 3.5 | 550 | 400 | 60 | 160 | 195 | 1.5 |
HETA-3.0 | 12 | 4.5 | 600 | 450 | 60 | 160 | 195 | 1.5 |
HETA-4.0 | 15 | 5 | 640 | 490 | 60 | 160 | 195 | 1.5 |
HETA-5.0 | 18 | 7.5 | 650 | 500 | 70 | 200 | 235 | 1.5 |
HETA-7.5 | 27 | 11 | 580 | 430 | 70 | 200 | 235 | 1.5 |
HETA-10 | 36 | 15 | 720 | 610 | 80 | 250 | 290 | 2.0 |
HETA-12 | 43 | 20 | 720 | 610 | 80 | 250 | 290 | 2.0 |
HETA-15 | 54 | 25 | 910 | 800 | 80 | 250 | 290 | 2.0 |

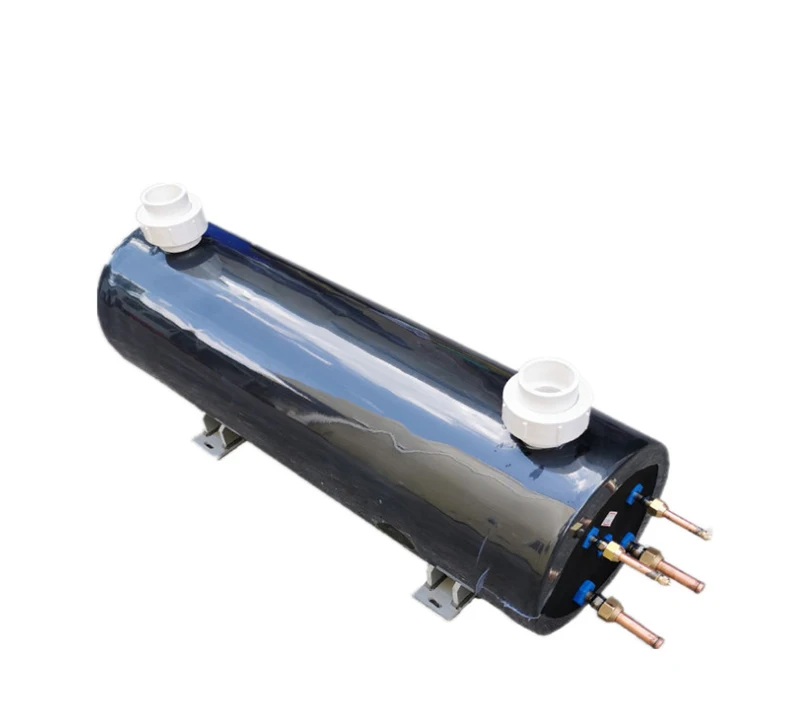

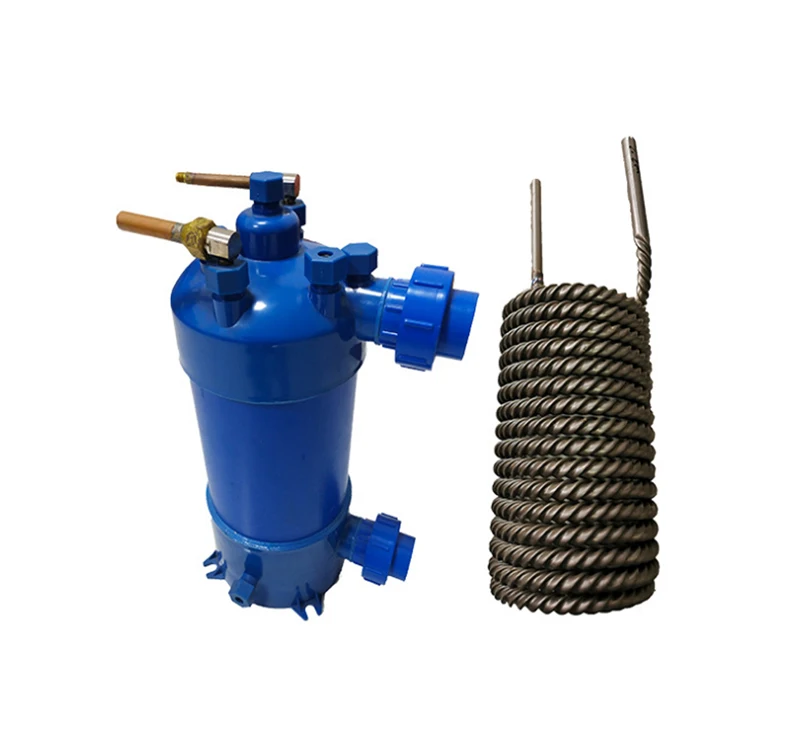

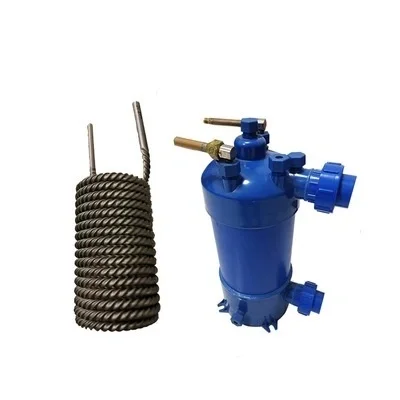

Titanium sprial tube industrial heat exchanger condenser and evaporator
1.The inner tube is the titanium or the 316L stainless steel tube spiral coil ;
2.Outer is the PVC plastic shell ;
3.Heat exchanger ending joints with the copper tub and copper cuts ;

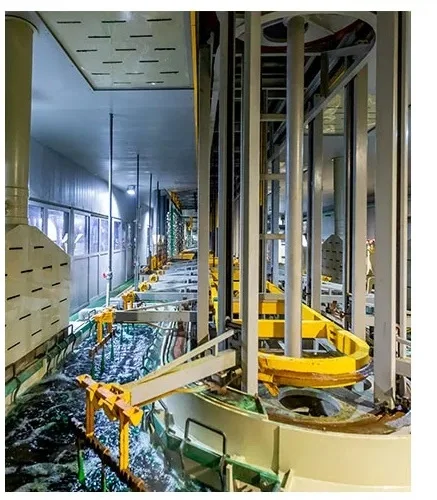

5.Titanium heat exchanger also can be used for the chemical galvanized part and fit for the acid cooling system ;
we can design by your request or produce by your drawing picture .
2.Outer is the PVC plastic shell ;
3.Heat exchanger ending joints with the copper tub and copper cuts ;
5.Titanium heat exchanger also can be used for the chemical galvanized part and fit for the acid cooling system ;
we can design by your request or produce by your drawing picture .

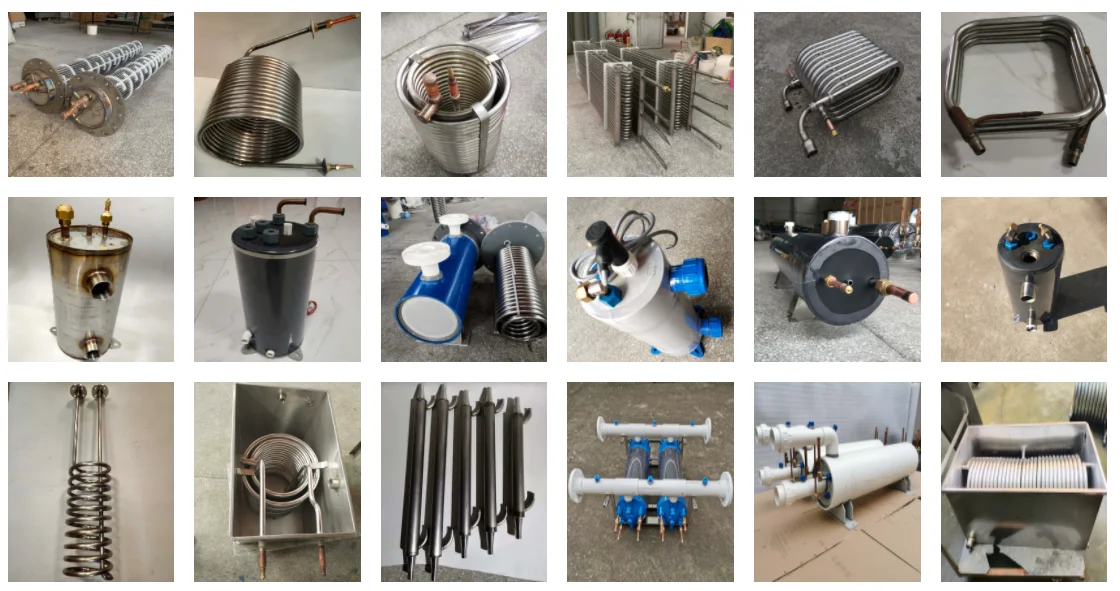

Recommend Products
1. Coaxial Coil Heat Exchanger , heat pump Condenser , chiller evaporator 3HP/5HP/7HP
2. PVC Shell Titanium Tube Heat Exchanger for Heat Pump ,1/8hp-60hp
3. SS316L Tube Coil With 316L Shell Heat Exchanger for Chemical Industry
4. Water To Water Heat Exchanger for Water Heat Recovery
5. Immersion Coil Heat Exchanger , dipped in seafood ,electroplate pool or tank cooling . Customized shape ,0.5HP to 60HP ;
6. Titanium Heat Exchanger for Laser Machine and Aquarium Chiller ;
7. Swimming Pool Heat Pump Heat Exchangers .
8. Tubular Heat Exchanger
3. SS316L Tube Coil With 316L Shell Heat Exchanger for Chemical Industry
4. Water To Water Heat Exchanger for Water Heat Recovery
5. Immersion Coil Heat Exchanger , dipped in seafood ,electroplate pool or tank cooling . Customized shape ,0.5HP to 60HP ;
6. Titanium Heat Exchanger for Laser Machine and Aquarium Chiller ;
7. Swimming Pool Heat Pump Heat Exchangers .
8. Tubular Heat Exchanger

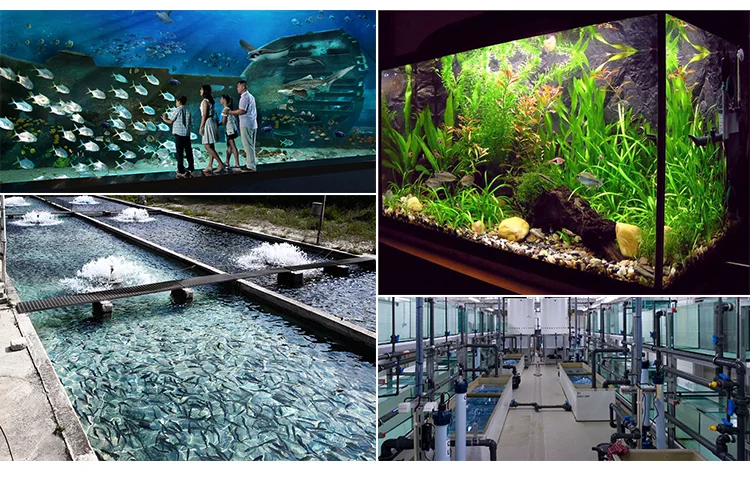

Application
Packing & Delivery

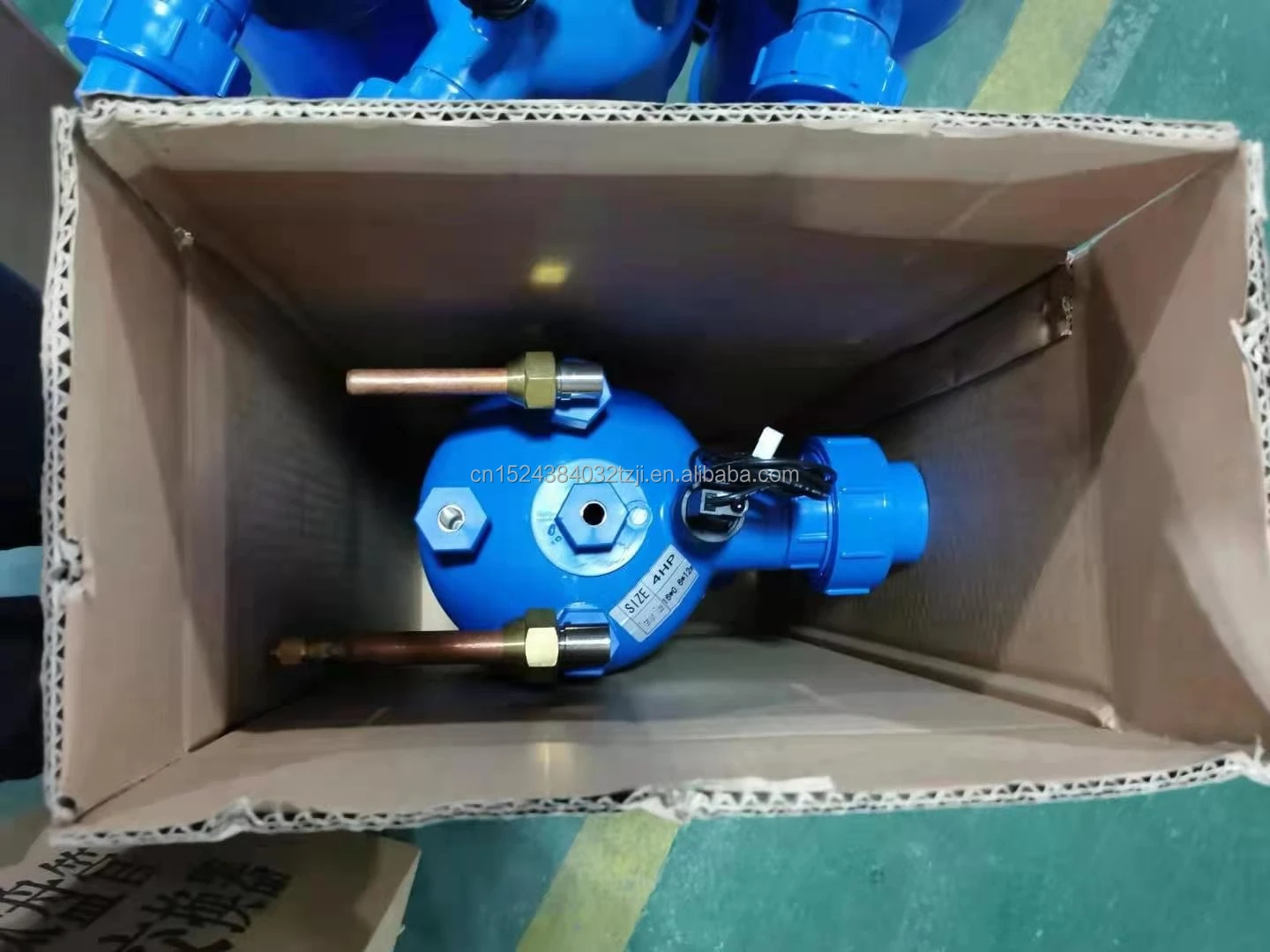

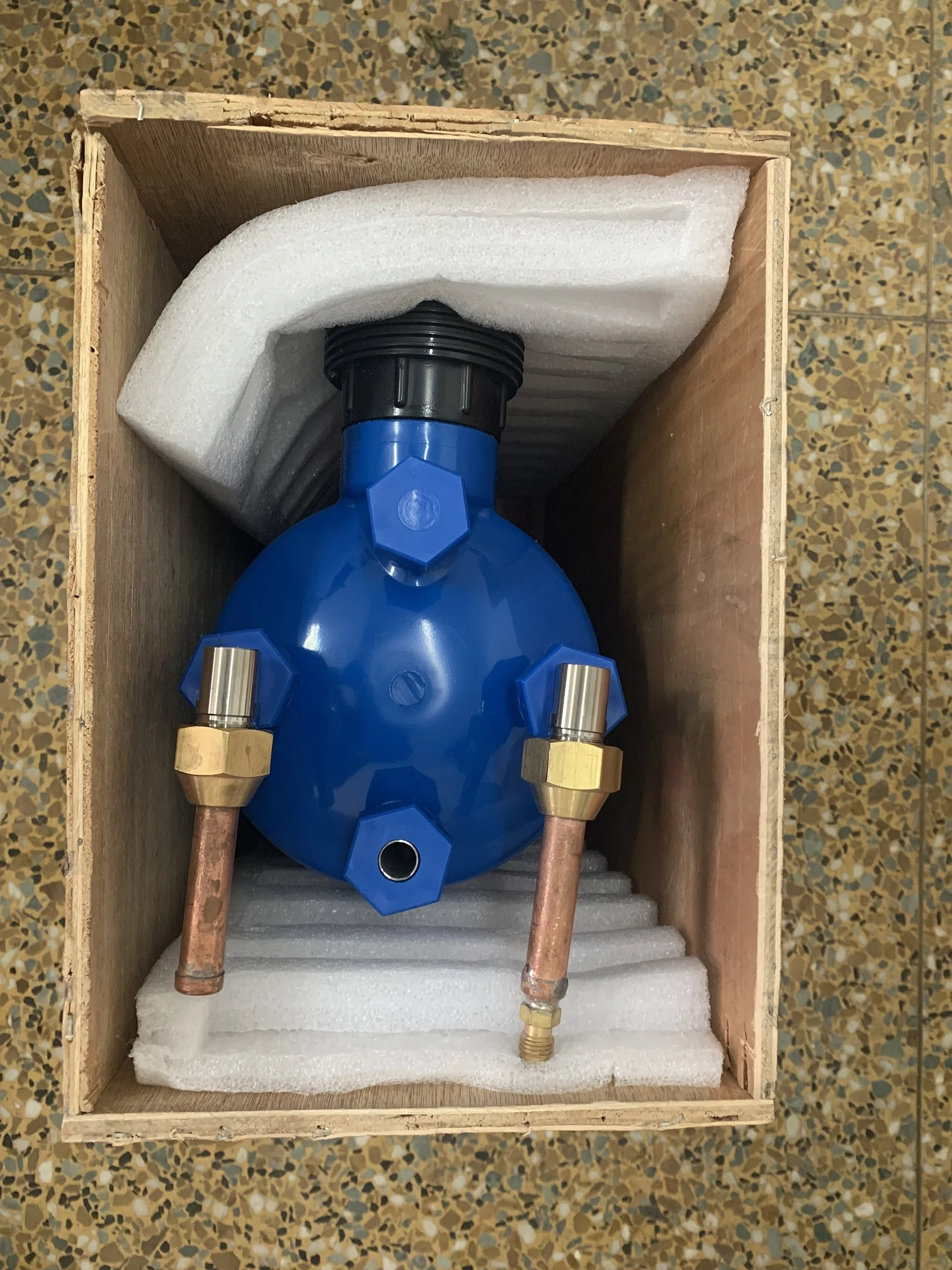

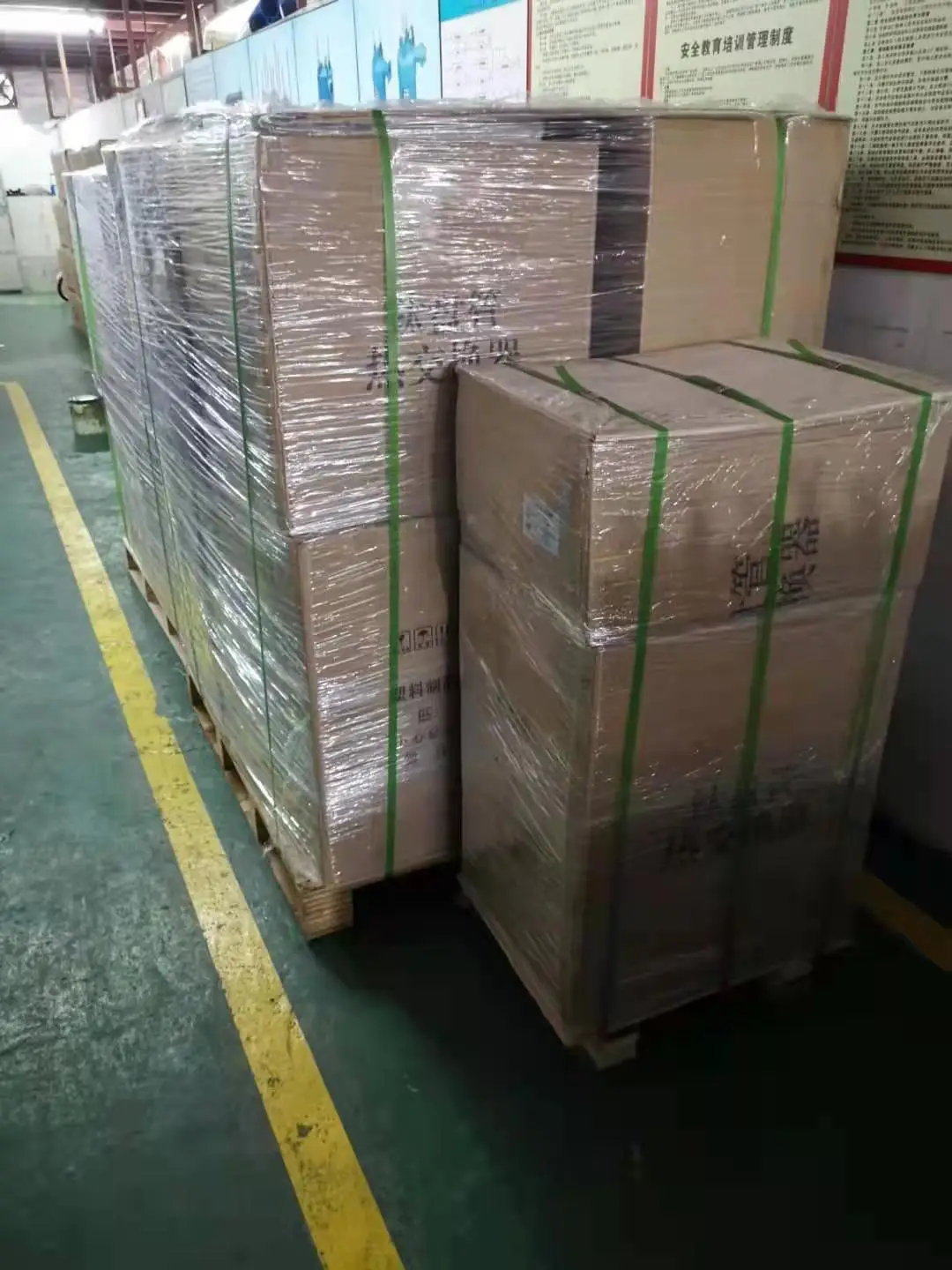

Titanium Heat Exchangers are packed by wooden case / carton and pallets .
Company Profile
ShanDong EcoIce Refrigeration Co., Ltd is specialized in manufacturing flake ice machine, heat exchanger,quick freezer , seafood process machines and water chiller in China.
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS and UL certificate.
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS and UL certificate.
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.
Low Price Titanium Evaporator Titanium Tube PVC Shell for Aquarium Chiller heat exchanger
